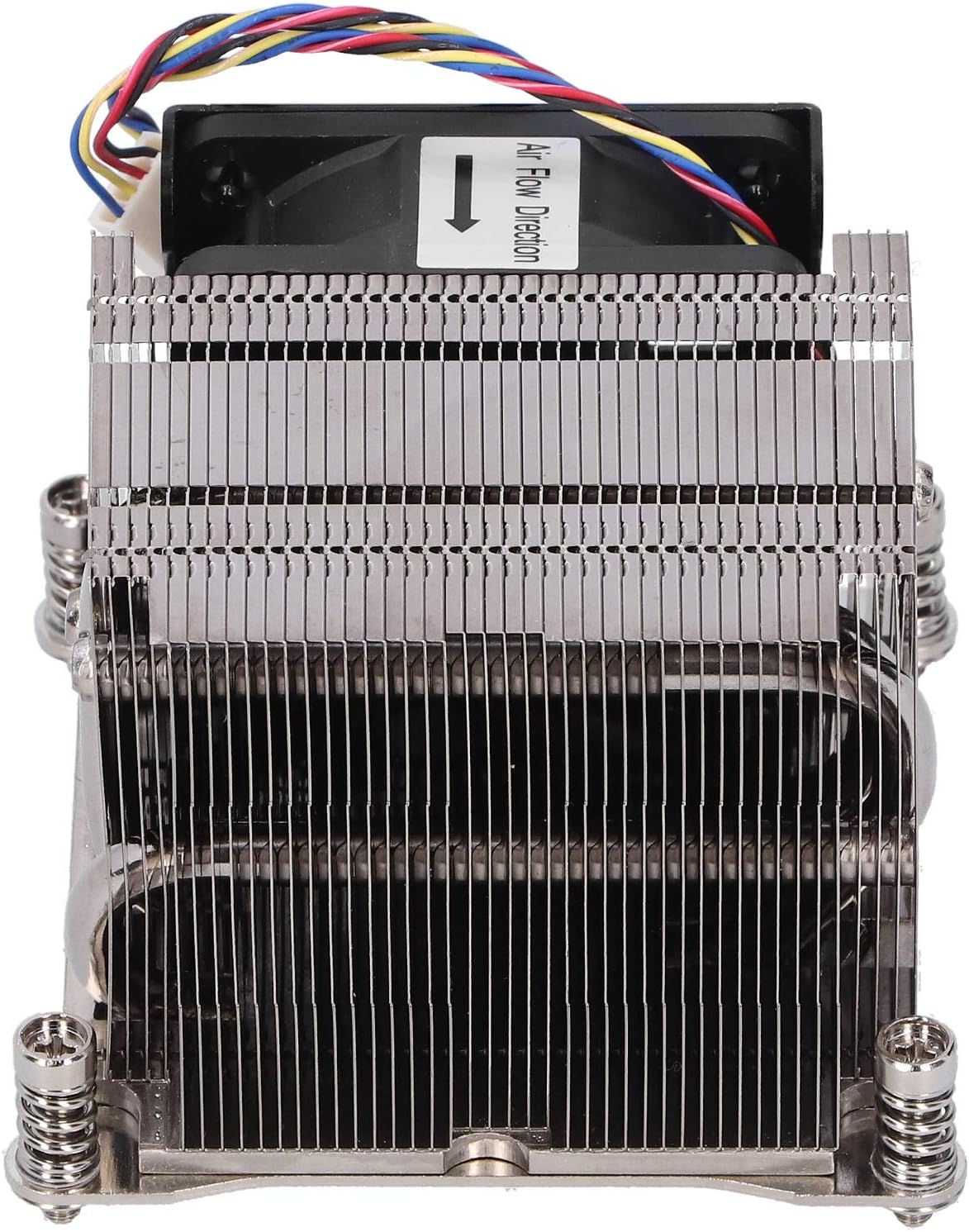

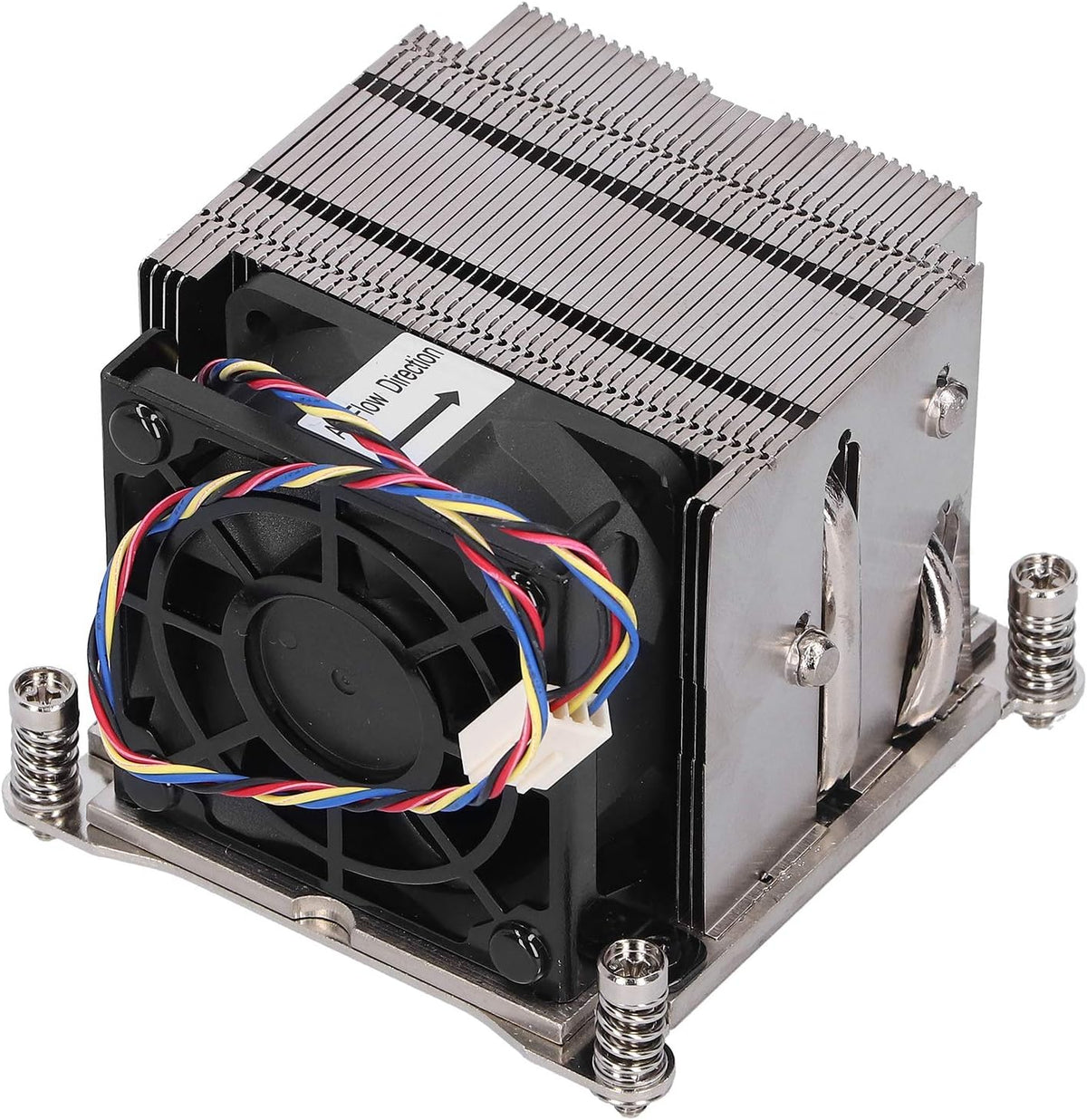

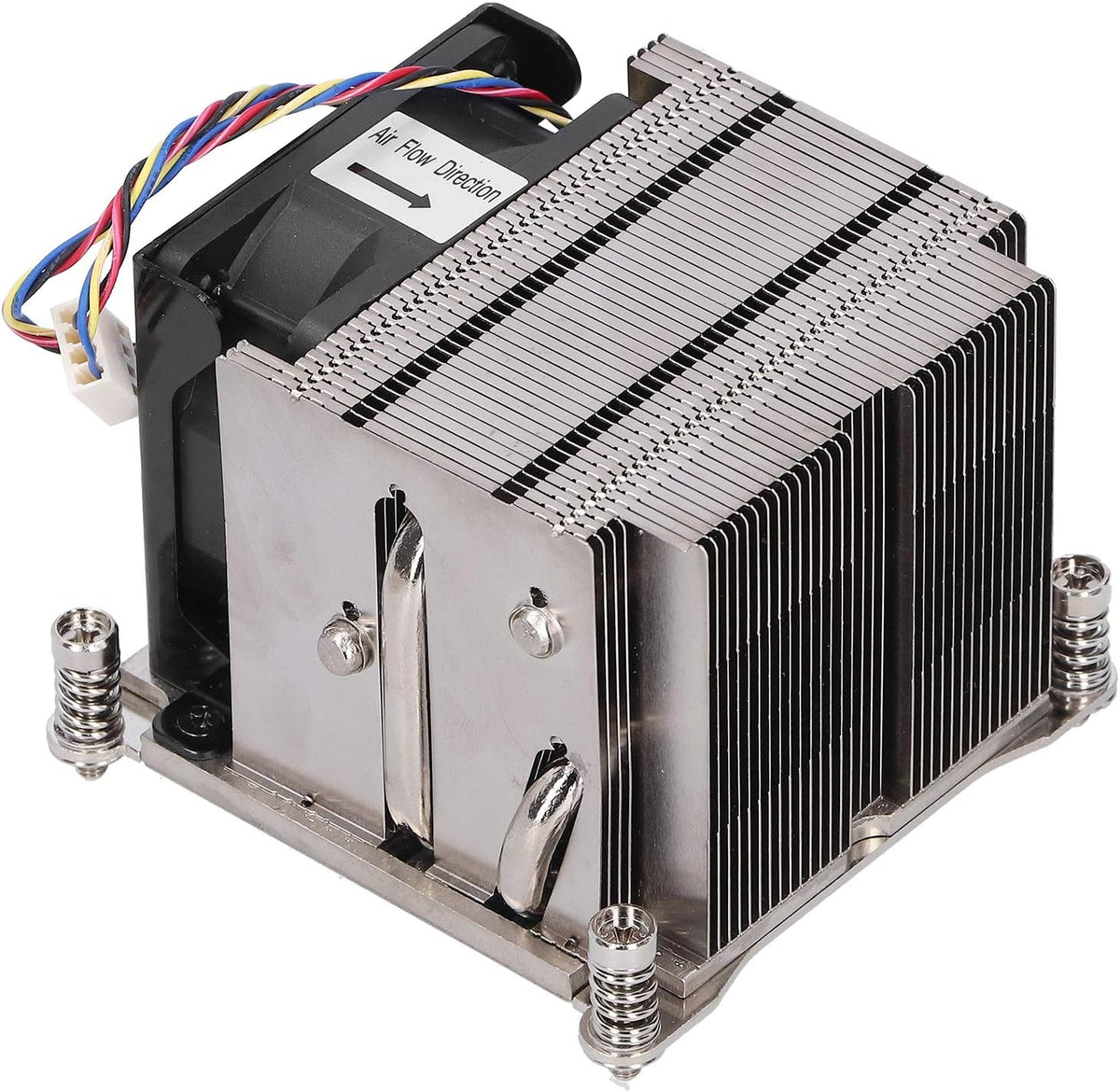

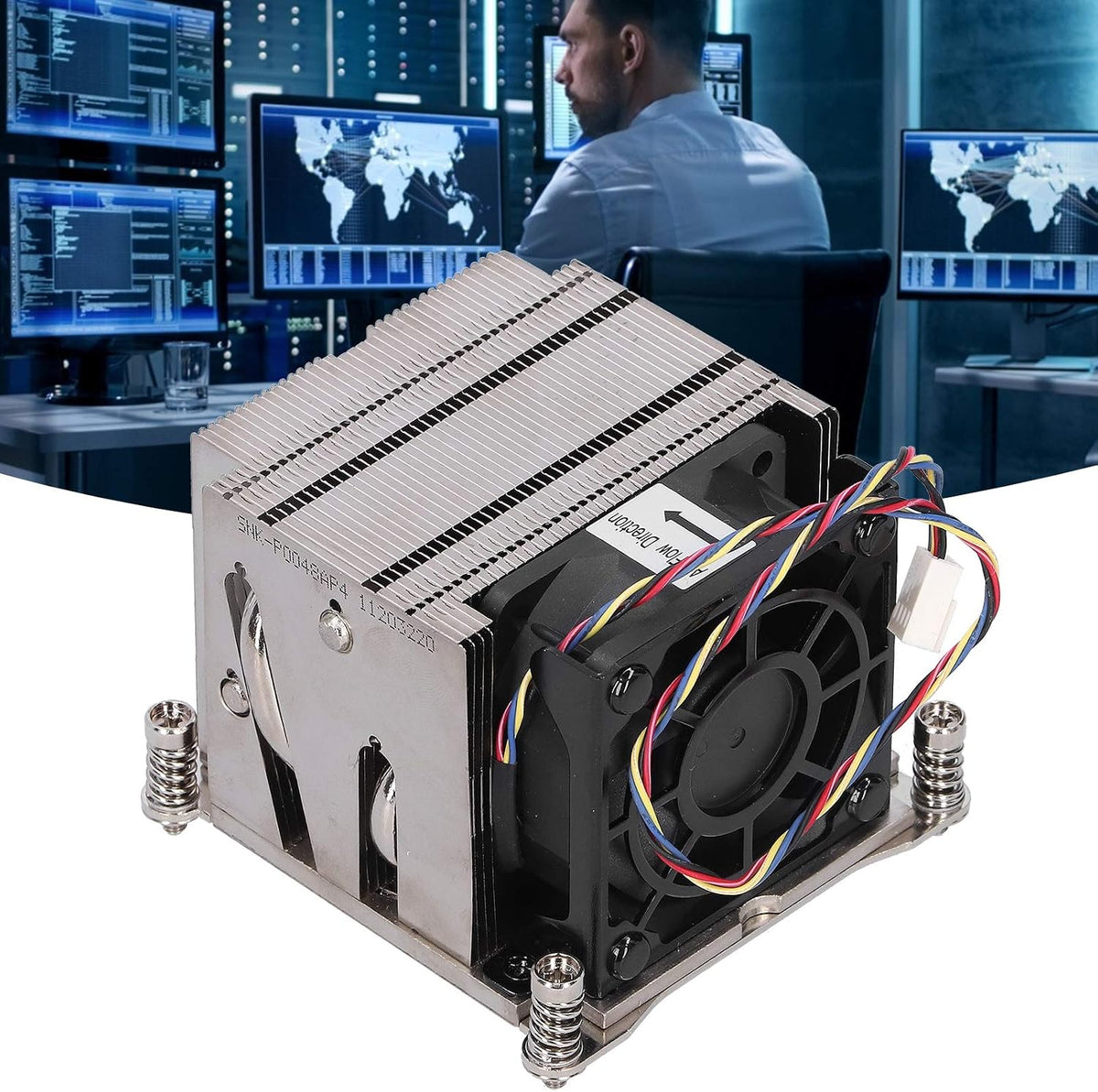

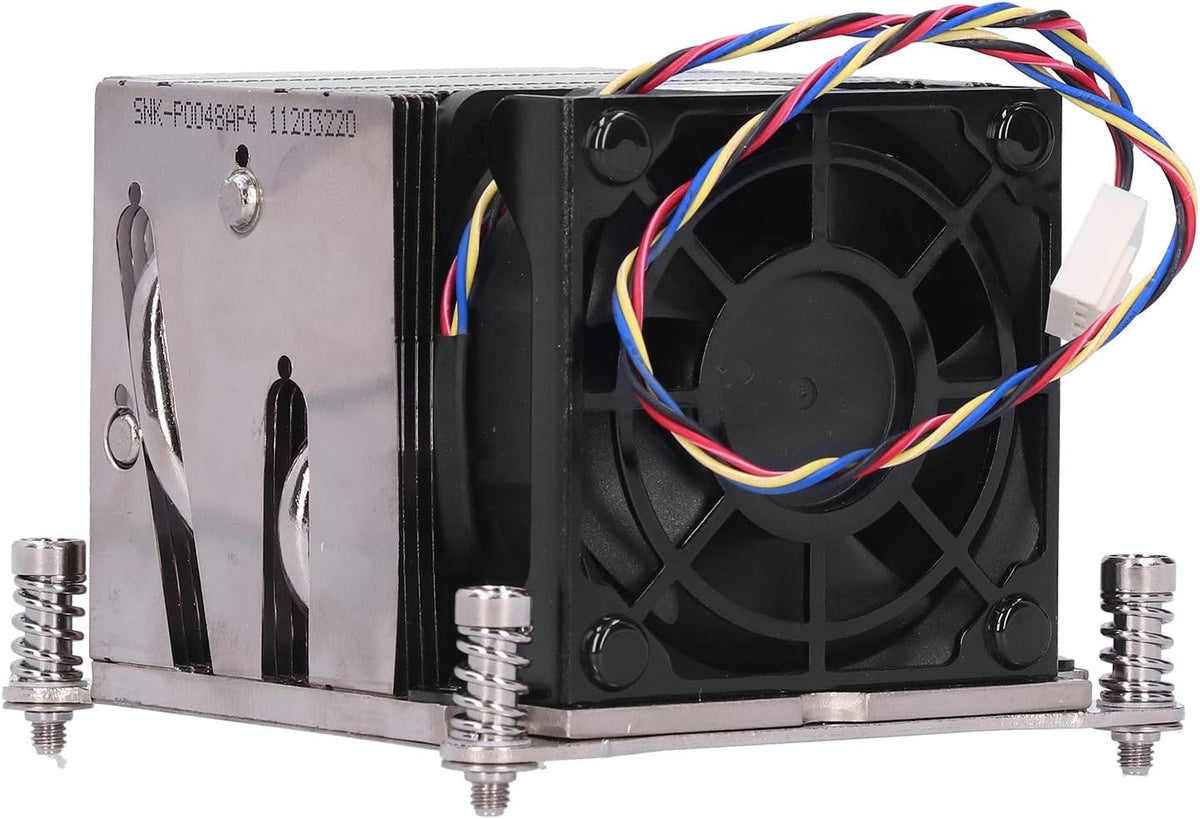

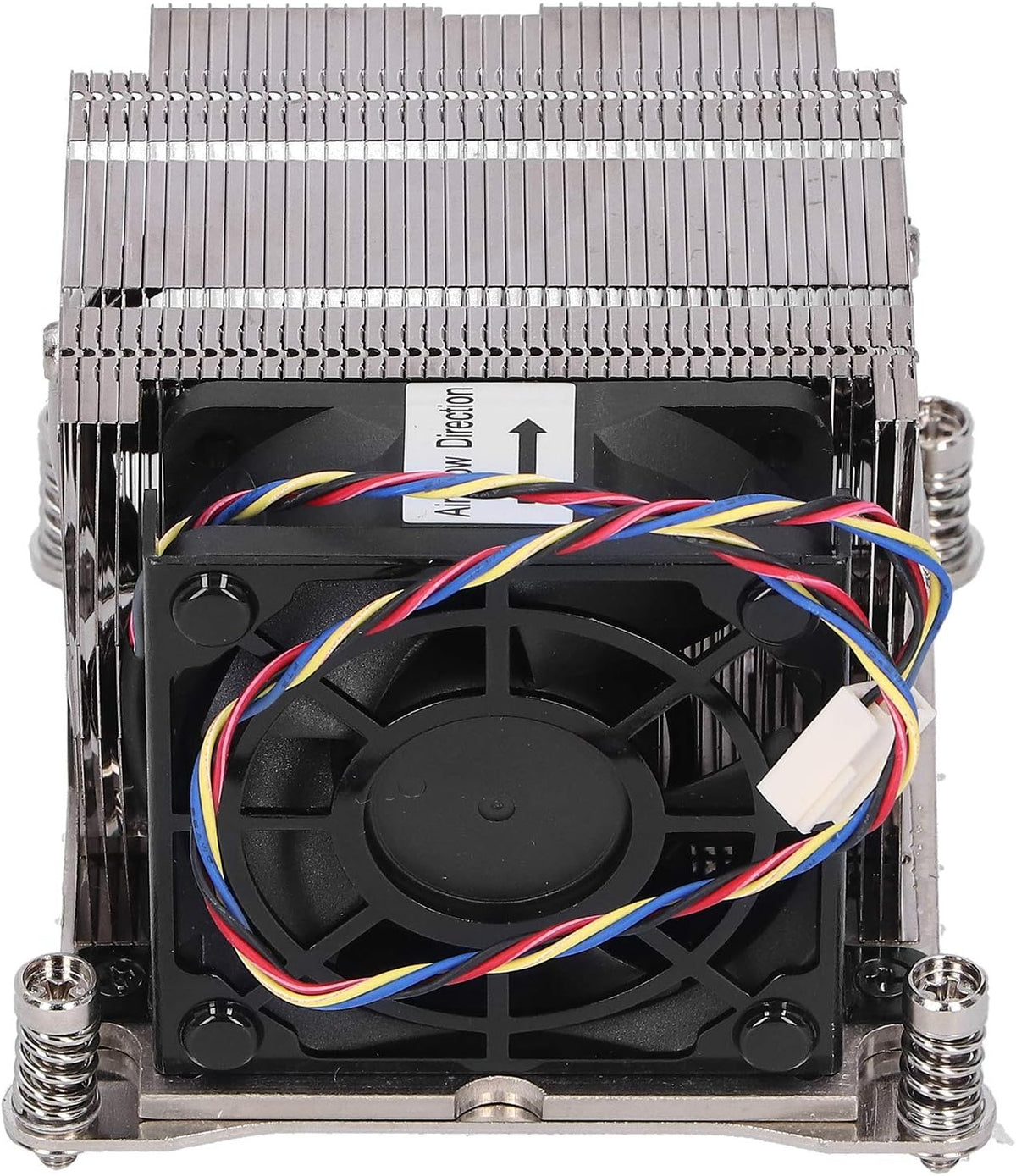

P0048AP4 CPU Heat Sink 2U Active Computer Cooling Fan for Socket LGA2011 /Narrow ILM

Key features

• ➤ This CPU heat sink cooling fan supports for Socket LGA2011 /Narrow ILM.
• ➤ Compatible for Xeon processor E5 2600 series/E5 2600 v2 and E5 2600 v3 series.
• ➤ The fan speed is 1 x 8400 RPM, and the heat dissipation speed is fast to keep the system running stably.
• ➤ Complete tools, you can operate it yourself, suitable for DIY enthusiasts.
• ➤ Small size, easy to carry and store, convenient to use and with good performance.

Specification: Item Type: CPU Heat Sink Model: P0048AP4 CPU Socket Compatibility: FCLGA2011 ( and narrowband ILM) Speed: 8400 rpm Power Connector: 4 pin PWM Colour: Black Heat Sink Fan Installation Type: Horizontal Maximum CPU Heat Sink Height: Approx. 65mm / 2.6in Height: Approx. 65mm / 2.6in Width: Approx. 80mm / 3.1in Depth: Approx. 85mm / 3.3in Compatibility: Support for Xeon processor for E5 2600/E5 2600 v2/E5 2600 v3 series How to Use: 1. Take out the cooling fan from the package, support for Socket LGA2011 (Socket R) and narrow independent loading mechanism (ILM). Before installing the heat sink, please check that the motherboard is equipped with ILM. 2. By default, the ILM mounting bracket has been pre installed on the bottom of the radiator. If the motherboard is equipped with a narrow ILM, follow the instructions in Figure 1 to replace the default ILM mounting bracket with a narrow ILM mounting bracket. 3. Remove the protective cover of the thermal interface material (TIM). The required amount has been pre applied on the bottom of the heat sink. Check if the pre coated TIM is damaged 4. Place the heat sink directly on upper of the CPU so that the four heat sink mounting
