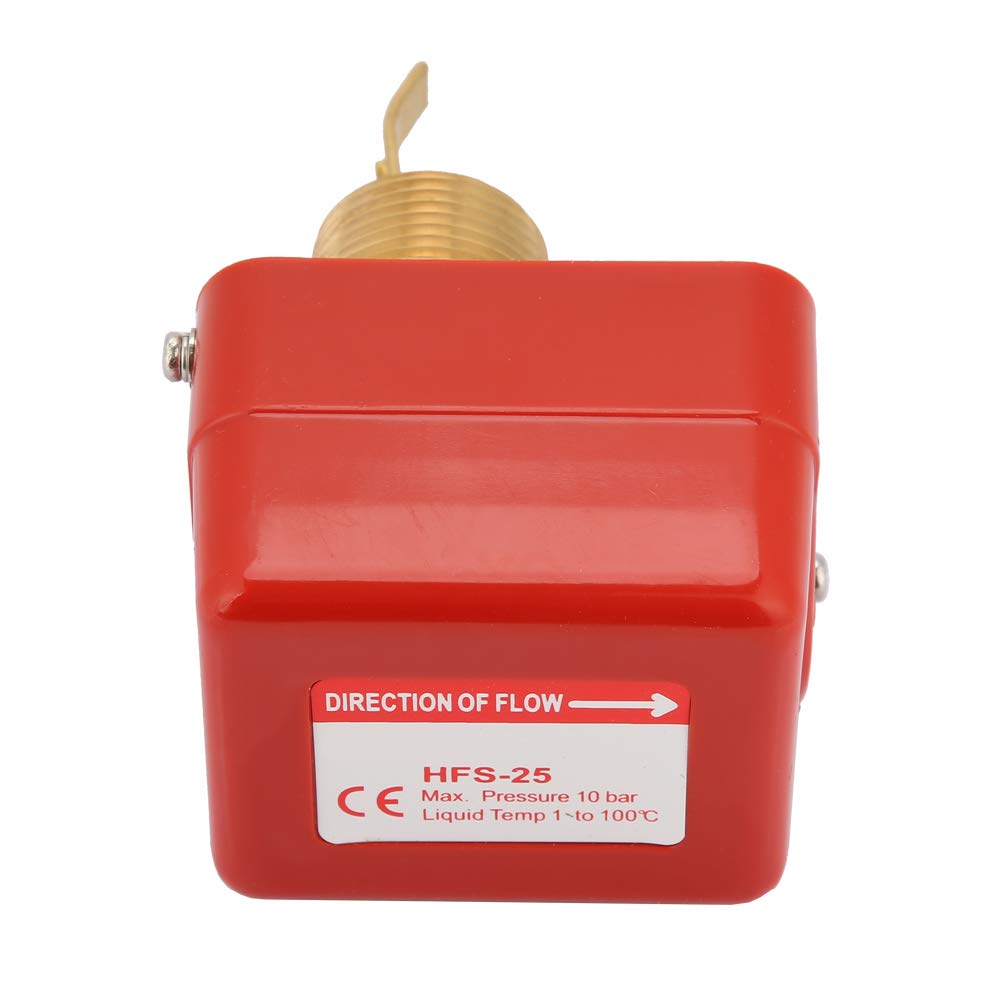

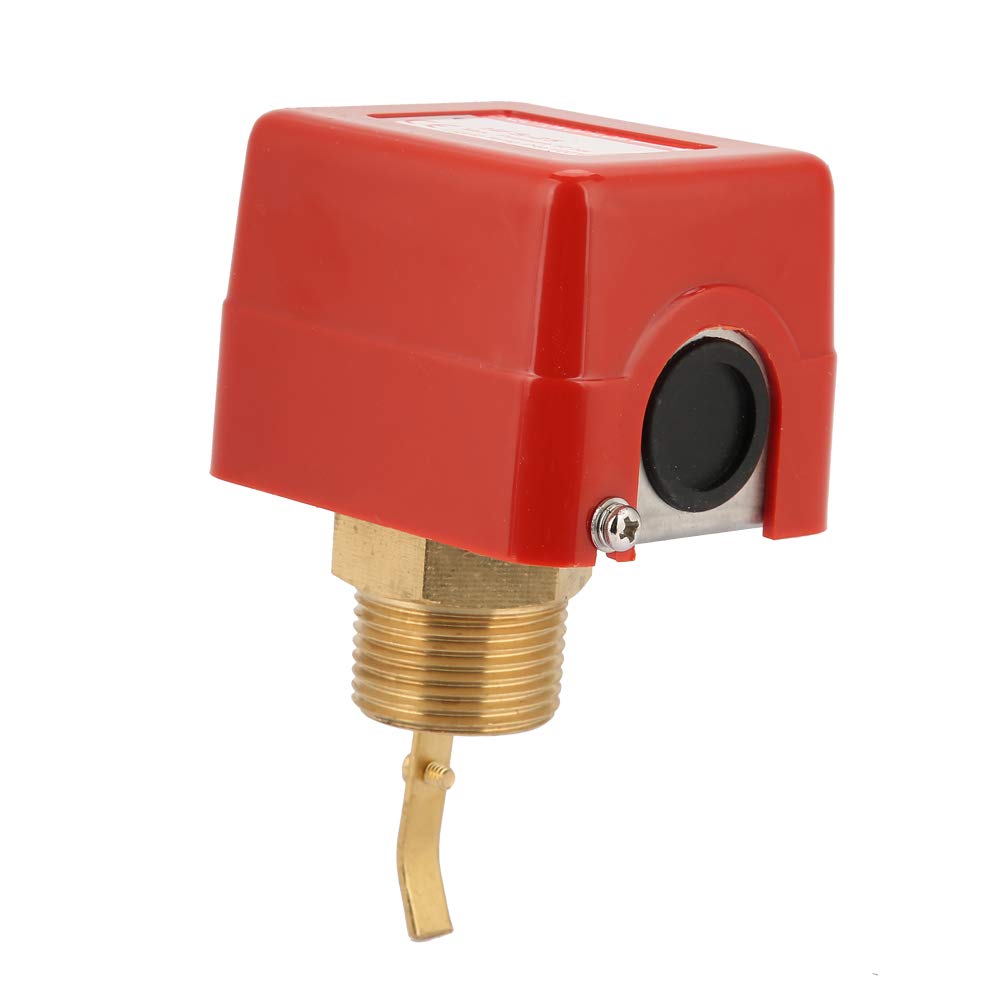

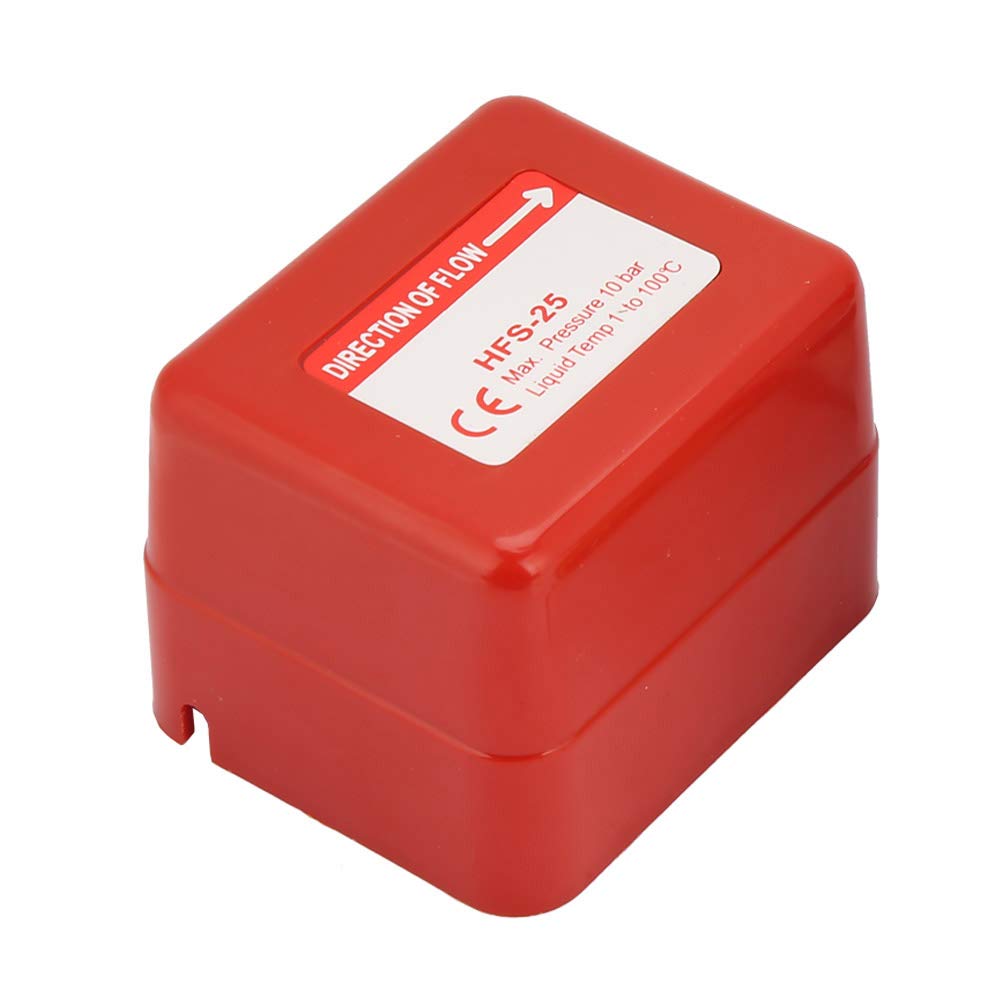

Paddle Flow Switch 1" DN25 Stainless Steel SPDT Contact

Key features

• DYNAMIC LIQUID MEASUREMENT: Our paddle control waterflow switch is designed to accurately measure the dynamic state of liquid flowing through pipelines, suitable for water, ethylene, and other liquids that have no corrosive effect on copper. Keep track of your liquid with precision and ease
• VERSATILE APPLICATIONS: For use in water treatment systems, central air conditioning units, and water cooling systems, our 6-380V paddle control switch is a versatile solution for various industries. Trust in its capabilities to meet your liquid monitoring requirements with ease and efficiency
• AUTOMATIC RATE CONTROL: When the rate exceeds the set value, the fluid activates the blade and micro switch. The SPDT efficiently connects one circuit while disconnecting another, allowing for seamless rate control and monitoring
• ADJUSTABLE CONTROL WITH STABLE REPEAT ACTION: Enjoy the flexibility of adjustable control with our 1inch thread paddle type automatic control sensor switch. The repeat action point remains stable, ensuring consistent and for your liquid management needs
• HIGH PERFORMANCE: With an IP54 grade and a microswitch life of up to 100,000 times, our paddle type liquid water oil sensor switch is built to last. Experience lasting durability and dependable performance for your applications

Specification: Model: HFS-25 Voltage: 6-380V Control mode: Paddle Switch type: SPDT Material: 304 stainless steel body, copper connector, phosphor bronze bellows Connector: 1 / 25mm . working pressure: 1.0MPa Ambient temperature: 0~60℃ Liquid temperature: -10~100℃(Fluid without icing) life: 1000000 times Microswitch Voltage: 220VAC Microswitch Current: 15A Weight: Approx.416g/ 14.7oz Package List: 1 * Water Switch 5 * Paddle 1 * User manual Installation method: 1. Open the switch 2. The switch has been set at minimum rate. Turn the adjusting screw counterclockwise to increase the setting value. 3. Press the target to check whether the micro switch can work normally. Excessive clockwise rotation of the adjusting screw may leadto the failure of the switch. 4. After the installation, please press the lever of the switch several times to check. If there is no click sound, turn the adjusting screw counterclockwise until there is click sound. 5. The adjustment screw of lacquer seal is only used for the first time to adjust the state of switch. Please do not change or adjust it. 6. Observe three operating cycles to ensure that the switch and the system to which it is connected are opera
