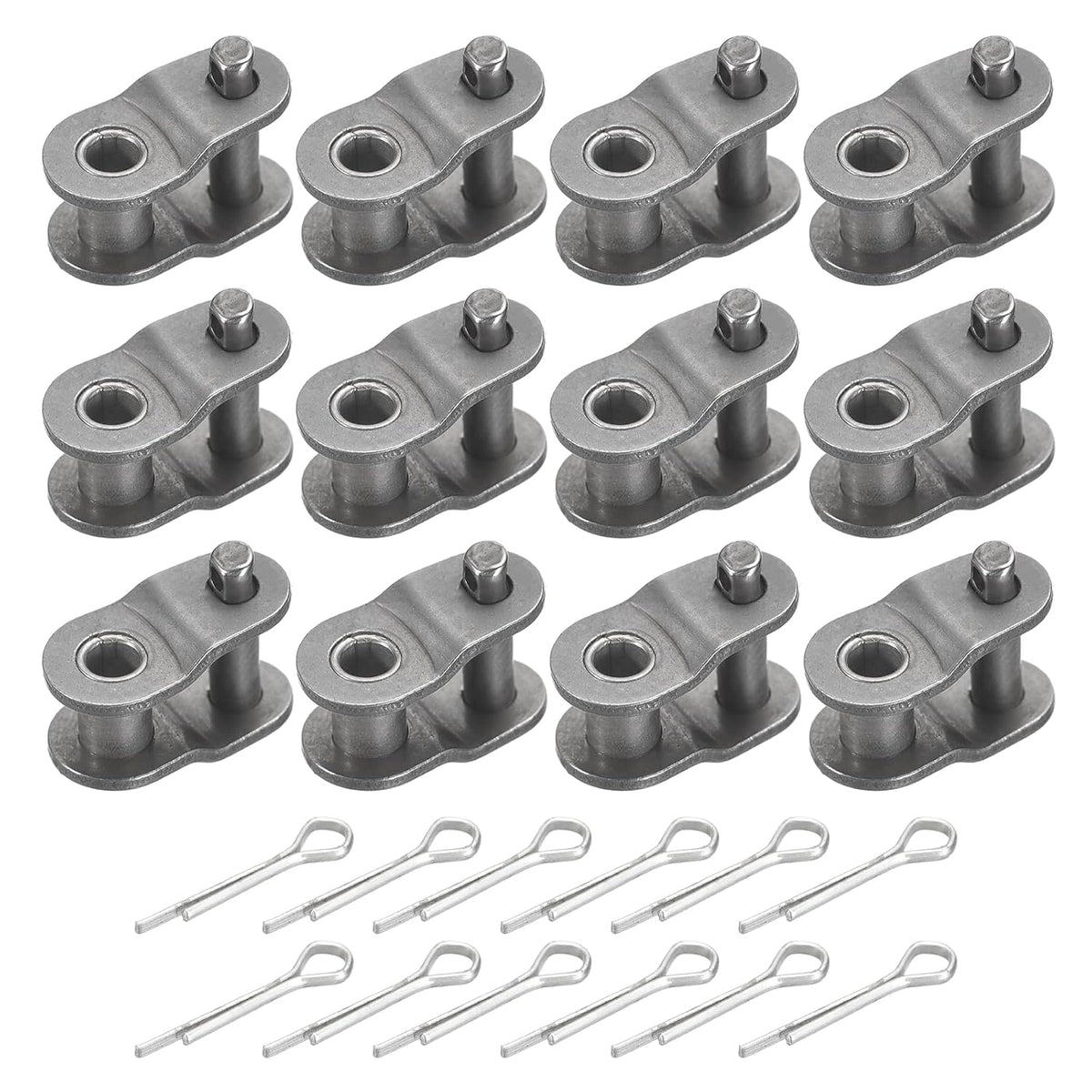

PATIKIL 12Pcs #25 Roller Chain Offset Link Half Links for 04C Chain

Key features

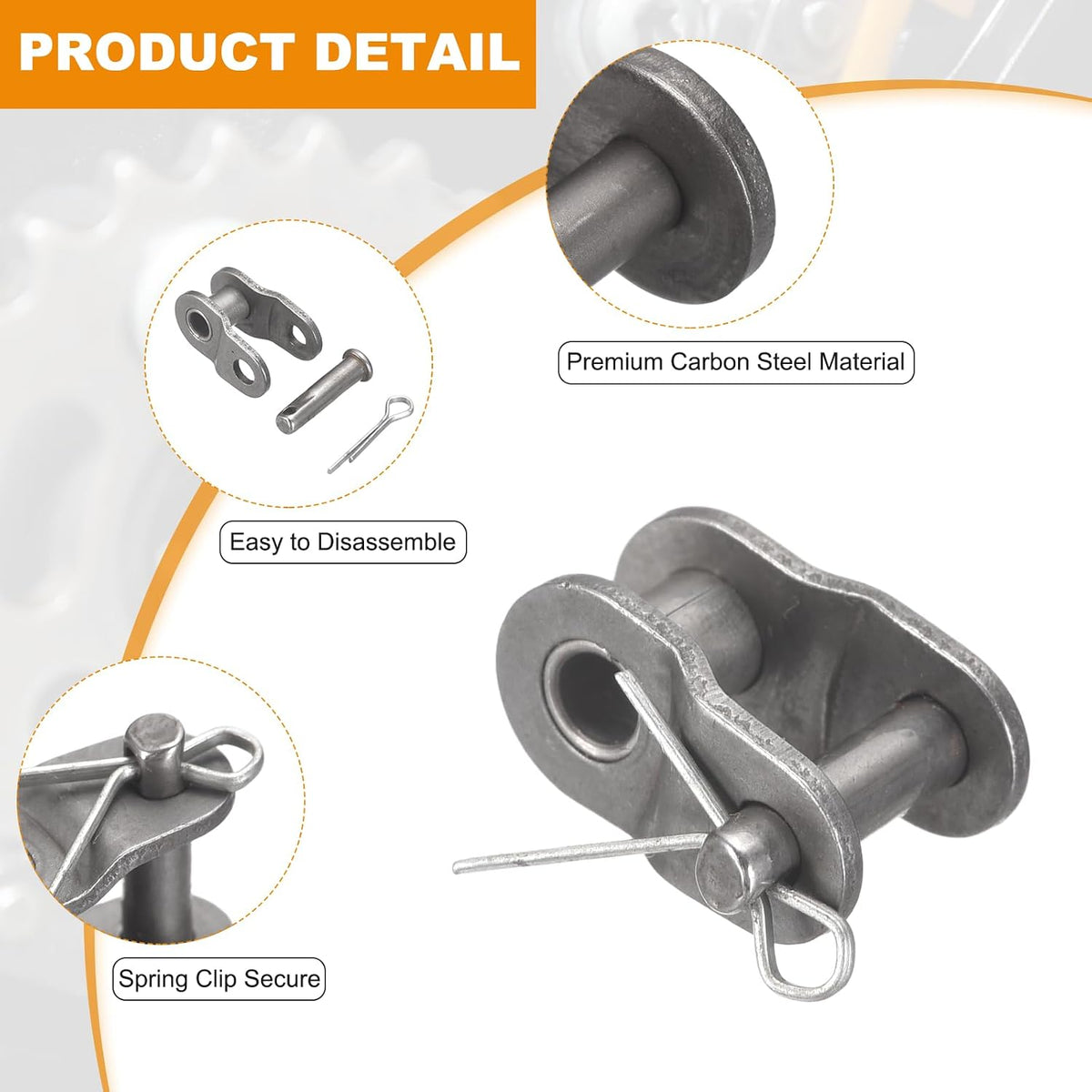

• Reasons for Selection - Roll chain connecting link are capable of supporting and bearing the expected loads, helping align the chain components. Crank link is made of high-strength carbon steel, providing excellent corrosion resistance and durability to ensure reliable operation even under repeated stress and high loads.

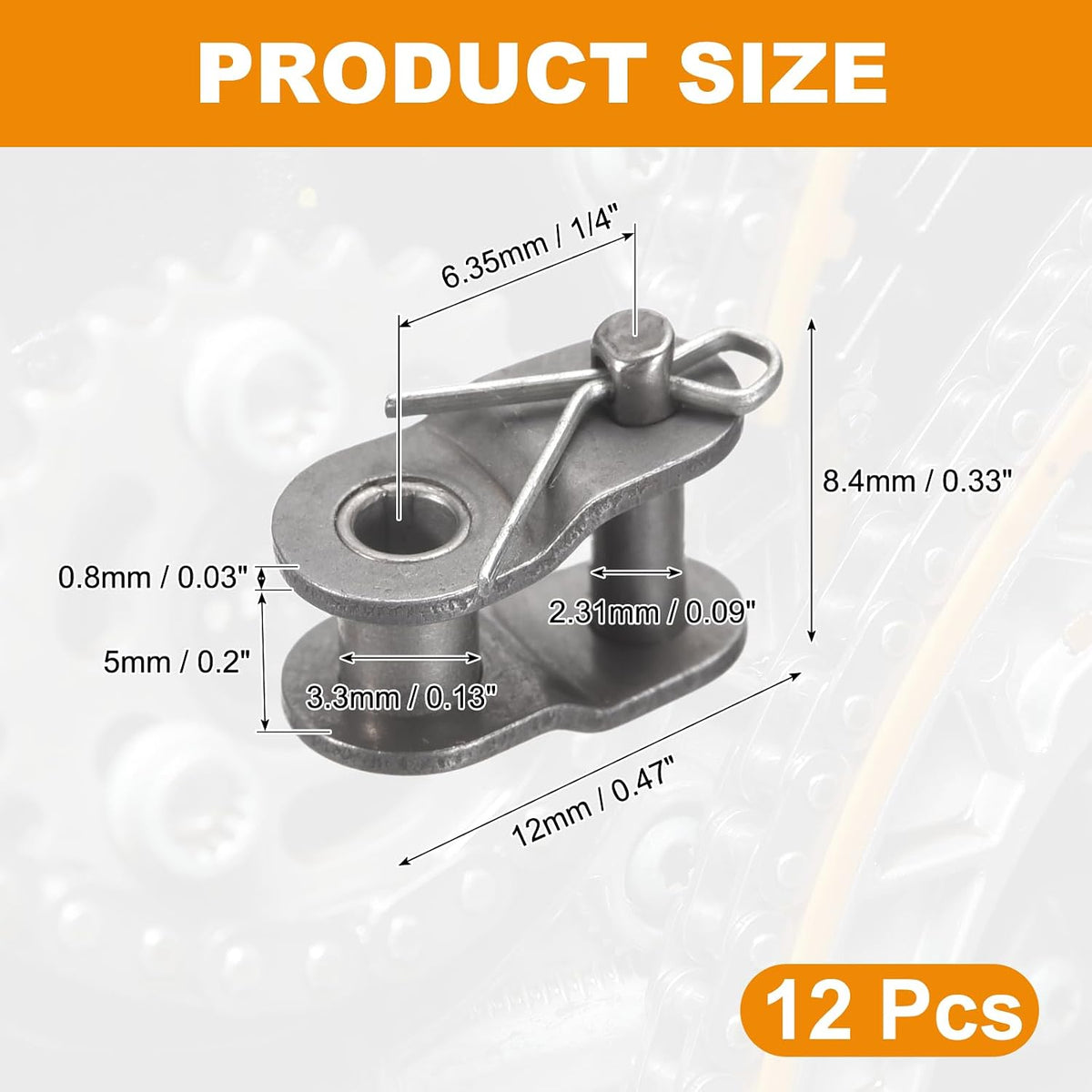

• Measurement - Chain Pitch: 6.35mm / 0.25"; Pin Diameter: 2.31mm / 0.09"; 3.3mm / 0.13"; Pin Length: 8.4mm / 0.33"; Chain Plate Thickness: 0.8mm / 0.03"; Total Length: 12mm / 0.47"; Inner Chain Plate Height: 5mm / 0.2"; Package List: 12 Pcs x Roller Chains Crank Links
• Suitable For - Master crank connector is designed for connecting or repairing roller chains, which is well-suited for bicycles, motorcycles, go-karts, industrial and agricultural machinery, conveyor systems, agricultural equipment and other applications requiring that require chain drives.

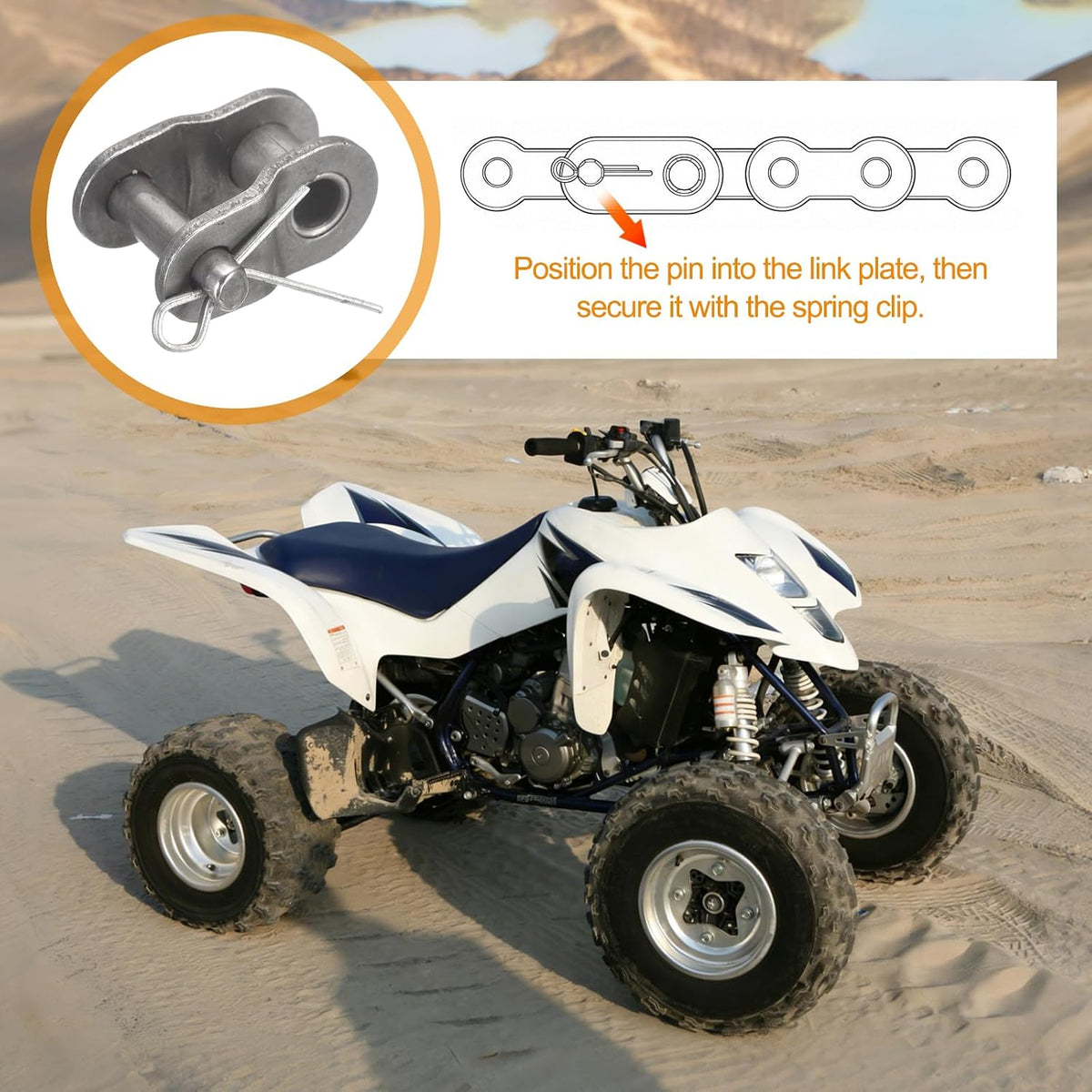

• Installation - Position the pin into the link plate, then secure it with the spring clip. Always verify that the clip is properly seated and the link moves freely after installation.
• Kind Tips - To ensure safe operation, confirm that the chain pitch matches your existing chain before installation. Periodically inspect the links for signs of wear, deformation or corrosion, especially in high-load or high-speed applications. Regular cleaning and lubrication of the links will extend their service life.

Reasons for Selection - Roll chain connecting link are capable of supporting and bearing the expected loads, helping align the chain components. Crank link is made of high-strength carbon steel, providing excellent corrosion resistance and durability to ensure reliable operation even under repeated stress and high loads.Measurement - Chain Pitch: 6.35mm / 0.25"; Pin Diameter: 2.31mm / 0.09"; 3.3mm / 0.13"; Pin Length: 8.4mm / 0.33"; Chain Plate Thickness: 0.8mm / 0.03"; Total Length: 12mm / 0.47"; Inner Chain Plate Height: 5mm / 0.2"; Package List: 12 Pcs x Roller Chains Crank LinksSuitable For - Master crank connector is designed for connecting or repairing roller chains, which is well-suited for bicycles, motorcycles, go-karts, industrial and agricultural machinery, conveyor systems, agricultural equipment and other applications requiring that require chain drives.Installation - Position the pin into the link plate, then secure it with the spring clip. Always verify that the clip is properly seated and the link moves freely after installation.Kind Tips - To ensure safe operation, confirm that the chain pitch matches your existing chain before installation. Periodically inspect th
