PATIKIL 12Pcs #50 Roller Chain Offset Link Half Links for 10A Chain

Key features

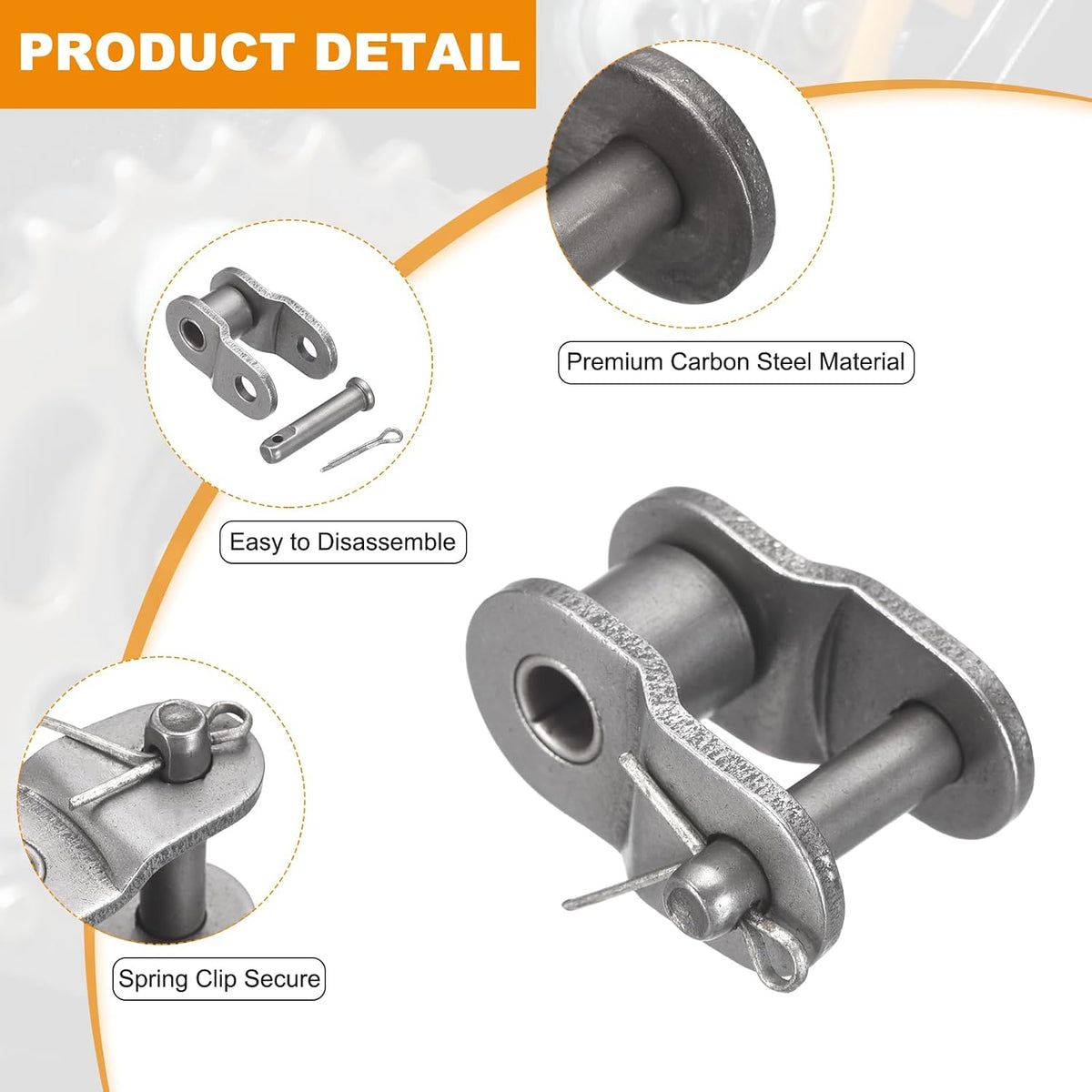

• Reasons for Selection - Roll chain connecting link are capable of supporting and bearing the expected loads, helping align the chain components. Crank link is made of high-strength carbon steel, providing excellent corrosion resistance and durability to ensure reliable operation even under repeated stress and high loads.

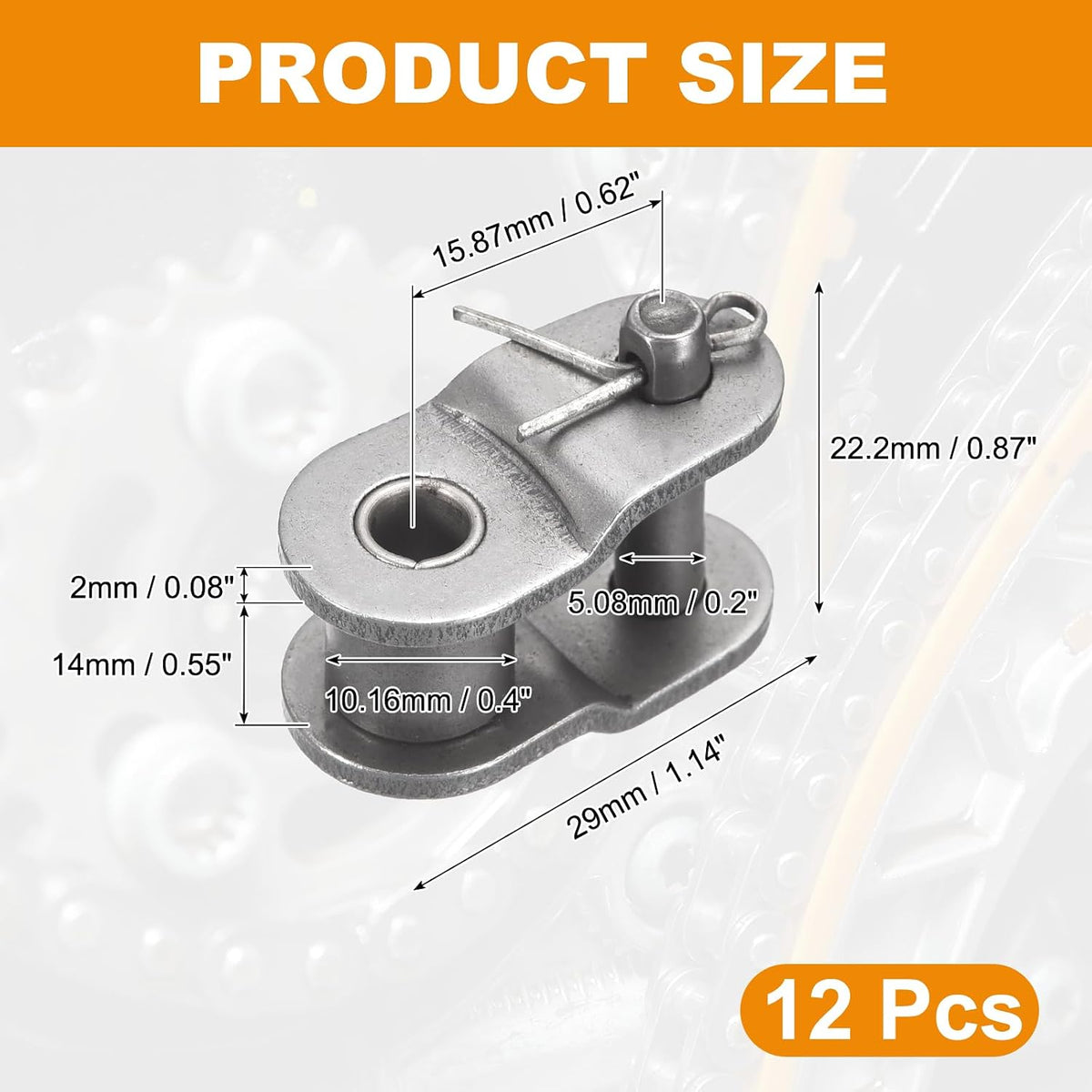

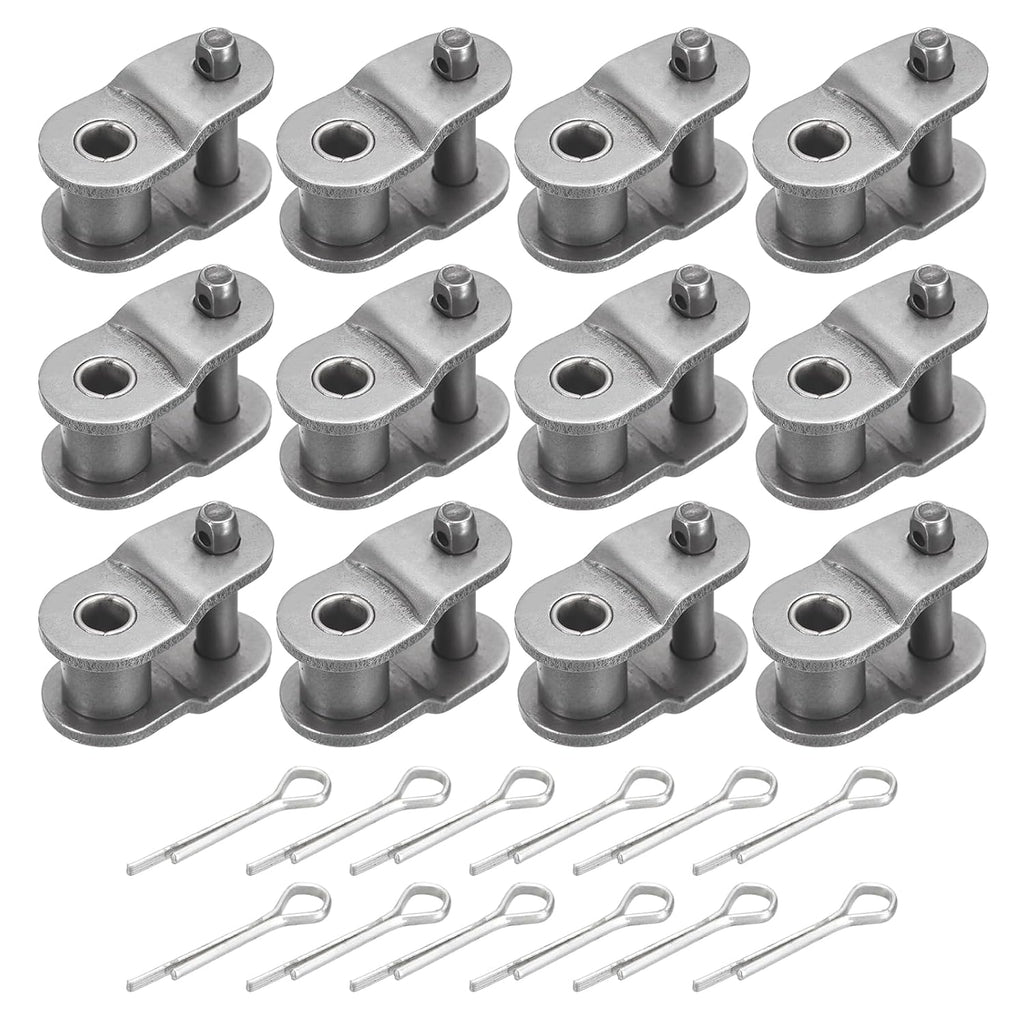

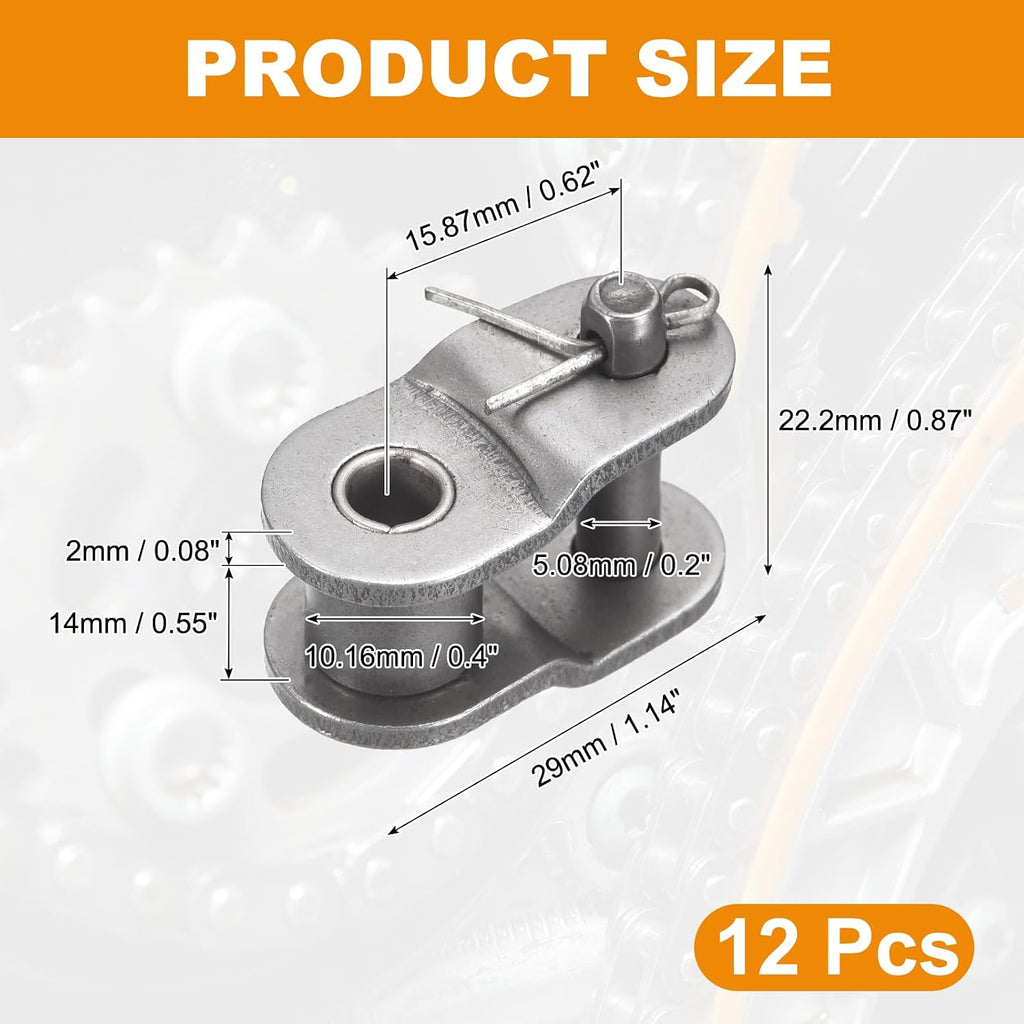

• Measurement - Chain Pitch: 15.87mm / 0.62"; Pin Diameter: 5.08mm / 0.2"; 10.16mm / 0.4"; Pin Length: 22.2mm / 0.87"; Chain Plate Thickness: 2mm / 0.08"; Total Length: 29mm / 1.14"; Inner Chain Plate Height: 14mm / 0.55"; Package List: 12 Pcs x Roller Chains Crank Links
• Suitable For - Master crank connector is designed for connecting or repairing roller chains, which is well-suited for bicycles, motorcycles, go-karts, industrial and agricultural machinery, conveyor systems, agricultural equipment and other applications requiring that require chain drives.
• Installation - Position the pin into the link plate, then secure it with the spring clip. Always verify that the clip is properly seated and the link moves freely after installation.
• Kind Tips - To ensure safe operation, confirm that the chain pitch matches your existing chain before installation. Periodically inspect the links for signs of wear, deformation or corrosion, especially in high-load or high-speed applications. Regular cleaning and lubrication of the links will extend their service life.

Reasons for Selection - Roll chain connecting link are capable of supporting and bearing the expected loads, helping align the chain components. Crank link is made of high-strength carbon steel, providing excellent corrosion resistance and durability to ensure reliable operation even under repeated stress and high loads.Measurement - Chain Pitch: 15.87mm / 0.62"; Pin Diameter: 5.08mm / 0.2"; 10.16mm / 0.4"; Pin Length: 22.2mm / 0.87"; Chain Plate Thickness: 2mm / 0.08"; Total Length: 29mm / 1.14"; Inner Chain Plate Height: 14mm / 0.55"; Package List: 12 Pcs x Roller Chains Crank LinksSuitable For - Master crank connector is designed for connecting or repairing roller chains, which is well-suited for bicycles, motorcycles, go-karts, industrial and agricultural machinery, conveyor systems, agricultural equipment and other applications requiring that require chain drives.Installation - Position the pin into the link plate, then secure it with the spring clip. Always verify that the clip is properly seated and the link moves freely after installation.Kind Tips - To ensure safe operation, confirm that the chain pitch matches your existing chain before installation. Periodically inspect
