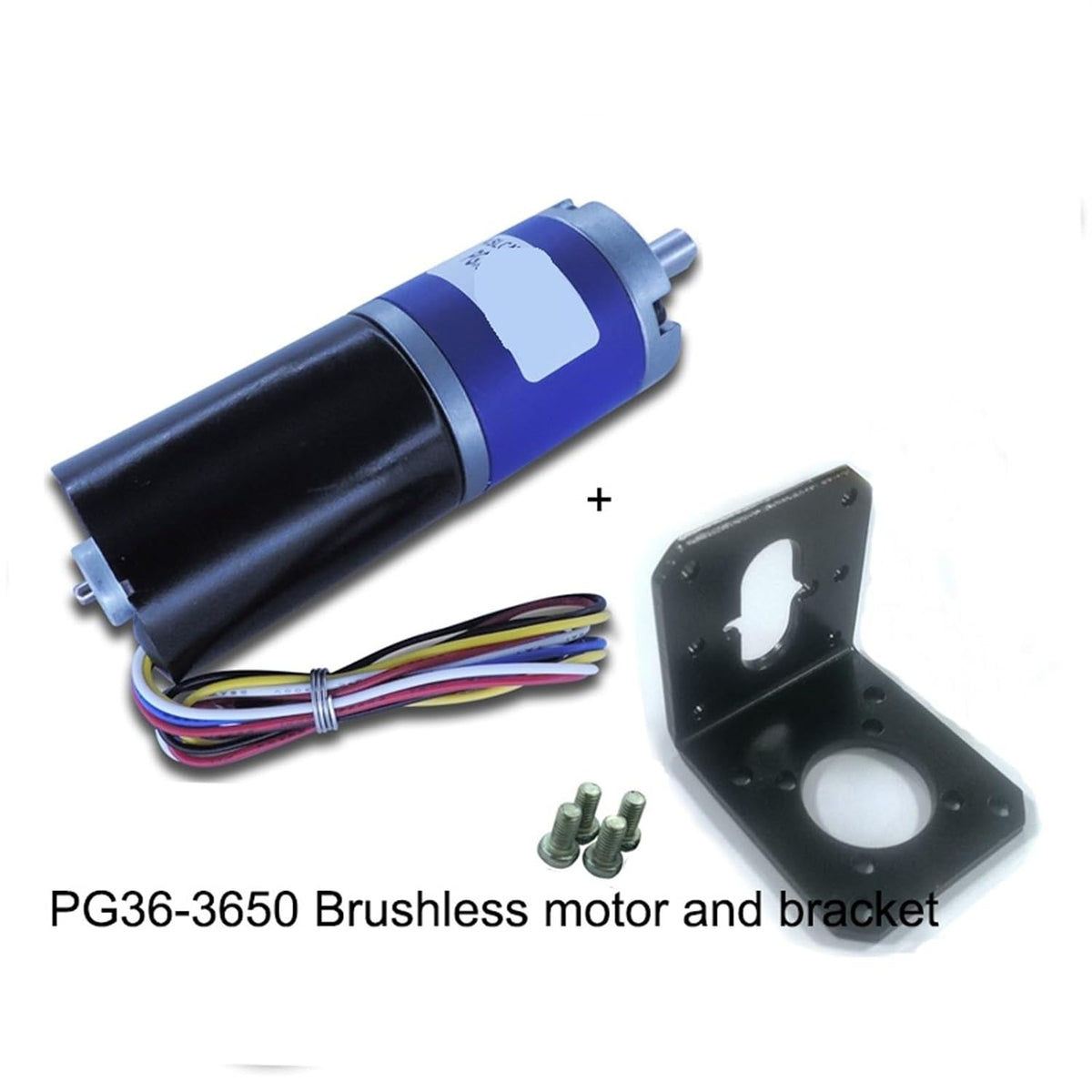

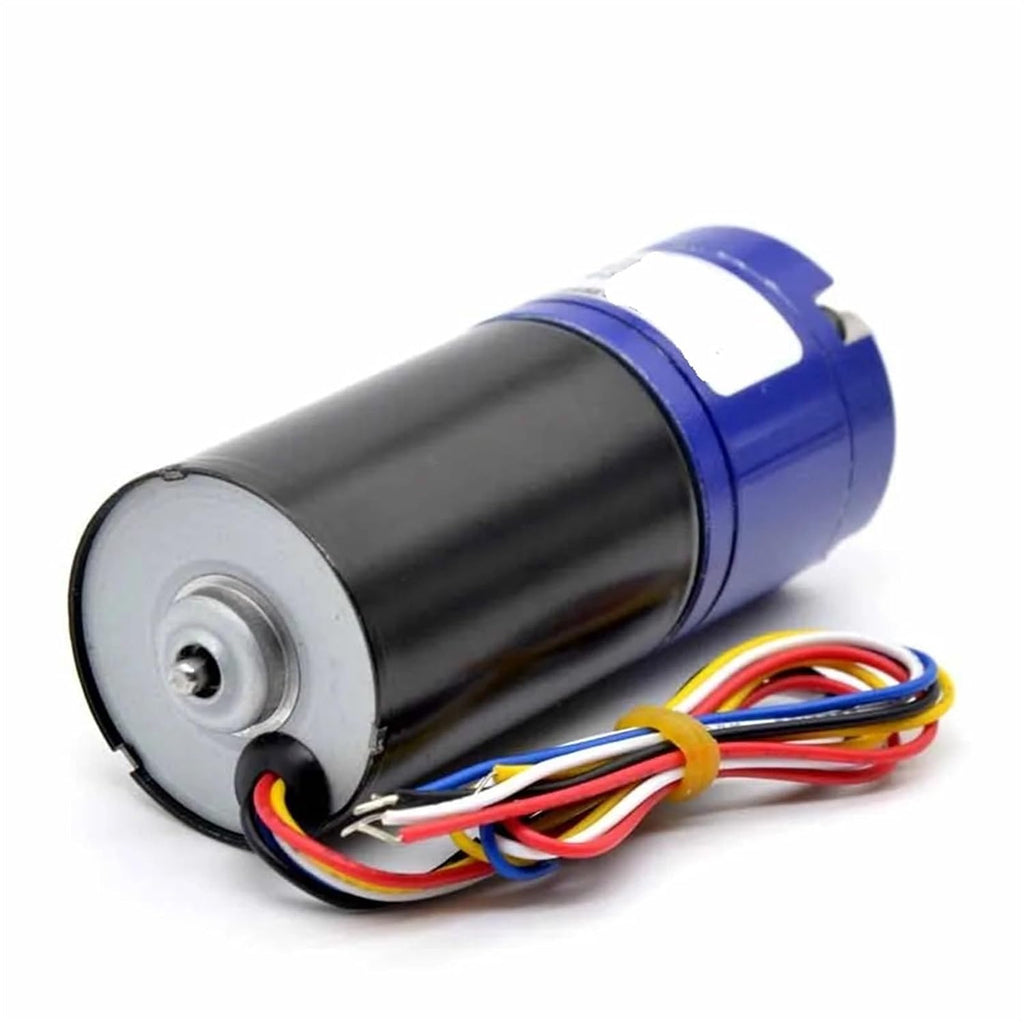

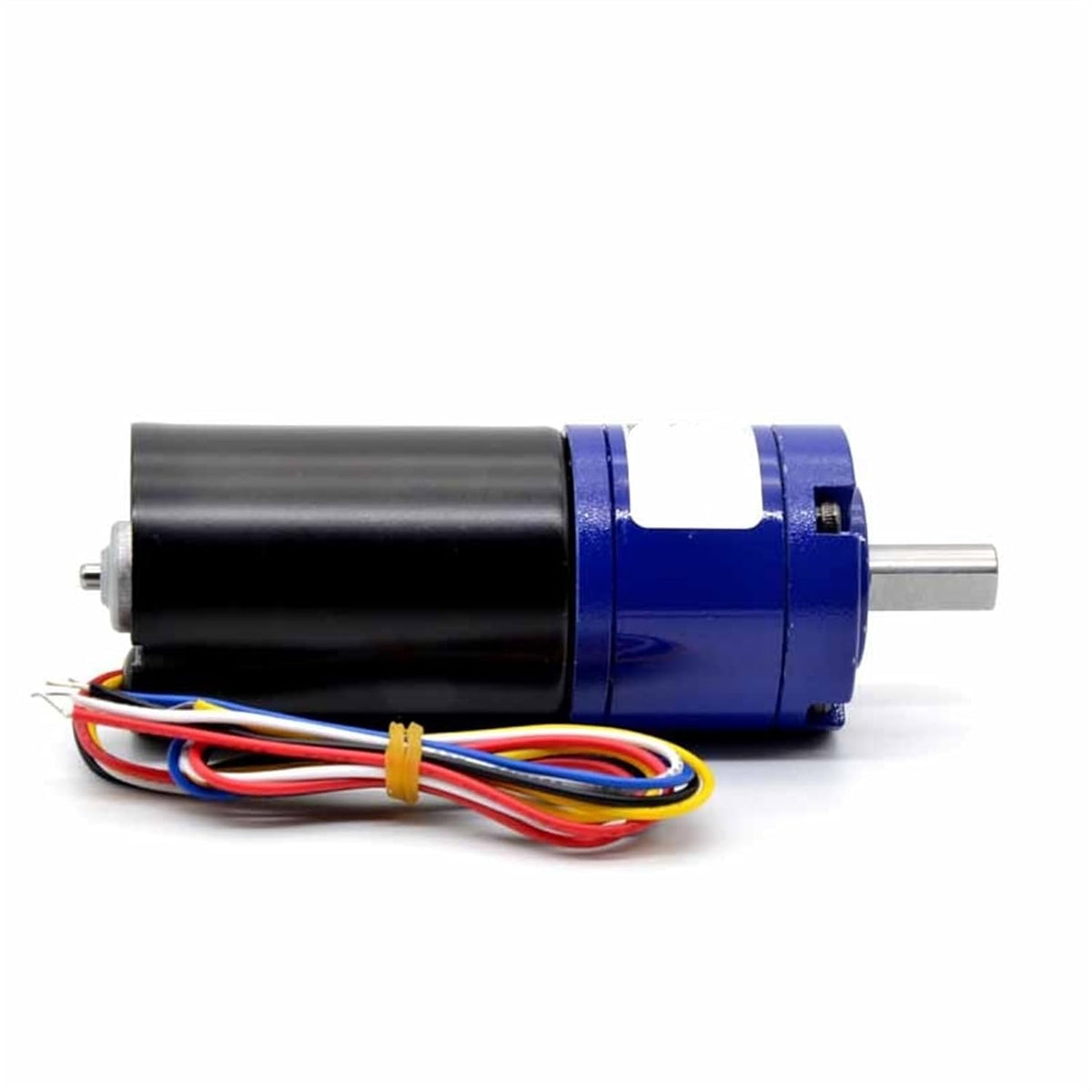

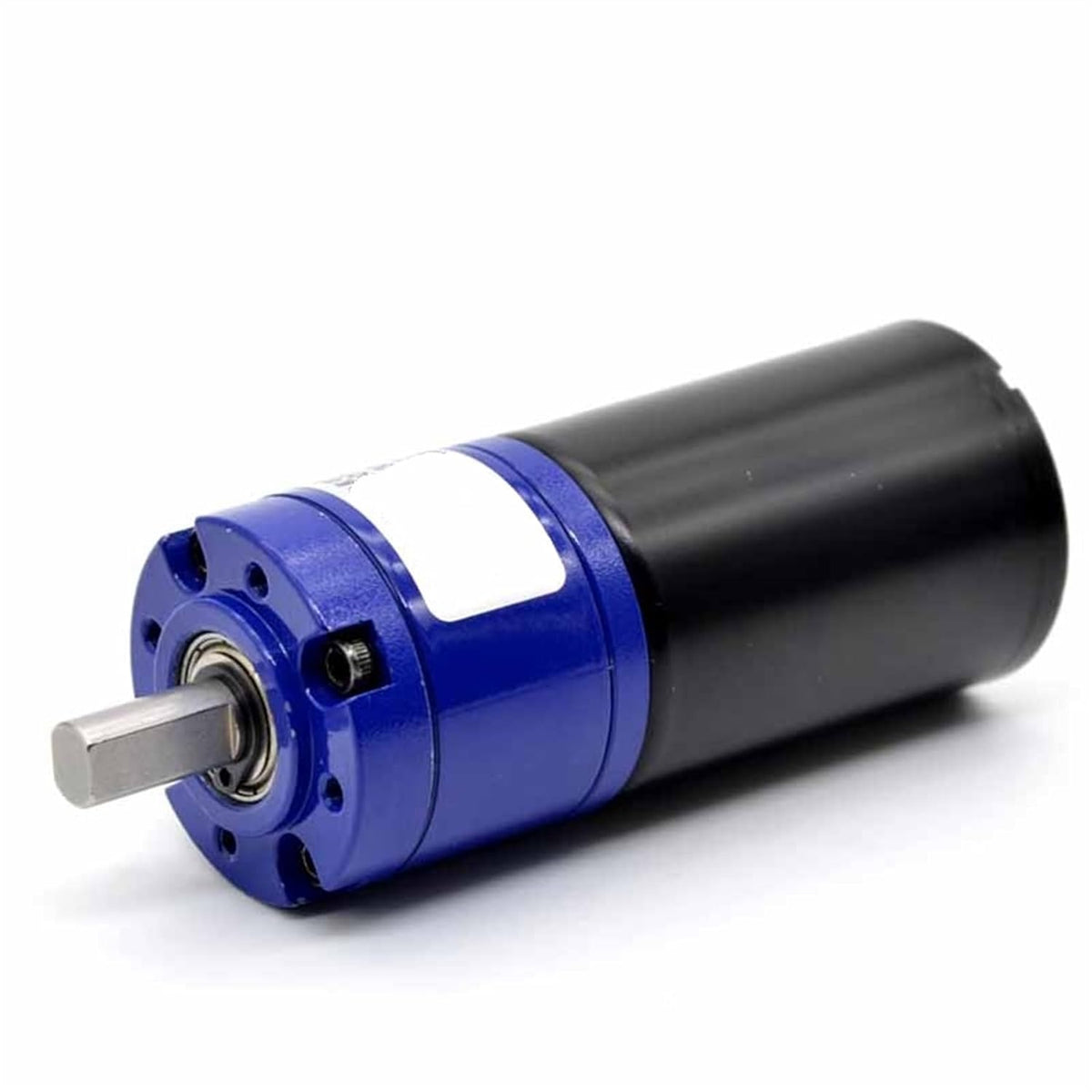

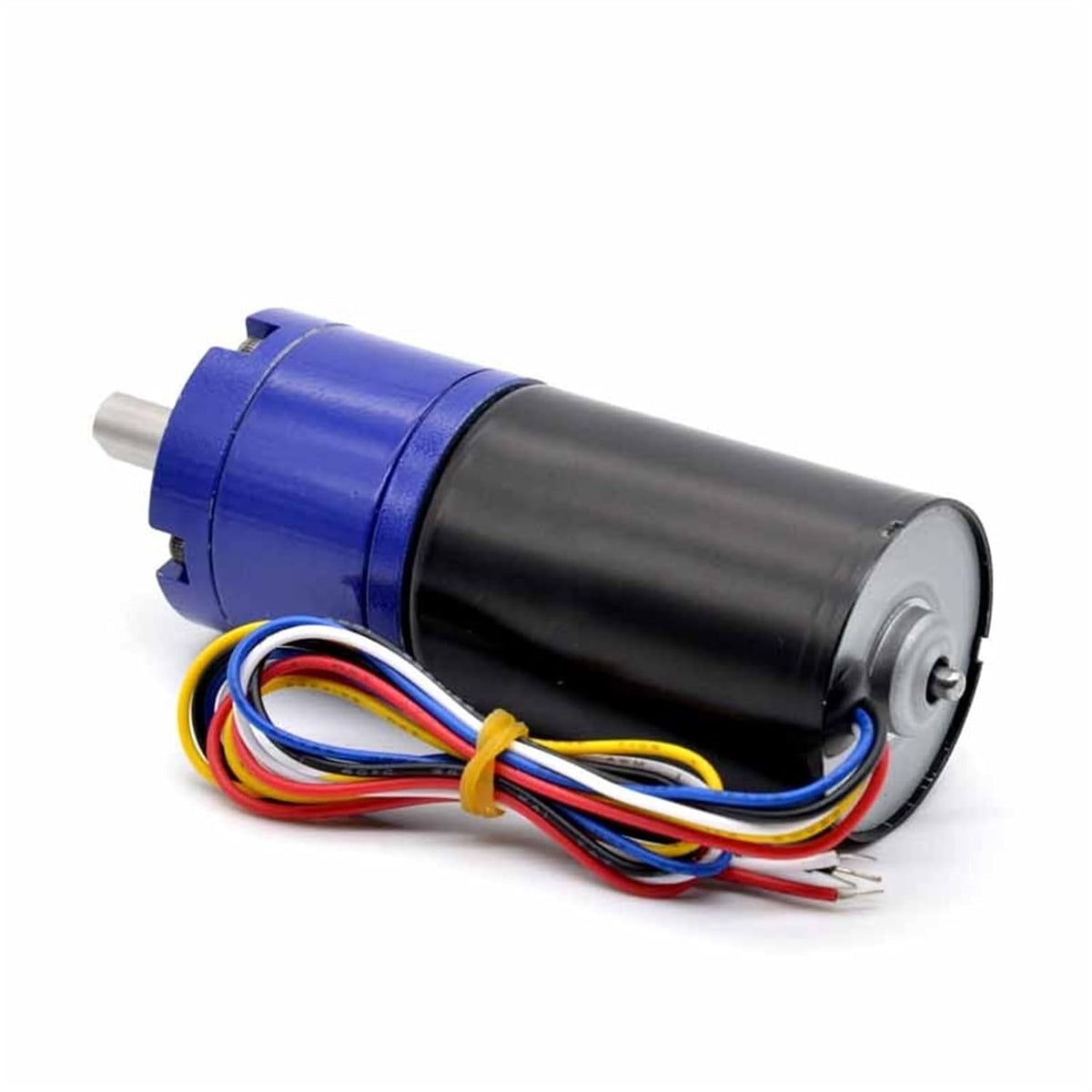

PG36-3650 Low Noise Planetary Reduction Gearbox Electric brushless dc
PG36-3650 Low Noise Planetary Reduction Gearbox Electric brushless dc
Key features
- Efficient Power Transmission: Our planetary gear motor is uniquely designed to realize efficient power transmission. It ensures stable output power through the cooperative work of multiple gears and is suitable for all types of mechanical equipment and automation systems.
- Compact Design: Planetary gear motors have a compact design that delivers powerful torque output in a limited space. Whether for industrial robots, automation devices, or power tools, they can be easily installed and integrated.
- EXCELLENT DURABILITY: Made of materials, they are highly resistant to wear and fatigue. Our motors undergo rigorous quality testing and are able to maintain stable operation for long periods of time in harsh working environments, reducing maintenance costs.
- A variety of specifications available: We offer a wide range of specifications and models of planetary gear motors to meet different application requirements. Whether it is small equipment or large machinery, we have the right solution to support customization.
- Low Noise and Efficient Heat Dissipation: The planetary gear motor design emphasizes low noise operation to ensure a quiet and comfortable working environment. In addition, advanced heat dissipation technology keeps the motor at a lower temperature during high load operation, prolonging service life and improving overall efficiency.
PG36-3650 low noise planetary reduction gearbox electric brushless dc motor 12v gear motor cw/ccw speed controllerPlanerary gear motor 1.Standard Operating Conditions:Rated Voltage: 12v 24v. 1-1Direction of Rotation:CW when viewed from output shaft side 1-2 Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%. 1-3 Storage Temperature:Temperature range of -20C~+60C 2.Measuring Conditions:2-1 Motor Position:To be place t horizontally when measuring 2-2 Power Supply: Regulated DC power supply --No load speed:2-160rpm. --Robotics, Small Appliance, Fanner, Electric Curtain; --Medical Pump, Surgery Tools, Stirrer, centrifugal Machine; Electric Valve, Actuator, device--Electric motor,low noise,low current and no spark. Ratio: 1:3.7 /1:5.18/ 1:14/ 1:27/ 1:50/ 1:71/ 1:100/ 1:139/ 1:189/ 1:263/ 1:369/ 1:516 / 1:721--- 3650 Motor information : 12V 6000RPM , 24V 6000RPM 8000RPM
Free shipping included. 30-day hassle-free returns.
