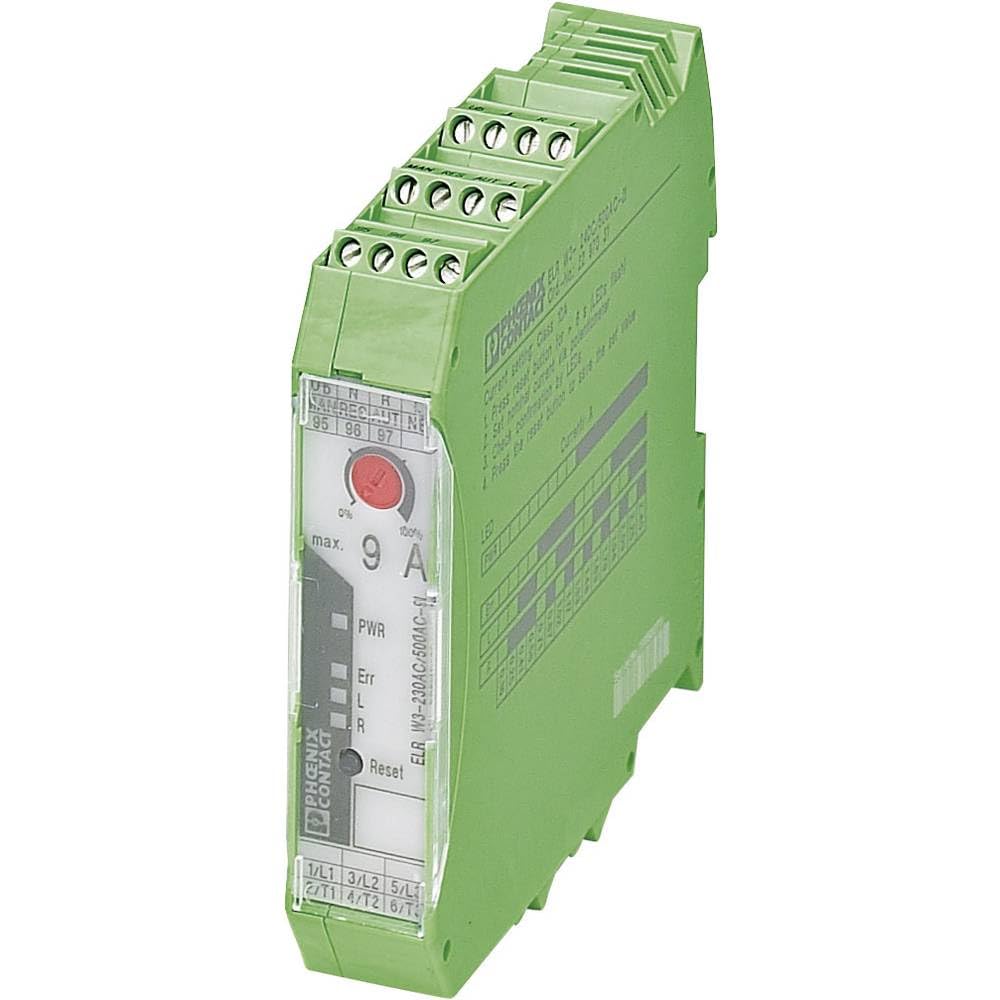

Phoenix Contact | 2297057 | Solid-State Reversing Contactor

Key features

• RoHS compliant: yes
• Dimensions: (W x H x D) 22.5 x 99 x 114.5 mm
• Specification: Reversing contactor
• Reverse movement/clockwise rotation /motor protection / emergency 4 rifle and 1 thermo element 75% less space required - only 22.5 mm wide.

Highlights: ·Reverse movement/clockwise rotation /motor protection / emergency 4 rifle and 1 thermo element 75% less space required - only 22.5 mm wide. Technical Specifications: Ambient temperature: -25 - +70 °C · Control voltage: 19.2 - 30 Vdc · Dimensions: (W x H x D) 22.5 x 99 x 114.5 mm · Load current: 9 A · Operating voltage: 24 Vdc · Product Specifications: Input power: (by UN 24 V/DC/230 V/AC) Typ. 3/7 mA · Protection type: IP20 · RoHS compliant: yes · Specification: Reversing contactor · Switching current (IS max.): (t = 10 ms) 100 A · Switching voltage: 42 - 550 Vac · Type: ELR W3-24DC/500AC-9I Description: These 3 phase electronische tack load relay with power montioring incorporating4 functions in the right protection, left protection, motor protection relay and NOT-FROM-protection categories till 3 to switching, tack and protection from motors till 4KW. This simplifying installation considerably and saves lot of space of the mounting rail. The almost wear-free switching increases the lifespan by 10 times and also the plant availability. Programming of the rated current is only possible after pressing the RESET button for 6 seconds - a subsequent alteration or manipul
