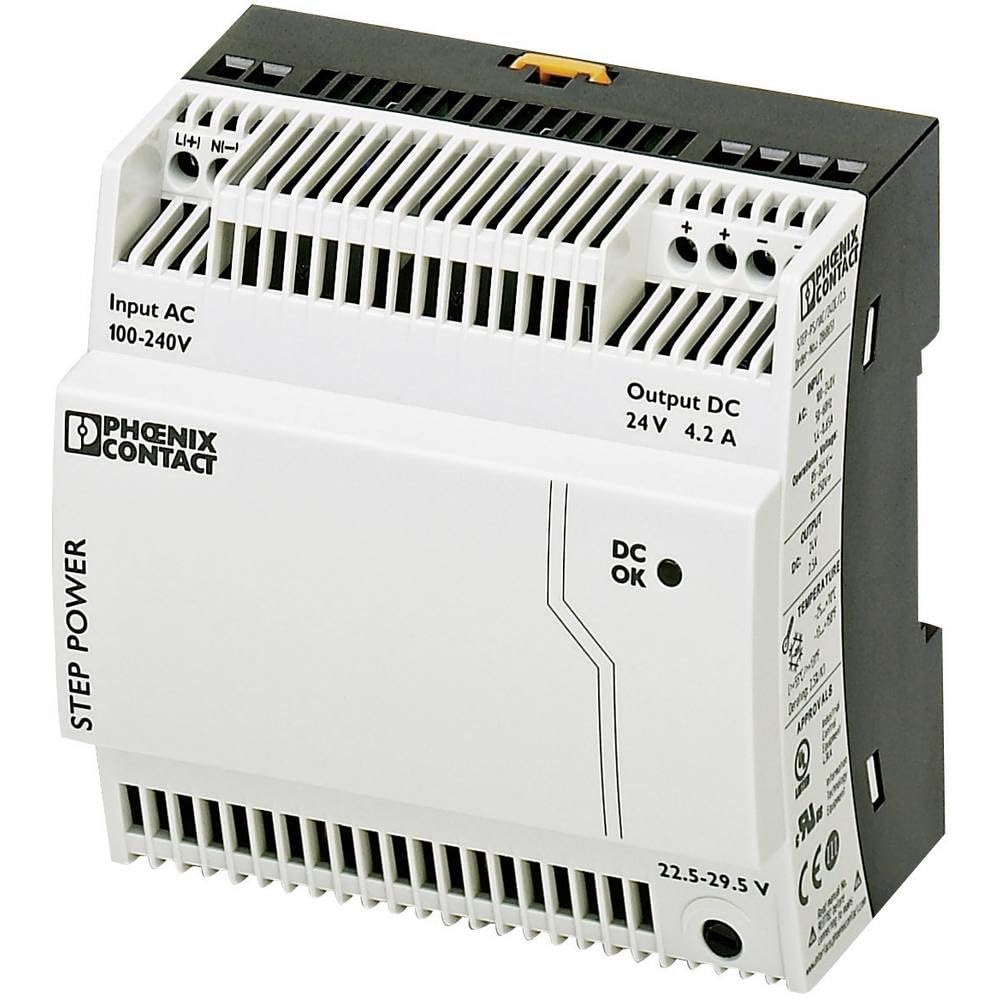

Phoenix Contact STEP-PS/1AC/24DC/4.2 DIN Rail Power Supply 24Vdc 4.2A voltage:100W

Key features

• 24Vdc output voltage
• 100W maximum power
• 4.2A output current
• 85 - 264Vac / 90 - 250Vdc input voltage range
• Single phase

Highlights: ·/ · ·24 Vdc ·4.2 A ·voltage:100 W ·Input1 -phase ·Input voltage range 85 - 264 V/AC / 90 - 250 Vdc ·Connections: Screw terminals ·Ideally suitable for Installation distributor and flat control cabinet Features: ·Worldwide use of wide-range output and international approval package ·High operational reliability thanks to high MTBF >500 000 h ·Parallel switch bar for increased output and redundancy ·Simplified operation by LED fault monitoring ·High reliability through long mains buffering times> 20 ms ·Snapped onto the DIN rail or screwing-on on flat surface. Technical Specifications: Connections: Screw terminals · Dimensions: (W x H x D) 90 x 90 x 61 mm · Input voltage range: 85 - 264 V/AC / 90 - 250 Vdc · Manufacturer part no.: 2868664 · Nominal input voltage: 115 V/AC, 230 V/AC, 90 - 250 V/DC · Number of outputs: 1 · Number of phases: 1 · Output current: 4.2 A · Output voltage: 24 Vdc · PSU type: Switched PSU · Power: voltage:100 W · Type (manufacturer type): STEP-PS/1AC/24DC/4.2 · Weight: 0.4 kg Description: The compact power supply of the STEP-POWER-generation is due to its design specifically for service distribution and flat control panels. At the output ther
