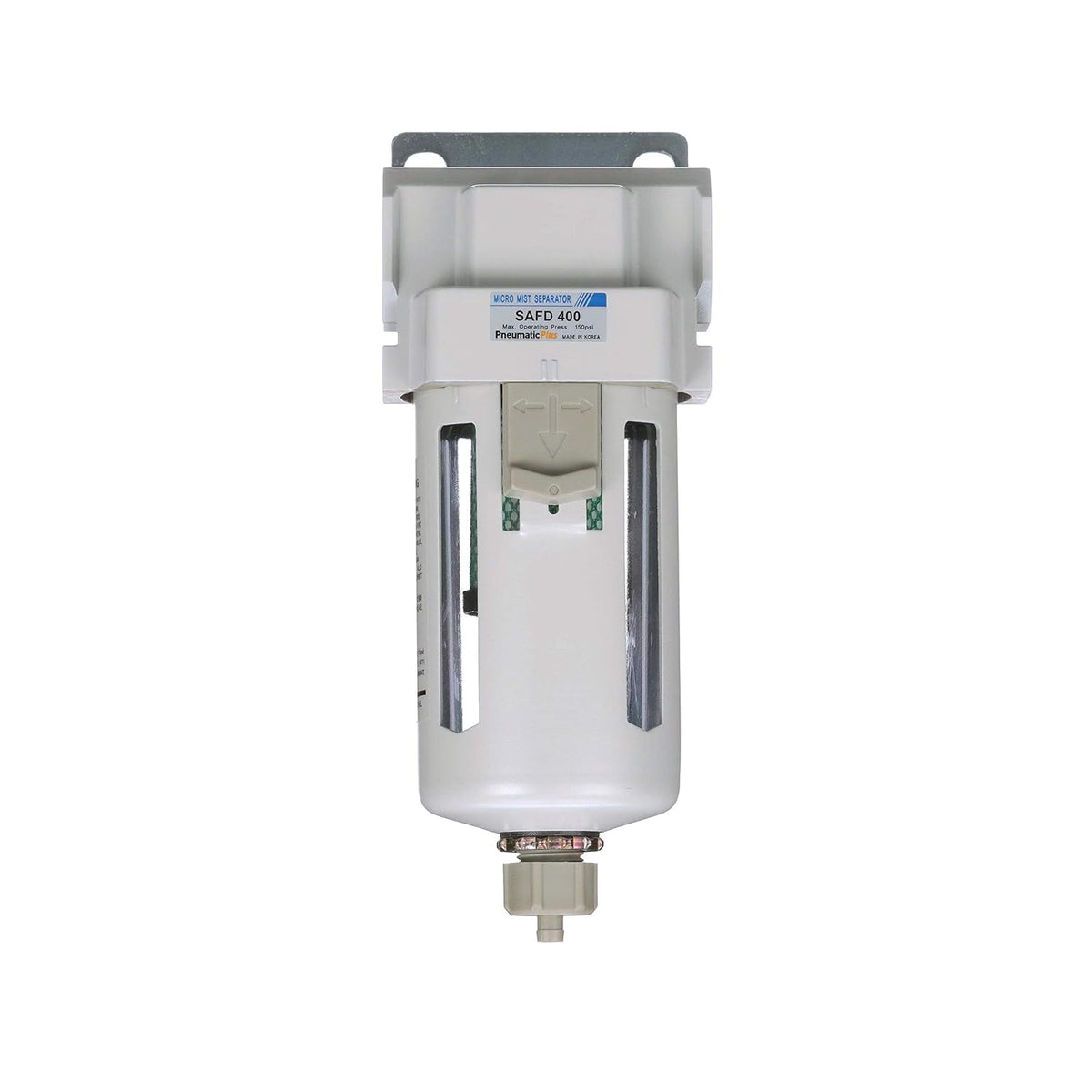

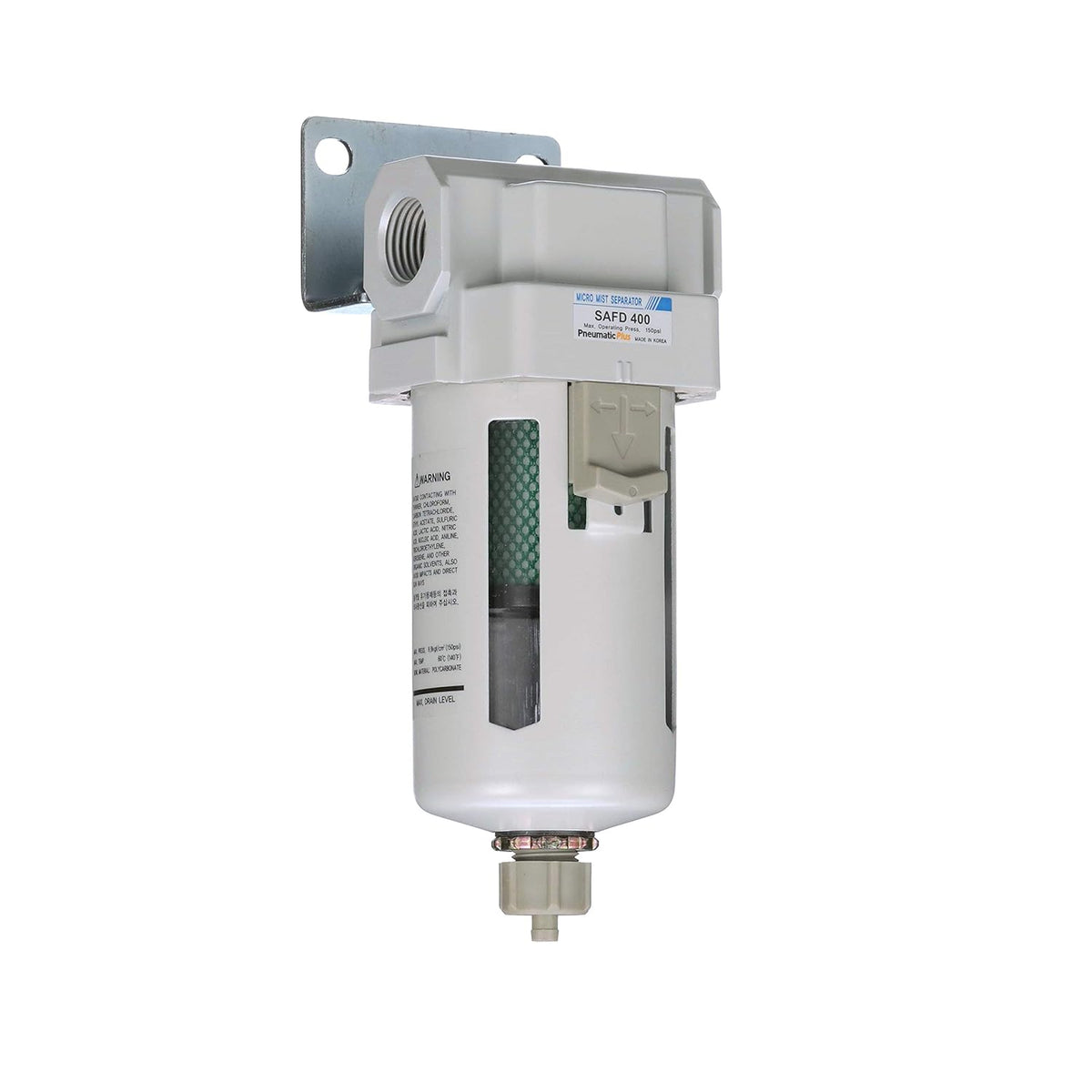

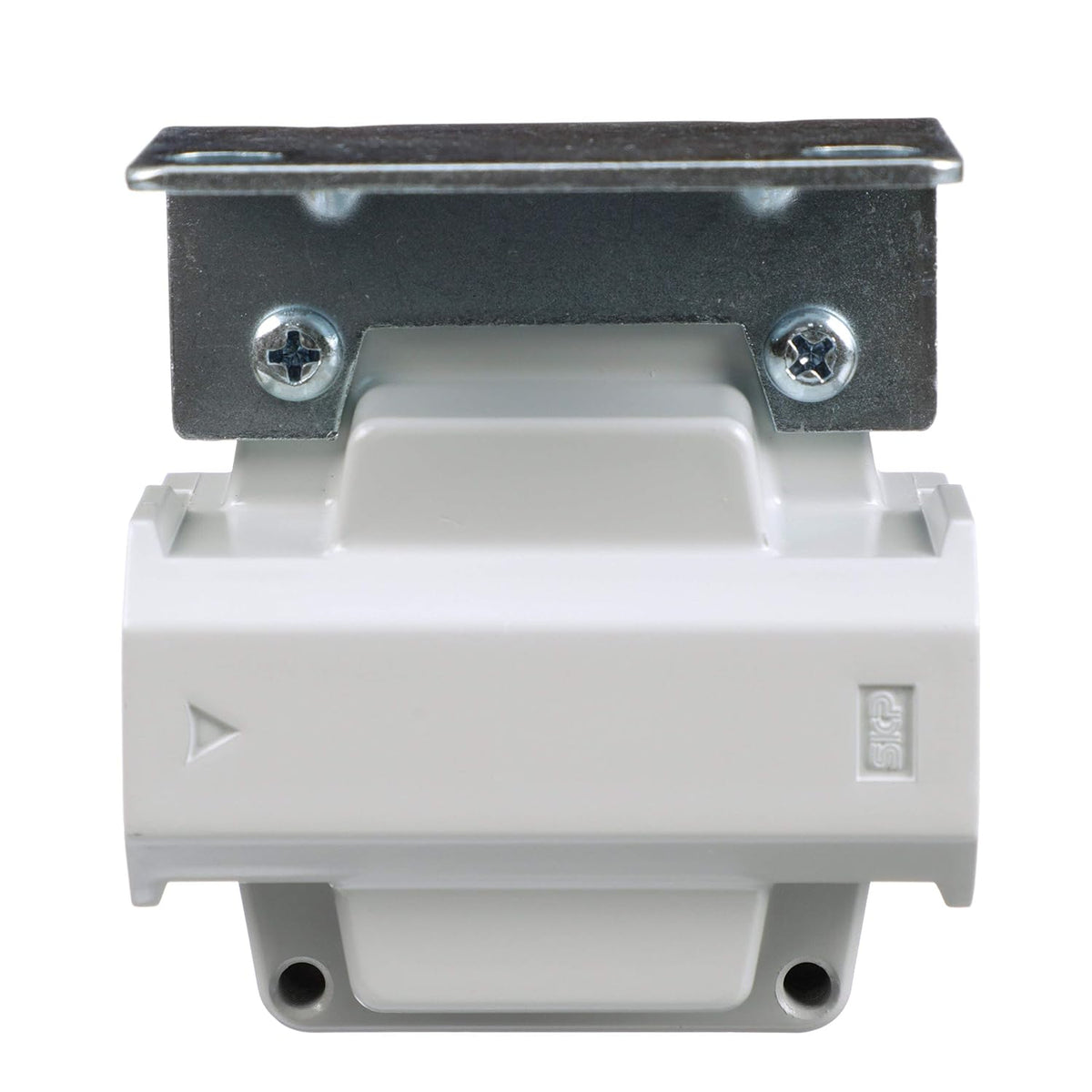

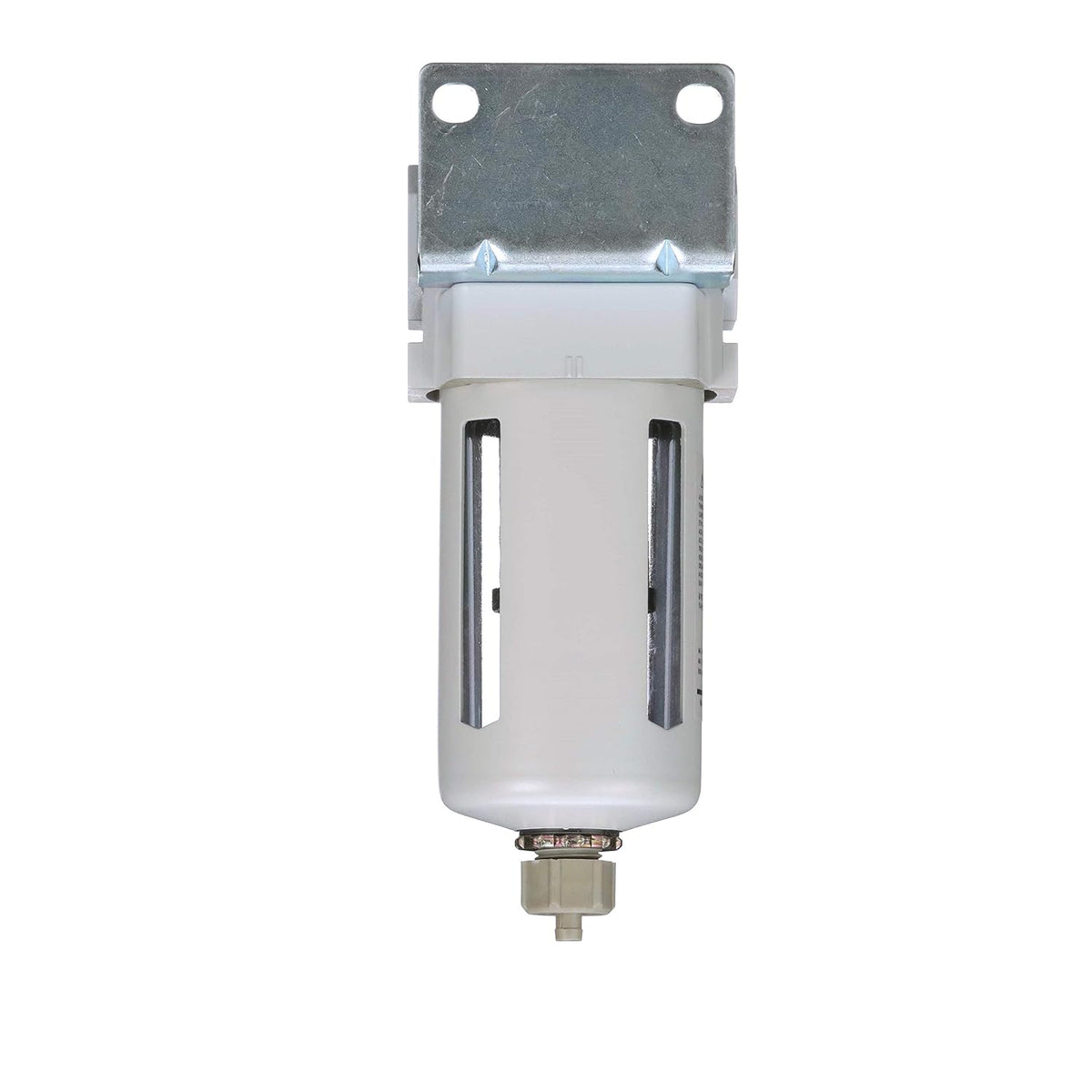

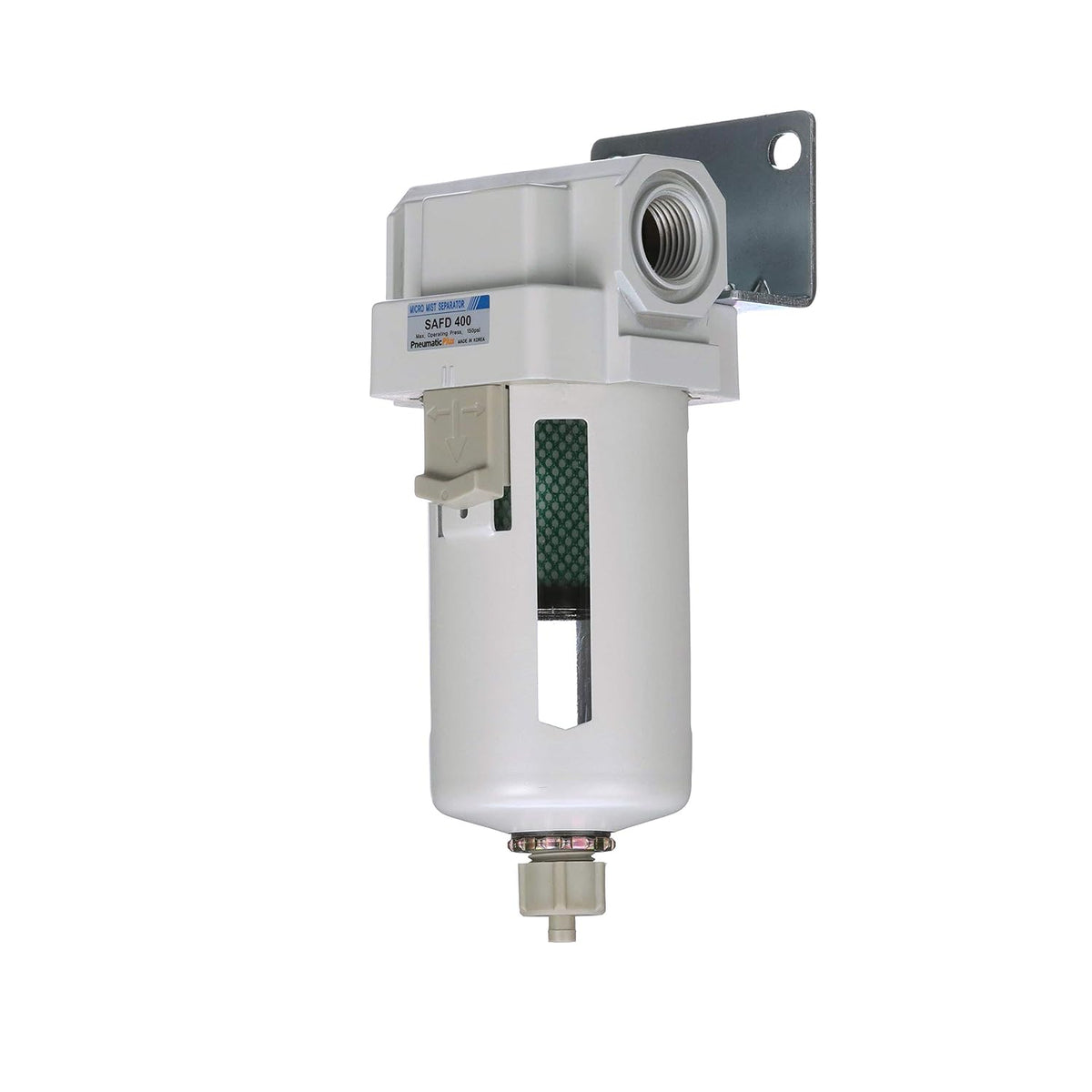

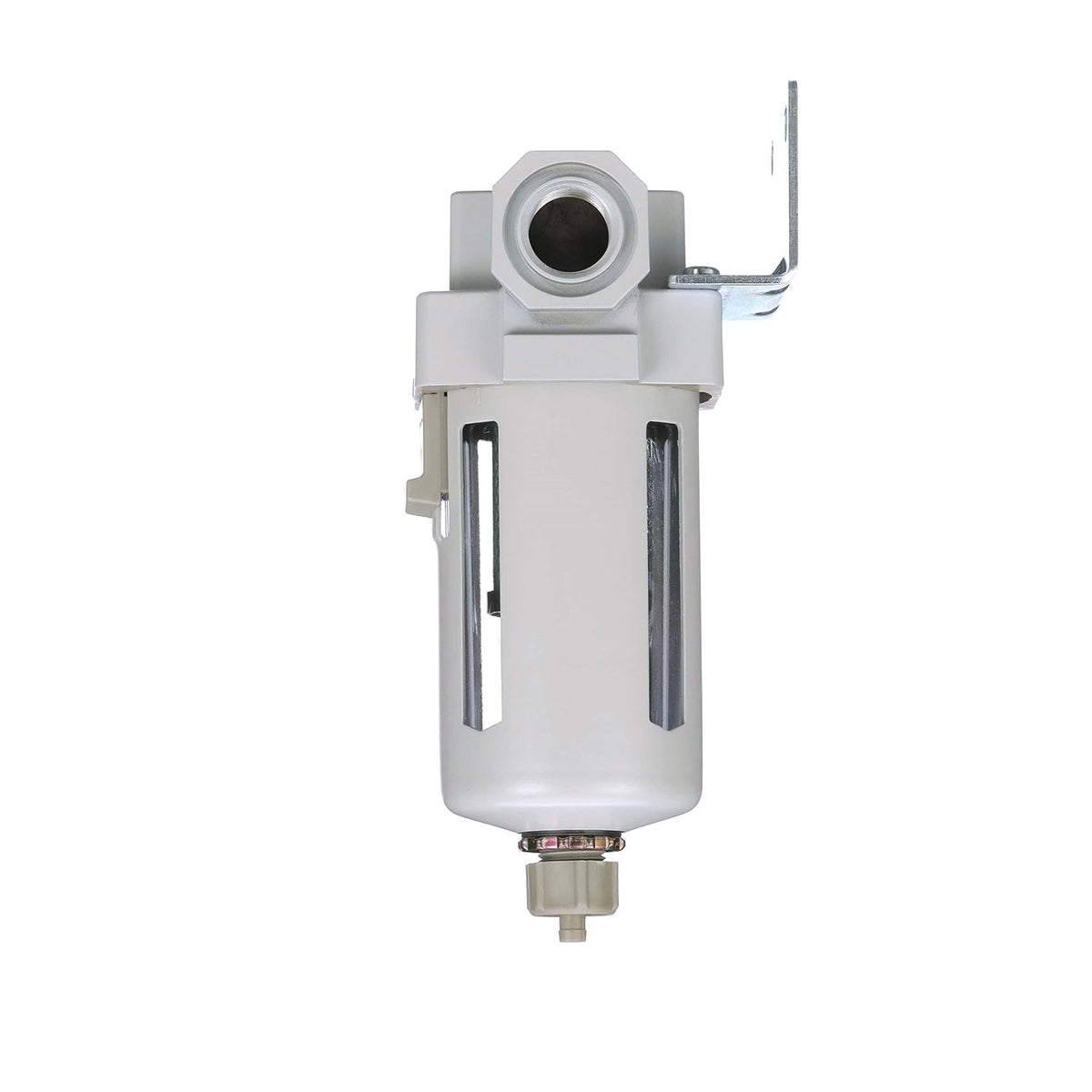

PneumaticPlus SAFM400-N04B Coalescing Filter 1/2" NPT, 0.1 Micron

Key features

• 0.1 MICRON OIL COALESCING FILTER: This 1/2" NPT compressed air coalescing filter removes oil aerosols, water mist, rust, and sub-micron particulates down to 0.1 micron, delivering clean, oil-free air for spray painting, sandblasting, plasma cutting, and air tools
• REMOVES OIL & WATER AEROSOLS: Works as an inline oil water separator and moisture trap on your air compressor line, coalescing tiny oil and water droplets into large drops that drain away and protecting downstream air dryers, valves, tools, and sensitive pneumatic equipment from contamination
• FLOW RATE 37 SCFM @ 90 PSIG: Rated to 250 PSI maximum body pressure with low pressure drop (under 10 PSI) and a 23-140 F operating range; install vertically and downstream of a 5-40 micron particulate pre-filter to extend element life and cut maintenance
• TRANSPARENT POLYCARBONATE BOWL, 150 PSI Max Supply Pressure: See-through design lets you monitor collected oil and water at a glance; for pressures above 150 PSI or solvent exposure choose the metal-bowl (-MEP) model. Manual twist-to-drain empties the bowl quickly and easily
• COMPLETE & READY TO INSTALL: 1/2" NPT inlet and outlet ports, mounting bracket included, and a pre-installed FM-series 0.1 micron coalescing element (replacement element kits available). Note: remove the gray foam packing material from the bottom of the filter before use

"PneumaticPlus SAFM400-N04B Coalescing Filter - 1/2"" NPT, 0.1 Micron Oil & Water Aerosol Removal Protect your tools, dryers, and finished work from the oil mist and water that ordinary filters miss. The PneumaticPlus SAFM400-N04B captures oil aerosols, water droplets, rust, and sub-micron particulates down to 0.1 micron - delivering the clean, dry, oil-free air your equipment depends on. HOW IT WORKS Compressed air carries a fine mist of oil and water that standard particulate filters pass through. This filter forces air through a dense borosilicate microfiber element, where tiny droplets coalesce into larger drops and drain to the bowl - up to 99.9% aerosol removal, far finer than a 5-40 micron filter. APPLICATIONS An ideal inline oil water separator and moisture trap for your air compressor line: spray painting and powder coating (eliminates fisheye), sandblasting, plasma cutting, and air tools. Also protects instrumentation, pneumatic automation, valves, and refrigerated or desiccant air dryers. BOWL & PRESSURE - Polycarbonate bowl: rated to 150 PSI max supply pressure; see-through to monitor collected oil and water. For pressures above 150 PSI or solvent exposure, choose the m
