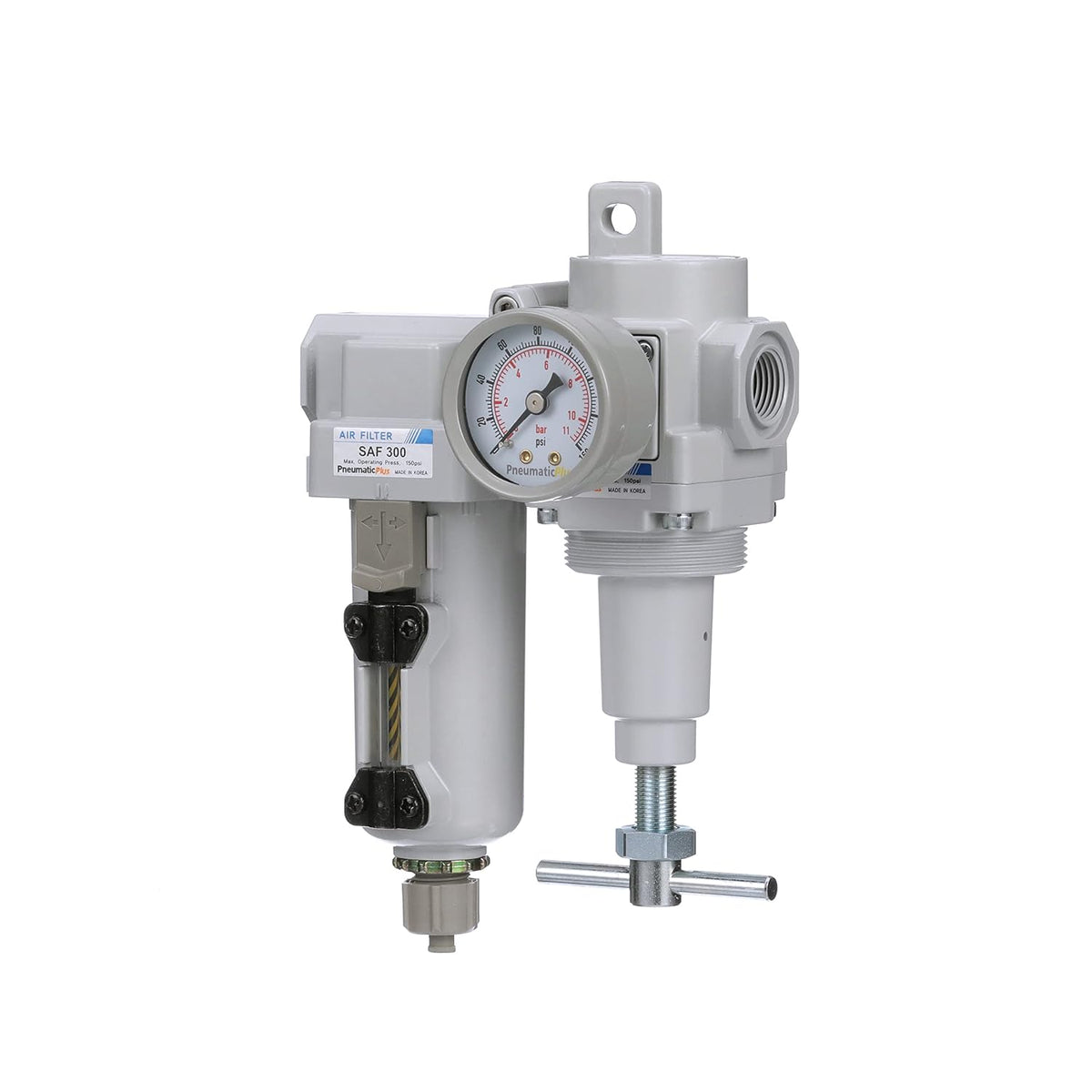

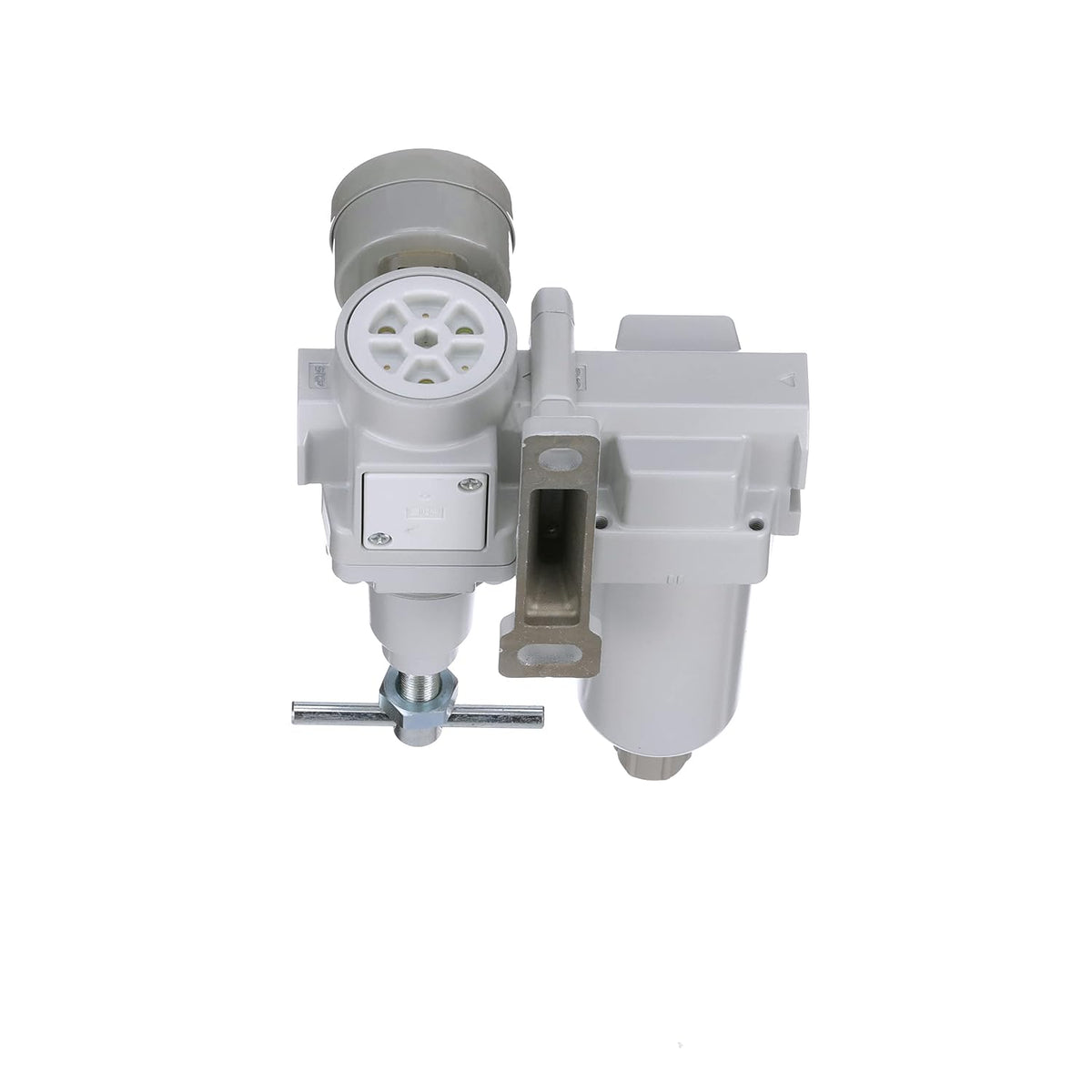

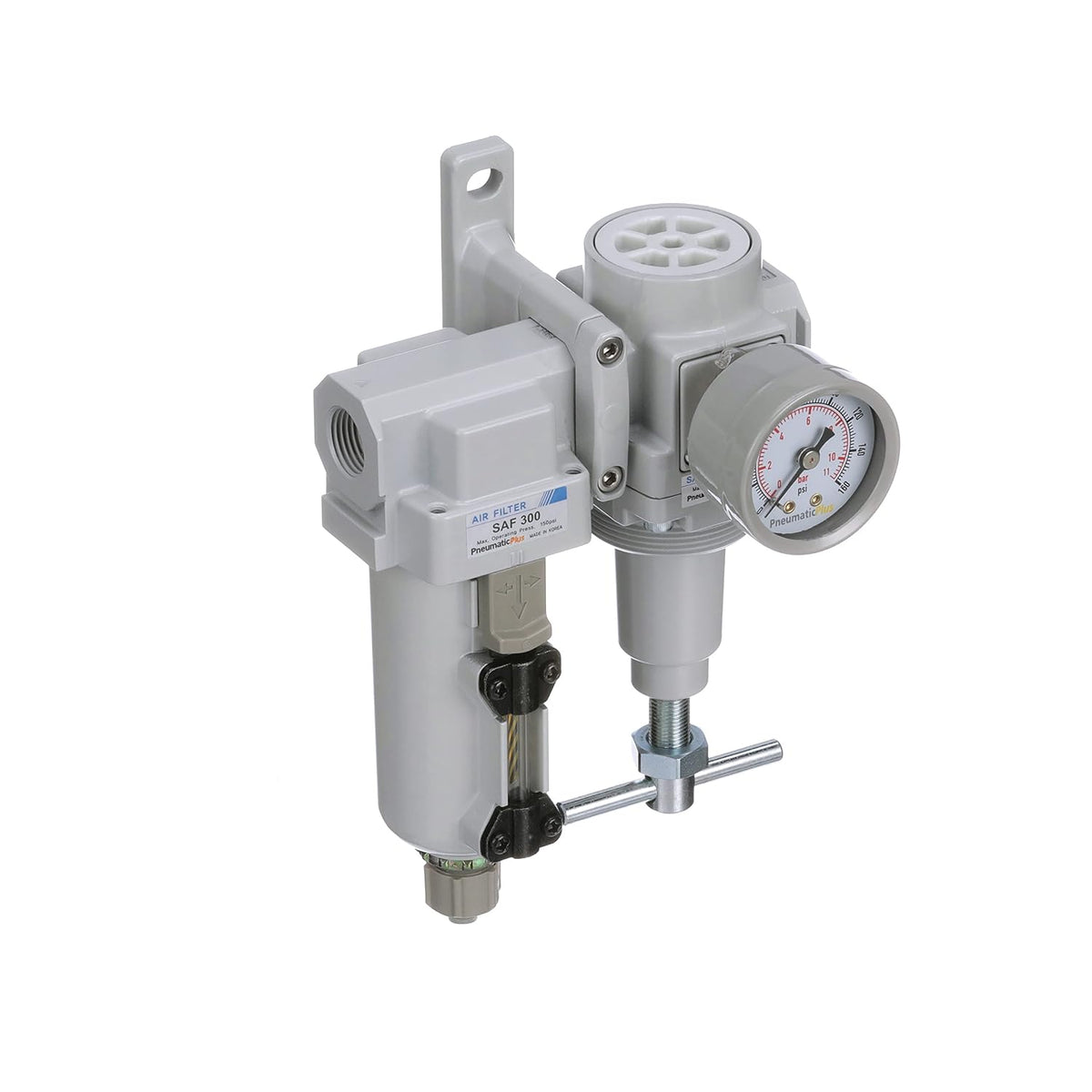

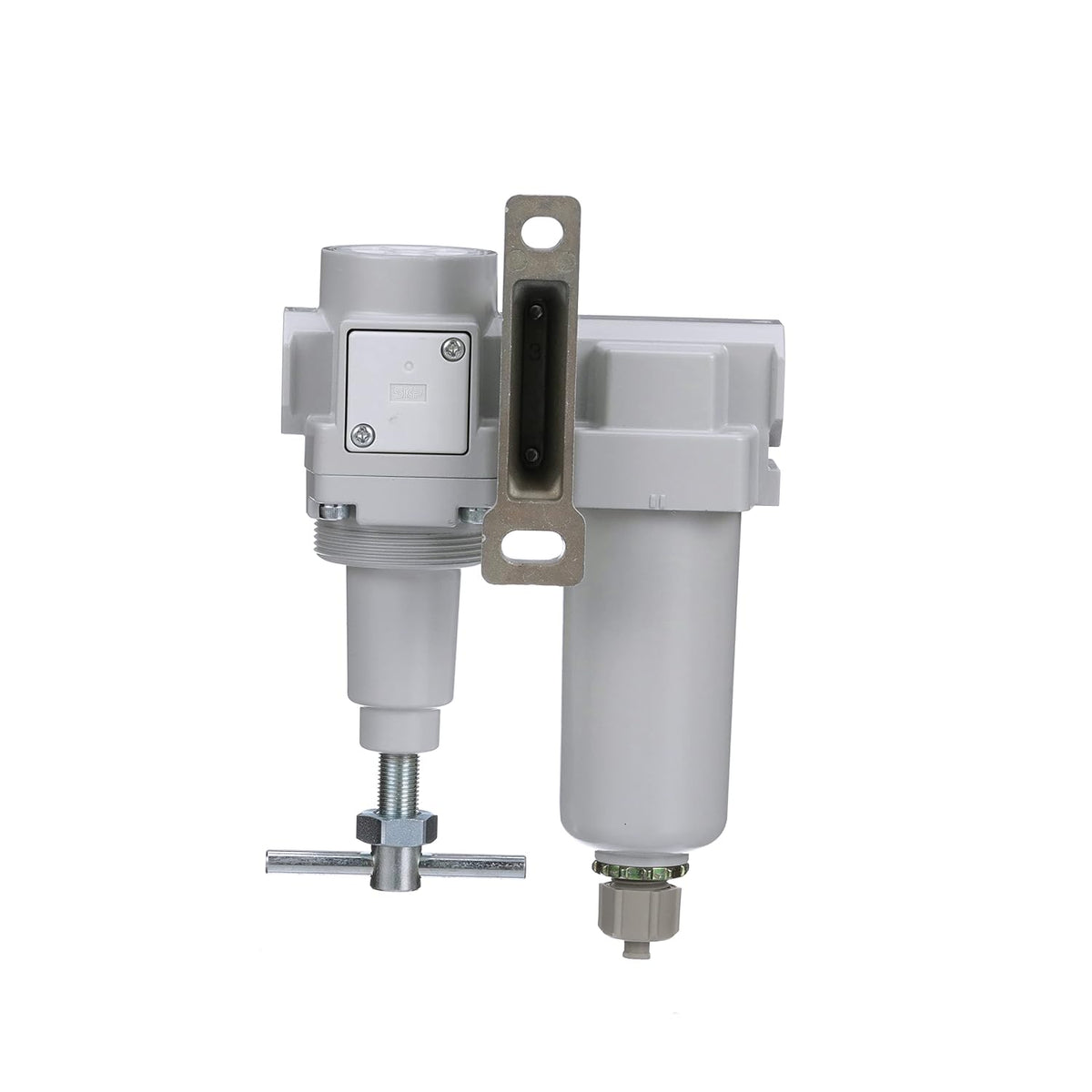

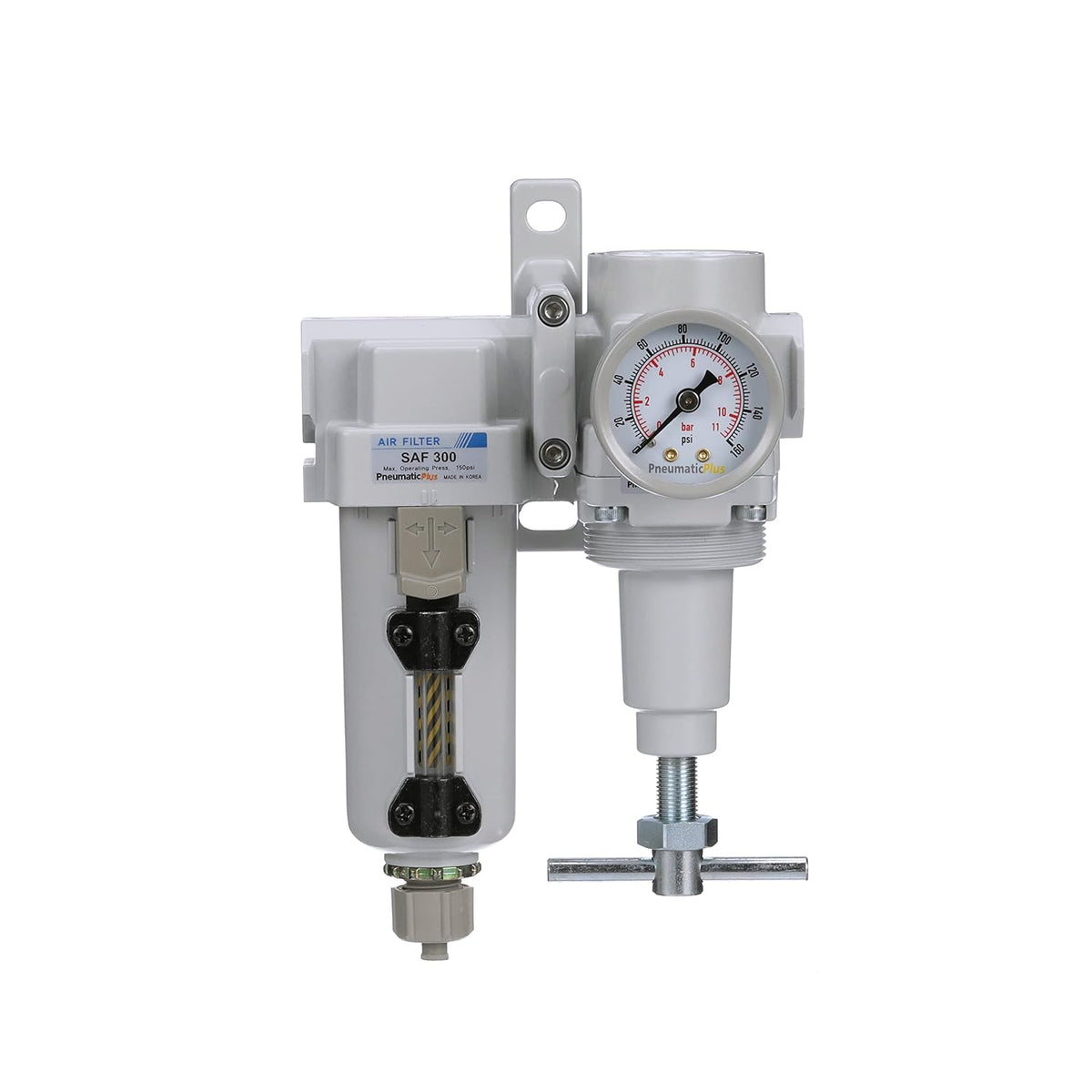

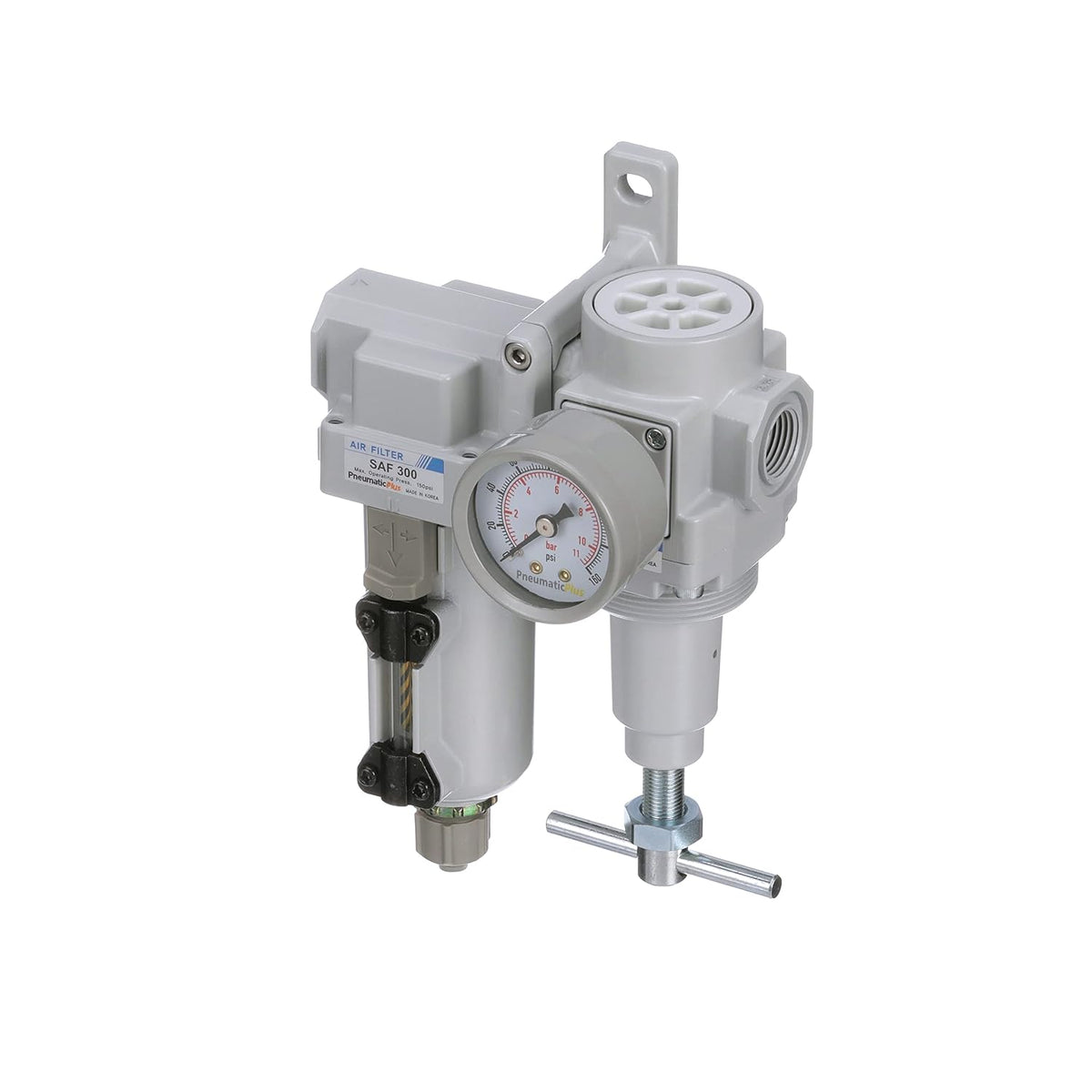

PneumaticPlus SAU320T-N03G-MEP Air Filter Regulator Combo, 3/8" NPT

Key features

• MODULAR AIR FILTER AND REGULATOR IN ONE - The PneumaticPlus SAU320T-N03G-MEP pairs a 10 micron particulate air filter with an adjustable air pressure regulator on a shared connecting bracket, so one assembly handles both filtration and pressure control on your 3/8" NPT air line. The modular design lets you add units to the same run later, such as a lubricator or an additional filter stage, growing it into a full air preparation station.
• CLEAN, REGULATED AIR FOR YOUR AIR TOOLS - Traps water, dirt, rust, and pipe scale before they reach air ratchets, impact wrenches, blow guns, and nailers. The regulator holds the outlet pressure you set, so tools keep consistent torque and speed as air demand rises. Rated for 72 SCFM at 90 PSIG on 3/8" NPT lines.
• METAL BOWL WITH SIGHT GLASS AND MANUAL DRAIN - Water and sludge separated from the air line collect in the bowl, and the sight glass lets you confirm the level without taking the bowl off. Bleed the collected water and debris from the manual drain at the base of the bowl, and drain before the level reaches the lower baffle. The metal bowl is the one to specify when supply pressure is over 150 PSI, or if harmful solvents are present in the air line.
• ADJUSTABLE 0-150 PSI REGULATOR WITH T-HANDLE AND GAUGE - Loosen the hex nut beneath the T-handle to unlock, turn the handle to set your outlet pressure, then tighten the hex nut to lock the setting against vibration. The included 0-160 PSI gauge indicates the set outlet pressure. The regulator provides a 0-150 PSI adjustable output from supply pressures up to 250 PSI.
• WALL-MOUNTABLE, MADE IN KOREA, 1-YEAR WARRANTY - The connecting bracket that joins the filter and regulator also mounts the unit to a wall or panel for a clean, stable installation. The 10 micron element is washable and reusable, with 2, 5, 20, and 40 micron grades available and replacement F300M-EL element kits sold separately. Manufactured by PneumaticPlus in Korea and backed by a one-year warranty. For compressed air use only.

The PneumaticPlus SAU320T-N03G-MEP is a modular air preparation assembly - an air filter and an air pressure regulator mounted together on a shared connecting bracket, delivered ready to install as one piece. Each component can be serviced or swapped on its own, which is the practical advantage of a modular assembly over a single-body unit. CHOOSING THE RIGHT SIZE. Match the port to the flow your tools draw - 1/4 inch NPT is rated 35 SCFM, 3/8 inch 72 SCFM, 1/2 inch 175 SCFM, and 3/4 inch 180 SCFM at 90 PSIG. This is the 3/8" NPT version at 72 SCFM. A polycarbonate bowl with a metal guard keeps the moisture level visible, and a metal bowl with a sight glass is the heavier-duty option. Pick an automatic drain where the unit sits overhead or behind a machine guard and a daily purge is easy to forget, and a manual drain where the bowl is within reach. This is the T-handle version; its hex-nut lock suits mobile rigs and equipment that vibrates. INSTALLATION. Per the PneumaticPlus instruction sheet, set the unit so airflow follows the IN-OUT direction marked by the arrow on the head, place it first in line ahead of any additional regulators or lubricators, keep it as close as practical
