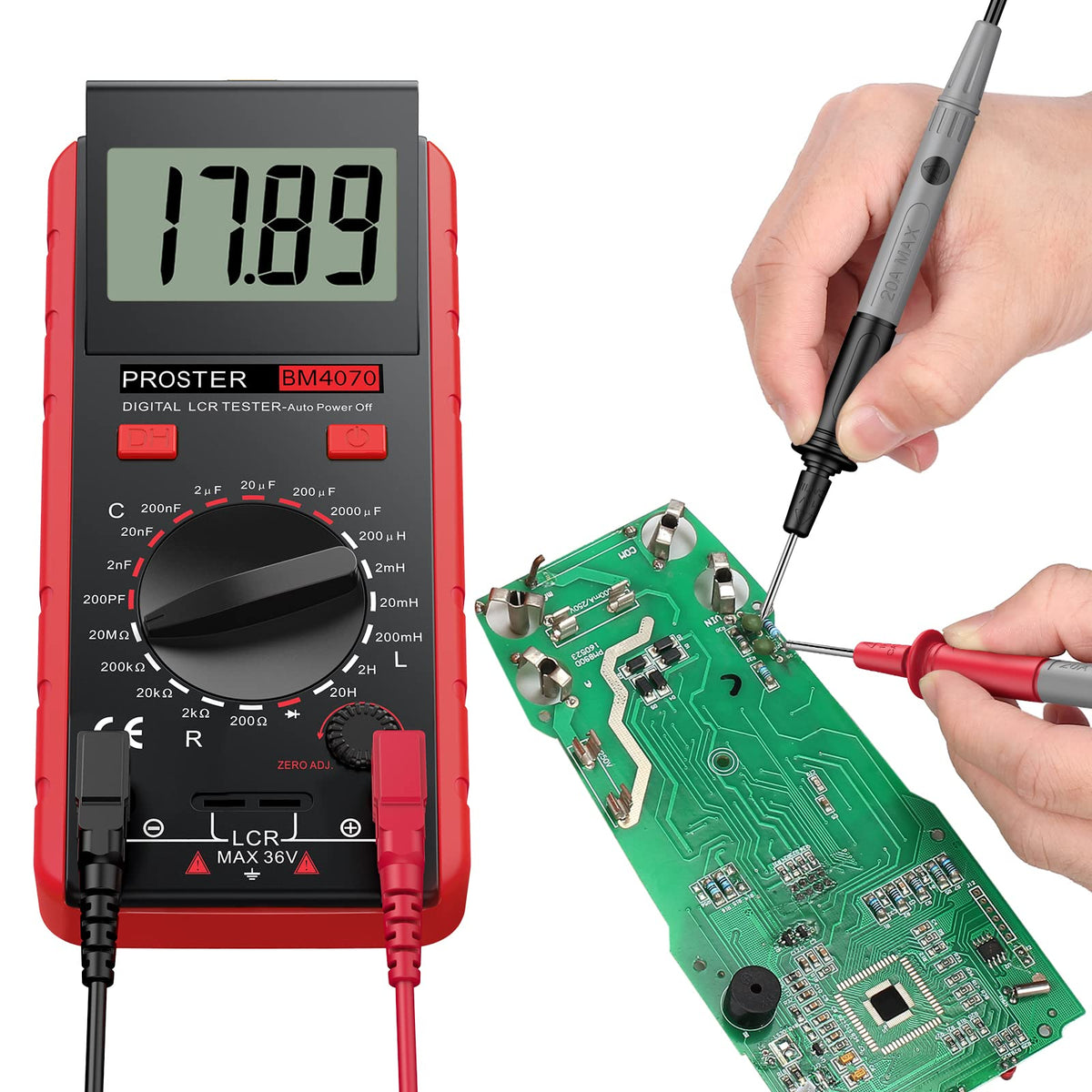

Proster LCR Meter Multimeter Capacitance Inductance Resistance Tester

Key features

• Proster LCR meter : inductance, capacitance and resistance measuring meter,it is a Specialdigital instrument which is easy to be operated, the reading accuracy degree is higher with liquid crystal display 3 1/2
• High Accuracy : (Inductance) Measuring accuracy up to (2%+5); (Capacitance) Measuring accuracy up to (2%+5)Forward voltage drop of diode: Displaty forward voltage drop of diode; Forward voltage of DC: vApprox.1mA; Reverse DC voltage: Approx.2.8V
• Rotatable LCD Display : Multi angle adjustment for easy reading.There is no need to hold tester while measuring, more convenient operation
• Multi-function : Auto power off; Data Hold function; Low Power Indication; ZERO ADJ for Capacitance
• Two Test Leads : The black pen is connected to the negative pole and the red test lead is connected to the positive pole
• Why a Dedicated LCR Meter? – Beyond Standard Multimeters Standard multimeters struggle with accurate inductance readings and low-value capacitance. The Proster LCR meter is purpose-built for inductance (L), capacitance (C), and resistance (R) measurements. With 3 1/2 digit LCD (1999 max count) and dual-slope A/D conversion, it delivers reliable readings for component testing, sorting, and troubleshooting

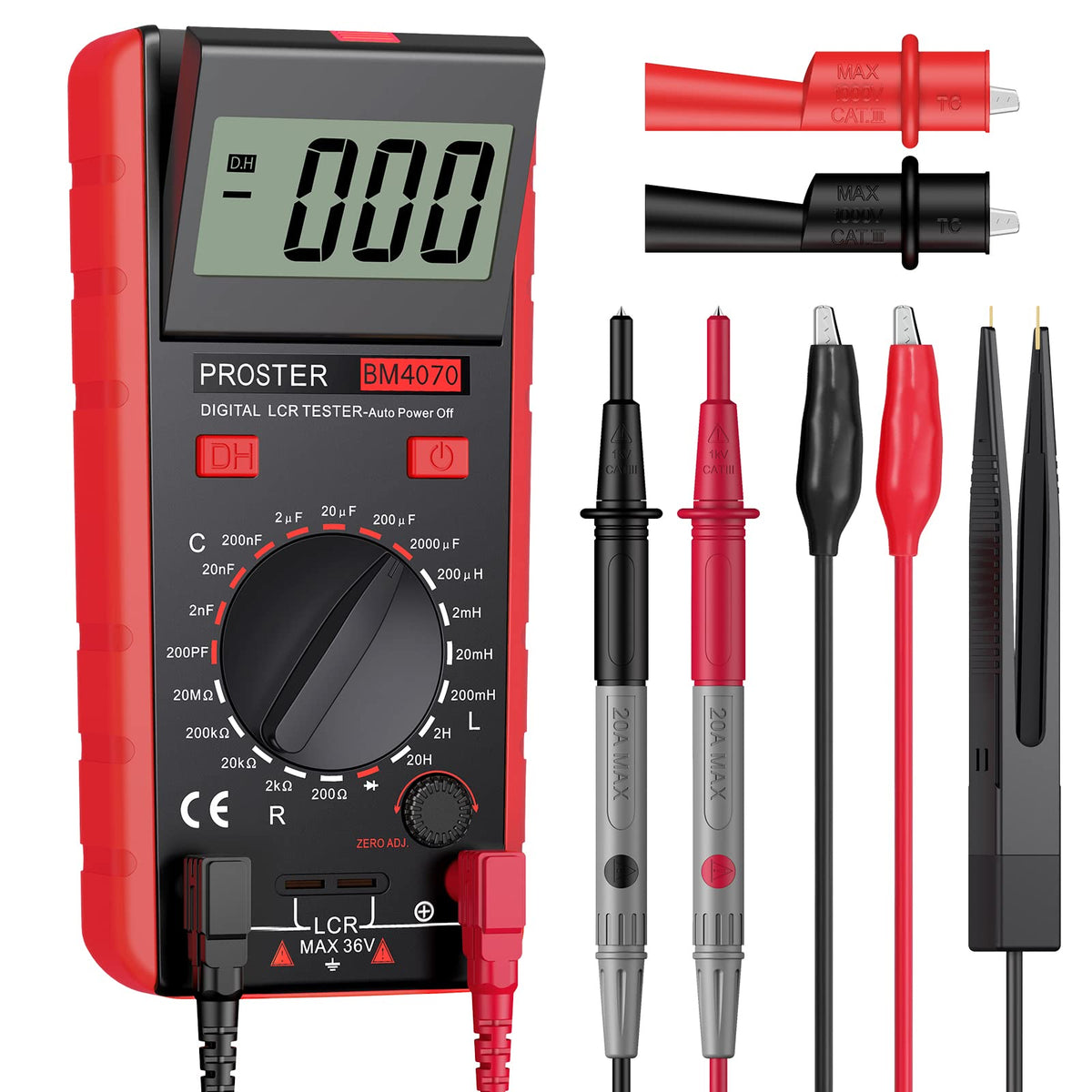

• Complete Kit – Ready to Use Out of the Box Includes: LCR meter, test leads, crocodile clips, mini screwdriver, 9V battery, user manual, and a portable storage bag. Features data hold, auto power off, and operates on a standard 9V battery. Sampling rate of 3 times per second provides responsive readings.
• Wide Capacitance Range – 200pF to 2000μF Measure everything from small ceramic discs to large electrolytic capacitors. 8 capacitance ranges: 200pF (0.1pF resolution, ±2.5%), 2nF, 20nF, 200nF, 2μF, 20μF, 200μF, and 2000μF (1μF resolution, ±5.0%). Perfect for identifying unmarked caps, matching pairs, or checking for drift and ESR-related degradation
