R8-FMB22 BAP400R Face Mill APMT1604PDER Carbide Inserts

Key features

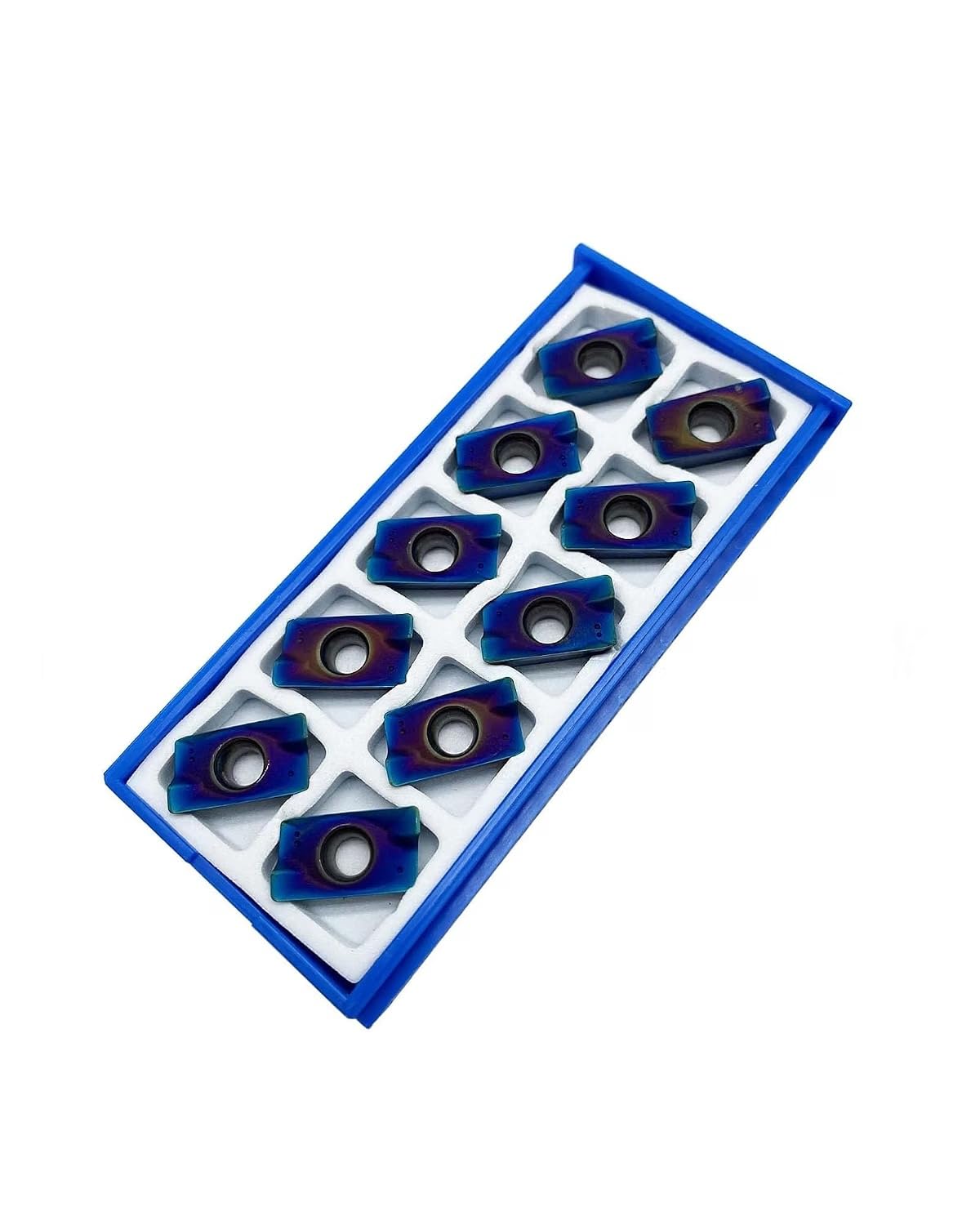

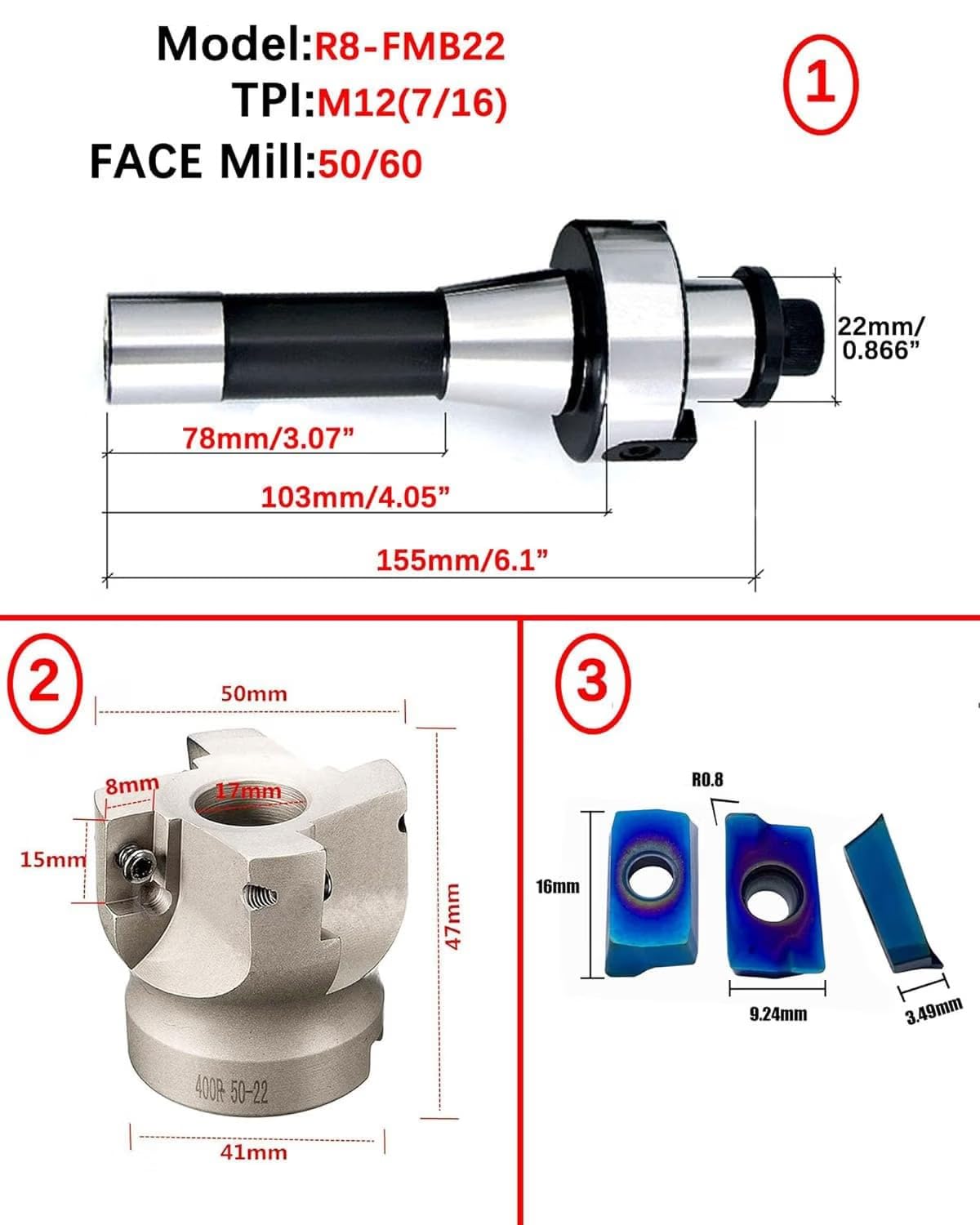

• APMT1604PDER Carbide Milling Inserts HRC15°-55°，Dual-edge , Tin Nano blue Coated，blade length=0.63", I.C(d): 0.366", Thickness(s): 0.187",Hole(d1): 0.173",Nose radius(r): 1/32",Nose Angle: 85°,Relief Angle: 11°,Good for both finishing and roughing.

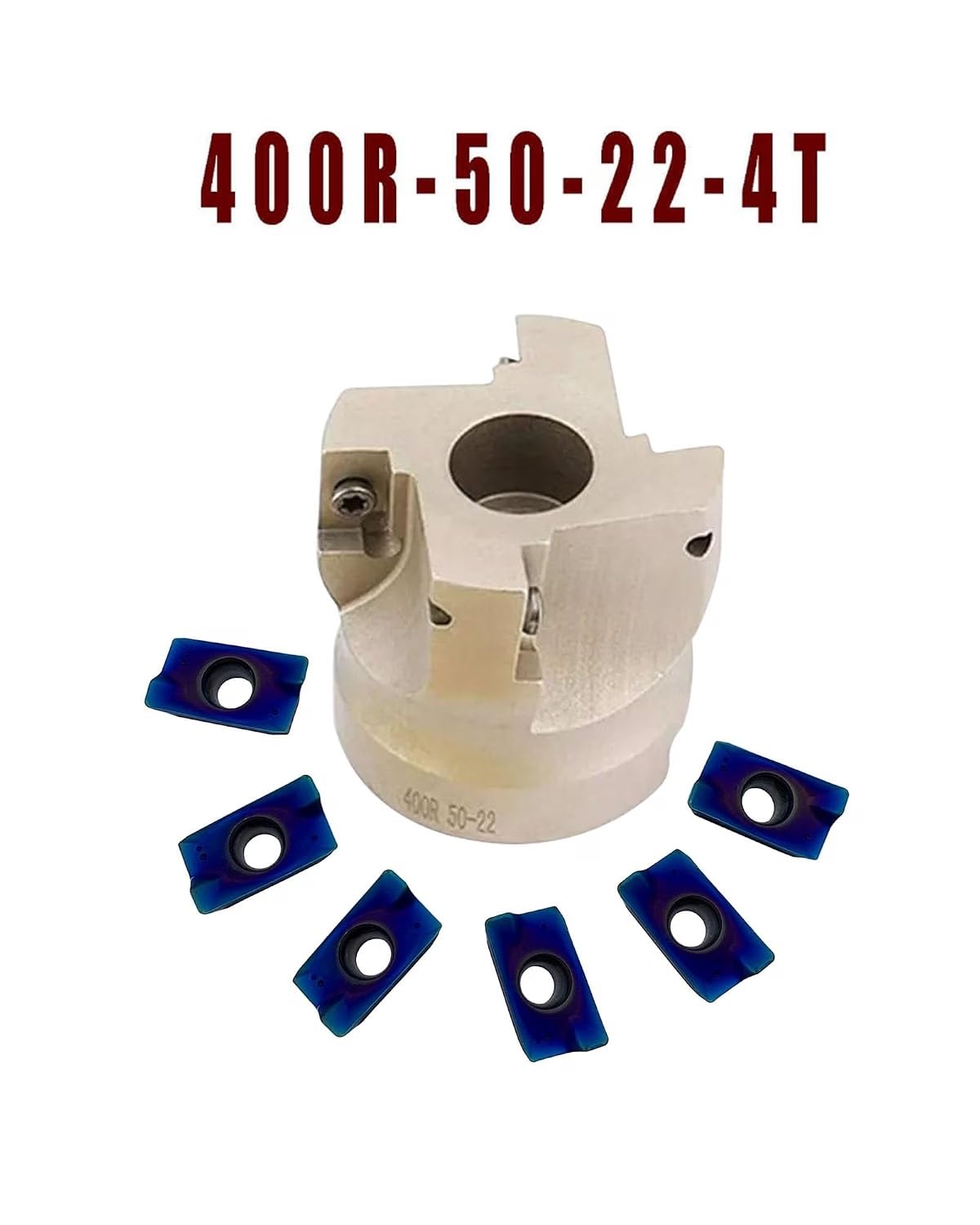

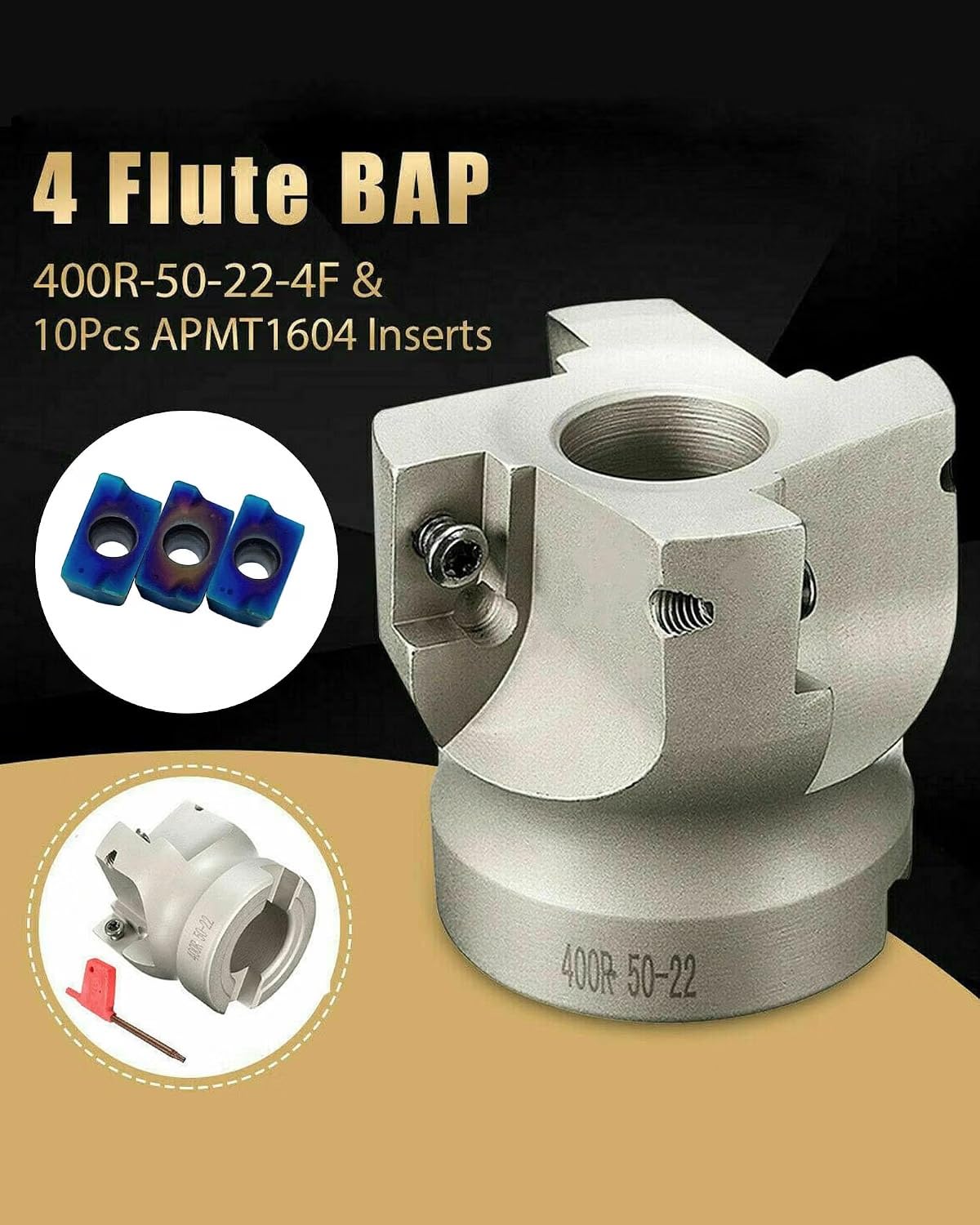

• BAP400R 50-22-4T Face milling Cutter40Cr MnTi ,1.96" height and face diameter. Interface diameter=22mm/0.86". Through heated and quenched, solid hard with good cushioning effect, Screw down insert, screw size=M4*9, wrench=T15.

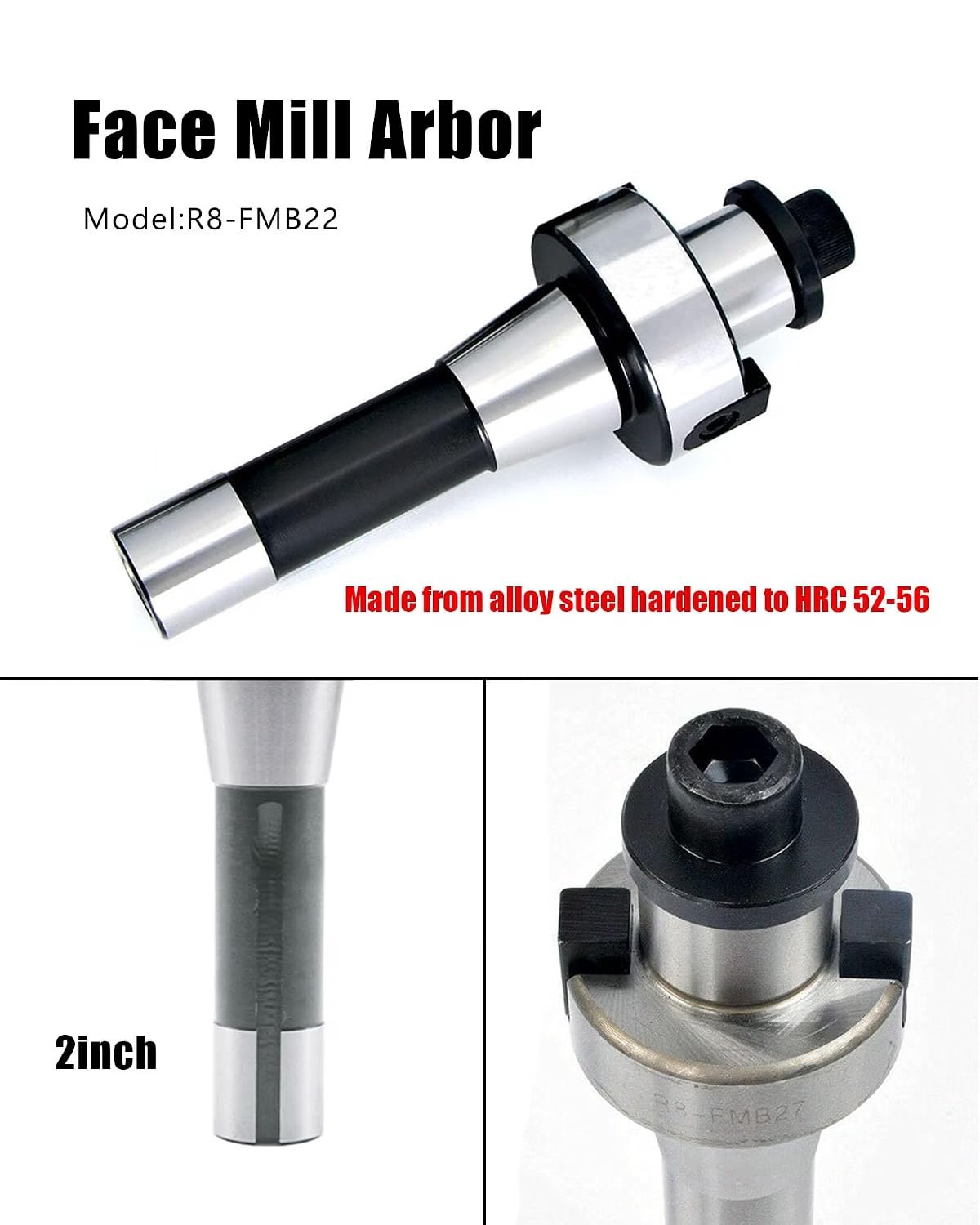

• R8 FMB22 Face Mill ArborMade from alloy steel hardened to HRC 52-56,For shoulder milling, face milling and slotting,7/16-20 thread on the draw bar，Positive rake 90Degree, right hand cut. Shank Size: R8.
• AdvantageHigh vibration-absorbing performance, improve the surface finish of the workpiece, Great for shoulder milling, face milling and slotting.Suitable for Hardened steel, as well as various die steel, stianless steel, high temperature alloy steel and other high hardness materials。

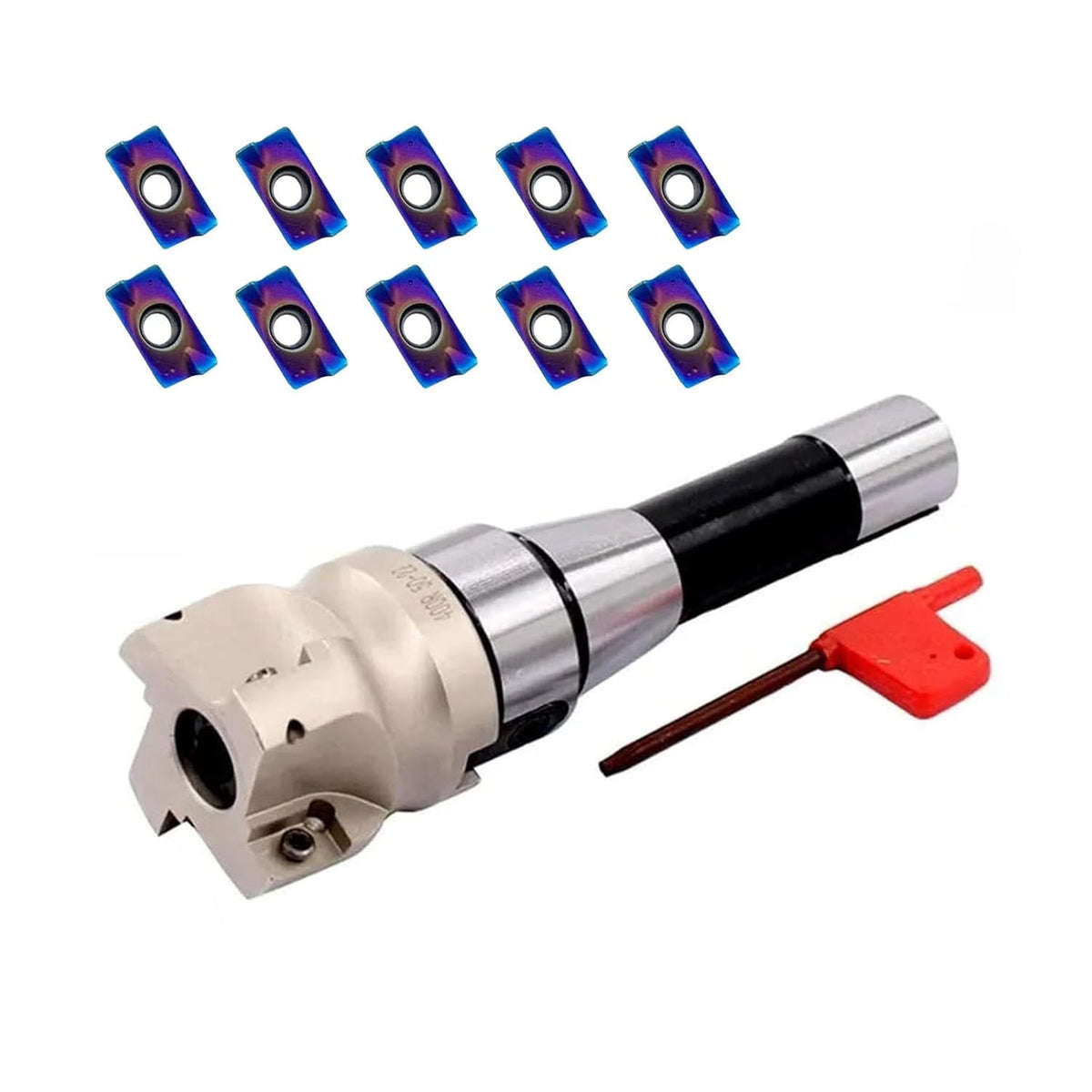

• Package list1pcs 2" R8-FMB22 face mill arbor + 1pcs 400R 50-22-4T Milling cutter + 10pcs APMT1604PDER carbide milling inserts + 1pc T15 Wrench

Free shipping included. 30-day hassle-free returns.
