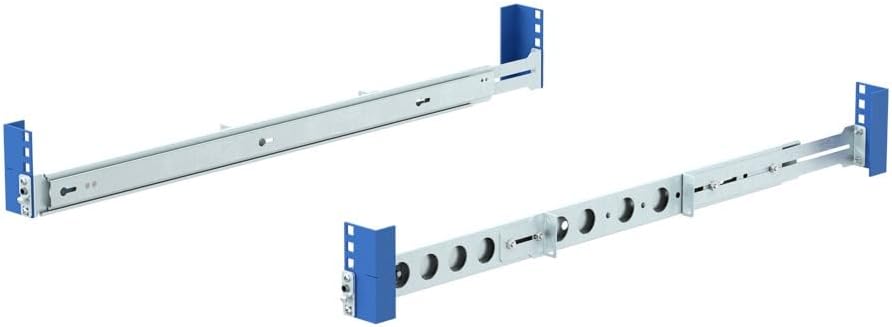

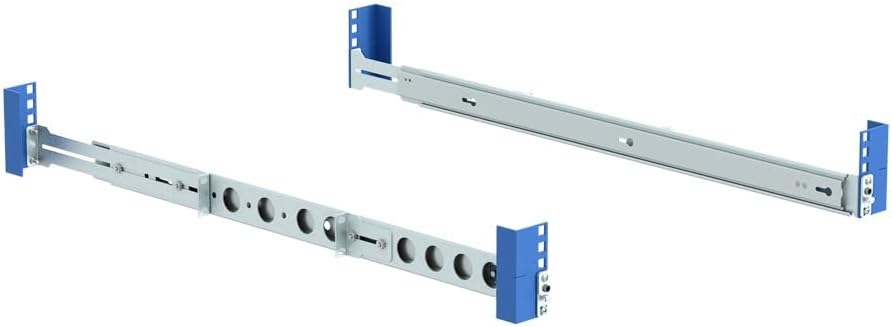

RackSolutions 1U Raven 165-A Dry Slide Rail for HPE DL20 Gen10

Key features

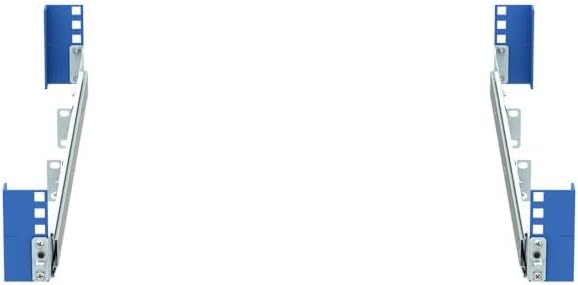

• Built for shallow racks: shortened inner rails stop the kit protruding past the rear uprights, so the rack door still closes
• Fits HP ProLiant DL20 Gen10: sized for that server in any EIA 19in standard rack
• Two rack types: 4Post mounting depth of 14.56in to 30.26in, or 2Post center mounting from 3in to 6in
• Dry slide rails: fewer moving parts than a conventional slide kit, which extends service life in a working rack
• Universal hole support: fits square, threaded or through-hole mounting and works with L shaped and C shaped uprights

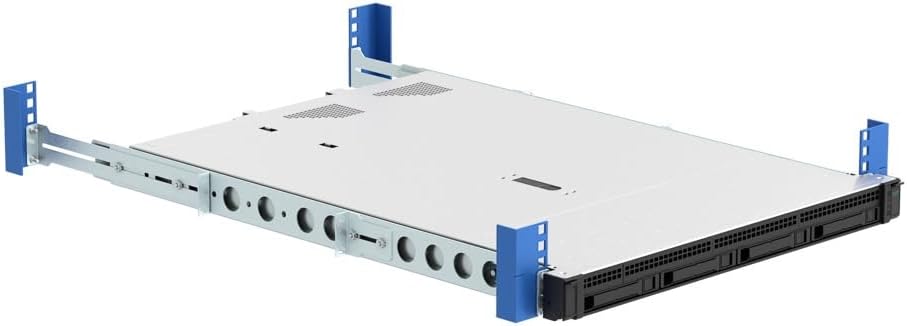

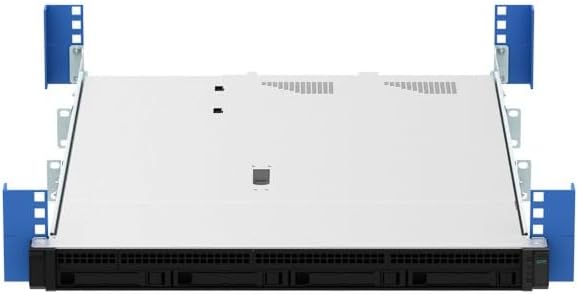

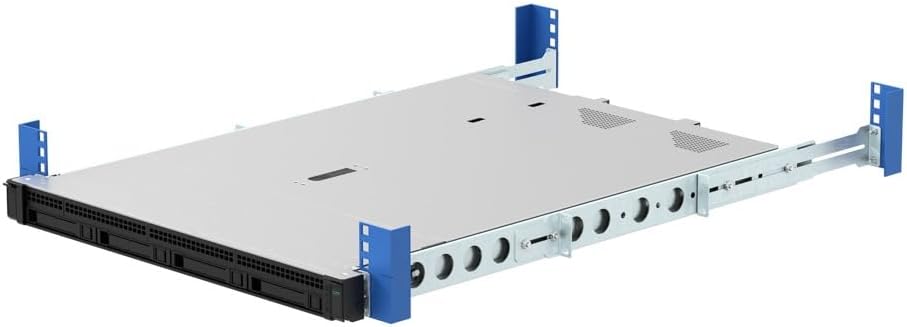

The RackSolutions 1U Raven 165-A Dry Slide Rail mounts an HP ProLiant DL20 Gen10 in racks that do not have full server depth. The distinguishing feature is the shortened inner rail: standard kits protrude past the rear uprights in a shallow rack, which stops the rear door closing and blocks accessory installation. This kit avoids that. It fits 4Post racks at mounting depths from 14.56in to 30.26in and 2Post racks center mounted from 3in to 6in. The dry slide mechanism has fewer moving parts than a conventional slide rail, which extends its service life. It works with square, threaded and through-hole mounting and supports L shaped, C shaped and other upright profiles found in any EIA 19in standard rack.
