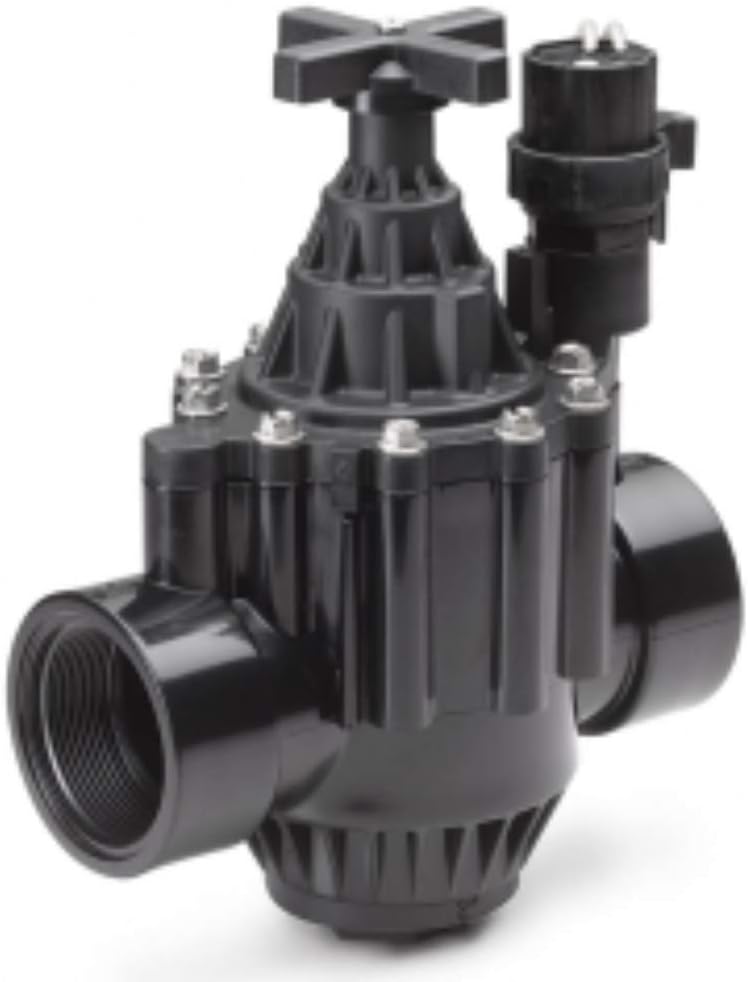

Rain Bird 100-PGA 1" Inlet Globe/Angle Irrigation Valve

Key features

• Size: one inch Globe and angle configuration for flexibility in design and installation.
• Rugged PVC construction for reliable operation
• Double-filtered pilot flow to resist debris and clogging of solenoid ports.
• Non-rising flow control handle adjusts water flow as needed.
• Accepts latching solenoid for use with Rain Bird battery-operated controllers.

Product Information:The PGA Series offers versatility at an affordable price. Plastic globe/angle valve for residential/light commercial irrigation applications.Options (order separately)Accommodates field installed PRSD pressure regulating module to ensure optimum sprinkler performance. Regulates up to 100 psi (6,90 bar). Purple flow control handles for easy identification of nonpotable water systems. Models: PEBNPHAN1 (1") and PEBNPHAN2 (1 1/2" and 2"). Accepts latching solenoid for use with Rain Bird batteryoperated controllers up to 150 psi (10,35 bar).Rain Bird recommends: Flow rates in the supply line not to exceed 7.5 ft./sec. (2,3 m/s) in order to reduce the effects of water hammer. For flows below 5 GPM (1,14 m3/h; 0,32 l/s), Rain Bird recommends use of upstream filtration to prevent debris from collecting below the diaphragm. For flows below 10 GPM (2,27 m3/h; 0,63 l/s) Rain Bird recommends the flow control stem be turned down two full turns from the fully open position. Features:#149; Globe and angle configuration for flexibility in design and installation#149; Rugged PVC construction for reliable operation#149; Normally closed, forward flow design#149; Doublefiltered pi
