RAREELECTRICAL 12V CCW Pmdd Starter for 1995-1999 Force 40El 40Elpt

Key features

• Compatible with MERCURY, UTB. Please verify your OEM part number from your original unit to help ensure fitment.
• Replaces: Oem Cross-Reference Part Numbers — Force / Mercury Marine: / Force / Mercury Marine: 50-820193 / 50820193 / Force / Mercury Marine: 50-820193-1 / 508201931 / Force / Mercury Marine: 50-820193-T1 / 50-820193T1 / 50820193T1 / / Oem Cross-Reference Part Numbers — Johnson Electric: / Johnson Electric: 5676940 / Johnson Electric: Sm56769 / / Oem Cross-Reference Part Numbers — United Technologies (Ut): / United Technologies: 5676940-M030sm / 5676940Mo30sm / /
• Applications: Force 40Hp Marine Outboards — Ut Starter (1993-1999): / 1995-1999 Force Marine 40El 40Hp Outboard — United Tech Starter (Later Production) / 1993-1994 Force Marine 40El 40Hp Outboard — Ut Starter (Requires Serial #9500-936499) / 1995-1999 Force Marine 40Elpt 40Hp Outboard — United Tech Starter (Power Trim, Later Production) / 1993-1994 Force Marine 40Elpt 40Hp Outboard — Ut Starter (Power Trim, Requires Serial #9500-936499) / / Force 50Hp Marine Outboards — Ut
• Applications: Starter (1992-1999): / 1992 Force Marine 507 50Hp Outboard — Ut Starter (Requires Serial #9500-936499) / 1992 Force Marine 508 50Hp Outboard — Ut Starter (Requires Serial #9500-936499) / 1993-1999 Force Marine 50El 50Hp Outboard — United Tech Starter / 1993-1999 Force Marine 50Elpt 50Hp Outboard — United Tech Starter (Power Trim) / / Critical Fitment Differentiation — Battery Stud Orientation: / This Starter: Battery Stud Exits The Rear Of Ce...
• Starter - Voltage: 12V Rotation: Counterclockwise Teeth On Drive / Splines: 13 Country Of Origin: TW Source: Aftermarket

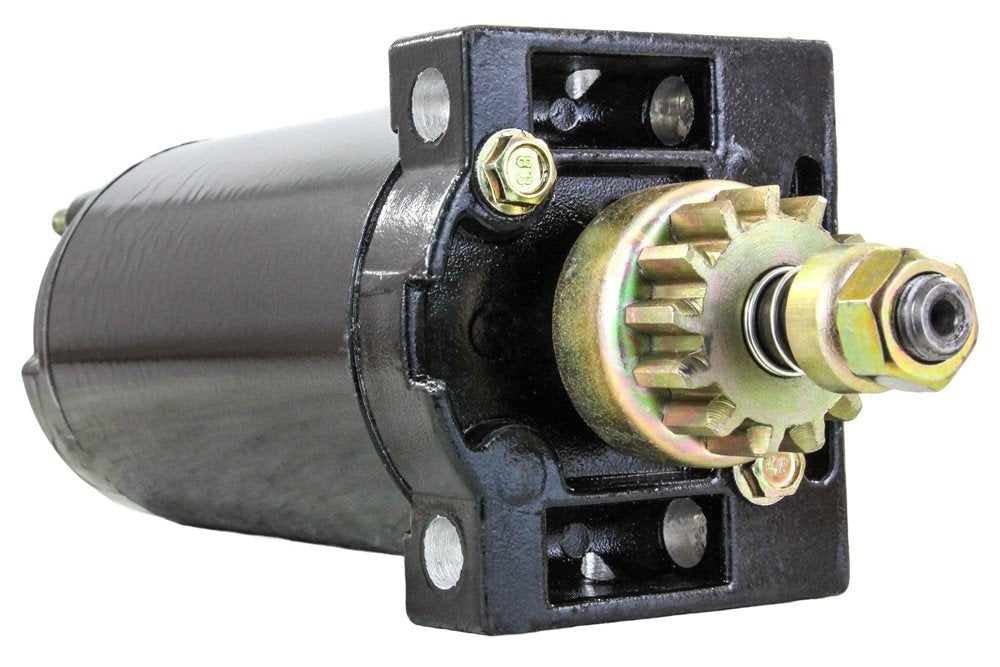

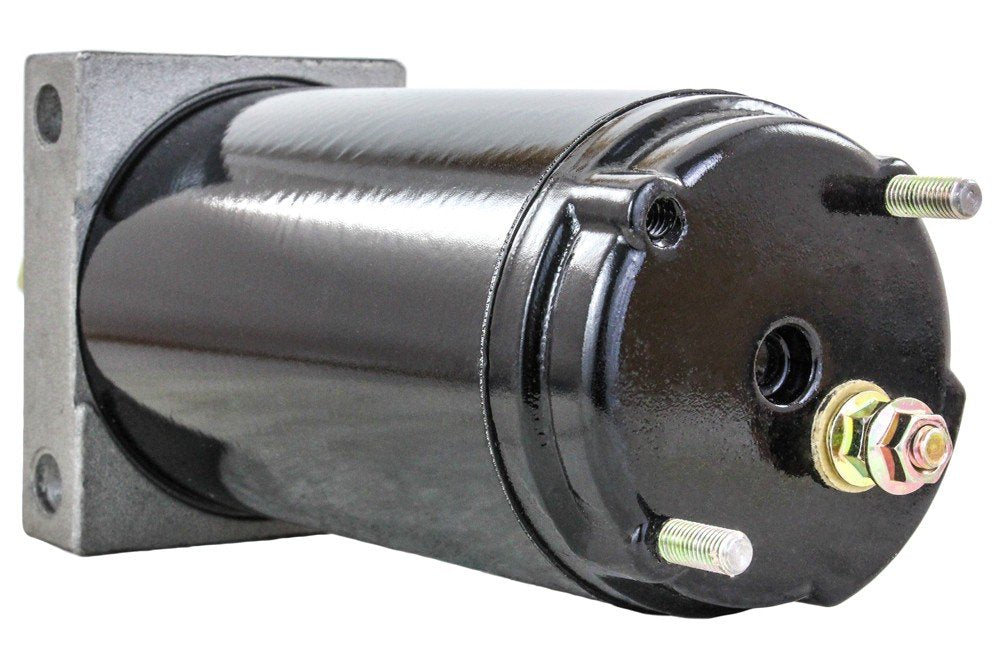

12-volt counterclockwise (CCW) Permanent Magnet Direct Drive (PMDD) starter motor with 13-tooth pinion and 1.496" gear OD. Designed for Force / Mercury 40HP and 50HP outboard motors 1992-1999, covering the 40EL/40ELPT/507/508/50EL/50ELPT model variants. CRITICAL: Battery stud exits the REAR of CE housing (vs which has battery stud exiting the SIDE — same teeth count but NOT interchangeable). Original Johnson Electric / United Technologies (UT) PMDD design. APPLICATION — FORCE / MERCURY 40-50HP OUTBOARDS 1992-1999 (REAR BATTERY STUD): 1995-1999 Force 40EL / 40ELPT 40HP Outboard with UT Starter (Later Production) 1993-1994 Force 40EL / 40ELPT 40HP Outboard with UT Starter (Serial #9500-936499) 1992 Force 507 / 508 50HP Outboard with UT Starter (Serial #9500-936499) 1993-1999 Force 50EL / 50ELPT 50HP Outboard with UT Starter CRITICAL: Battery stud EXITS THE REAR of CE housing (vs which exits SIDE) 12V / CCW / PMDD / 13-Tooth / 1.496" Pinion / 4.8" Field Housing / 7.08 lbs OEM CROSS-REFERENCES & SPECIFICATIONS: Force / Mercury Marine: 50-820193 / 50-820193-1 / 50-820193-T1 Johnson Electric: 5676940 / SM56769 United Technologies: 5676940-M030SM / 5676940MO30SM 12V CCW PMDD 13-Tooth UT
