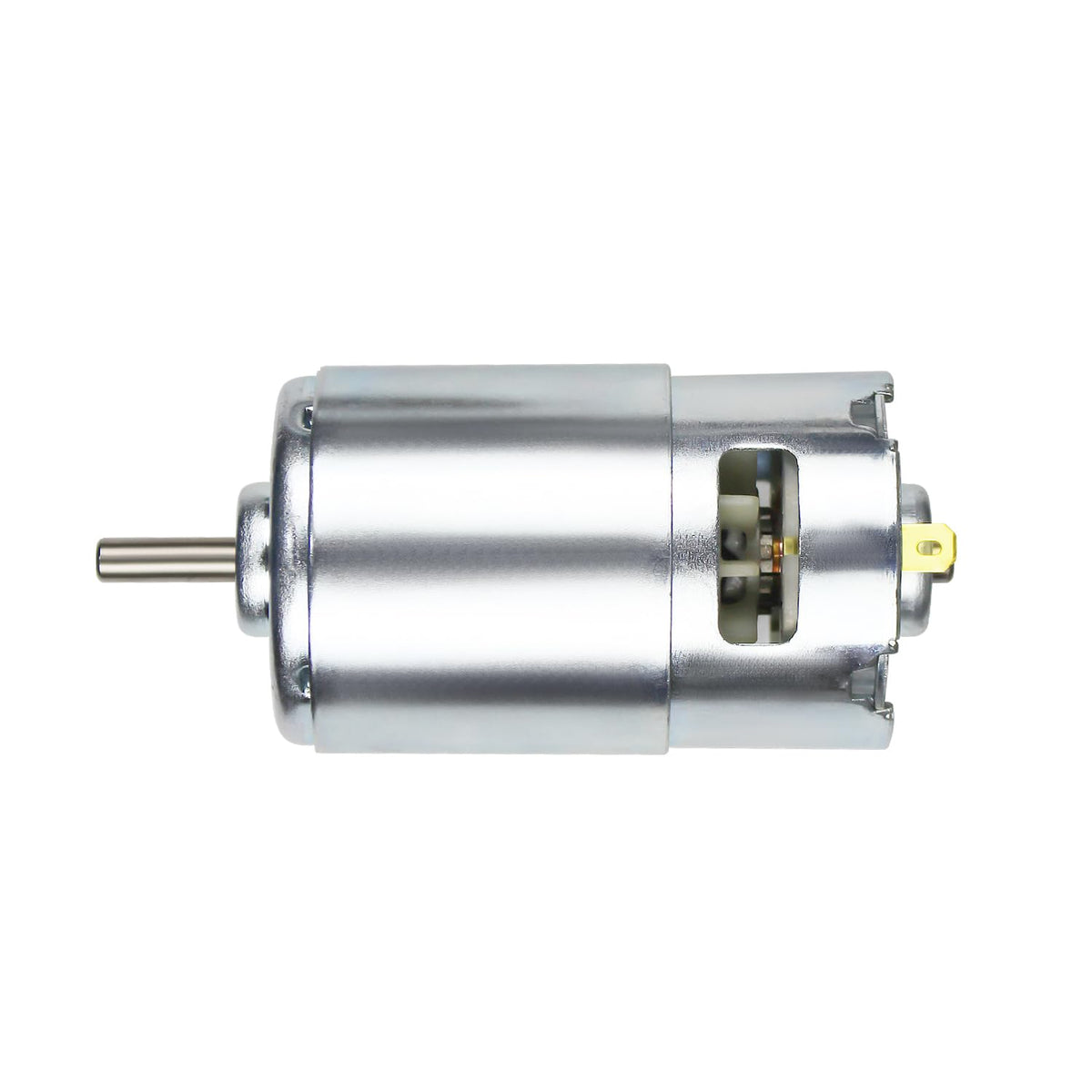

RATTMMOTOR DC Motor CNC 997 Spindle Motor 400W 12-48VDC 0.99N.m

Key features

• Applicable FieldsCutting machines, belt sanders, lathes, milling machines, bench drills, hand drills, polishing machines, bead machines, lawn mowers, wire saws, band saws, electric grinders, engraving machines and other miniature machines.

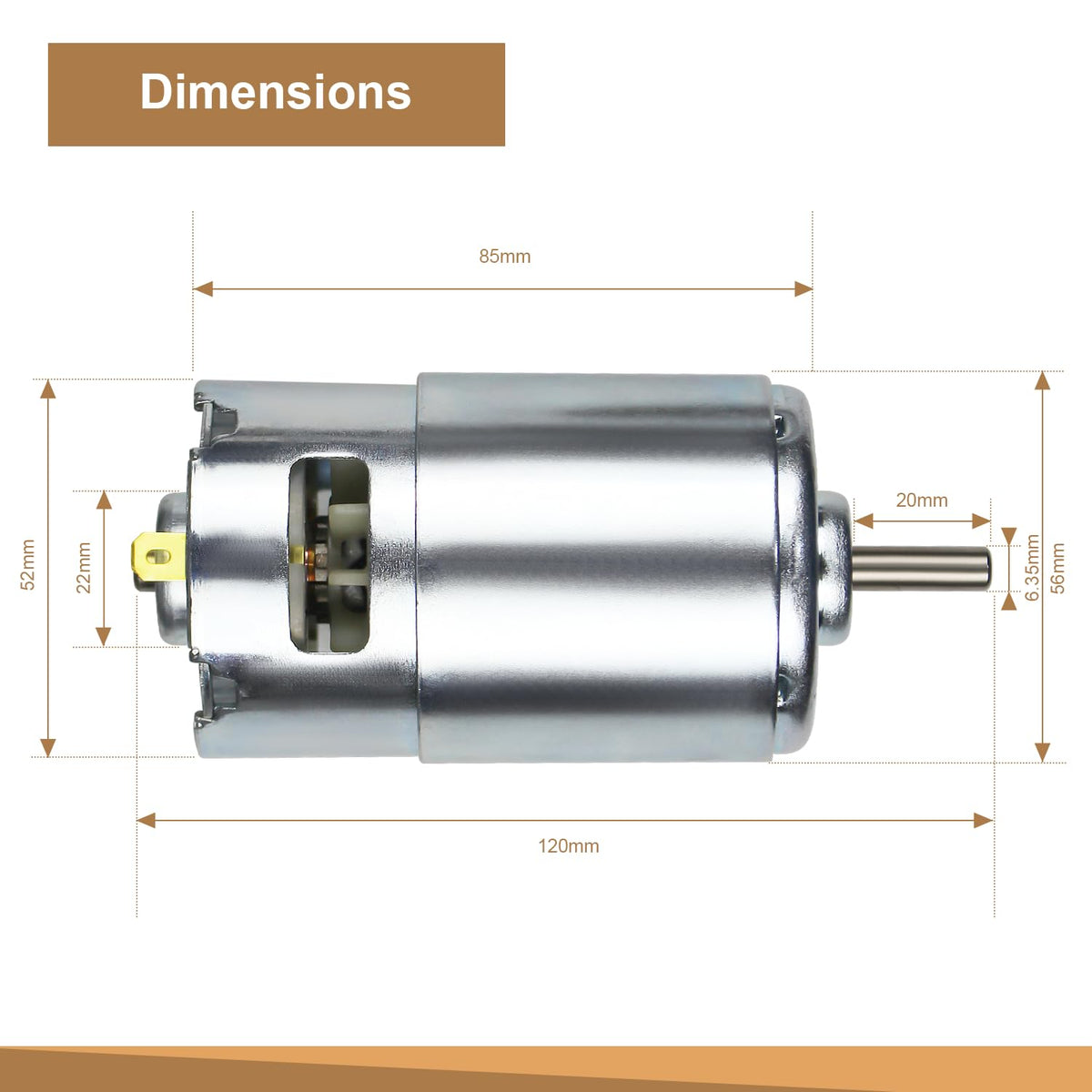

• Motor sizeMotor length is 120mm/4.72inch, diameter is 54mm/2.13inch, shaft diameter is 6.35mm/0.25inch, output shaft length is 20mm/0.79inch, motor weight is 760g/1.68 Ib.

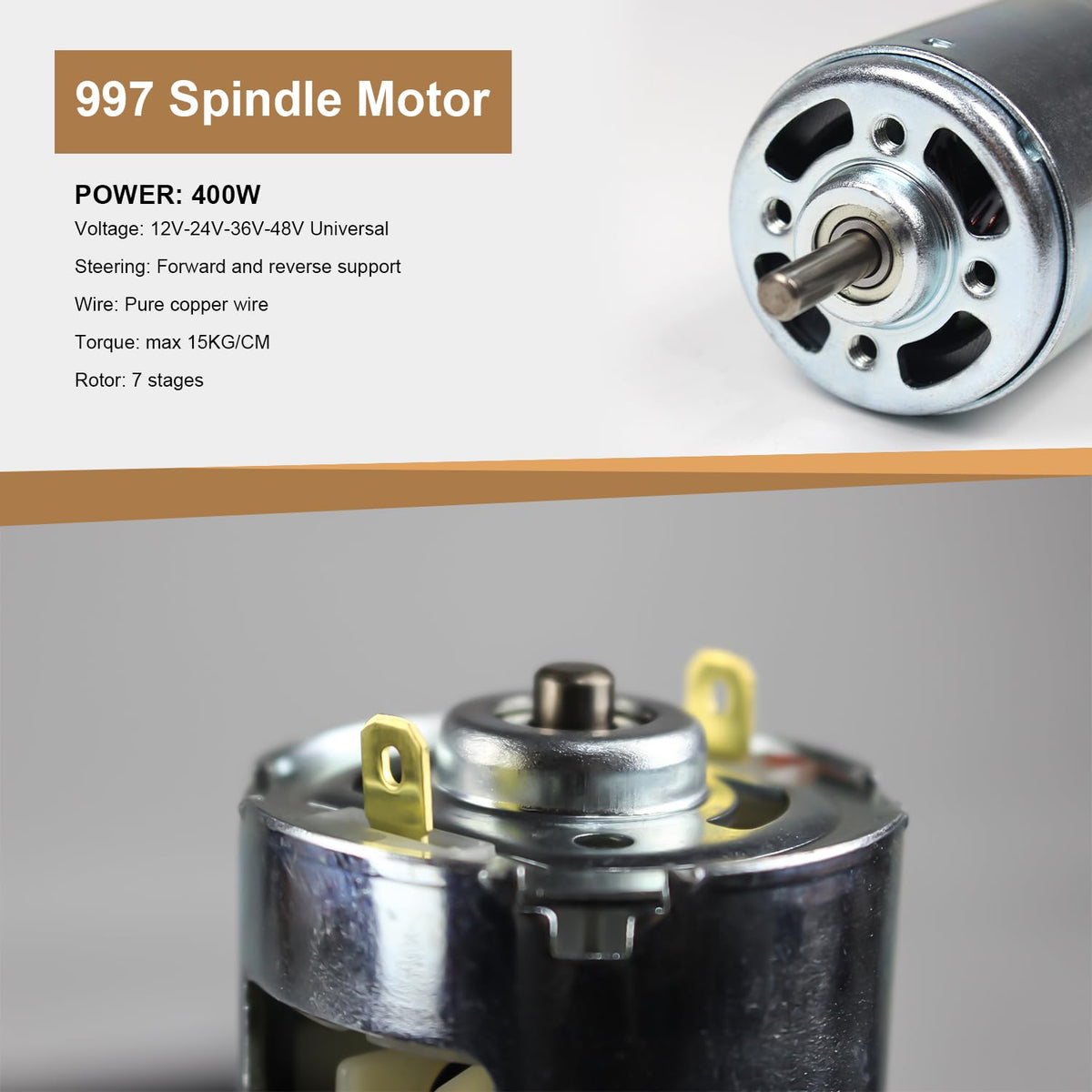

• High power, high torqueHigh power spindle motor with the beginning of 9, the rated power is 400W, the torque is up to 15KG/CM, the torque is 0.99N.m, the torque is strong, far more than 7 motors, it is the special motor for DIY drilling, milling, cutting and grinding.
• 5000-2000RPMRated current 1.85A, rated voltage 12-48V DC, motor speed up to 20,000rpm, 12V/5000rpm, 24V/10,000rpm, 36V/15,000rpm, 48V/20,000rpm, supports forward and reverse, high speed, strong momentum.

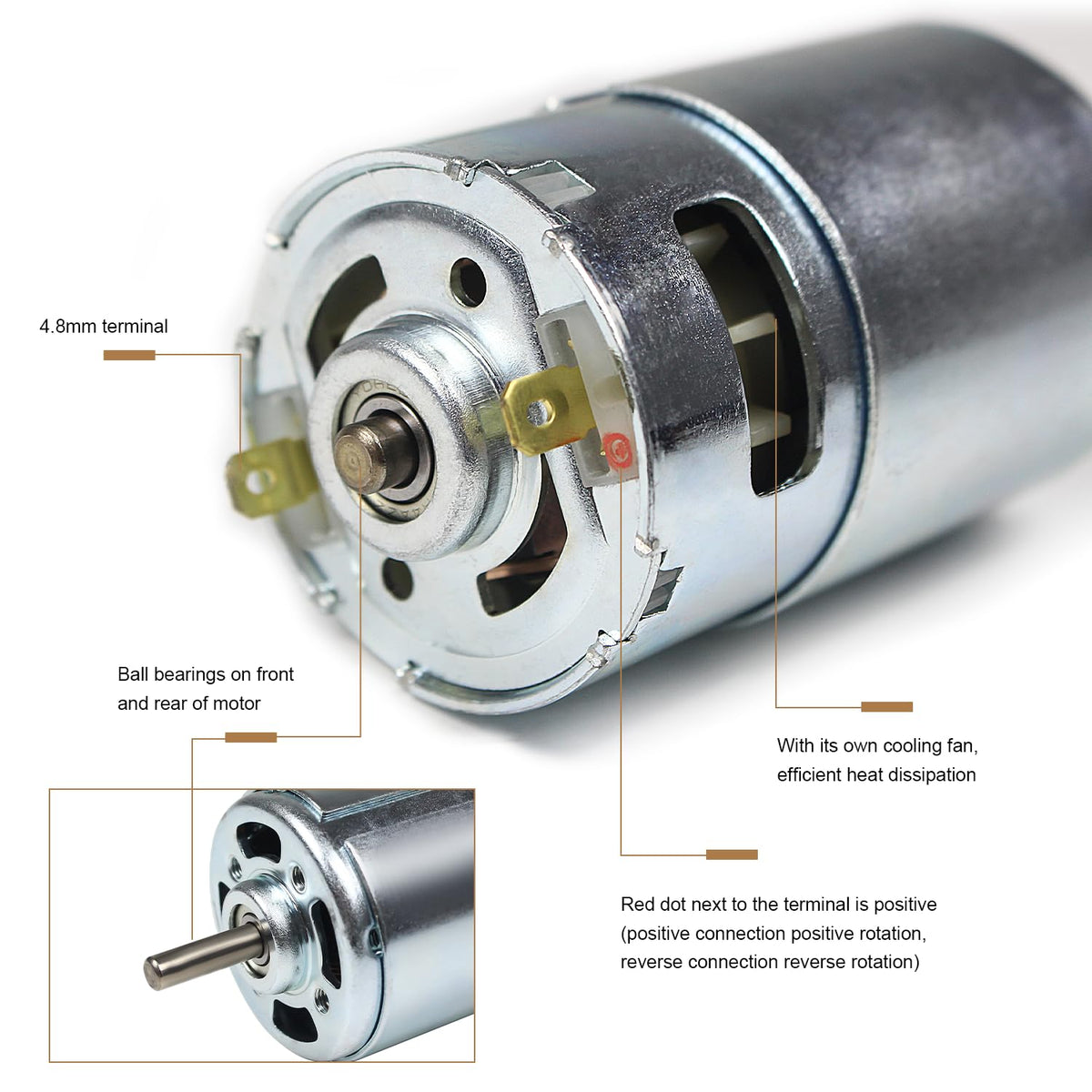

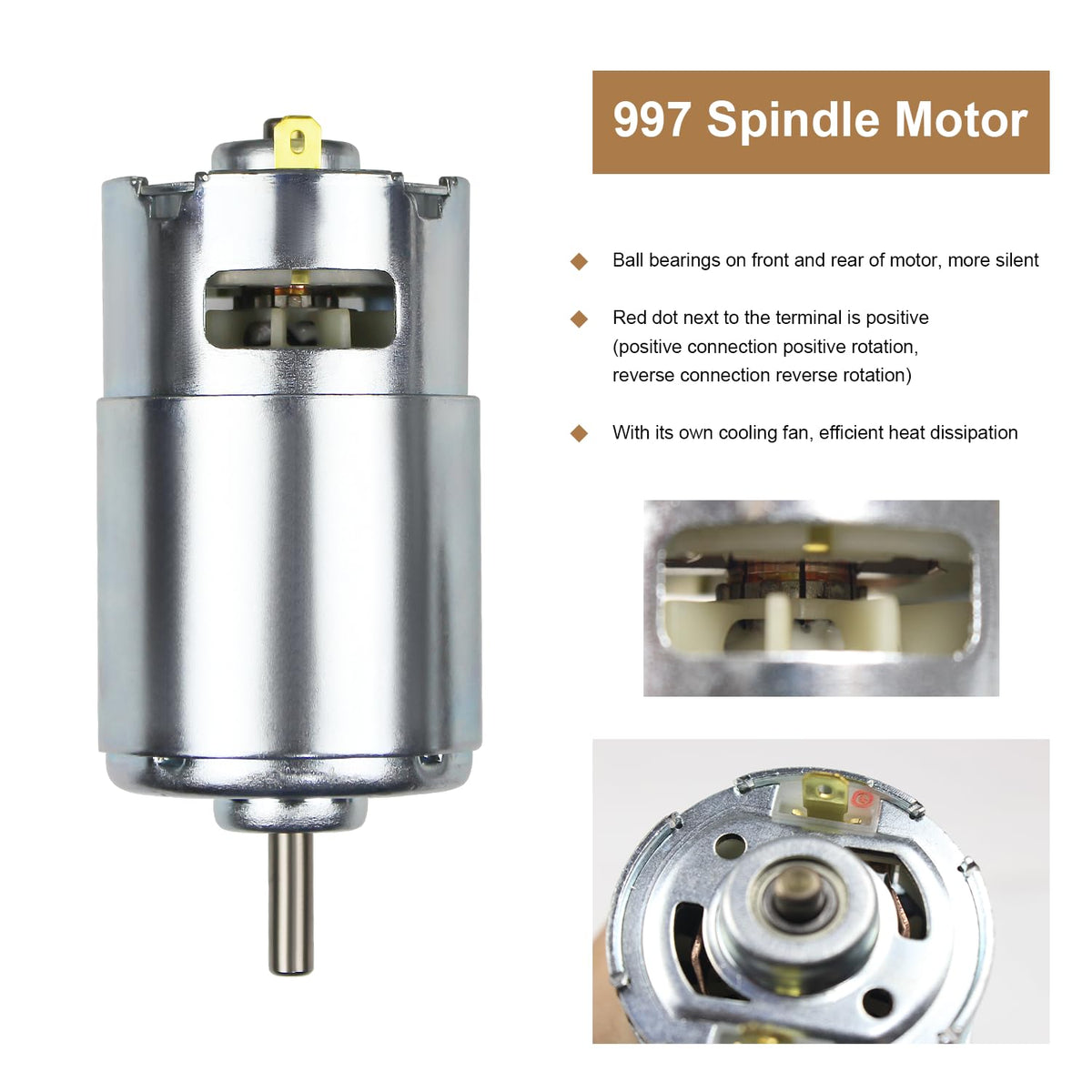

• Double ball bearings, strong magnetism and low noiseFront and rear ball bearings are highly efficient and quiet. With its own cooling fan, can efficiently solve the problem of heat dissipation. 7-stage rotor, pure copper coil, high magnetic force, high efficiency, long-lasting and durable.
