RATTMMOTOR Nema24 3N.m Closed Loop Servo Motor Driver Controller CNC Kit

Key features

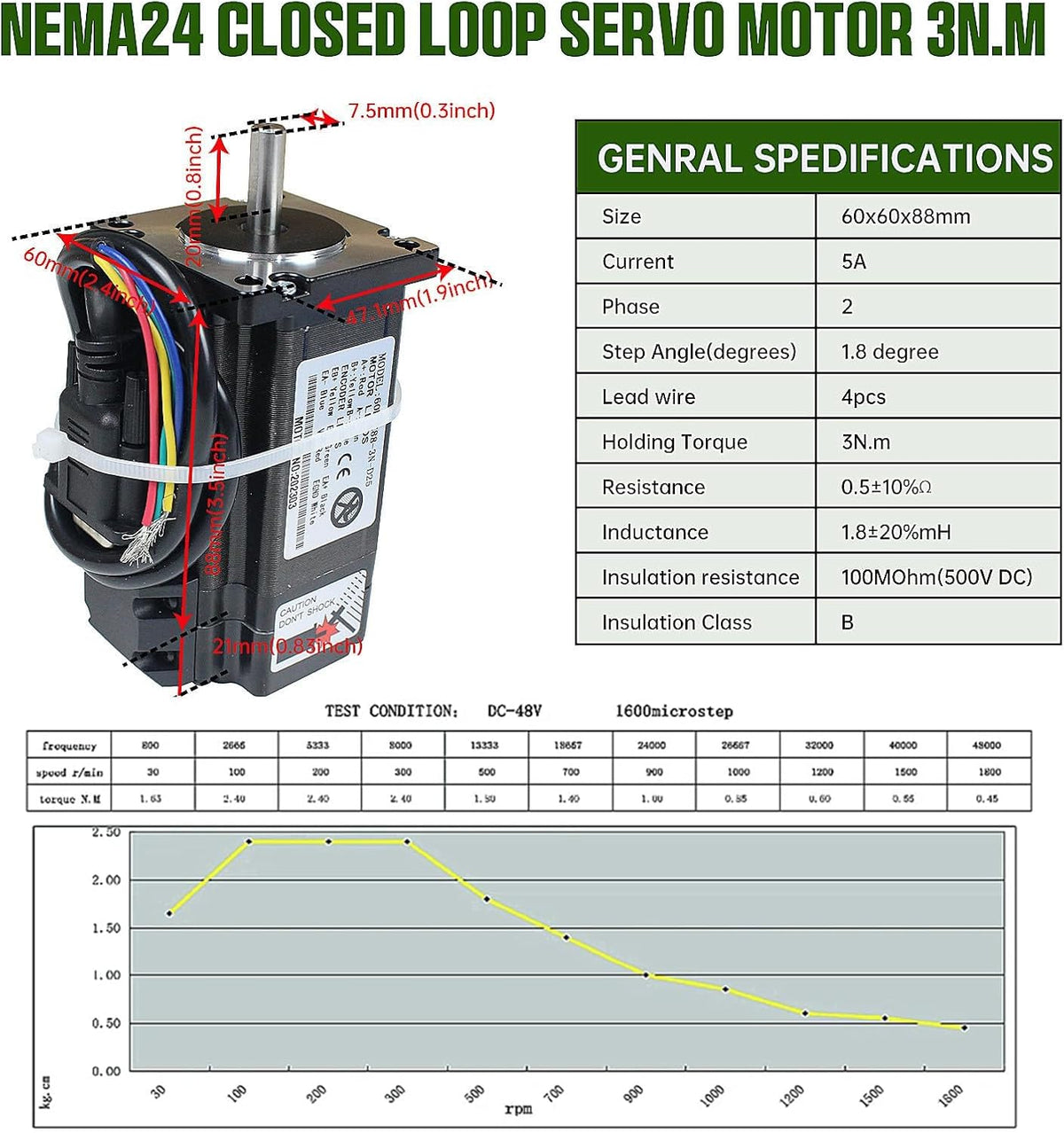

• Motor specifications: Holding Torque:3N.m; Current:5A; Phase:2; Size:60x60x88mm; Step Angle:1.8 degree; Motor Lead Wire: 4-wire; Encoder lines:1000

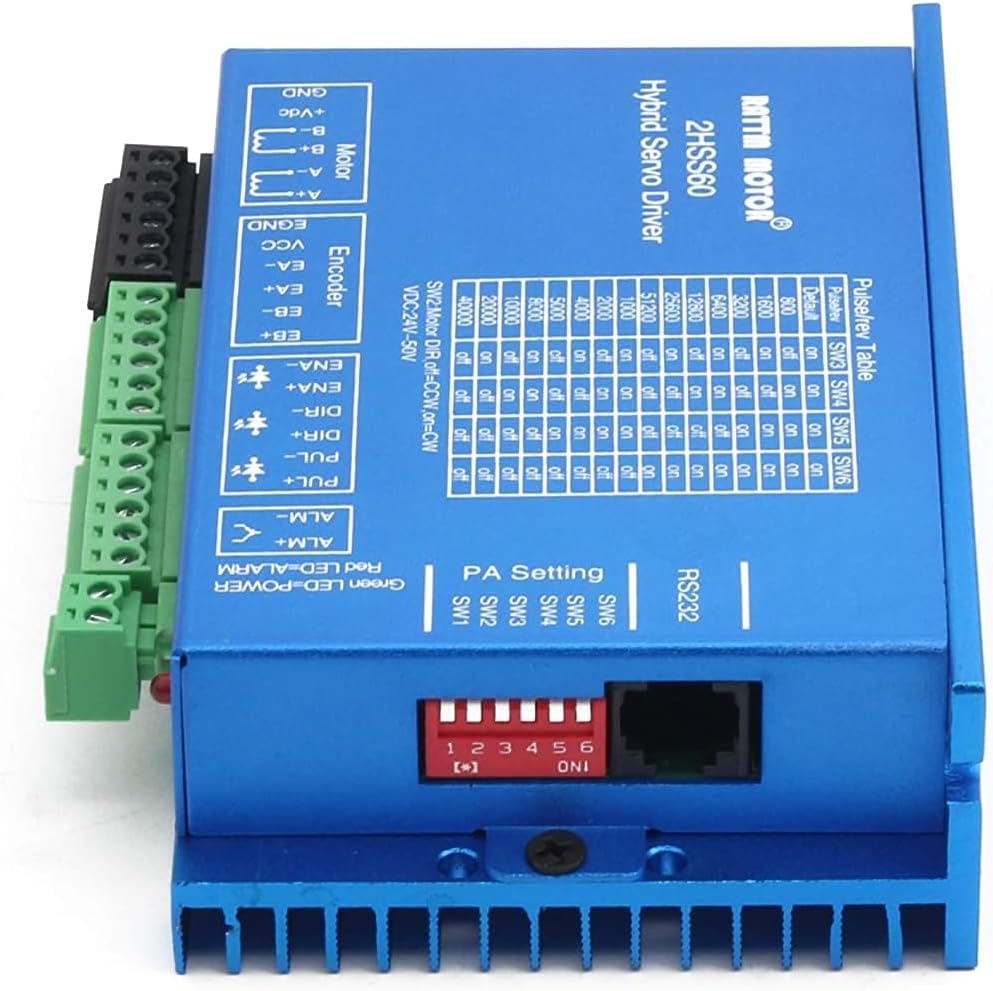

• 2HSS60 Driver: 2-Phase Hybrid Stepper Servo Driver; Frequency:0-200KHz; Insulation resistance:>=500MΩ; Voltage: DC 24-50V input
• Advantages: Stepper motor closed loop system,never lose step; The stepper motor control has a new generation of 32-bit DSP. The vector control technology can ensure the accuracy of the motor; Improve motor output torque and working speed; Automatic current adjustment based on load; Pulses response frequency can reach 200KHZ; 16 kinds microsteps choice,highest 51200microsteps/rev
• More Functions: It supports over-current protection, over-voltage protection, position outside the tolerance protection.The build-in place in position and alarm output signal can help the upper monitor to monitor and control,the function of position ultra difference alarm can ensure the machine work safely
• Widely used: Closed loop stepper system can be applied to all kinds small automatic equipment and instrument. Such as engraving machine, special industrial sewing machine, stripping machine, marking machine, cutting machine, graph plotter, cnc machine, automatic assembly equipment and so on.This motor driver kit fits all types of machine load conditions including pulley and low stiffness pulley without adjusting the gain parameters
