RCO210 3 in 1 Hard Start Capacitor Replacement 1/3-1/2 HP 115VAC | 3 in 1 Start Relay RSC Series Solid State Relay

Key features

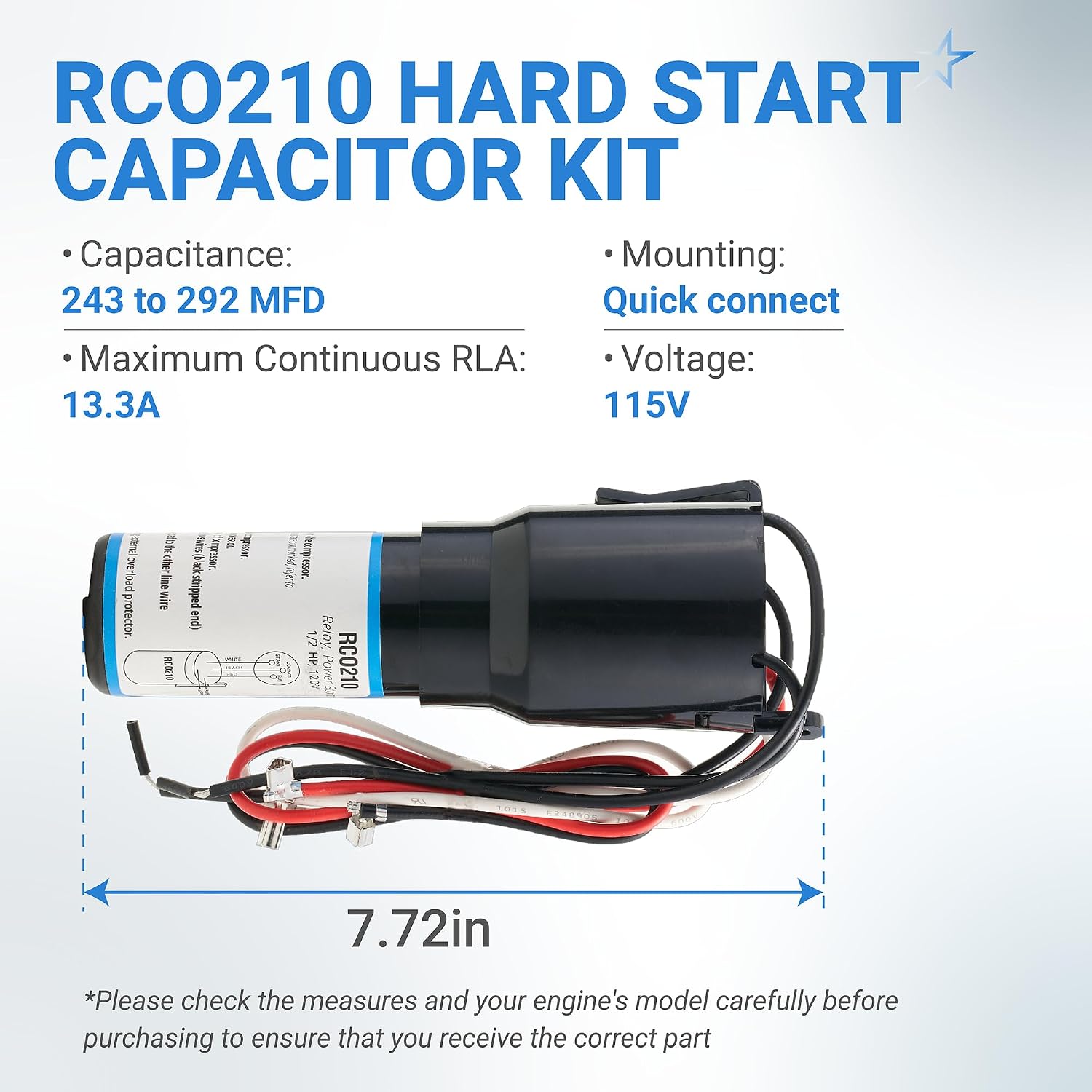

• MODEL NUMBER - RCO210 RSC Series Solid State Relay Overload & Start Capacitor Combination; includes relay, overload, and start capacitor. Capacitance: 243 to 292 MFD; Maximum Continuous RLA: 13.3A; Mounting: Quick connect; Voltage: 115V
• FUNCTION - The 3 n'1 Start Relay adds new life to old refrigerators and freezers by providing an additional boost to the compressor. Prevents low voltage starting problems

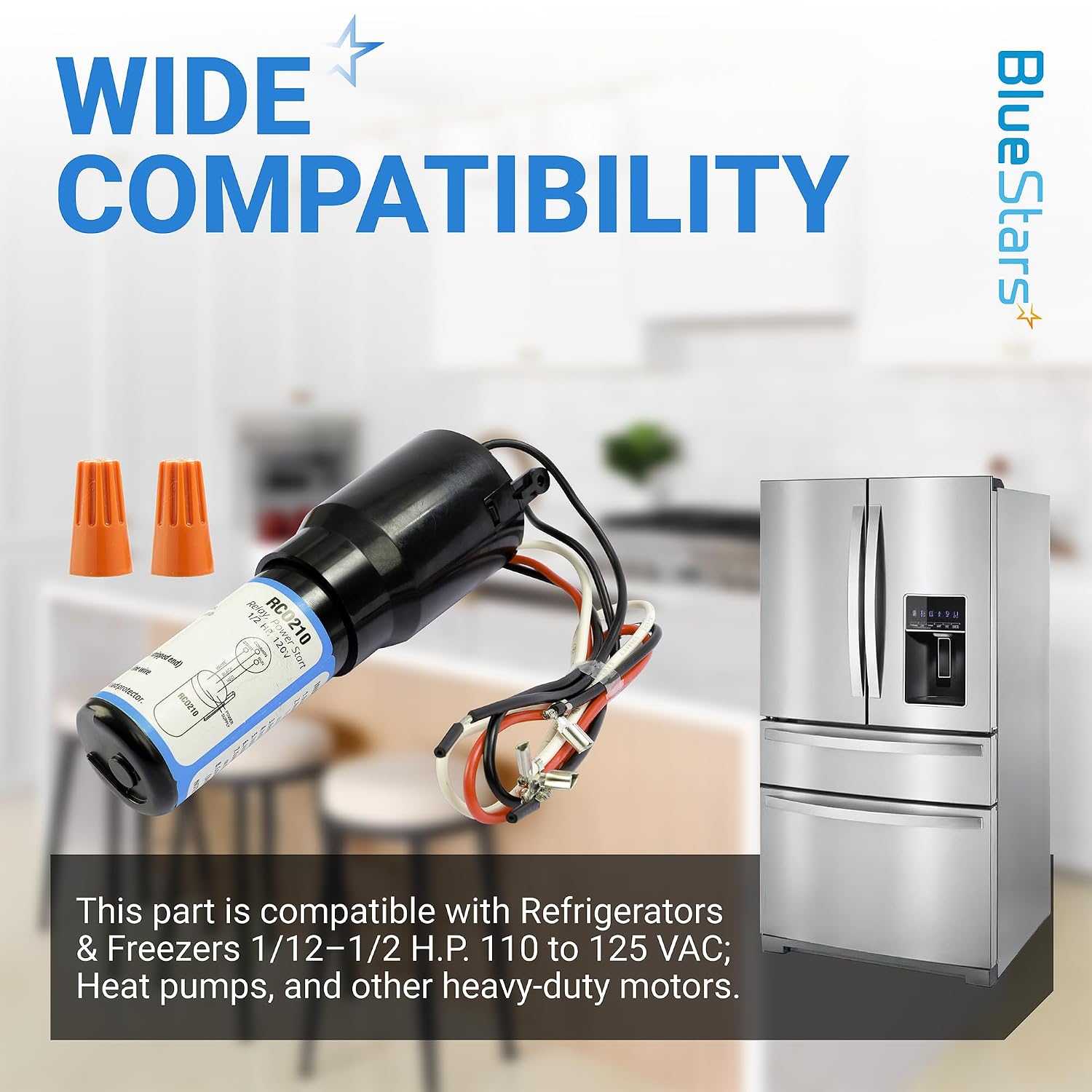

• HIGH COMPATIBILITY - This RCO210 3 in 1 Hard Start Capacitor replaces all 3 electrical components - relay, overload and start capacitor on all capillary systems. It can be used on compressor sizes 1/3 HP through 1/2 HP, starting motors with a rated voltage of 110 to 125VAC for refrigeration compressors, heat pumps, and other heavy-duty and frequently-started motors
• PREMIUM QUALITY - The replacement part is made from durable high-quality material and well-tested by the manufacturer - Ensures long-lasting and effective performance. This part helps solve a problem called hard starting, which is when an AC struggles to turn on and then shuts off abruptly after a short while
• EFFORTLESS INSTALLATION: 1.Disconnect power supply before starting. 2.Remove the old relay and overload from the compressor. 3.Connect the white wire (RCO210) to the Start terminal of the compressor. 4.Connect the red wire (RCO210) to the Run terminal of the compressor. 5.Connect the black wire (RCO210) to the Common terminal of the compressor. 6.Using a wire nut, connect one line wire removed from the old relay to one line wire of the RCO210. 7.Using a wire nut, connect the other line wire removed from the old overload to the other line wire of the RCO210.
• 100% LIFETIME PROTECTION: Enjoy reliable performance with our lifetime protection, ensuring that your product will always be covered for any defects or issues that may arise.
