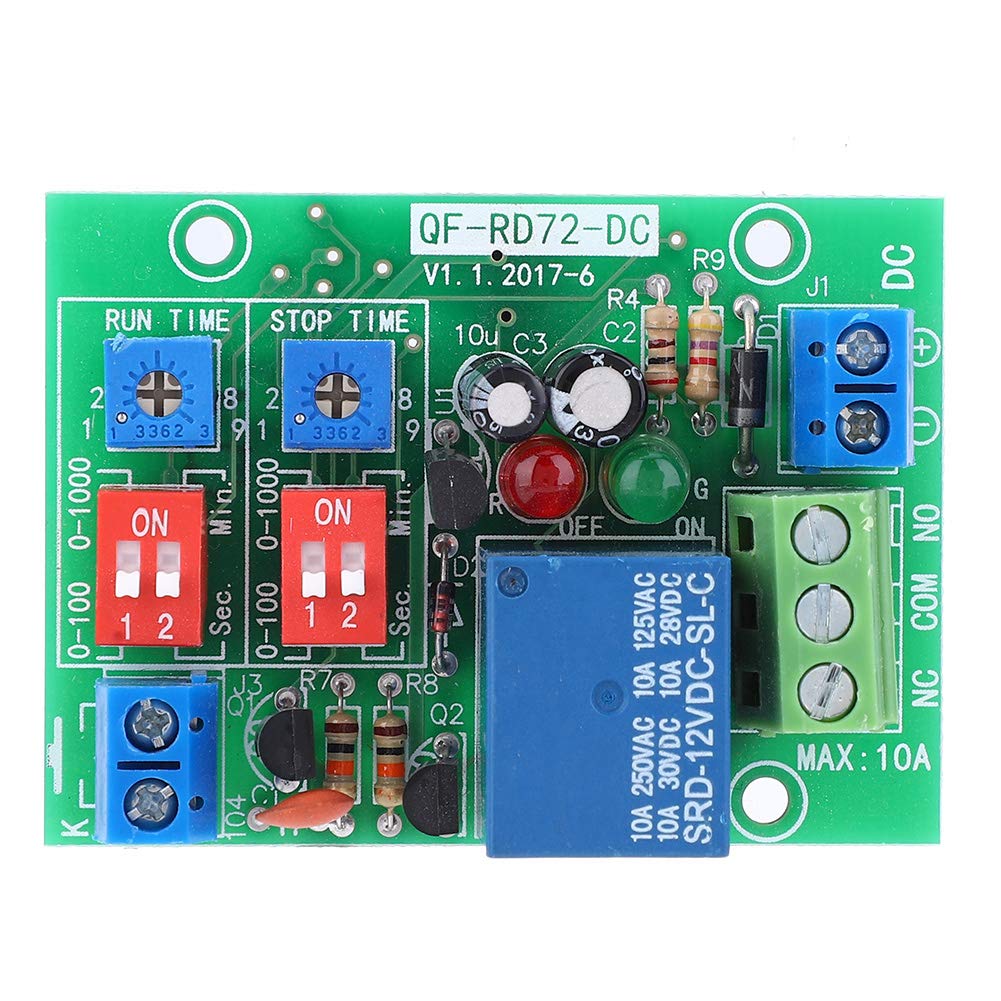

RD72-DC-12V Infinite Cycle ON Off Relay Module, DC 12V Adjustable Delay Time Trigger Delay Switch Infinite Loop Relay

Key features

• SETTING TIMEWith start / stop function, the module enters infinite cycle mode after starting, and the relay works on and off according to the set time.
• DELAY TIME Infinite-cycle power-on and power-off modules, the delay time can be adjusted separately, the longest delay can be 1000min.
• SAVE ENERGY Low power consumption of the control board, less than 1W.Passive output (dry contact), a set of normally open + normally closed. The maximum should not exceed 10A.
• WORKING VOLTAGEThe button is required to be unlocked (ie self-resetting). It can also be connected to external voltage . When the voltage is lower than 2V, it is low level. When the voltage is higher than 2V, it is high level. The maximum input should not exceed 30V.
• TURN ON EXTERNAL WIRING BUTTON Passive switch input. The green light turns on after starting, and stays in the red light after stopping.
