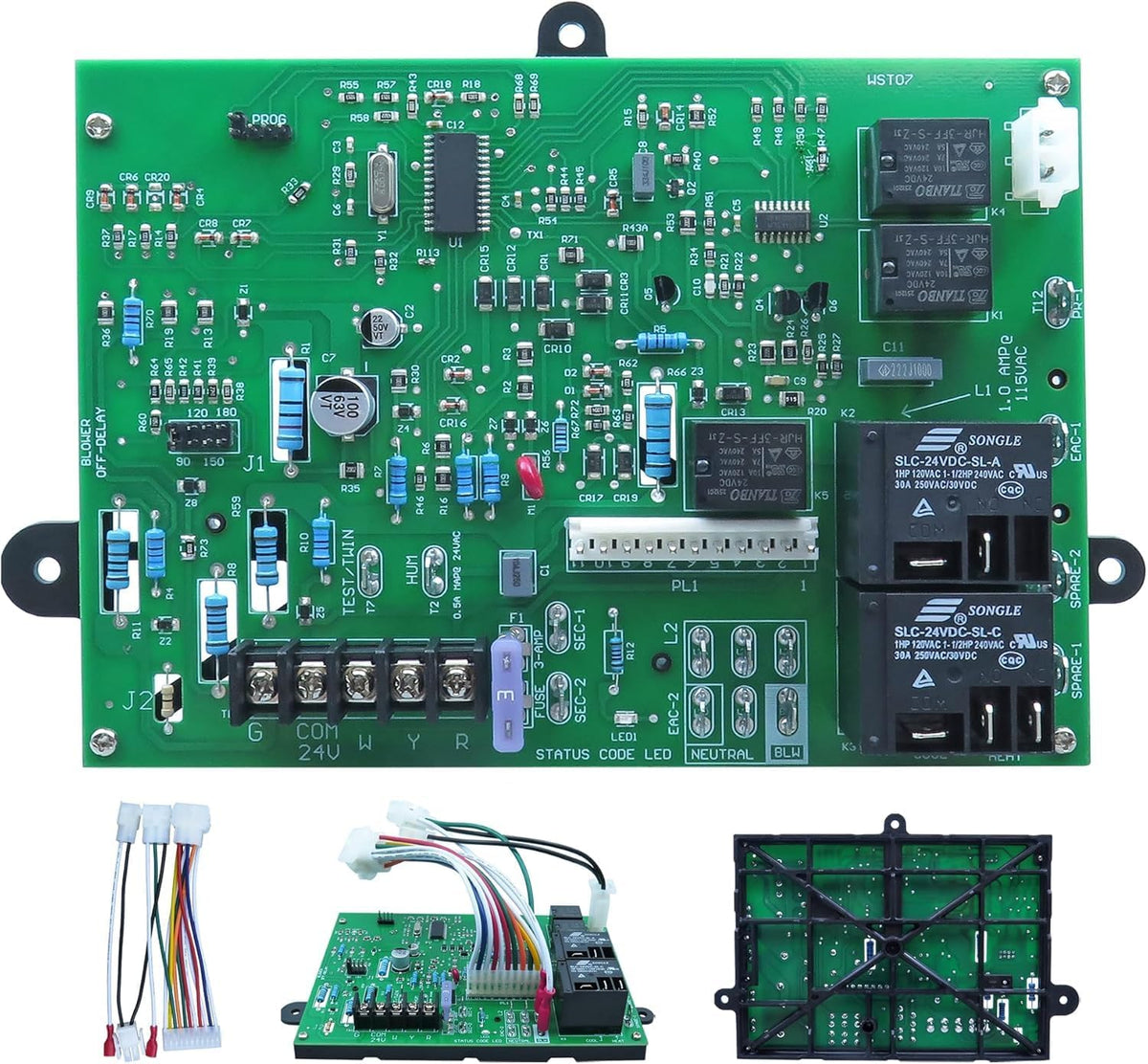

Replacement for Carrier ICM282A Furnace Control Board HK42FZ009 HK42FZ034

Key features

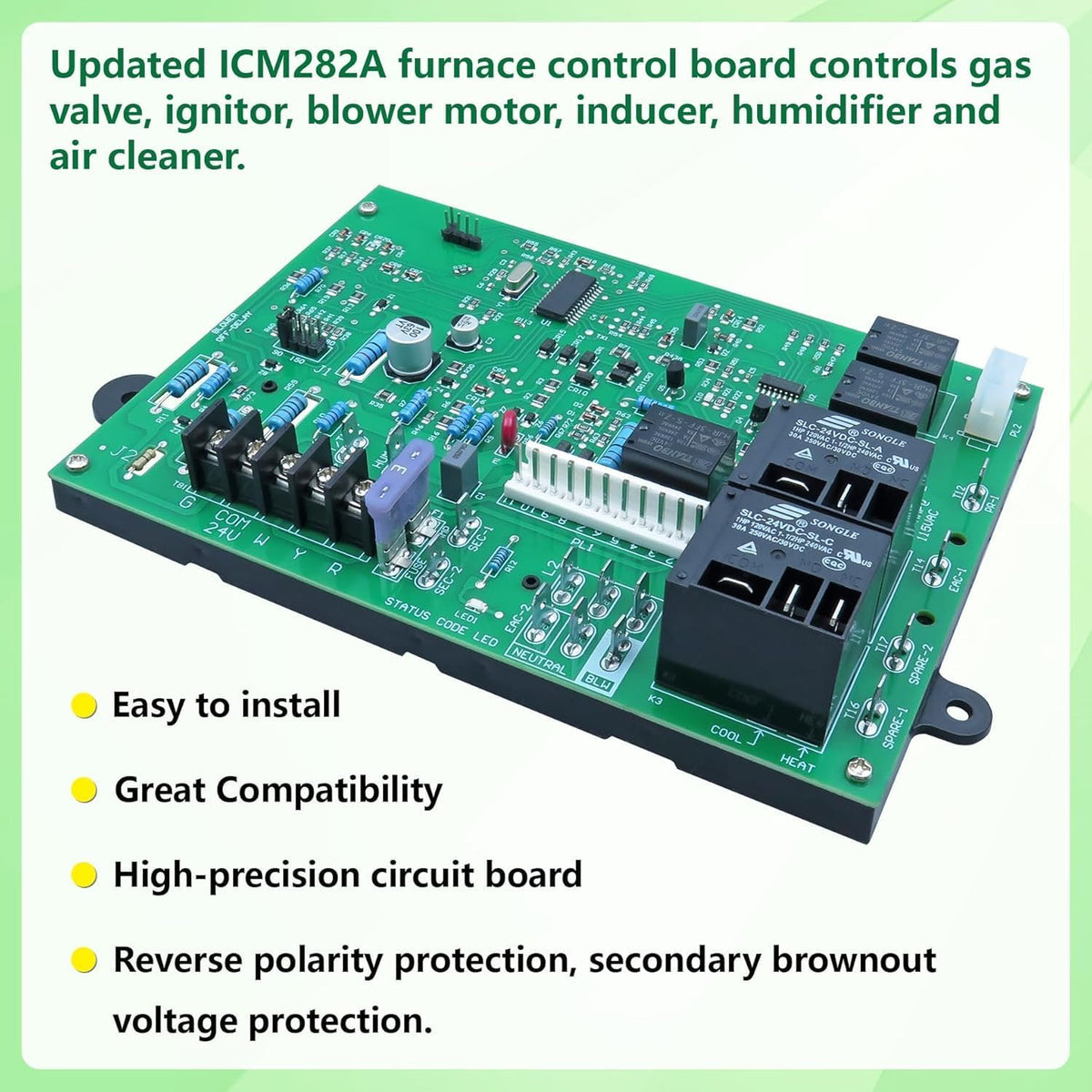

• This microprocessor-based board manages the gas valve, hot surface ignitor, blower motor, inducer draft motor, humidifier, and electronic air cleaner from a single control point. This eliminates the need for separate control modules and simplifies both installation and future troubleshooting.

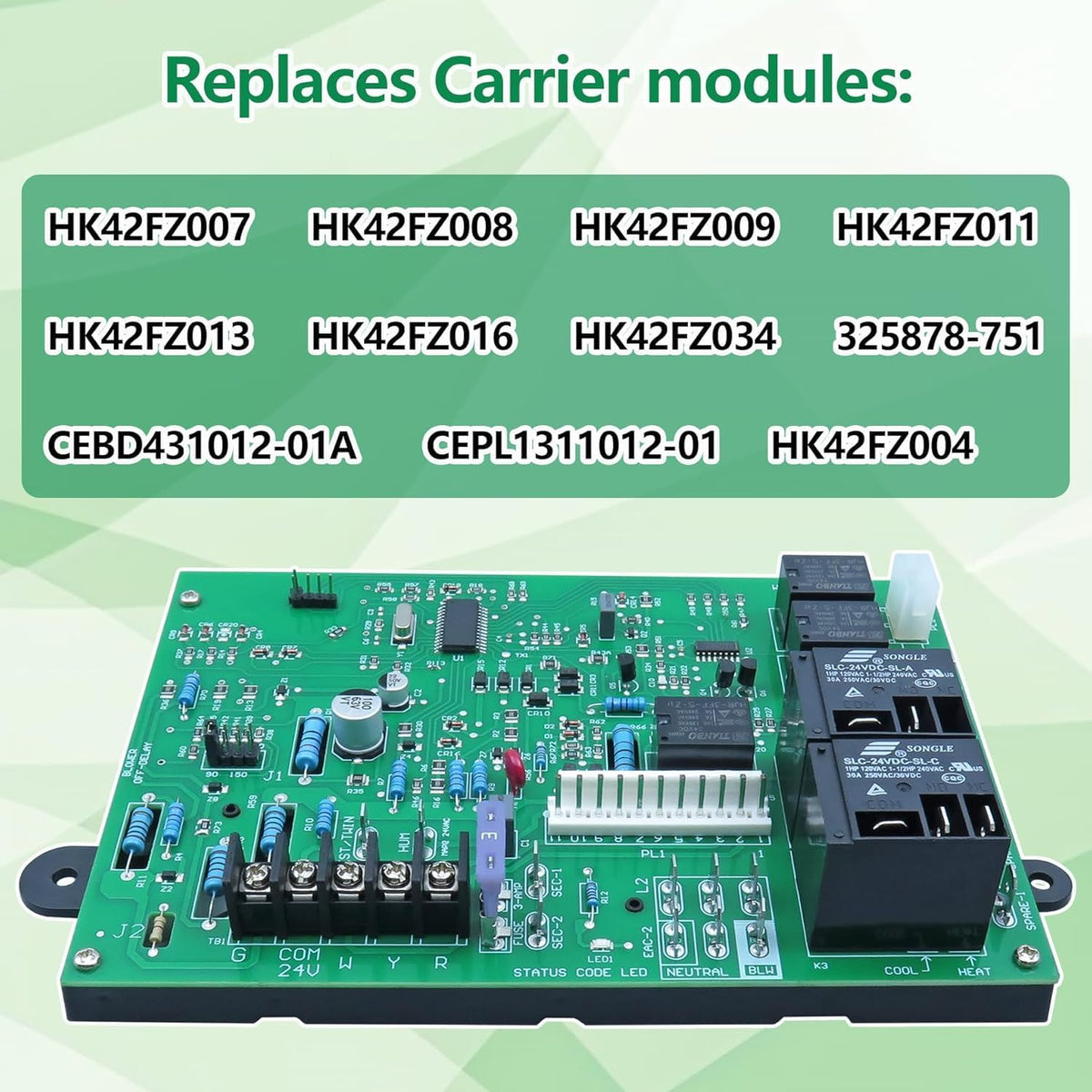

• Replacement for Carrier and Bryant furnace control boards.compatible with models:ICM282B、 HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034, and the entire 325878-751. Also replaces part numbers CEBD431012-01A 、 CEPL1311012-01 and ICP 1176943.
• This furnace control board is designed for safe and reliable operation. It features a 100% gas shutoff that immediately cuts the gas supply if ignition fails, preventing any leaks. It also includes reverse polarity protection, which triggers a fast-blinking LED alert if the wiring is reversed to prevent damage. Additionally, a secondary brownout voltage protection maintains stable operation during power fluctuations, preventing false lockouts or unexpected restarts.
• The device features built-in LED diagnostics, displaying fault codes through blinking patterns to quickly identify issues such as ignition lockout, flame sensing, pressure switches, and limit circuit faults. It supports component self-tests and flame sensor tests, automatically checking the operation of the inducer motor, igniter, and blower motor, while verifying normal flame current.
• Input voltage range: 98–132 VAC @ 60 Hz | Ignitor output: 5 A @ 120 VAC | Cool blower: 30 A, 2 HP @ 240 VAC | Heat blower: 5 A, 1/2 HP @ 240 VAC | Inducer motor: 4 A FLA / 8.0 A LRA @ 120 VAC | Gas valve: 1.5 A @ 30 VAC. Operating temperature range: -40°F to 176°F.

Upgrade 282A Furnace Control Board - Direct Replacement for Carrier HK42FZ Series & 325878-751 Is your furnace broken down leaving you in the cold? Facing the high cost and hassle of finding an OEM replacement part? The Upgrade ICM282A Furnace Control Board is the smart, affordable, and reliable solution you need to get your heating system back online quickly. This premium aftermarket control module is engineered to be a direct, plug-and-play replacement for your faulty Carrier, Bryant, or Payne furnace board. It perfectly replicates all original functions, offering identical performance without the OEM price tag. Key Features & Benefits: Perfect Fit & Full Compatibility: This board is designed to seamlessly replace a wide range of common Carrier OEM models, including HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034, and the entire 325878-751 series. It provides complete control over your furnace's operation, managing the gas valve, igniter, blower motor, and inducer motor with precision. Engineered for Safety & Diagnostics: Your safety is our priority. This board is built with robust microprocessor-based technology that ensures 100% gas shutof

Free shipping included. 30-day hassle-free returns.
