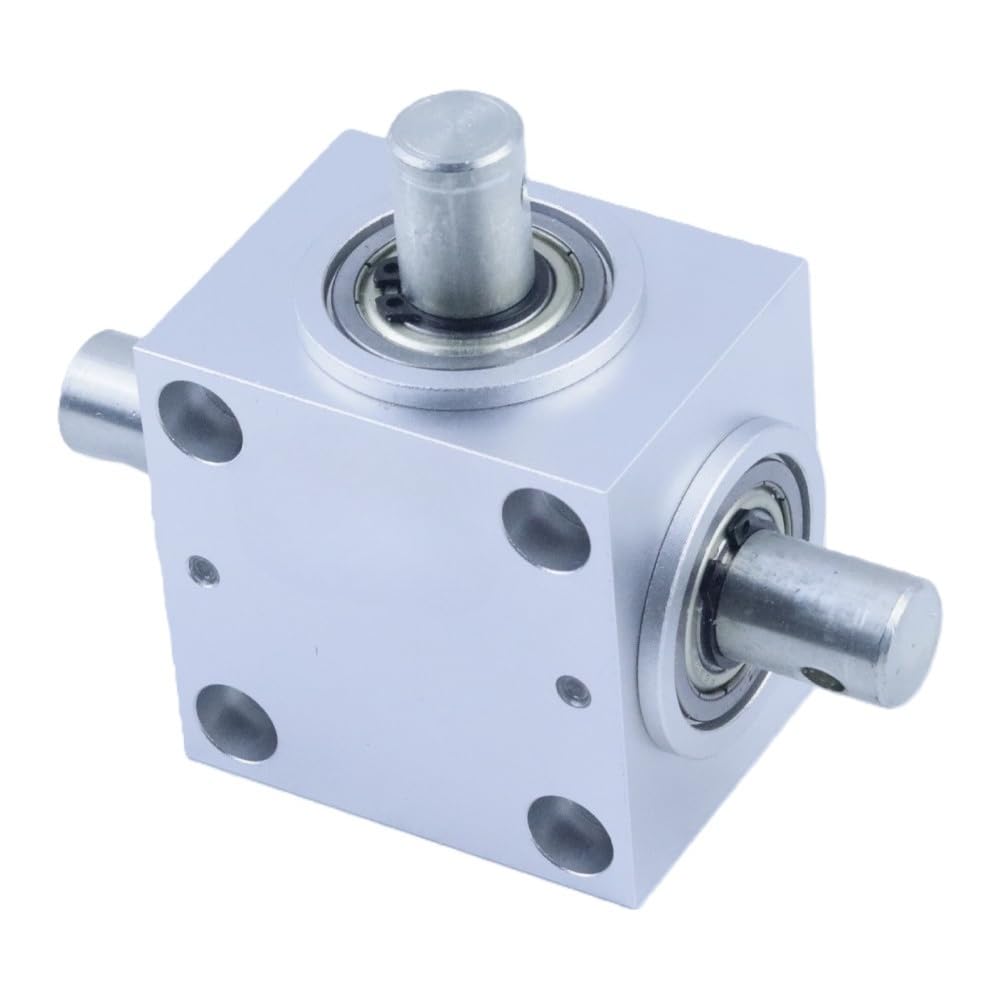

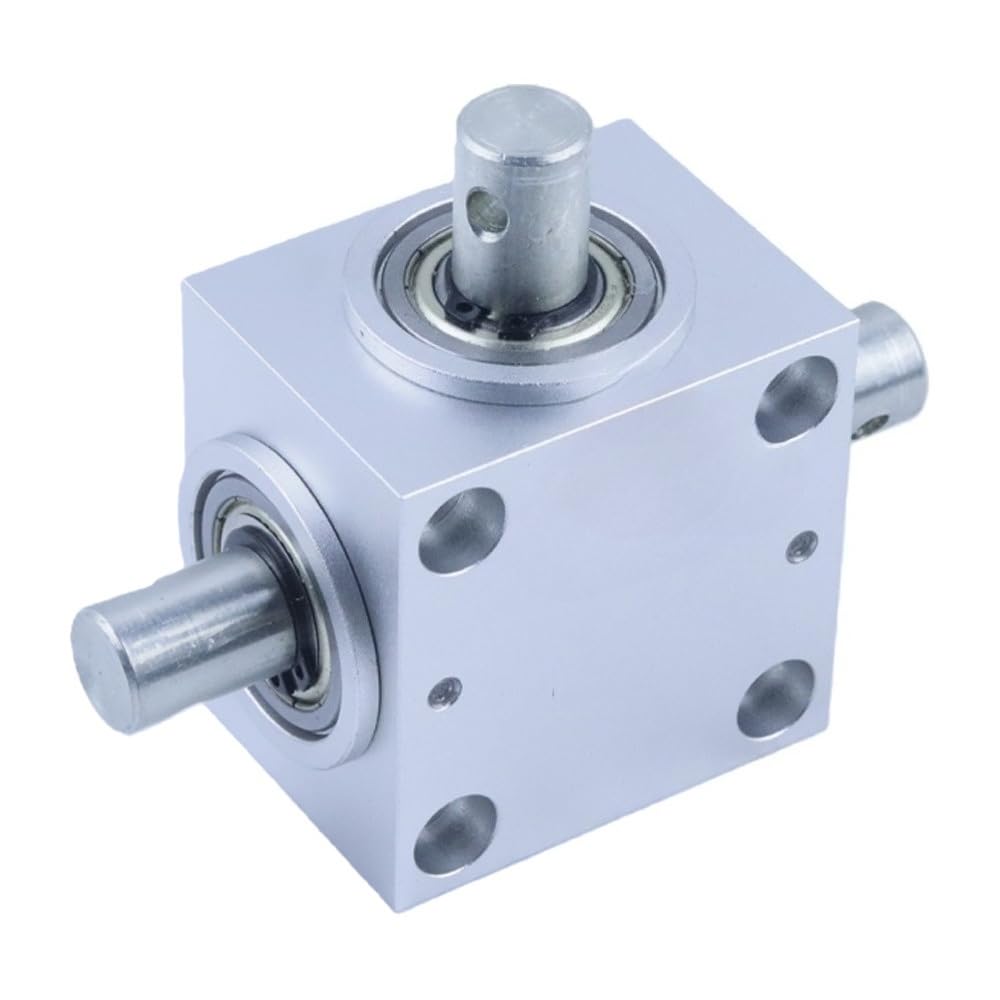

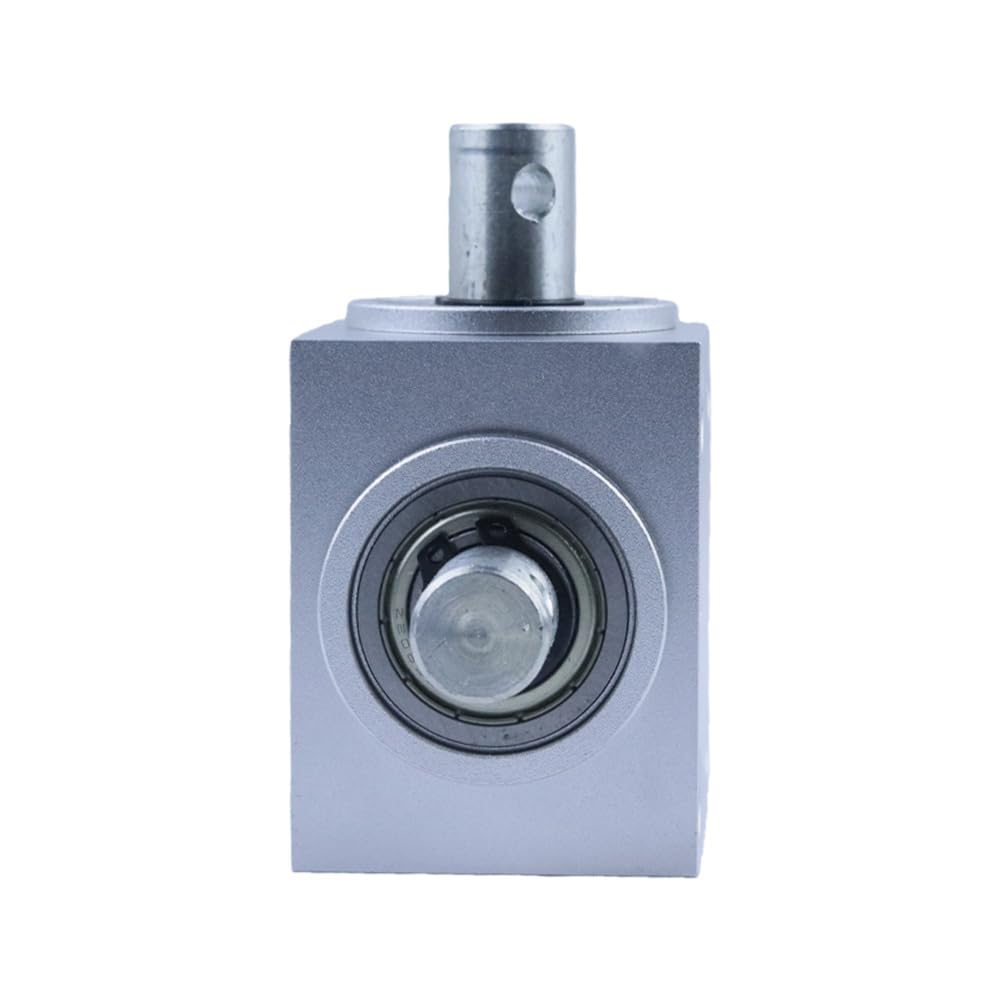

Right Angle Bevel Gearbox 90 Degree Side Mount 1:1 Gear Transmission Box (Three Short Shaft (Split Shaft))
Right Angle Bevel Gearbox 90 Degree Side Mount 1:1 Gear Transmission Box (Three Short Shaft (Split Shaft))
Key features
- Two Shaft Configurations: Available in Two Mechanical Designs. The Three Shaft (Through Shaft) version features one continuous horizontal shaft for direct power transmission. The Three Short Shaft (Split Shaft) version uses two separate horizontal shafts connected through an internal bevel gear arrangement, providing greater installation flexibility for different machinery layouts.
- Compact Side Mount Design: The side mount housing provides a compact solution for right angle power transmission where installation space is limited, making integration easier in mechanical equipment and industrial machinery.
- 90 Degree Power Transmission: Designed to transfer rotary motion through a 90 degree angle with a 1:1 gear ratio, making it suitable for changing transmission direction in conveyors, industrial equipment, automation machinery and custom mechanical systems.

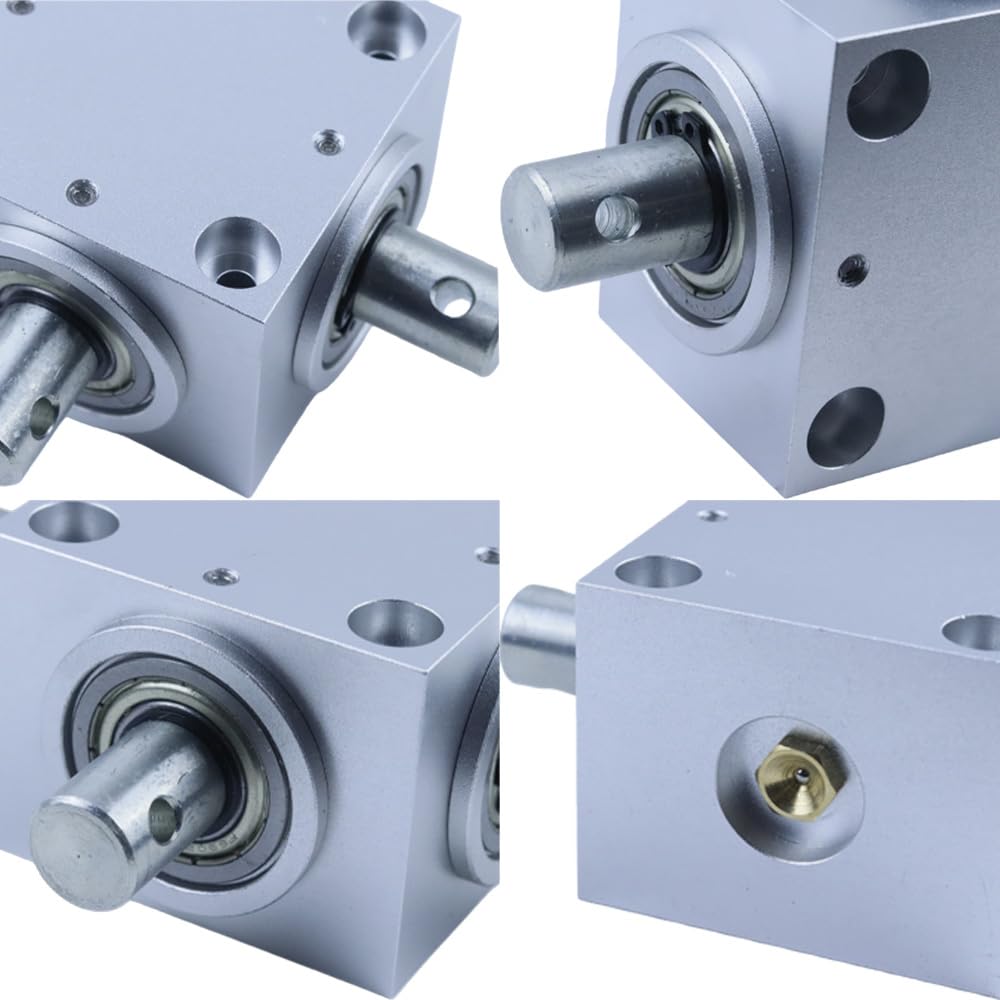

- Durable Mechanical Construction: Features an aluminum alloy housing, hardened 40Cr bevel gears and stainless steel shafts for dependable mechanical transmission. Each shaft is supported by bearings for stable operation.
- Wide Industrial Applications: Suitable for conveyor systems, packaging equipment, agricultural machinery, woodworking equipment, food processing machinery, automation equipment and other right angle mechanical transmission applications.

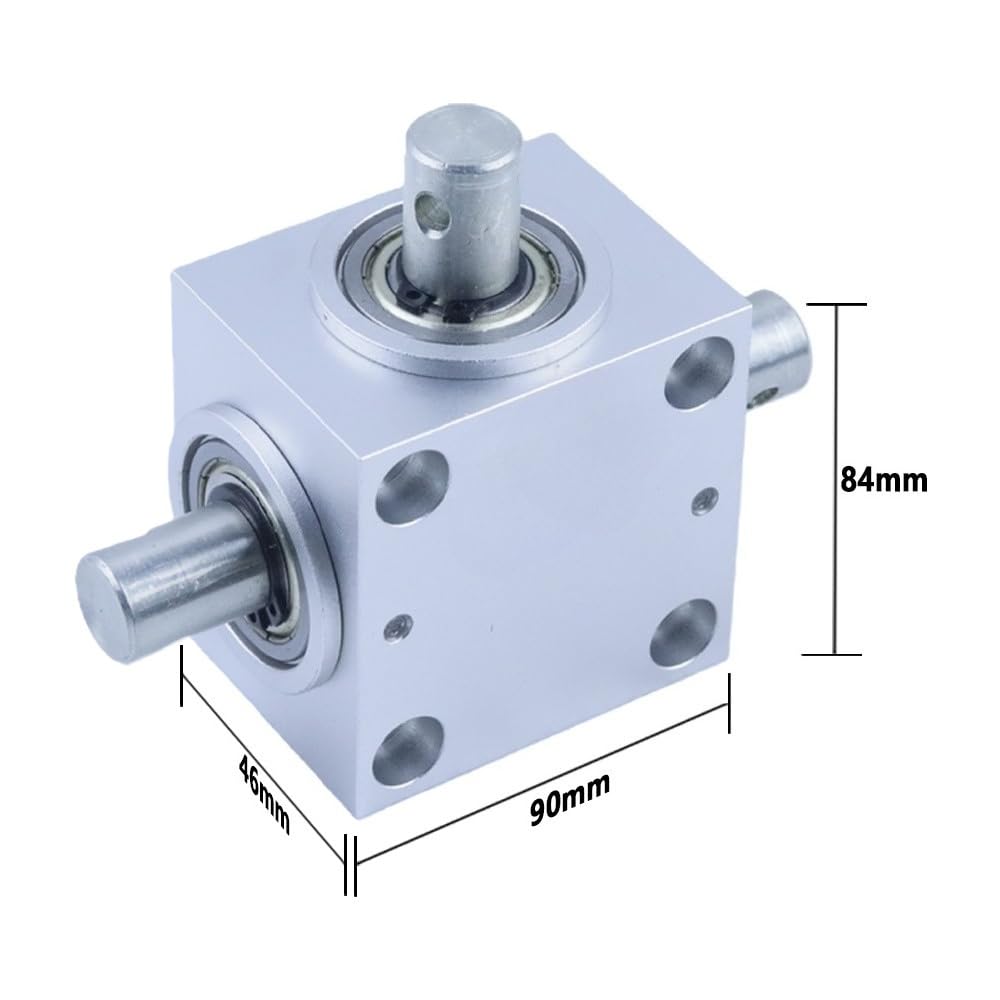

Mechanical power transmission, 90 degree direction change, side mount installation, conveyor systems, industrial automation equipment, custom machinery integration. Specifications: Product Type: Right Angle Bevel Gearbox Model: 1520W-LZXQ-15 Transmission Type: 90 Degree Right Angle Gear Ratio: 1:1 Gear Module: 1.5M Gear Teeth: 20T Installation Type: Side Mount Housing Material: Aluminum Alloy Gear Material: Hardened 40Cr Steel Shaft Material: Stainless Steel Shaft Diameter: 15 mm Available Versions: Three Shaft (Through Shaft) / Three Short Shaft (Split Shaft) Product Includes: 1 × Right Angle Bevel Gearbox
Free shipping included. 30-day hassle-free returns.
