RS555 DC Motor 24V 18000RPM High Speed Electric Motor Replacement

Key features

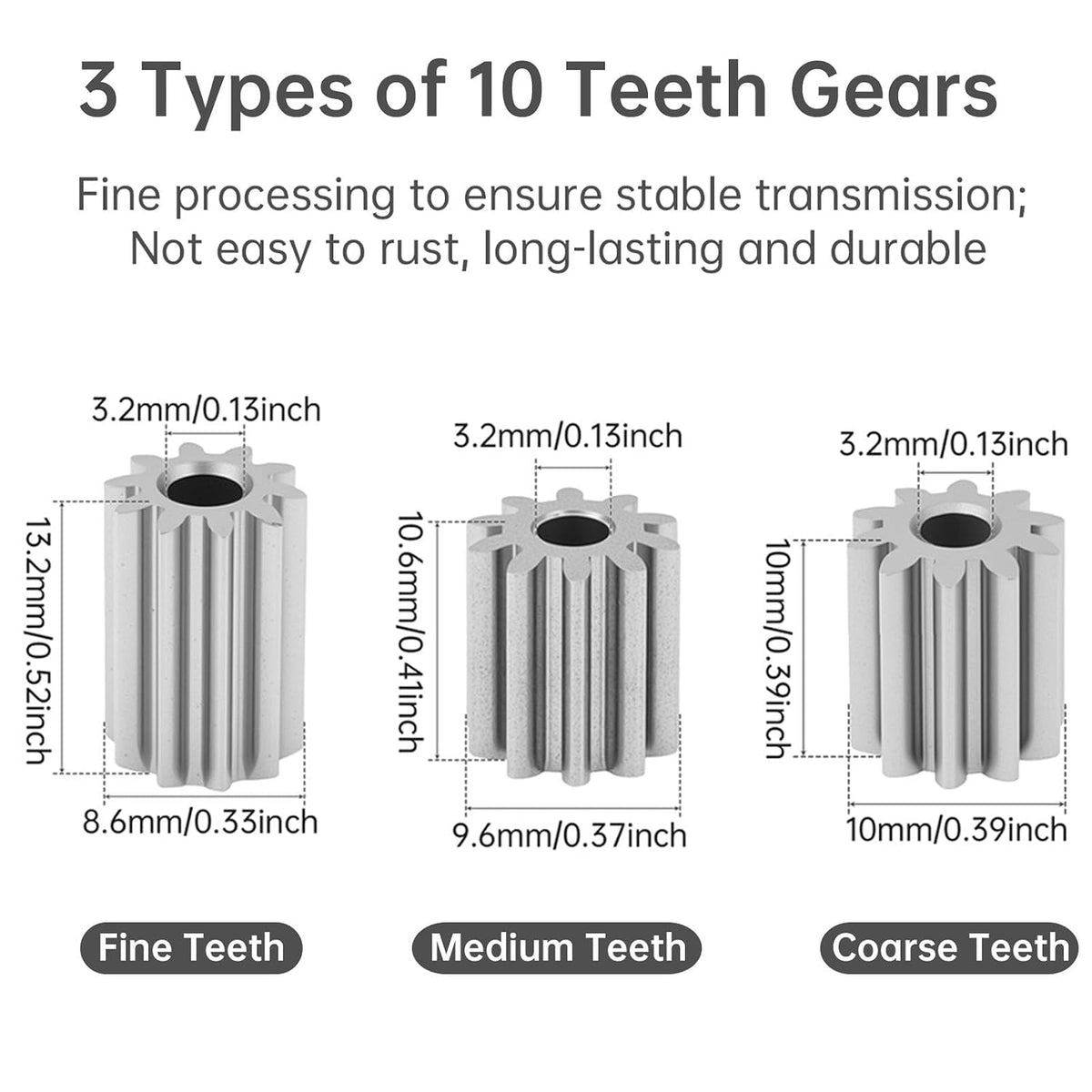

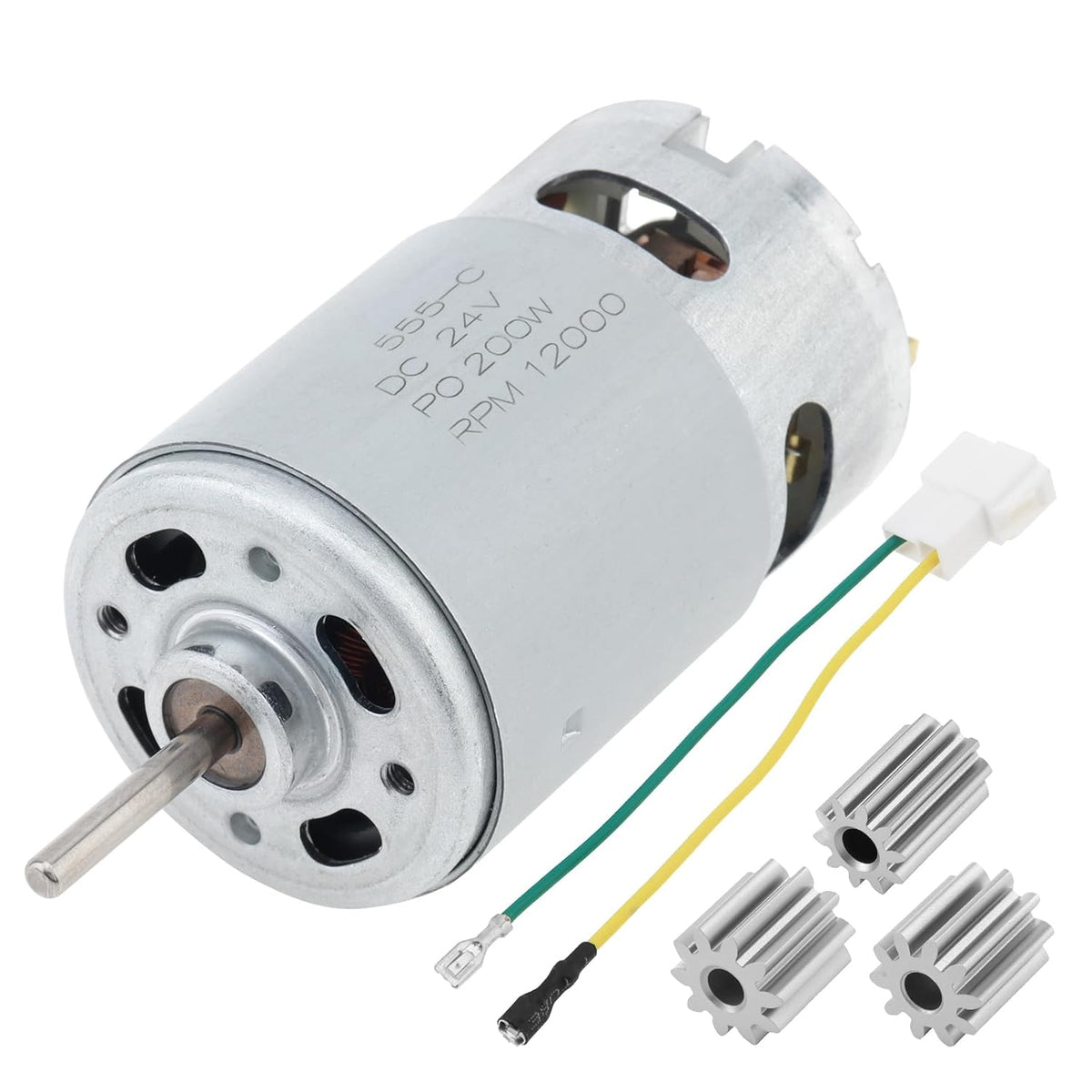

• Package Includes: Contains 3 Kinds of 10 teeth of Different Specifications, 1pcs Motor Connecting Wire, 1pcs RS555 DC Motor

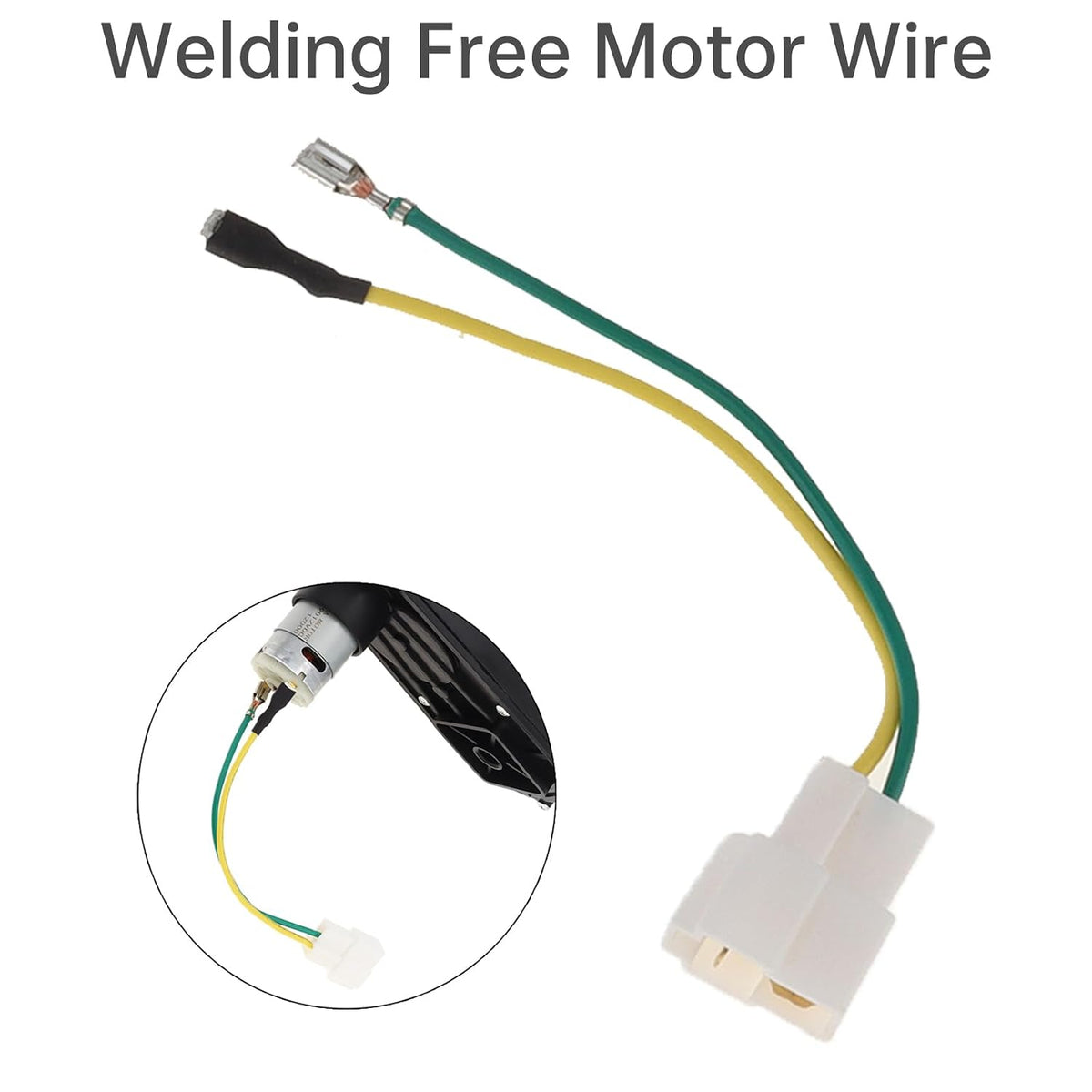

• DC Motor: Ride on car RS555 24V drive motor, with welding free motor connecting wire and 3 Types of 10 teeth gear, makes it suitable for various scenarios
• Material: Pure copper winding coils and cooling fans, which can greatly improve the speed and life
• Installation Method: Compare the gear on the original motor, select the teeth of the same size, and then use hammer to knock on the motor shaft
• Application: Fast electric motor drive engine for children's electric car motor upgrade, suitable for replacing 18V-24V DC motor

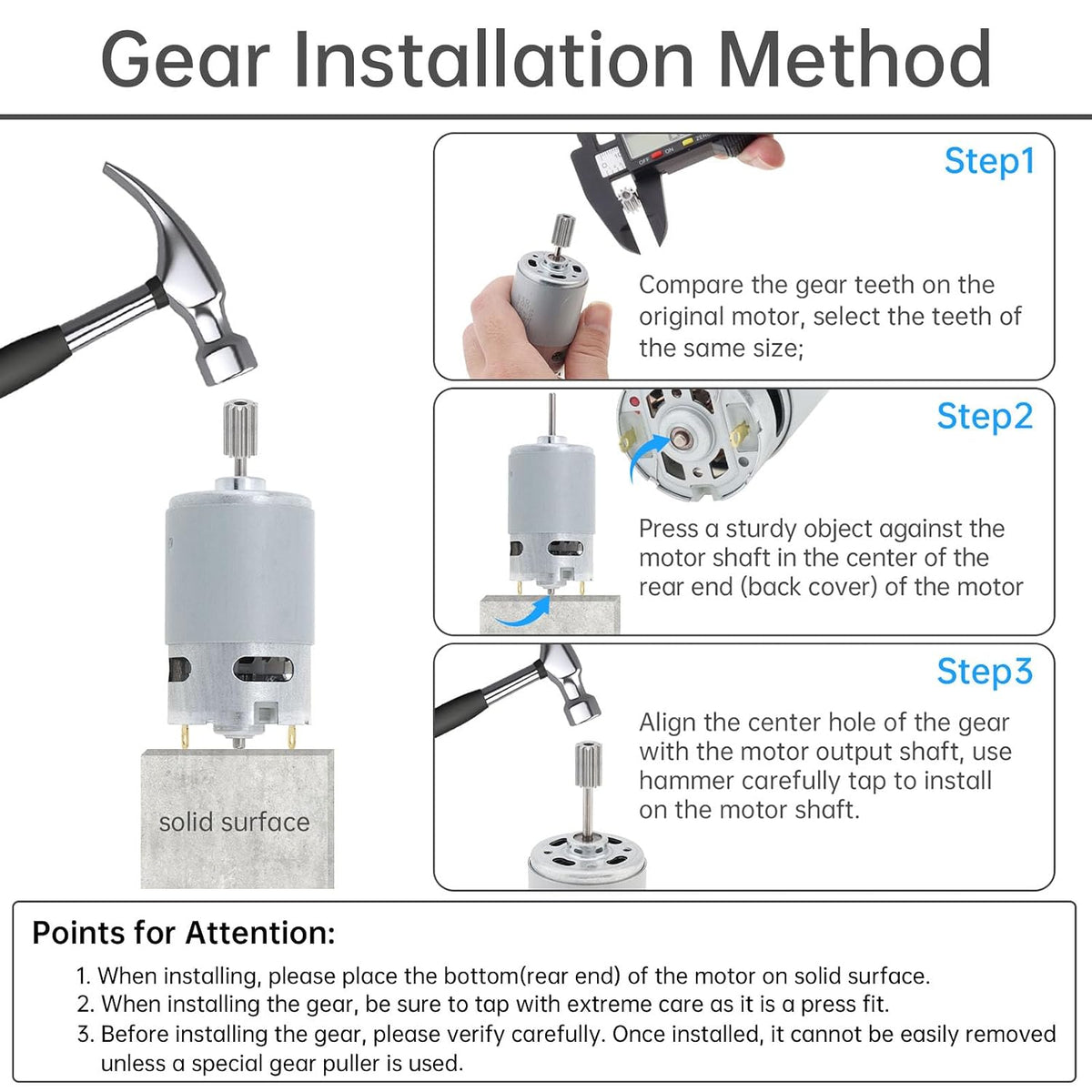

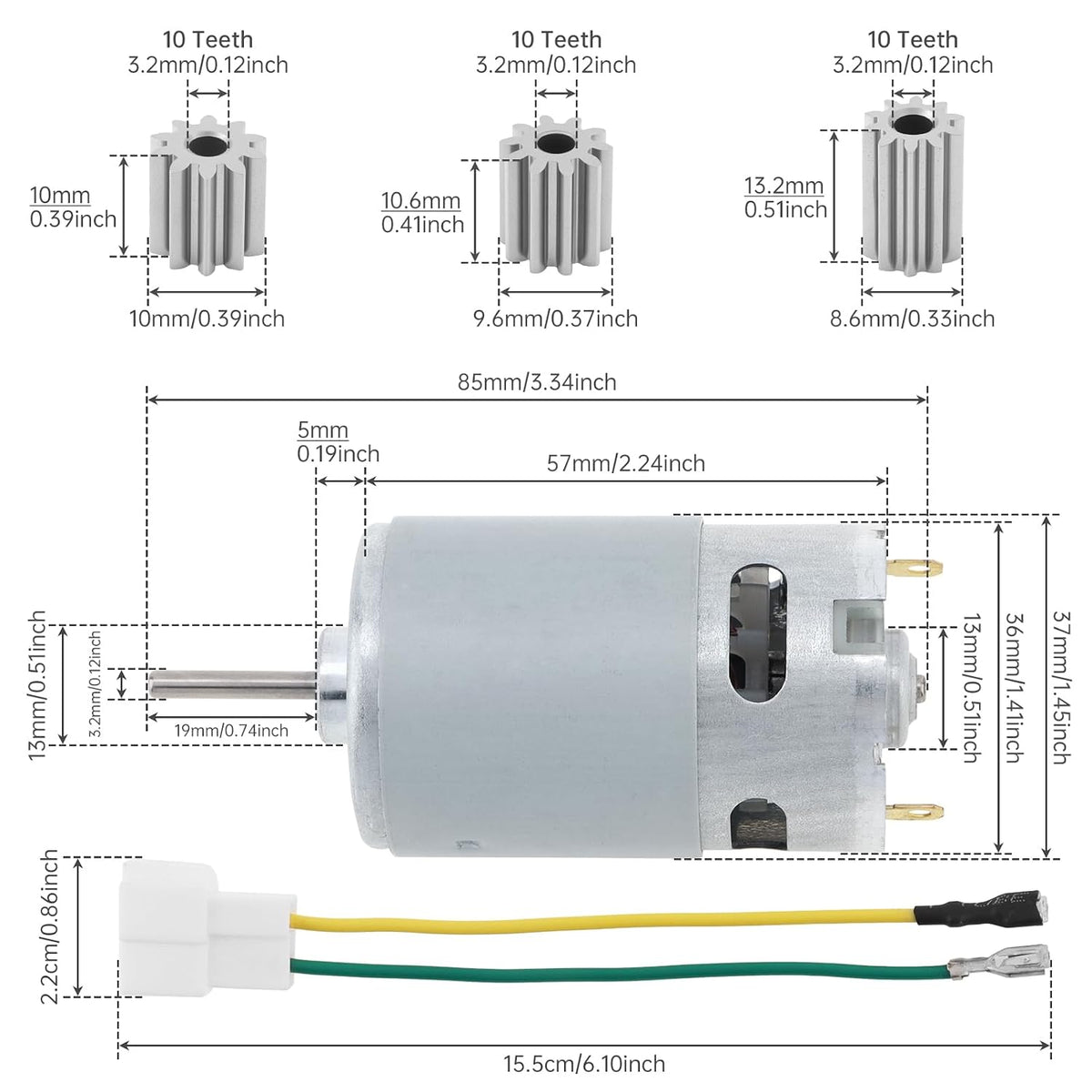

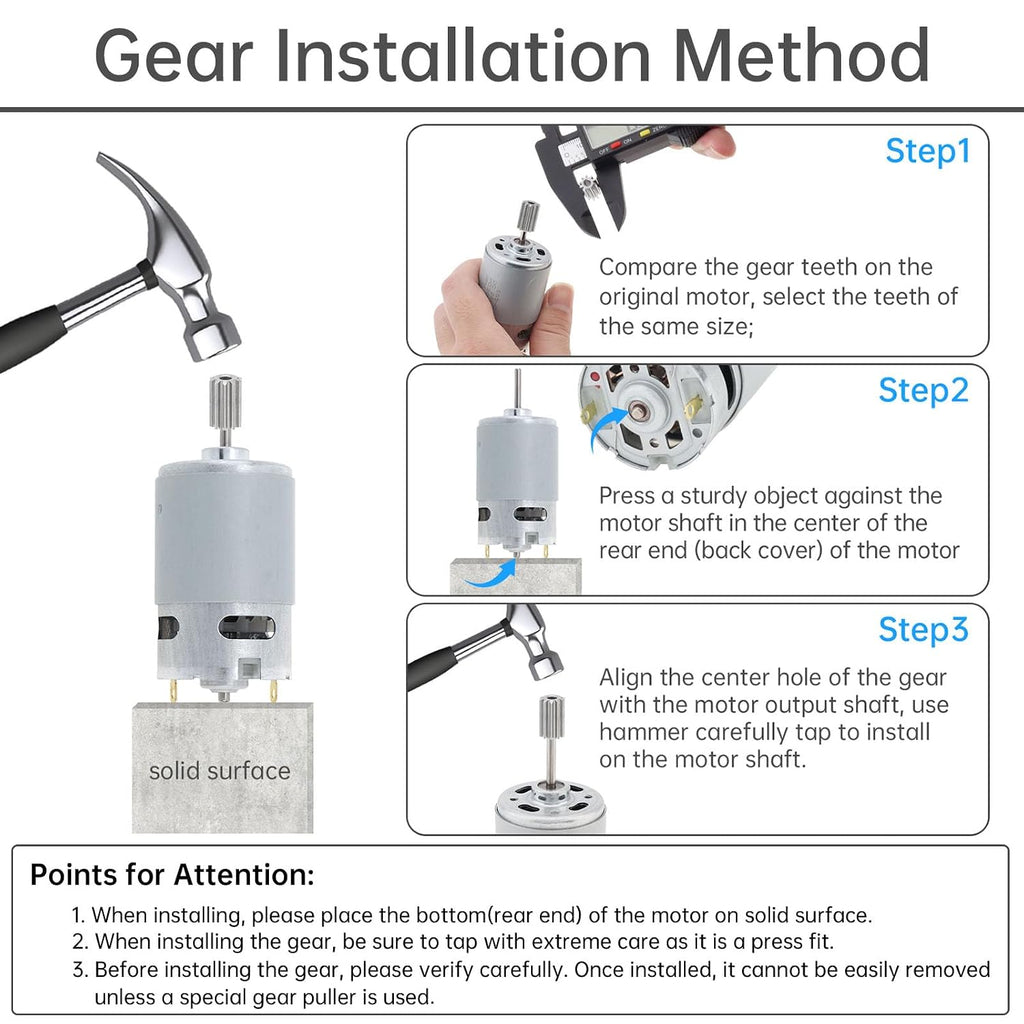

Model Number: RS555 Voltage: 24V DC No Load Speed: 12000 - 40000RPM Power: 200W Shaft Diameter: 3.175mm Shaft Total Length: 85mm Output Shaft Length: 18mm Gear Teeth: 10 Teeth(3 Types) Commutation: Brush Rotation Direction: CW/CCW Product Name: RS555 DC Motor Gear Installation Steps and Attention Points: 1. Compare the gear teeth on the original motor, select the teeth of the same size; 2. Press a sturdy object against the motor shaft in the center of the rear end (back cover) of the motor; 3. Align the center hole of the gear with the motor output shaft, use hammer carefully tap to install on the motor shaft. Note: 1. When installing, please place the bottom(rear end) of the motor on solid surface. 2. When installing the gear, be sure to tap with extreme care as it is a press fit. 3. Before installing the gear, please verify carefully. Once installed, it cannot be easily removed unless a special gear puller is used. Note: 1.Confirm your motor model is RS550/RS555 or motor size match, and the motor gear is 10 teeth. 2.Confirm that the voltage range of the motor is 18-24V, choose a motor with the same or similar voltage. 3.Confirm the number of teeth of your motor is 10 teeth, make
