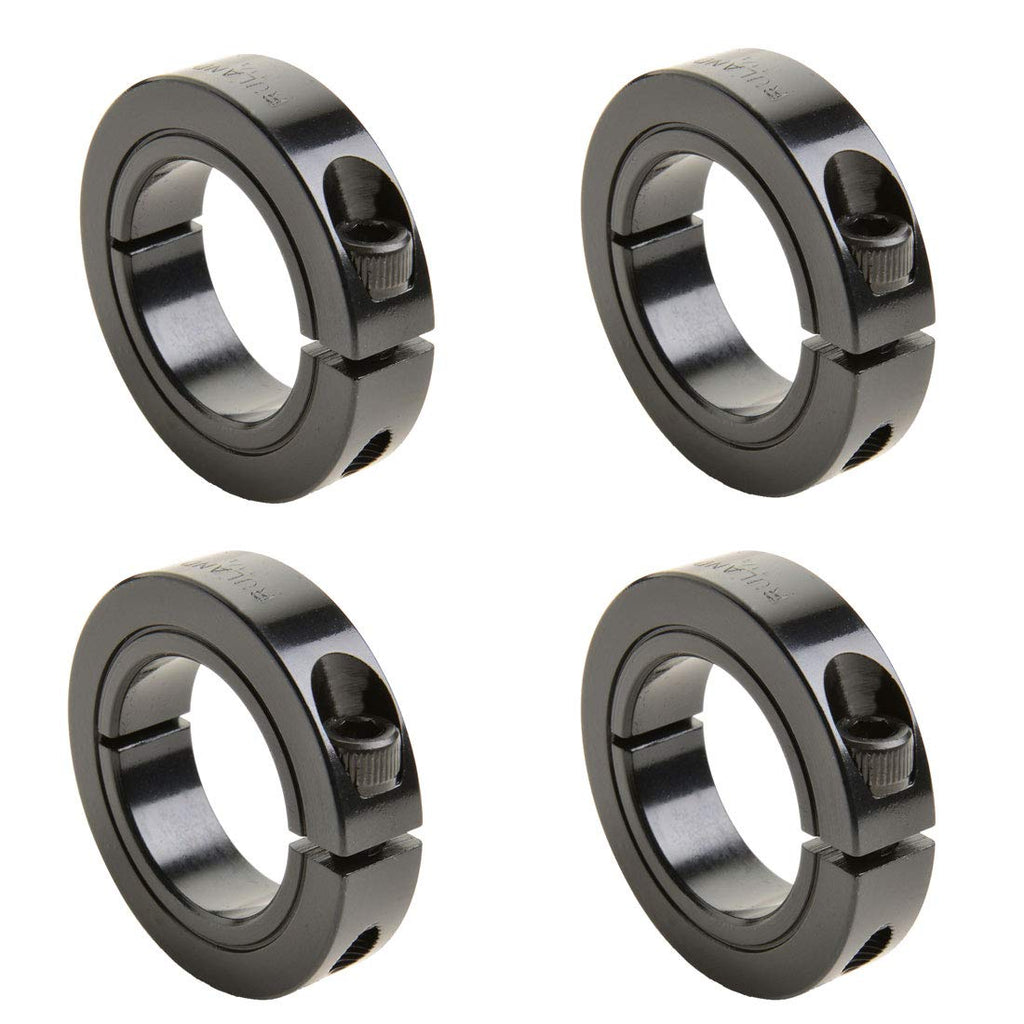

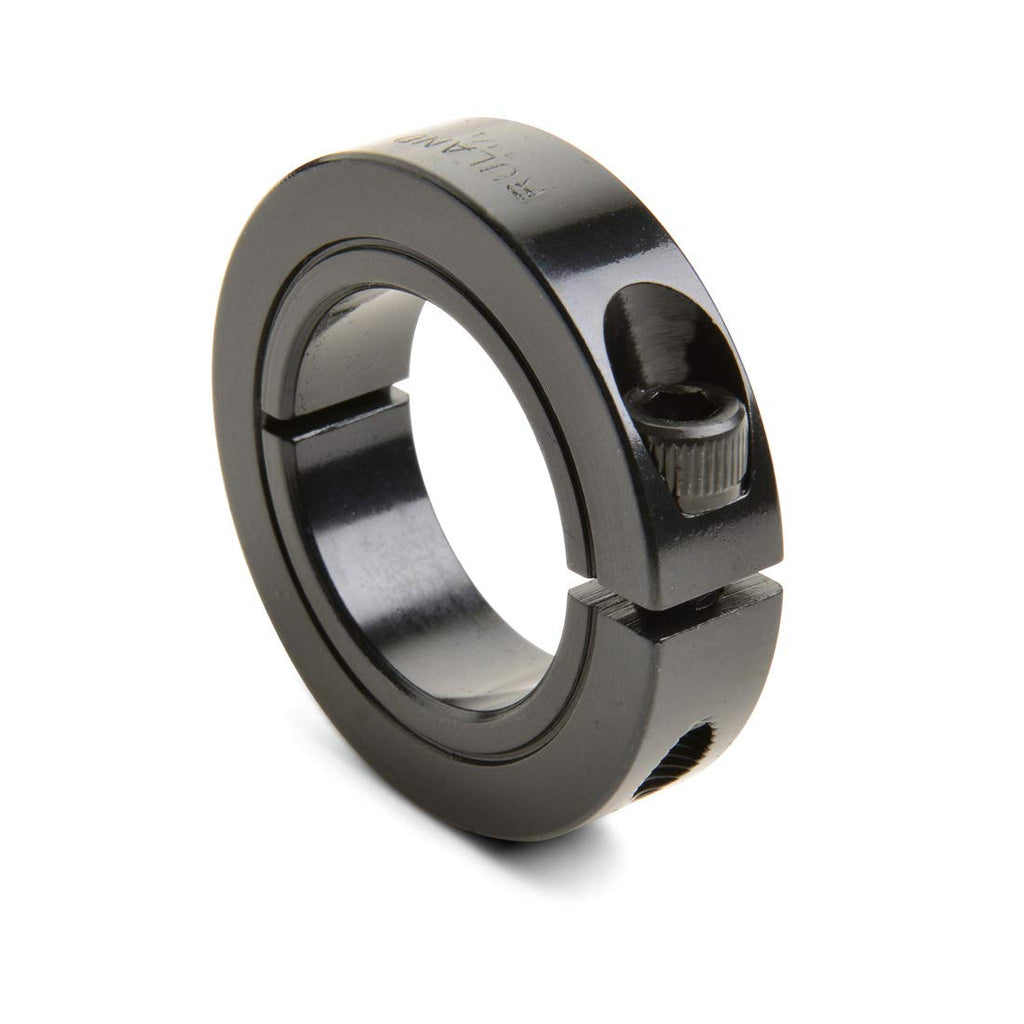

Ruland CL-6-F One-Piece Clamping Shaft Collar, Black Oxide Steel.375" Bore (Pack of 4) Manufactured and Shipped from Massachusetts
Ruland CL-6-F One-Piece Clamping Shaft Collar, Black Oxide Steel.375" Bore (Pack of 4) Manufactured and Shipped from Massachusetts
Key features

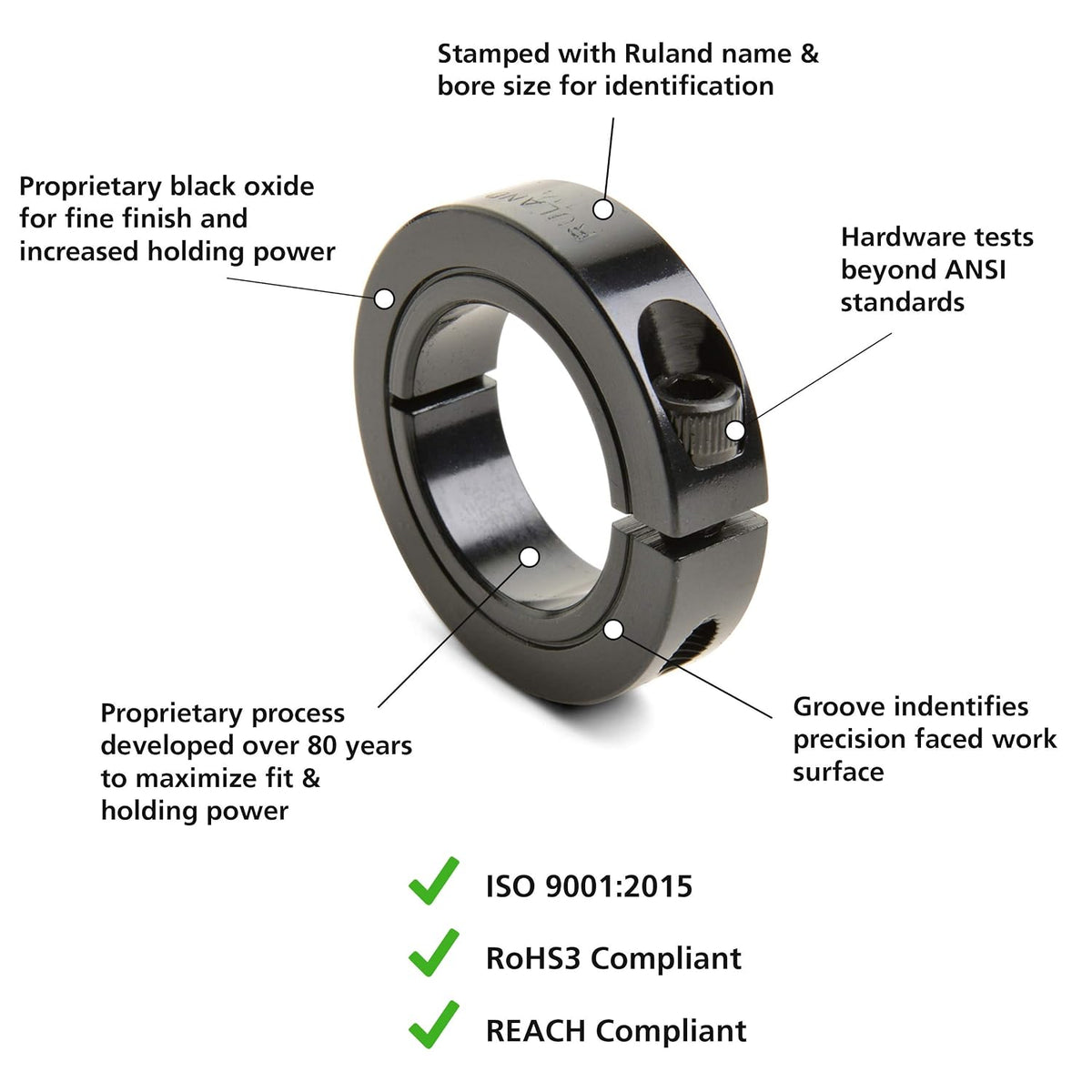

- Wrap evenly around the shaft for higher holding power than set screw style. Clamp style shaft collars have high holding power, do not mar the shaft, and are infinitely adjusable.
- Made from 1215 lead-free steel with a proprietary black oxide finish for high holding power, a fine glossy finish, weldability, and corrosion resistance.
- Ruland shaft collars have tightly controlled face to bore perpendicularity (TIR of ≤.002") for proper alignment of mating components.
- Machined to a fine burr-free finish.
- Hardware exceeds ANSI standards for maximum torque capabilities. Ruland shaft collars are carefully made from select North American bar stock in our Marlborough, Massachusetts factory and are RoHS3 and REACH compliant.
This Ruland one-piece clamping shaft collar is made of black oxide steel. It is a one-piece clamping shaft collar for applications requiring a more uniform holding power and higher axial load capacity than setscrew collars. It is easier to remove and reposition than setscrew collars and is effective on both hard and soft shafts. It is made of steel for weldability and rust resistance with a black oxide finish for a decorative appearance and resistance to white corrosion, chipping and flaking, and stick-slip of the screw during torqueing, improving the collar's grip on the shaft. Black oxide also provides mild corrosion resistance and improved lubricity. This collar comes with forged socket-head cap screws for securing the collar onto the shaft. The operating temperatures for this collar range from -40 to 176 degrees C (-40 to 350 degrees F). This shaft collar is suitable for use in various applications, including in the automotive industry to situate components in automobile power steering assemblies, the manufacturing industry to locate components on a conveyor belt system, and the hobby craft industry to hold wheels on axles in remote control vehicles, among others.Shaft collars
Free shipping included. 30-day hassle-free returns.
