RV063 Worm Gear 20:1 Coupled Input Speed Reducer

RV063 Worm Gear 20:1 Coupled Input Speed Reducer

$539.99
$539.99 $794.99
Skip to product information
RV063 Worm Gear 20:1 Coupled Input Speed Reducer
  • RV063 Worm Gear 20:1 Coupled Input Speed Reducer
  • RV063 Worm Gear 20:1 Coupled Input Speed Reducer
  • RV063 Worm Gear 20:1 Coupled Input Speed Reducer
  • RV063 Worm Gear 20:1 Coupled Input Speed Reducer
  • RV063 Worm Gear 20:1 Coupled Input Speed Reducer
  • RV063 Worm Gear 20:1 Coupled Input Speed Reducer
  • RV063 Worm Gear 20:1 Coupled Input Speed Reducer
  • RV063 Worm Gear 20:1 Coupled Input Speed Reducer
  • RV063 Worm Gear 20:1 Coupled Input Speed Reducer
  • RV063 Worm Gear 20:1 Coupled Input Speed Reducer
RV063 Worm Gear 20:1 Coupled Input Speed Reducer

RV063 Worm Gear 20:1 Coupled Input Speed Reducer

$539.99
$539.99 $794.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • Ratio: 20:1
  • Input Shaft Diameter: 3/4
  • Output Shaft Diameter: 1-1/8
  • Mounting Flange: Coupled
  • Rated HP: 2.05

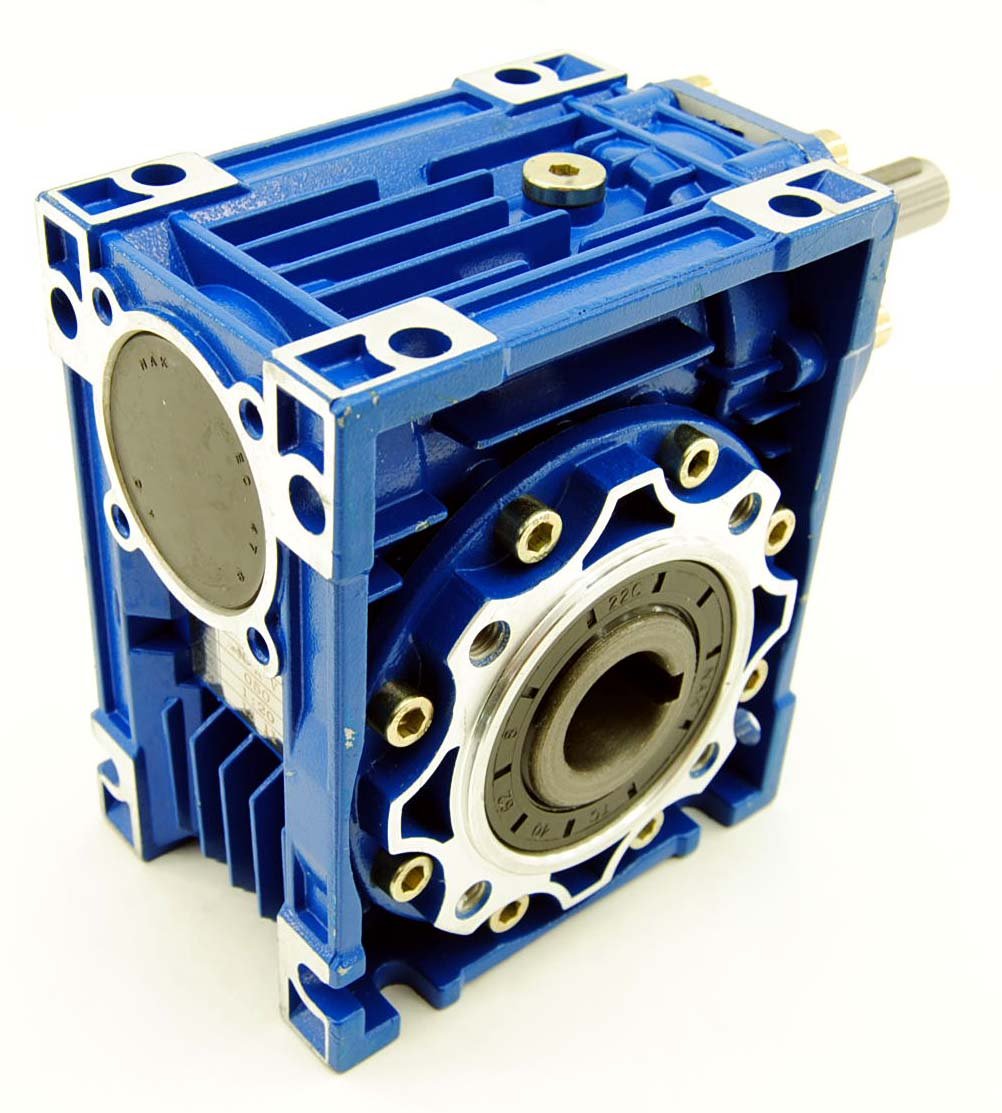

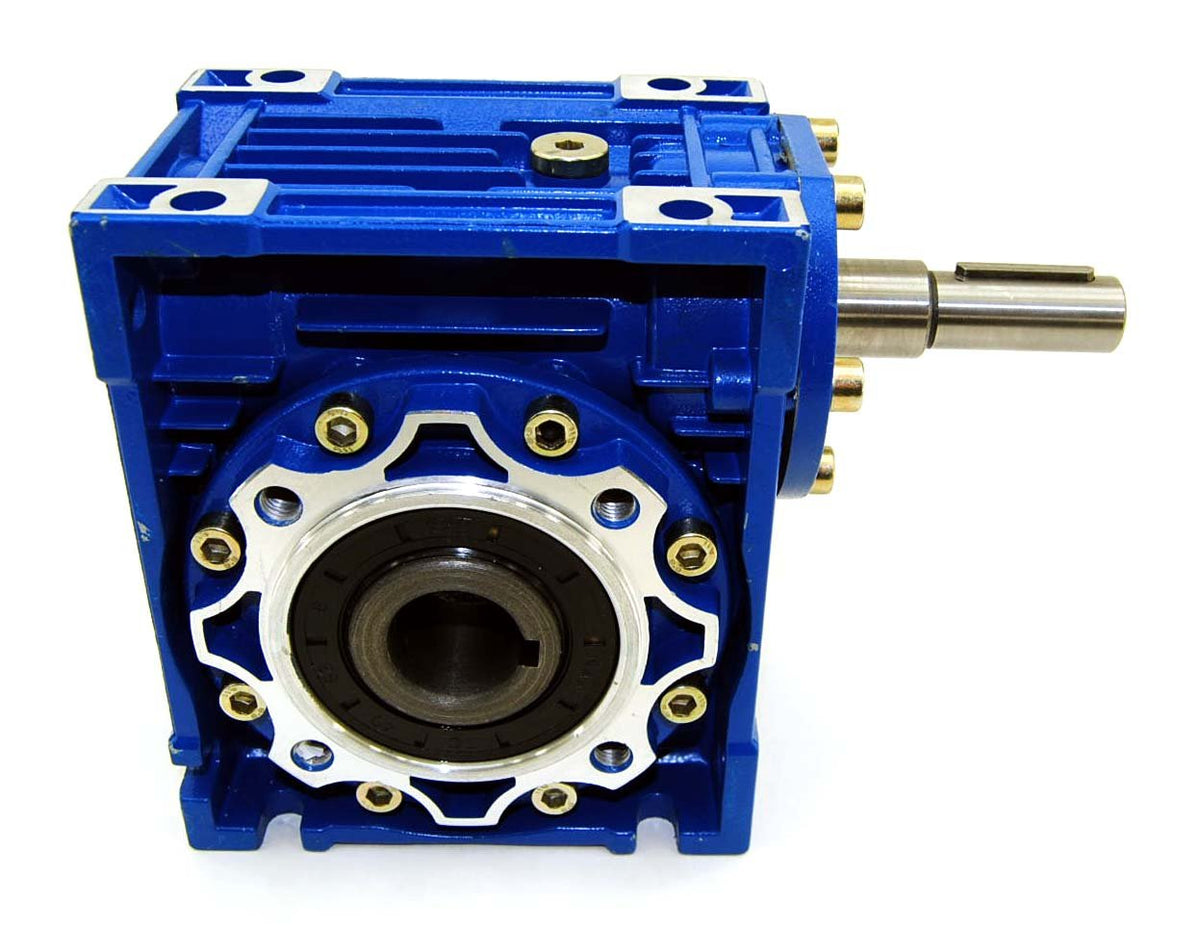

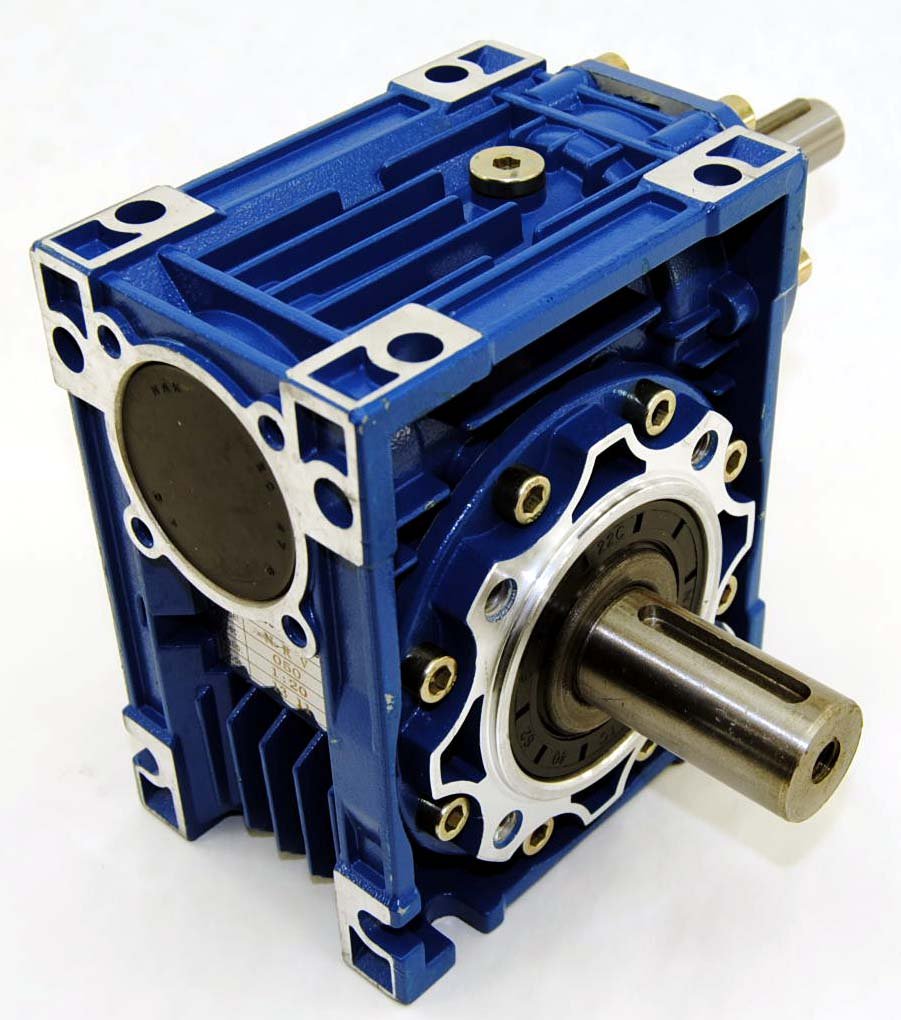

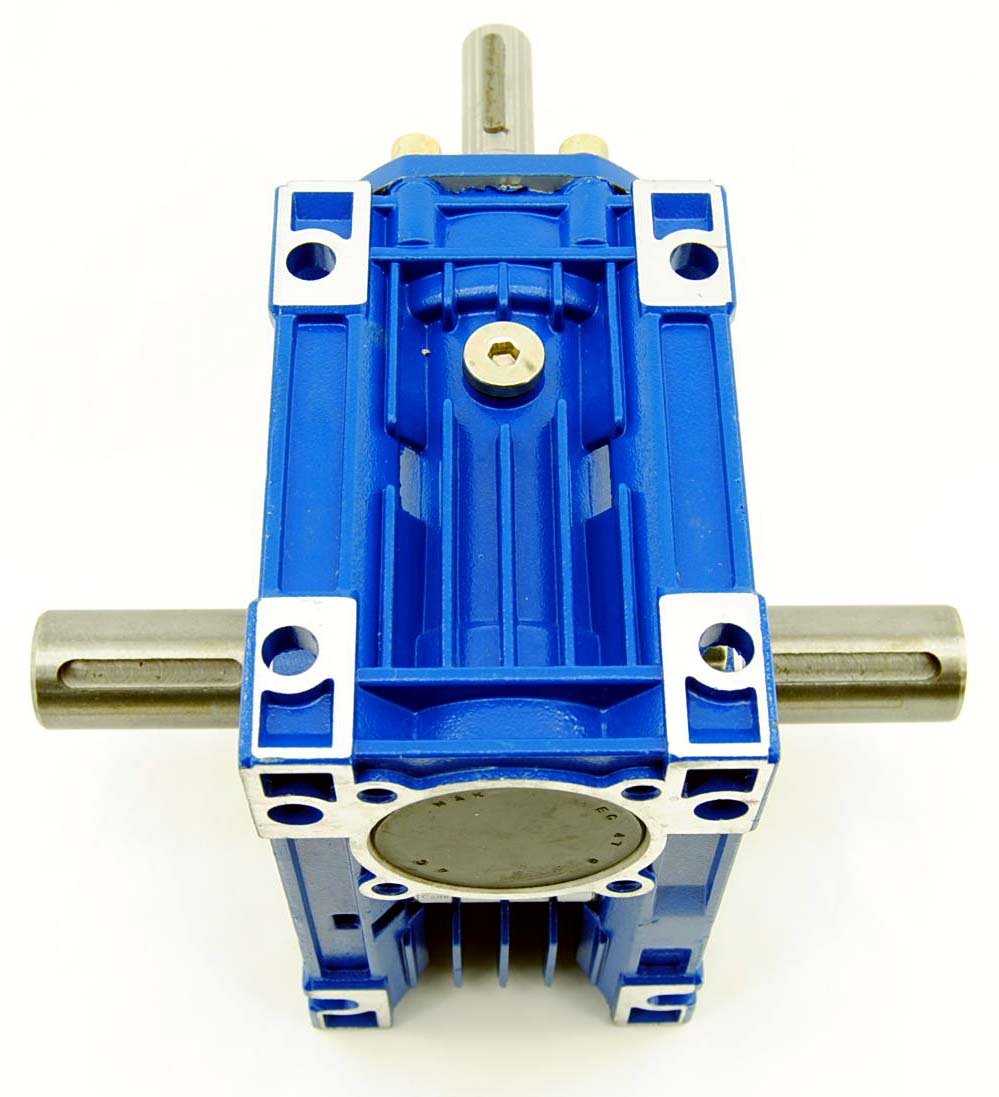

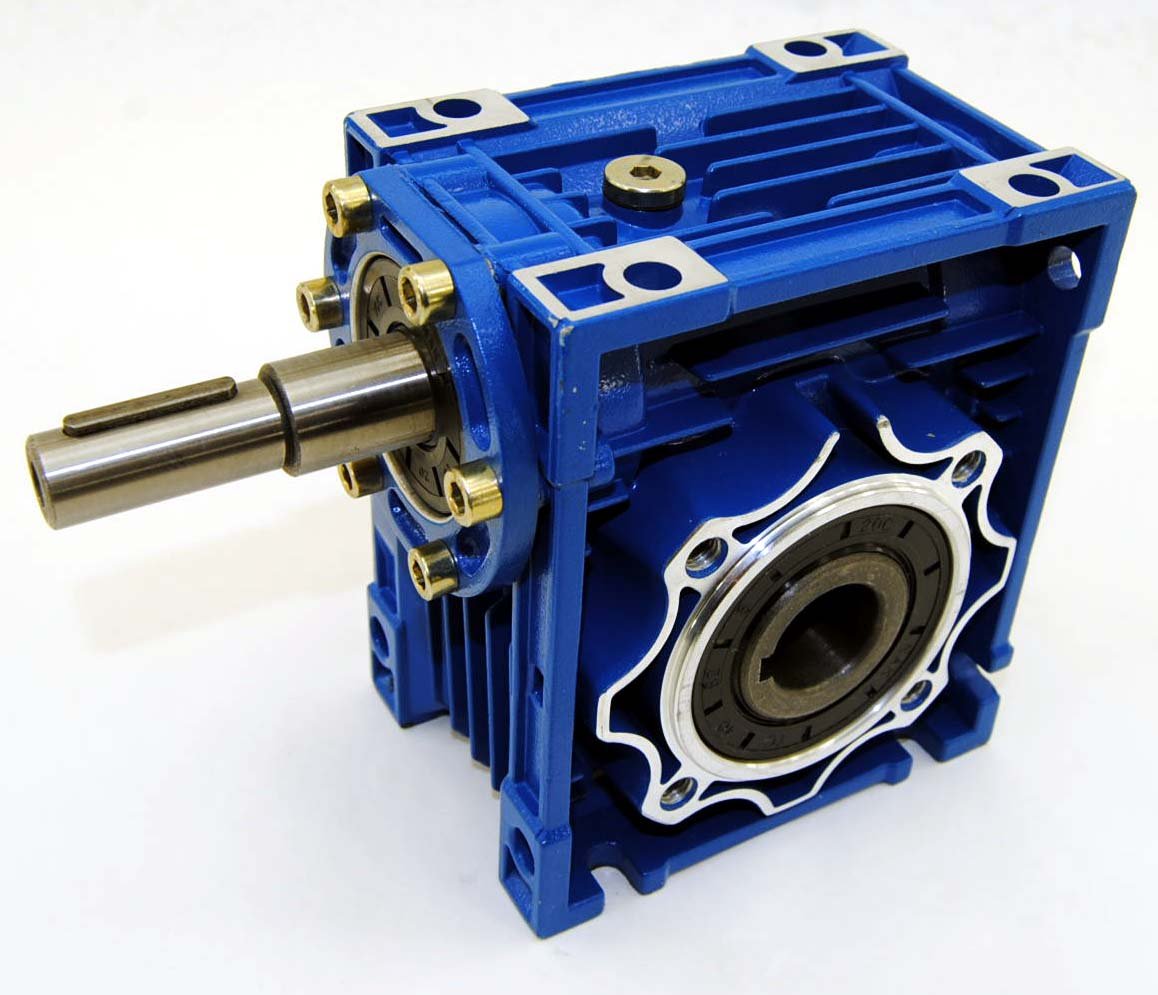

RV063 series worm gear coupled speed reducer.This 20:1 ratio speed reducer is rated for 2.05 HP input at 1750 RPM on a 3/4" diameter x 2" long keyed shaft.Output is 1194 lb/in on a hollow 1-1/8" diameter x 4-7/16" long keyed shaft.High quality reducer has an all aluminum heat sinking designed housing with epoxy coating.Output shaft kits are not included and are sold separately.

Free shipping included. 30-day hassle-free returns.
