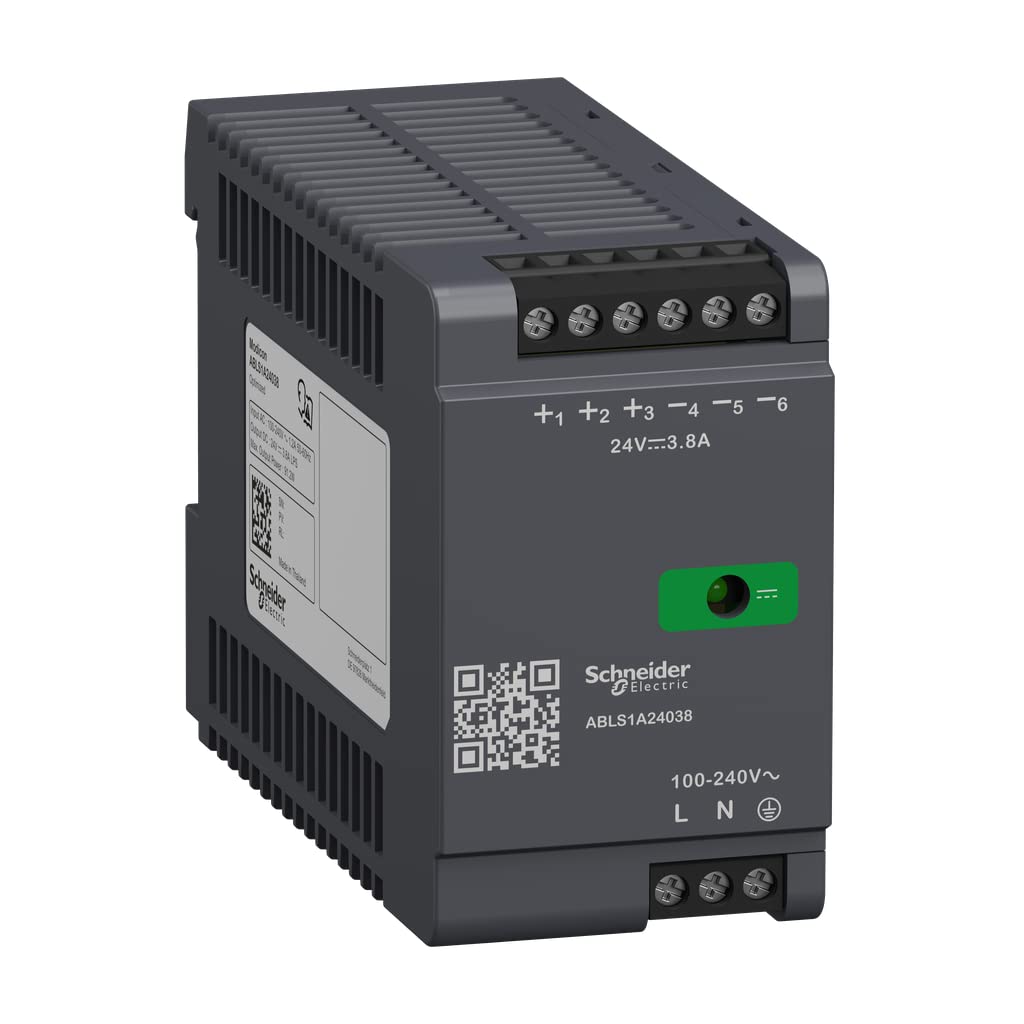

Schneider Electric Optimized Regulated Power Supply, Single Phase 100...240V AC, 24V, 3.8 Amp

Key features

• Power your automation equipment with the ABLS regulated switch mode power supply (SMPS), providing direct current voltage with a rated input of 100V to 240V AC and 140V to 340V DC, a rated output current of 3.8A at 24V DC and a rated power output of 92.2W
• Ideal for industrial, commercial, and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas, and water industries, it installs easily on omega rail or fixing by screw and is 45mm wide, 75mm high, and 100mm deep
• It ensures protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected; Acti9 iC60 range of Miniature Circuit Breakers is recommended for its protection
• With an LED indicating DC output voltage and QR code for access to the latest technical documentation, this SMPS conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and is certified by CE, CUL listed/recognized, RCM, CBscheme
• From simple machines to complex automated systems, this module brings energy to your applications, providing reliable power supply without compromising on compactness; industrial use, rail mounting, and weighing only 0.325kg, it can be installed in enclosures or industrial panels by clipping on omega (DIN) rail

This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 3,8A at 24V DC and a rated power output of 91,2W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 45mm, its height is 75mm, its depth is 100mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.325kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommended for its protection. The type of protection is 6A, C curve or 10A, B-curve. It has in the front face a LED indicating presence of
