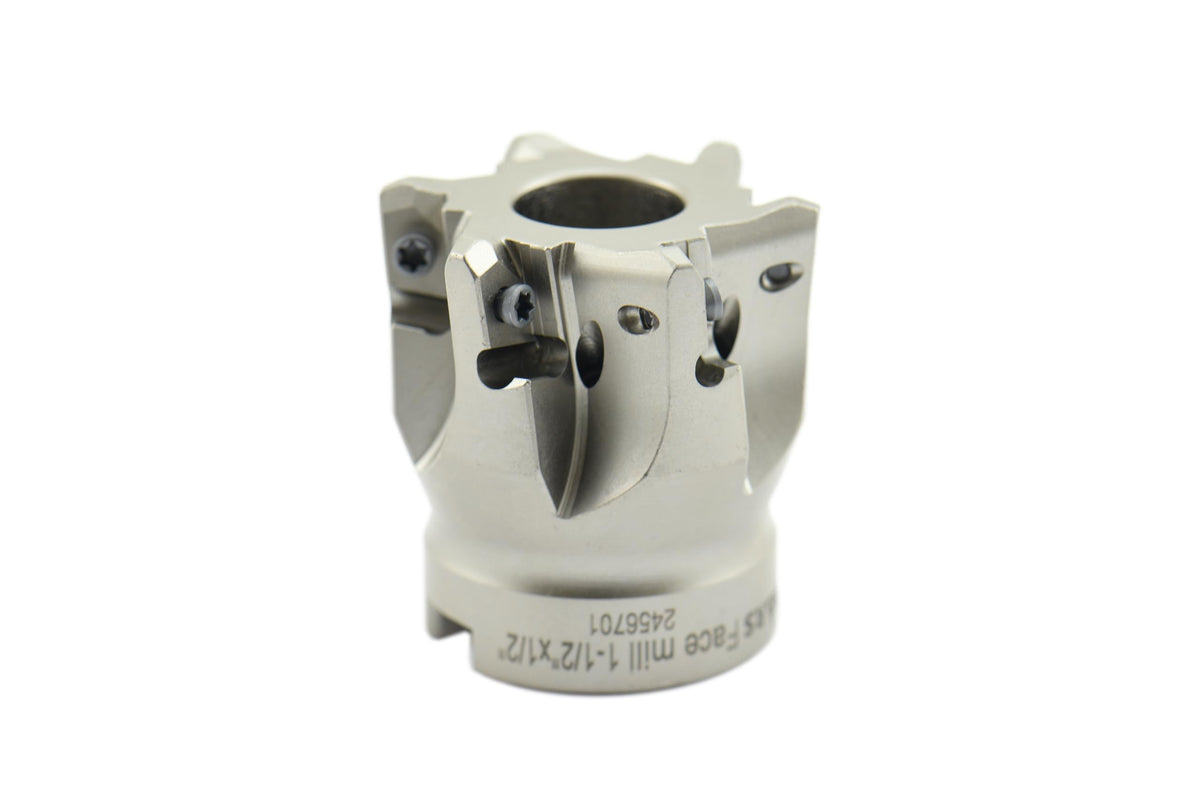

Shars 1-1/2" Multi-Purpose Coolant Through Indexable Face Mill ENMX Insert New 404-8549 6[
Shars 1-1/2" Multi-Purpose Coolant Through Indexable Face Mill ENMX Insert New 404-8549 6[
Key features
- MFG SKU#: 404-8549
- Brand: Shars Tool
- Cutting Diameter: 1-1/2
- Axial Depth of Cut: 0.023
- Overall Length: 1.575
A single cutter body can be mounted with a variation of ENMX insert to perform high feed, square shoulder, slotting, plunge milling, ramping, helical milling, or profile milling High performance cutter design for roughing with large feed rate It's strongly recommended to use the cutter in a high rigidity working environment when roughing for optimal cutting efficiency. Start by reducing the cutting parameter then gradually step up the parameters to achieve the best outcome Use ENMX 1206 insert (sold separately) Square Shoulder Milling Square shoulder milling is achieved by employing ENMX120608-GM insert with a depth of cut Ap 0.118” Slot Milling Slot milling is recommended to employ ENMX1206XR-GM or ENMX120608-GM insert Plunge Milling Plunge milling is recommended to employ ENMX1206XR-GM inserts and the maximum cutting width Ae is 0.138” when plunging Profile Milling Profile milling is recommended to employ ENMX1206R30-GM insert for various types cavity face roughing Ramp Milling Ramp milling and helical milling generally chooses ENMX1206XR-GM inserts, and the maximum ramp angle θ is determined by the diameter of the cutter
Free shipping included. 30-day hassle-free returns.
