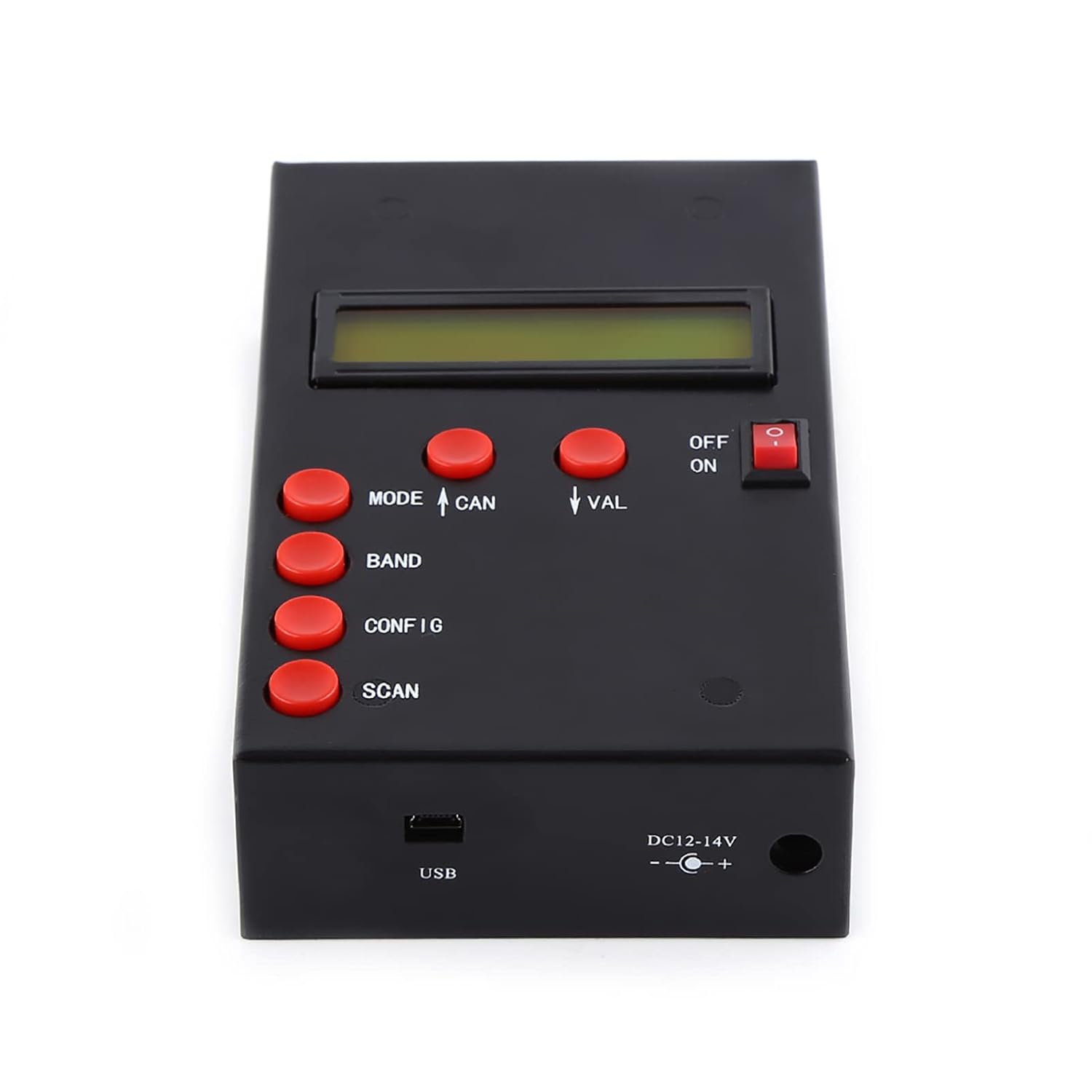

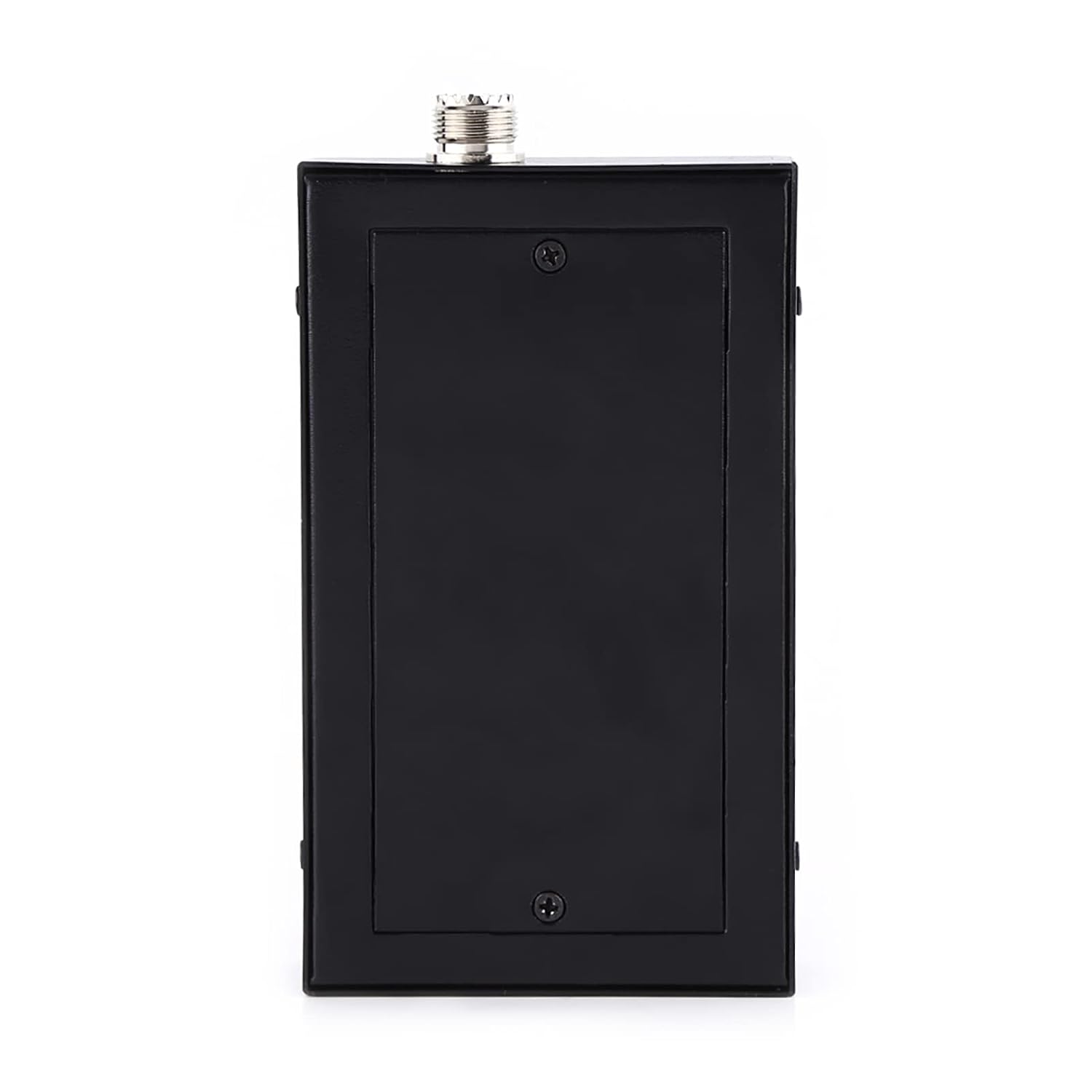

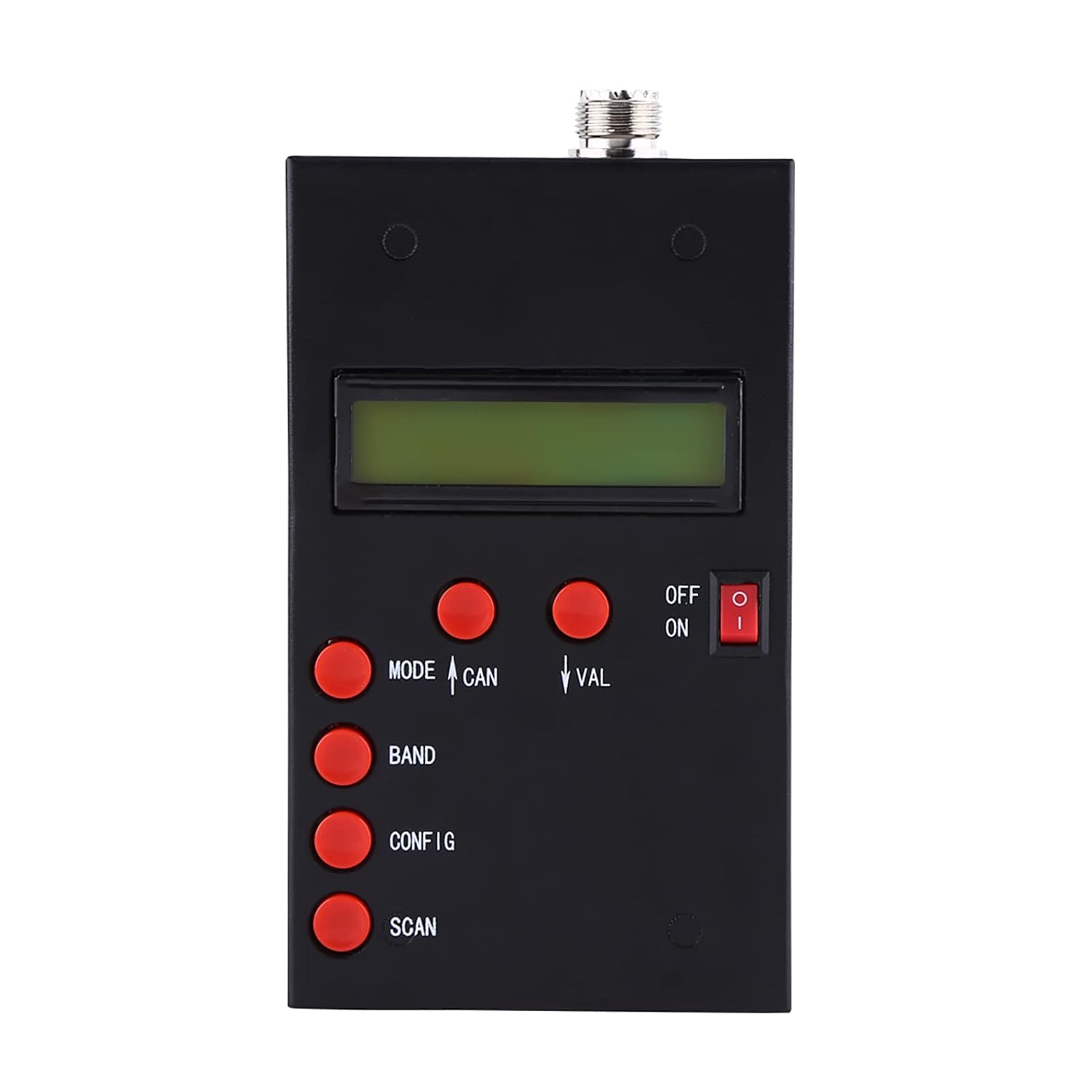

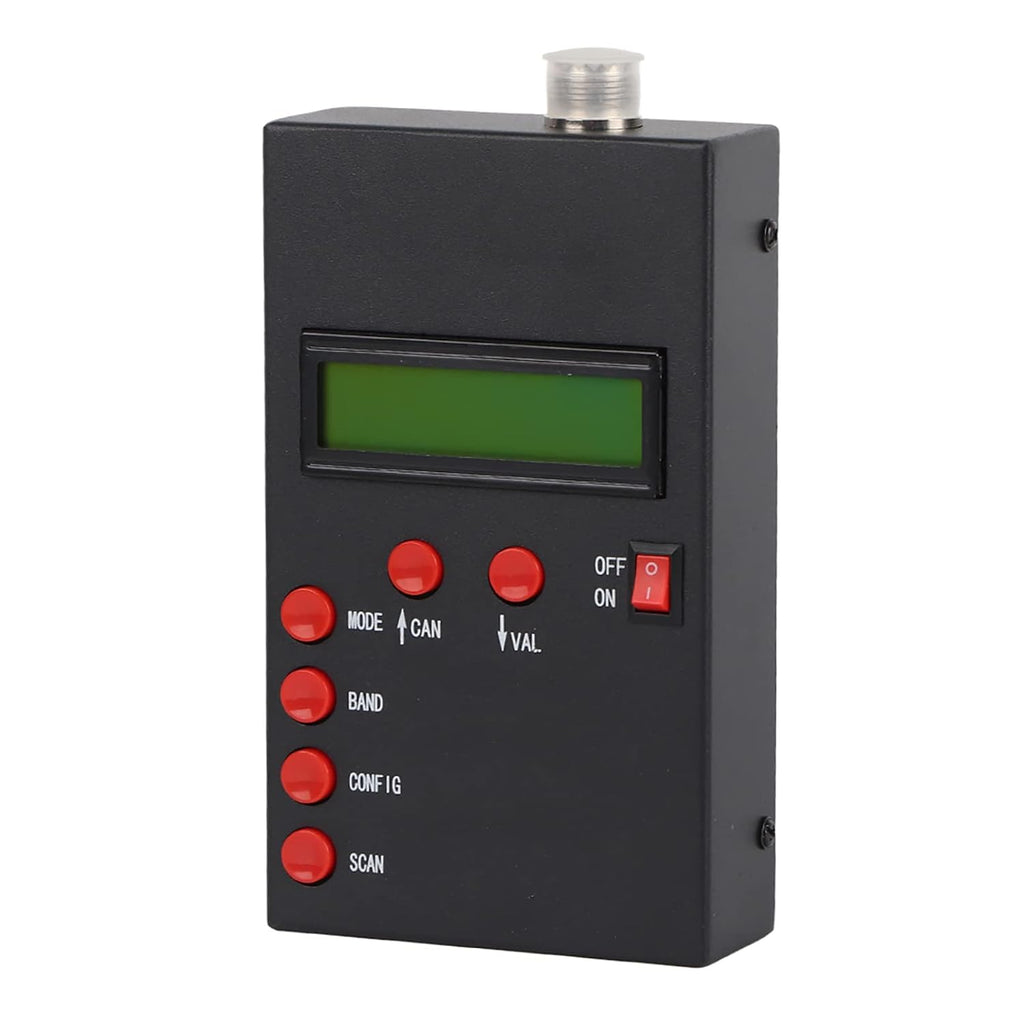

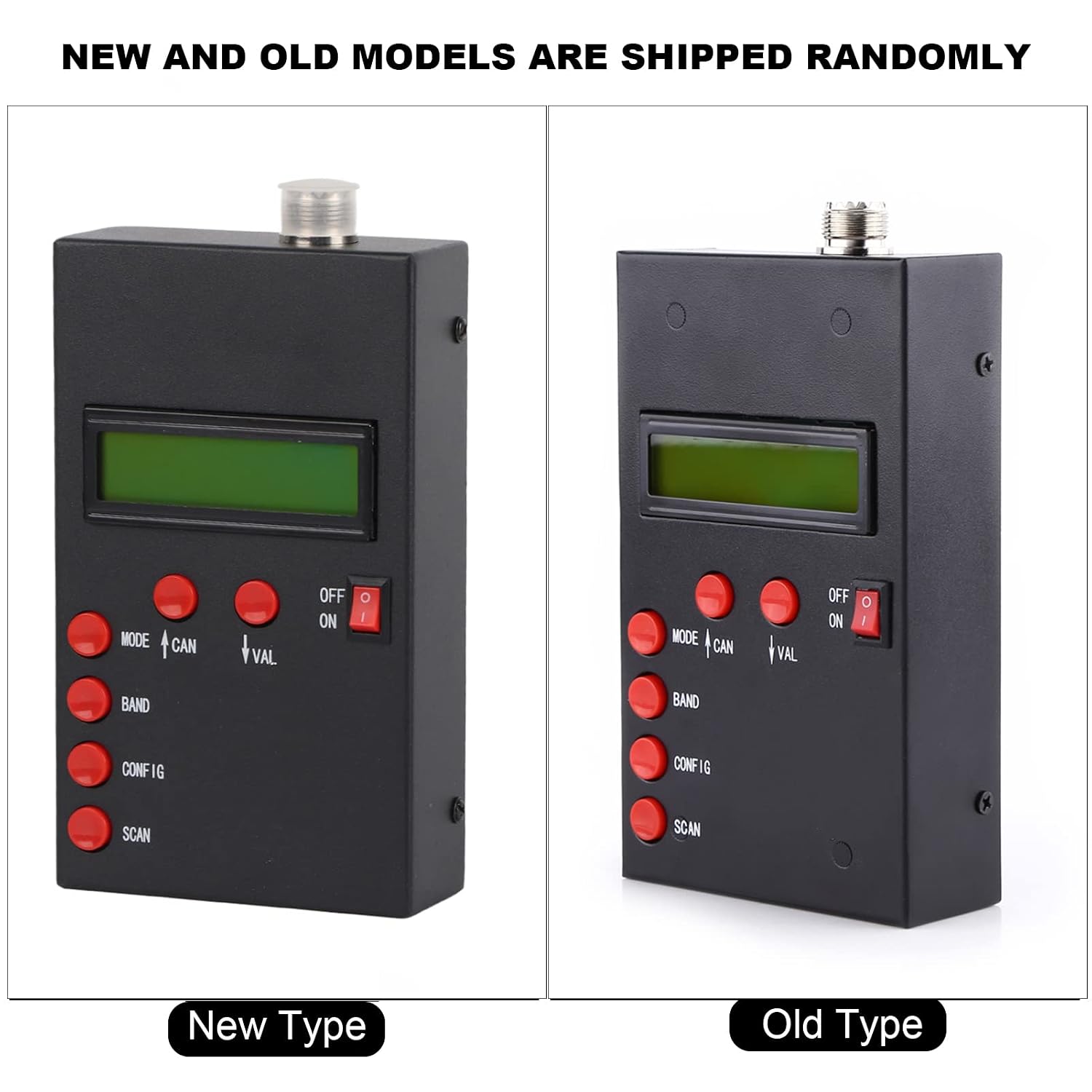

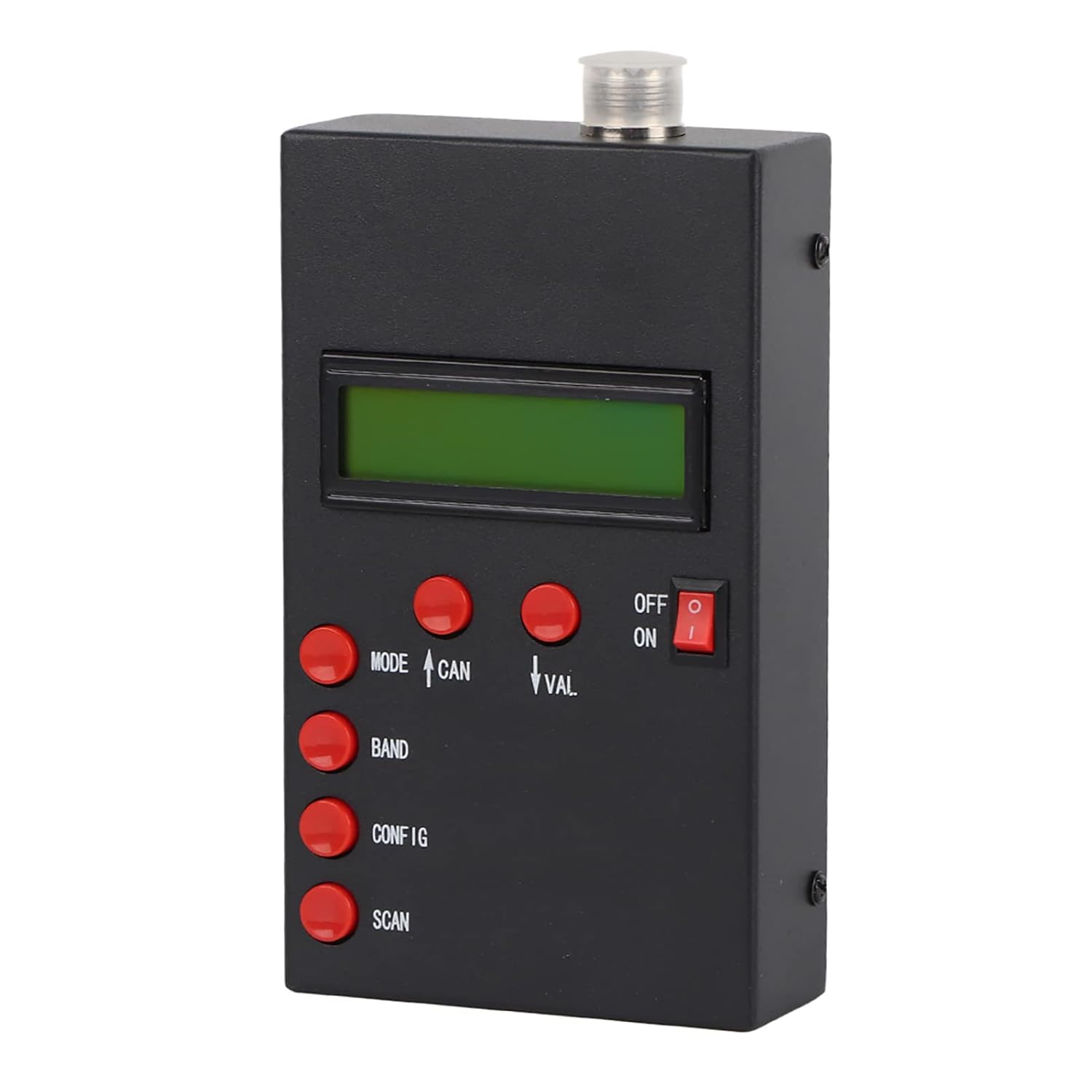

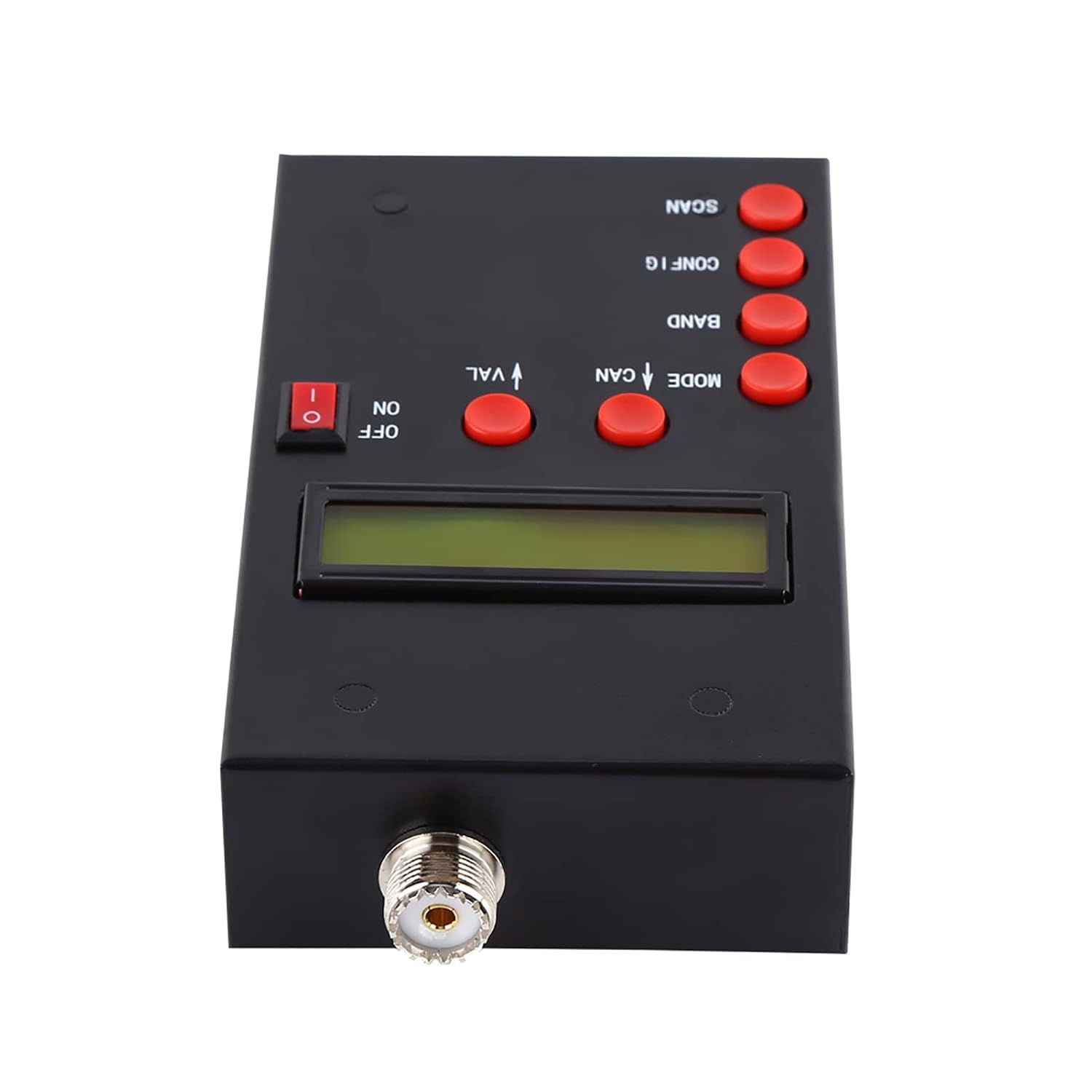

Shortwave SWR Antenna Analyzer for Ham Radio - 1 to 60 MHz Frequency Range - Measurement Range 1.0 to 9.99 SWR - User

Description: This is a SWR analyzer for ham hobbyists. With 5 buttons, "Mode", "Band", "Config", "Scan", "Up", "Down", you can selects operation mode, band and extended functions. It is powered by DC 12 to 14V 500mA external power with 2.1mm power jack, and can be used to measure antenna electrical parameters, SWR, impedance (resistance + reactance), capacitance, inductance, feed-point impedance, ground loss, etc.Features: SWR usable measurement range of this analyzer is 1.0 to 9.99. step size: user configurable increments of 100Hz, 1KHz, 10KHz, and 100KHz. Powered by DC 12 to 14V 500mA external power with 2.1mm power jack(center pin positive), just connect the power and then work. 5 operation buttons are easy and convenient to operate. You can selects operation mode, band and extended functions.Beautiful and simple designed black case would protect the antenna analyzer from external damage. This would be a great SWR antenna analyzer for ham hobbyist or professionals.Specifications: Frequency Generation & Control: 1 - 60 Mhz Source Impedance: 50 OhmsStability: +/- 100 ppmSpectral Purity: Harmonics down >- TBD dB beyond 60 MHzStep Size: User configurable increments of 100 Hz, 1 kHz,
