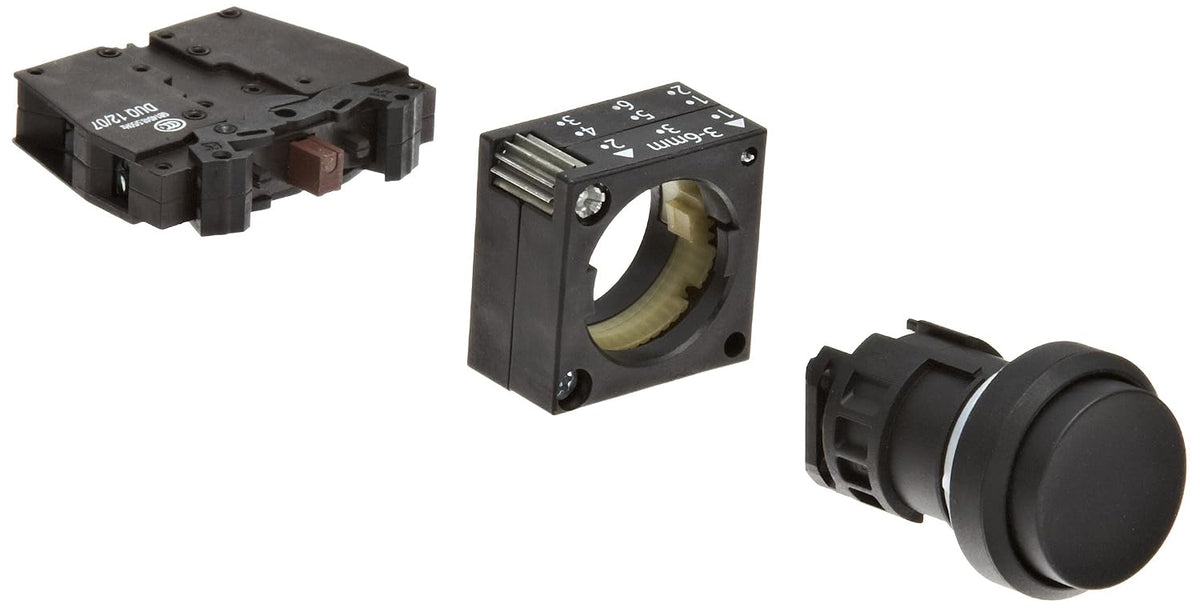

Siemens 3SB3201-0BA11 Pushbutton Unit, Extended Button, Momentary Operation, 1 NO + 1 NC Contact Type, Black

Key features

• Round, raised pushbutton actuator with 1 NO and 1 NC contact
• Plastic for corrosion resistance and non-conductivity
• Rated up to 400V and up to 10 amp
• Operating temperature range from -25 to +70 degrees C
• UL Listed, CSA certified, CE and EAC marked

This Siemens 3SB3201-0BA11 pushbutton unit is a pilot device with a black raised pushbutton actuator with momentary operation. It is made of plastic for corrosion resistance and non-conductivity. The pushbutton actuates the normally open (NO) and normally closed (NC) contacts, and the contact blocks are rated up to 400V and up to 10 amp. The unit has an operating temperature range from -25 to +70 degrees C and meets the Ingress Protection (IP) 66 standard for protection against dust and spraying liquids. This pilot device is Underwriters Laboratories (UL) listed and Canadian Standards Association (CSA) certified, and displays the European Conformity (CE) and EurAsian Conformity (EAC) marks.SpecificationsContact blocks1 NO + 1 NCMountingFrontSwitching positions2ConnectionScrew terminalsMinimum to maximum voltage5 – 400V AC/DCMaximum current10 ampMaximum operating cycle1,000/hrOperating temperature range-25 to +70 degrees CProtectionIP66Specifications metUL listed, CSA certified, CE and EAC markedMounting dimensions*12 x 22mm (H x Dia.)Installation dimensions*29.5 x 63mm (W x D)*H is height, the vertical distance from the lowest to highest point; Dia. is diameter, the length of a str
