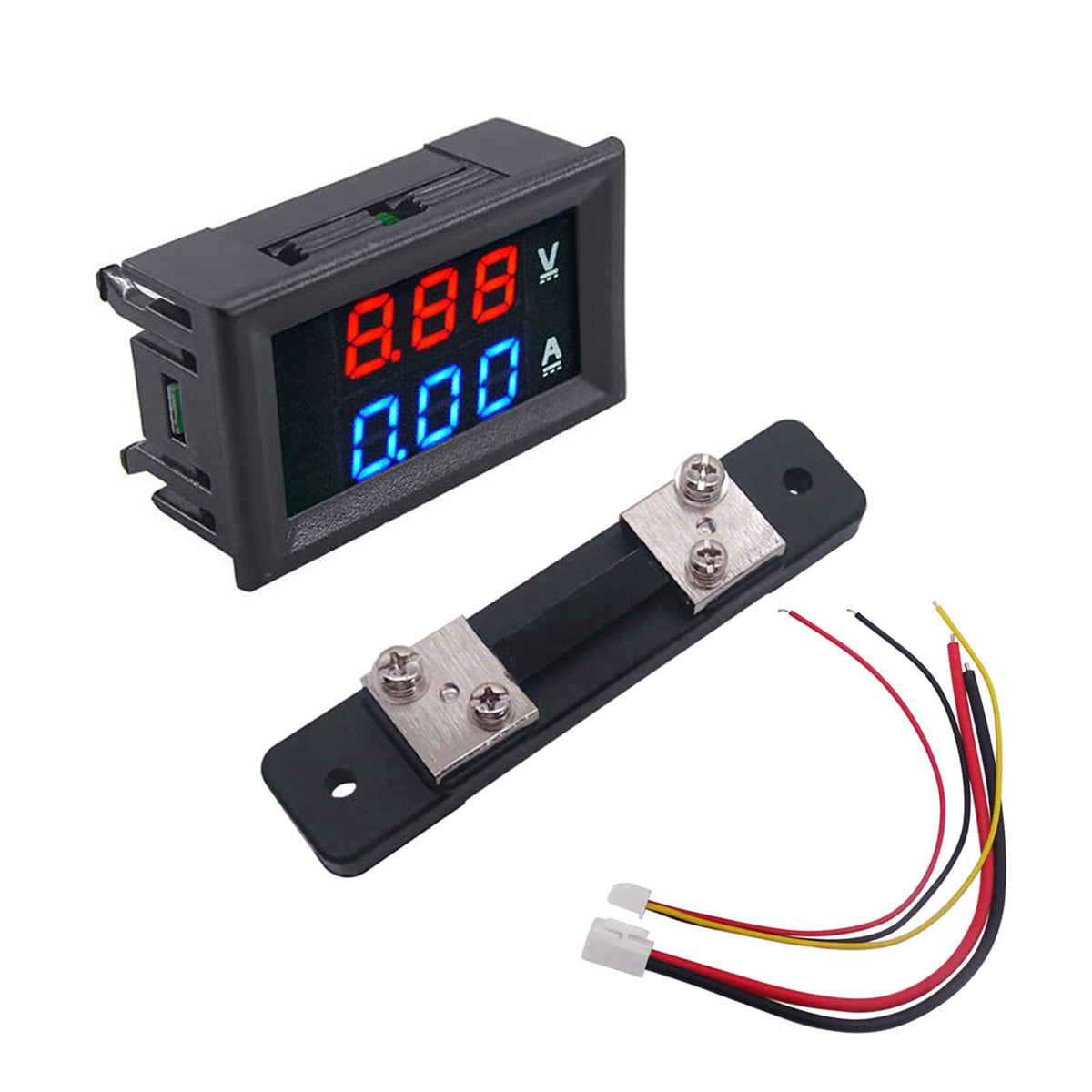

SIPYTOPF 0.28" 50A Digital Voltmeter Ammeter with Shunt

Key features

• Measurement Range: Voltage Measuring range: DC 4.5- 100V; Current Measuring range: DC 0 - 100A
• LED Display: 0.28" digital tube, LED 3 Bits Red+Blue dual color display panel, red for Voltage, Blue for current, bright and clear
• 50A Shunt Included: The shunt should be connected when wiring, otherwise the meter will be burnt. Our package included 50A 75mV shunt
• Calibration Features: Has Voltage and current calibration potentiometers with reversed connection protection
• Wide Applications: The voltage meter can be applied to monitor the voltage and current of rechargeable batteries and electronic worktables, like Christmas lights, storage battery, solar panel, RV, motorcycle, house batteries, motor, etc
• High Accuracy: Measure accuracy of 1% ( 1 digit) with voltage resolution of 0.1V and current resolution of 0.01A for precise readings
• Compact Design: Dimensions of 48*29*22mm (1.89*1.14*0.86 inches) with fast refresh rate of about 300mS per reading for real-time monitoring

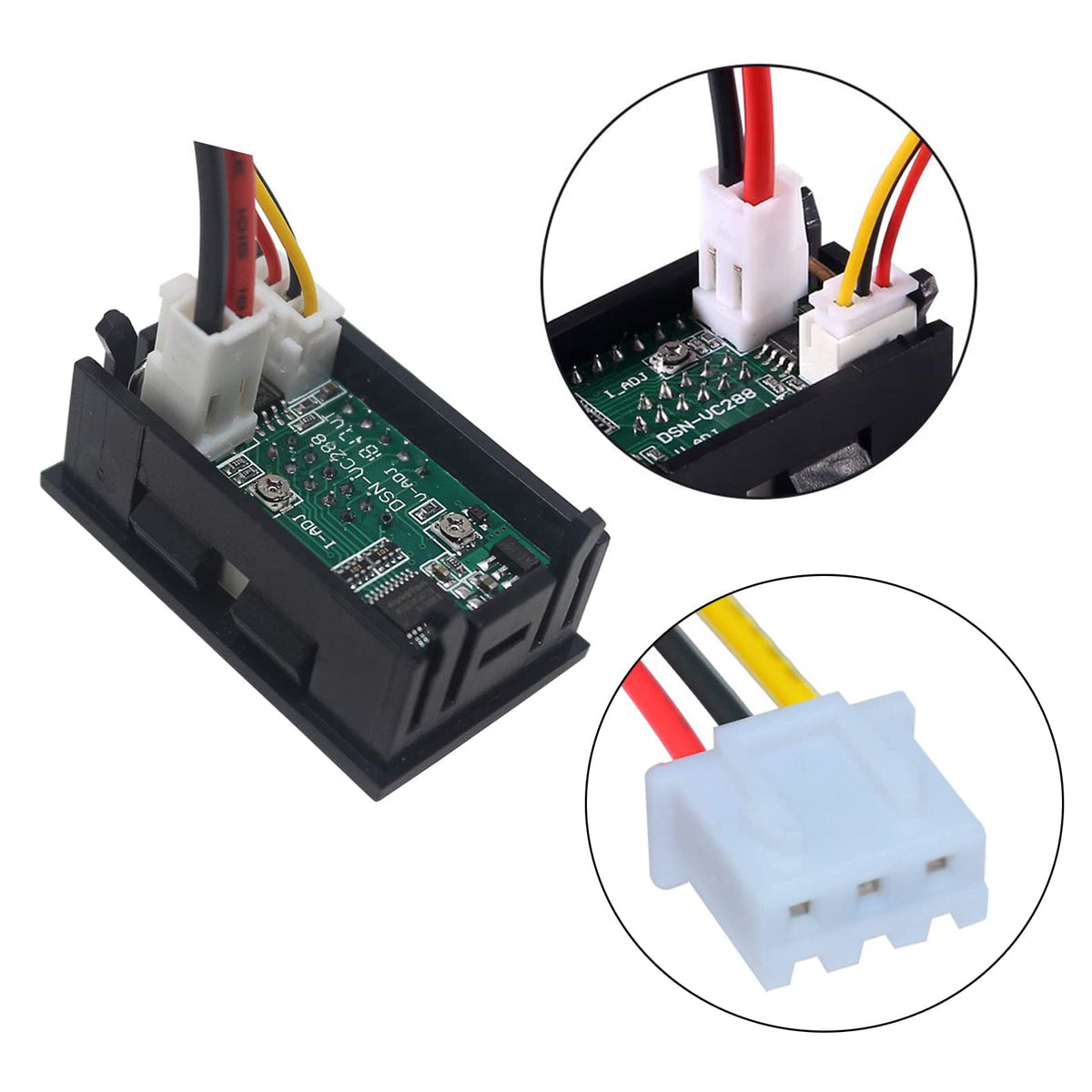

Specifications: Working voltage:DC 4 - 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned) Voltage Measuring range: DC 0 - 100V Current Measuring range: DC 0 - 100A Voltage resolution (V): 0.1V Current resolution (A): 0.01A Measure accuracy: 1% (± 1 digit) Display: 0.28" digital tube, blue and red Refresh rate: about 300mS / times Operation Temp: -10°-+65°C Dimensions:48*29*22mm/1.89*1.14*0.86in Wiring: Black line (thin): vacant or buck circuit (module) negative Red line (thin): power supply+ Black line (thick): COM, common measuring Red line (thick): PW+, measuring terminal voltage input positive Yellow line (thick): IN+, current input+ Package Included: 1* DC 100V/100A Voltmeter Ammeter Meters 1* 100A 75mV Shunts
