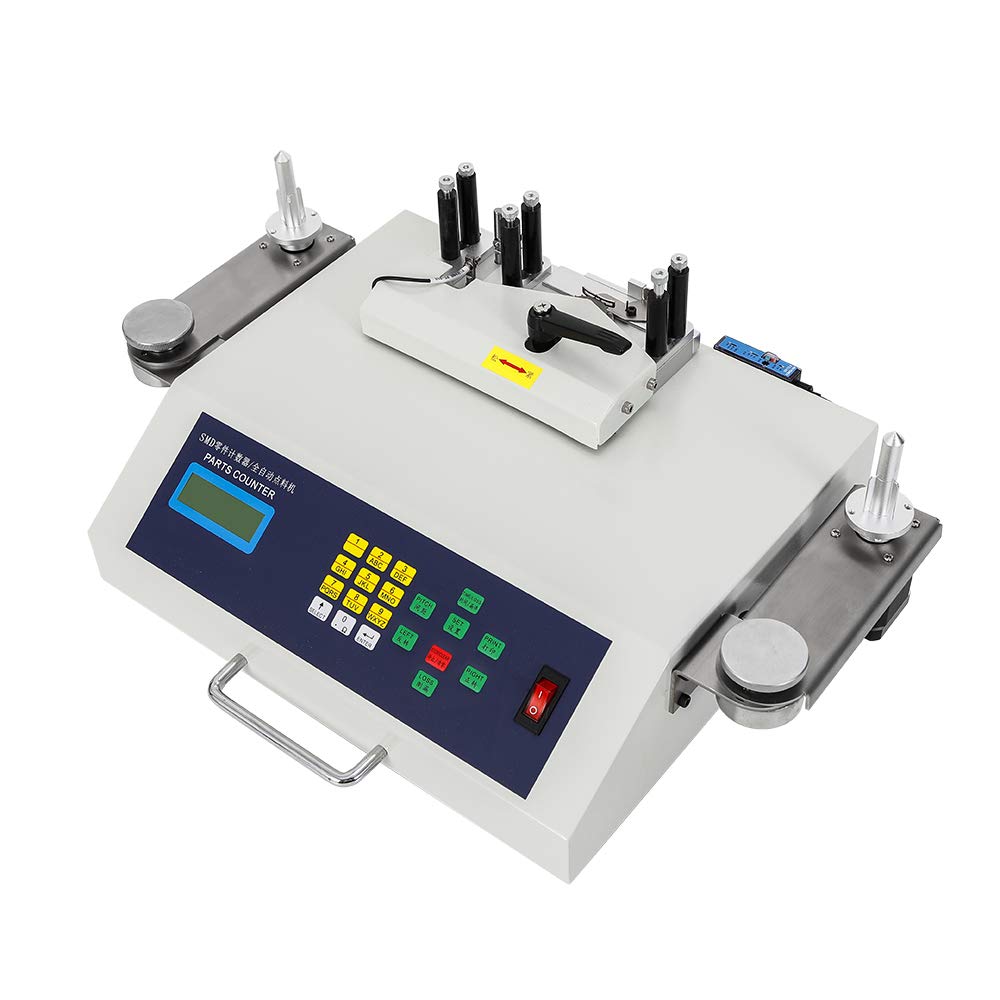

SMT SMD Components Counter, 25W Automatic Parts Component Counting Machine

Key features

• High-Precision Counting This smt smd component counter kit adopts the principle of photoelectric sensing. Through dedicated chips and large-scale circuit processing, it achieves zero-error counting, accurately measures the number of SMD parts, and facilitates efficient material management.
• Flexible Configuration The smd counter has a wide counting range, from -99,999 to 99,999 PCS, meeting the demand for large-scale counting. The component counting machine dimensions are 30.04 ×11.81 ×7.48 inches, which is moderate and convenient for placement and use.
• Wide applicabilityPatch material belt type elements are applicable for the pulley diameter and spacing of a variety of choices, pitch:,2,4,8,10,12,16,24,32,44,56 1 mm Width: 4,6,8,12,16,24,32,44,56 mm, meet the demand of different size SMD type strip parts counting.
• Ease of Operation Fully automatic calculation of component quantity, simple discharging and feeding operation, forward and reverse counting and pre-installation quantity, precise calculation without error, improving work efficiency.
• Thoughtful Design The commercial components counting device features a special anti-tape detachment design to reduce tape damage and extend its service life. Commercial components counting machine can be equipped with a scanner gun and a barcode printer for convenient management work.

Specification: Power supply: AC110V,60HZ Power:25W Counting range: -99999- 99999PCS Product size: 76.5*30*19cm Net weight: 9.5kg Packing Weight:10 kg Operation method: 1. Connect the power cord to the main unit and link it to an AC220V power supply 2. Turn on the POWER switch on the machine panel and the LCD panel will light up 3. Press the "PITCH" key to set the spacing of the components to be counted, and then press the "ENTER" key. Put the parts to be counted on the tray on the left. 4. Manually pull out the material tape to clamp it between the material plate and the counting gear, and align the middle hole and blank of the first part with the center line of the material plate. 5.Press and hold the "Stop/Reset" key for 2 seconds to reset the number to zero. Note: When pulling the material tape, the counting gear rotates to count. 6. Press the "Settings" key to switch to manual and automatic modes. If the automatic mode is selected, the quantity to be counted must be entered. Otherwise, press the "Forward" key and the motor won't rotate. 7. Pull the material tape by hand and wrap it around the empty material board. Press the "Forward/Right" key to count. 8. When the quantity is
