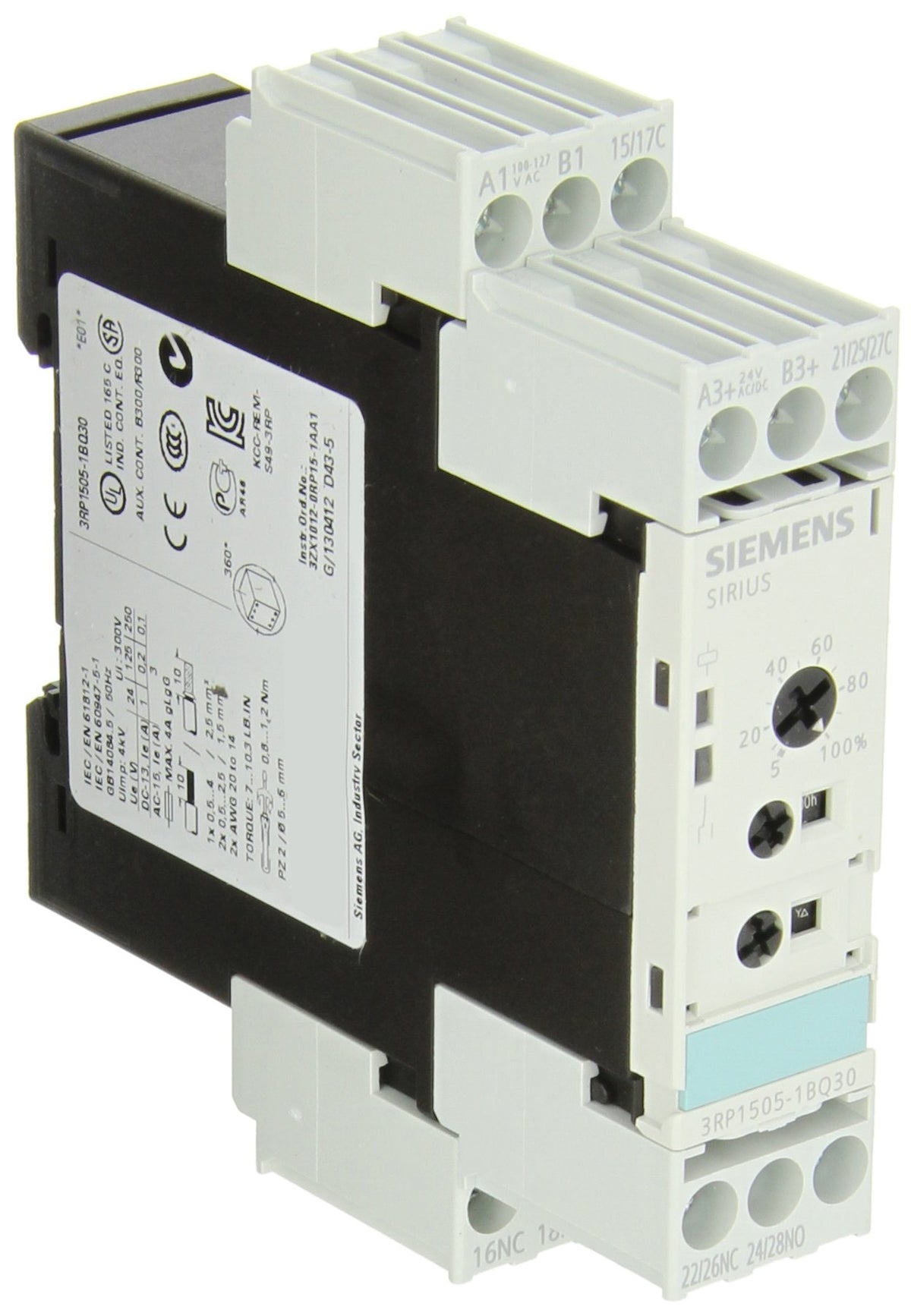

Solid State Time Relay, Industrial Housing, 22.5mm, Screw Terminal, 16 Function, 2 CO Contact Elements, 0.05s–100h Time Range, AC/DC 24 100–127VAC Control Supply Voltage

Key features

• Time relay with 16 functions and an LED indicator for use in control, starting, protection, and regulation circuits
• Control supply voltage of 24 VDC or from 100 to 127 VAC at 50 or 60Hz
• Time adjustable from 0.05 seconds to 100 hours
• Operating temperature range of -25 to +60 degrees C
• Screw connections for secure panel mounting

This Siemens 3RP1505-1BQ30 solid-state time relay has 16 functions and an LED indicator, and can be operated with a control supply voltage of 24 VDC or from 100 to 127 VAC at 50 or 60 Hz. It is suitable for use in control, starting, protection, and regulation circuits and has screw connections for secure panel mounting. It has an operating temperature range of -25 to +60 degrees C, and its time intervals are adjustable from 0.05 seconds to 100 hours. Its functions include on and off delays, impulse on and off, pulse shaping, star-delta, and flasher. The relay's terminal has an Ingress Protection rating of IP20 for protection against access with a finger, and its front has an IP40 rating for protection against access by tools, screws, and wires. It is Underwriters Laboratories (UL) Listed, Canadian Standards Association (CSA) certified, and displays the European Conformity (CE) mark. This solid-state time relay is especially well suited for industrial control cabinets, power distribution boards, and control manufacturers. SpecificationsRelay typeTime, solid stateControl supply voltage and frequency24 VDC or 100 to 127 VAC at 50 or 60 HzOperating temperature range-25 to +60 degrees C
