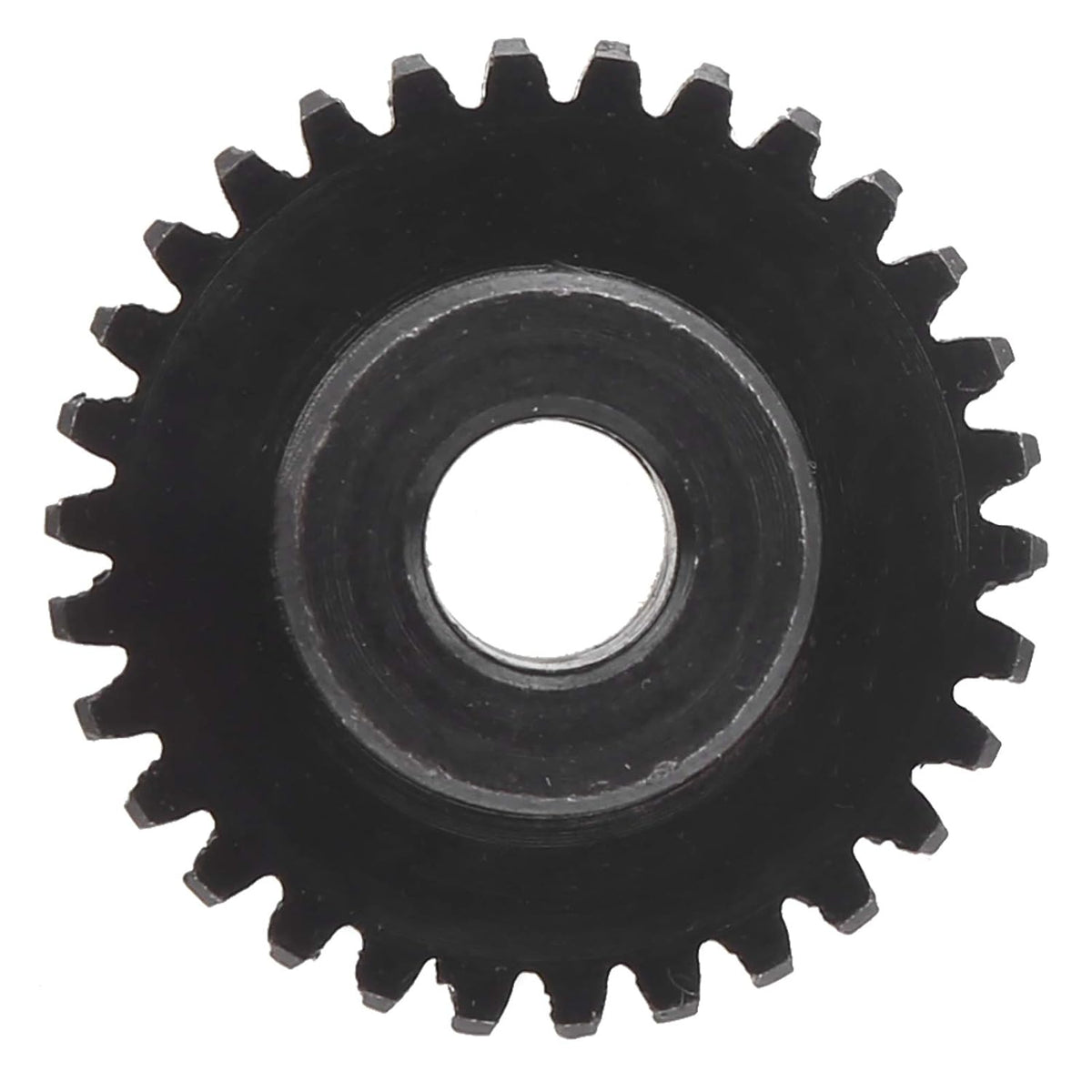

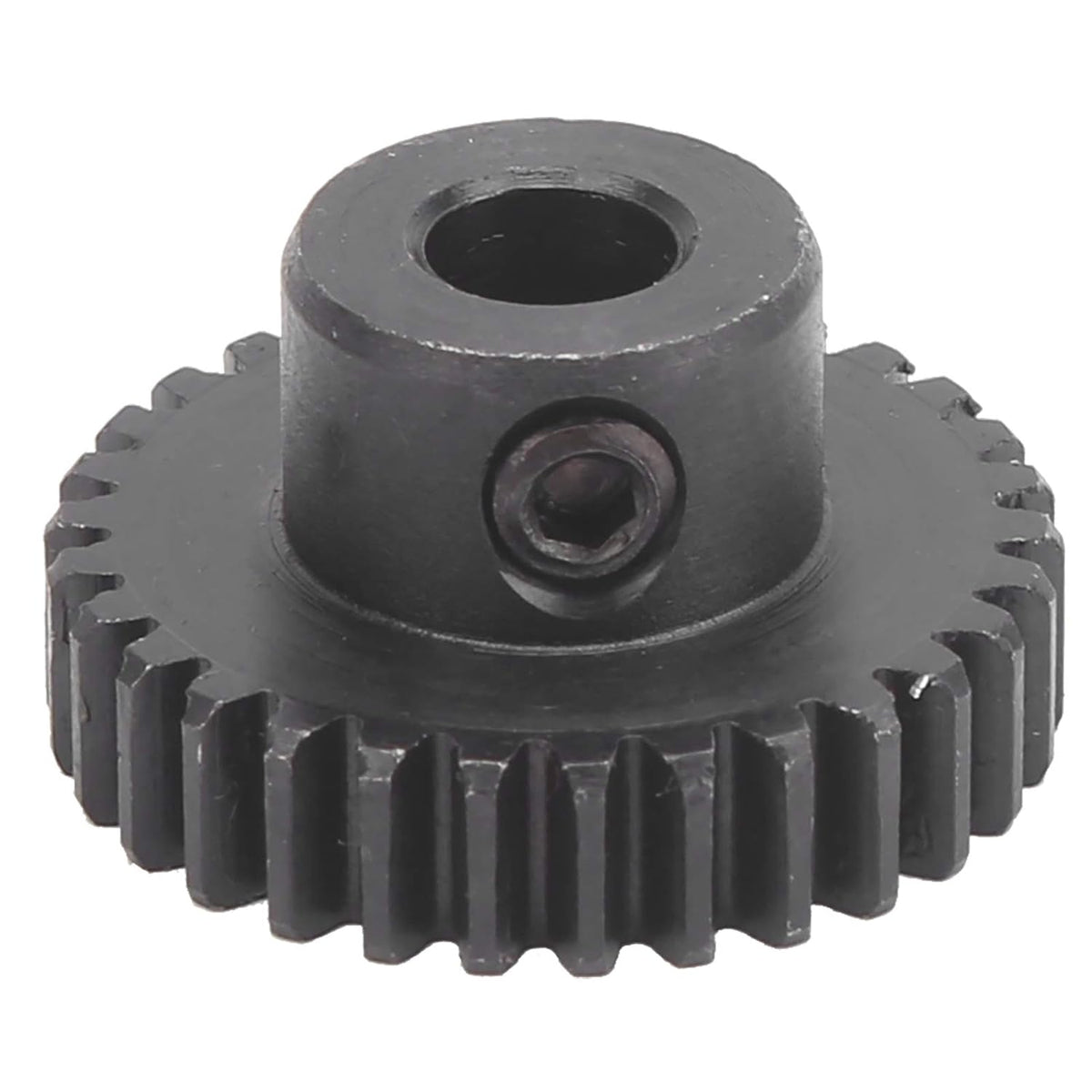

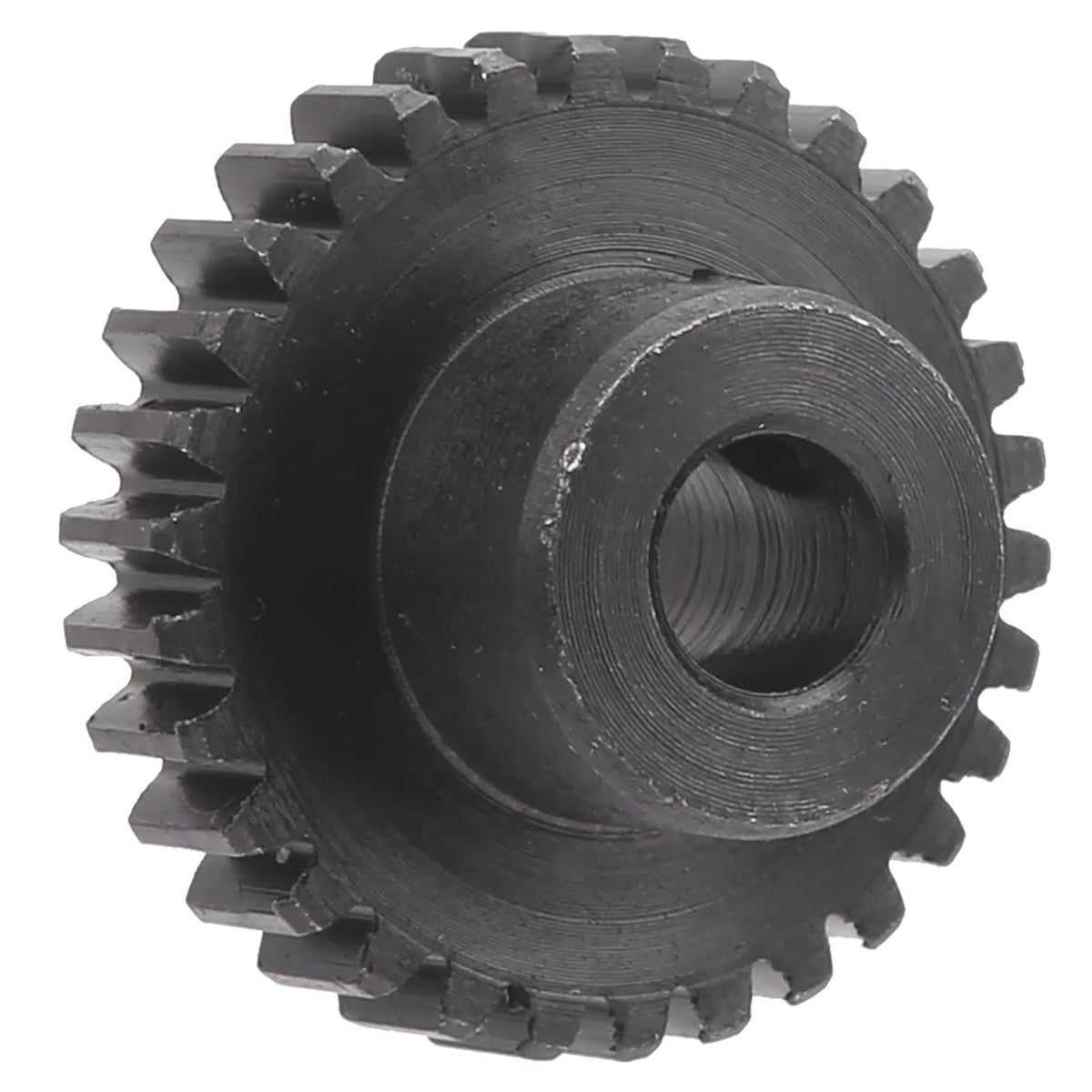

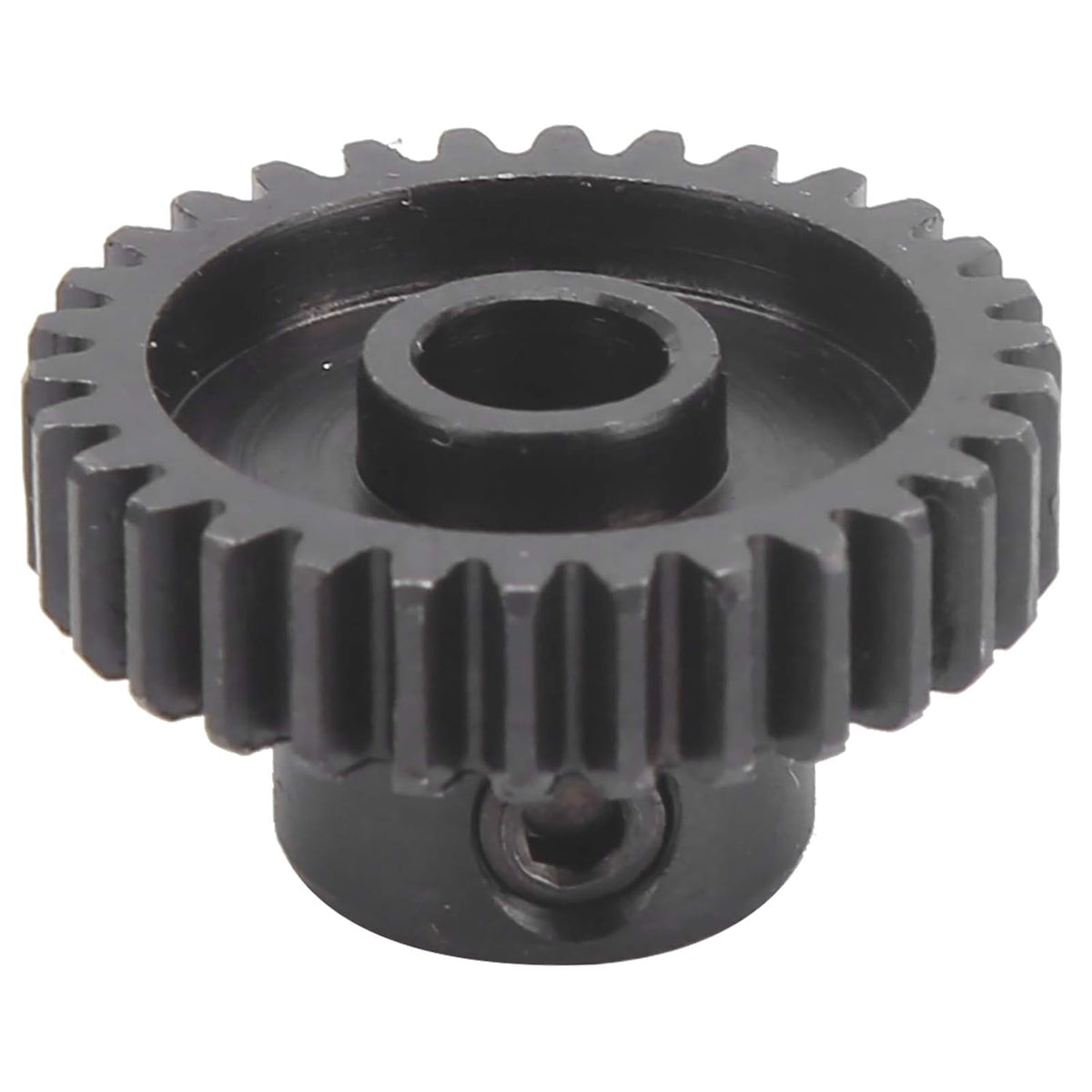

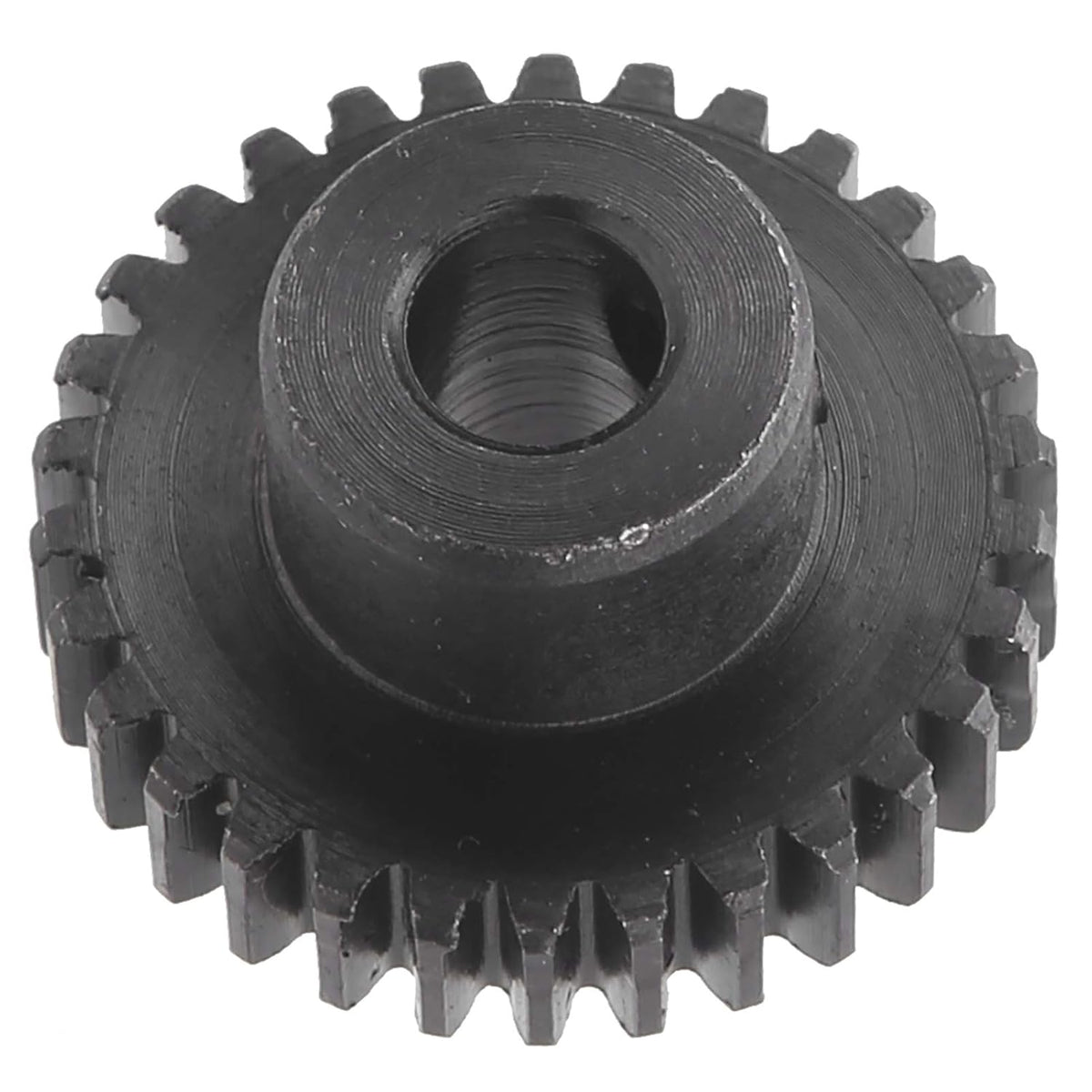

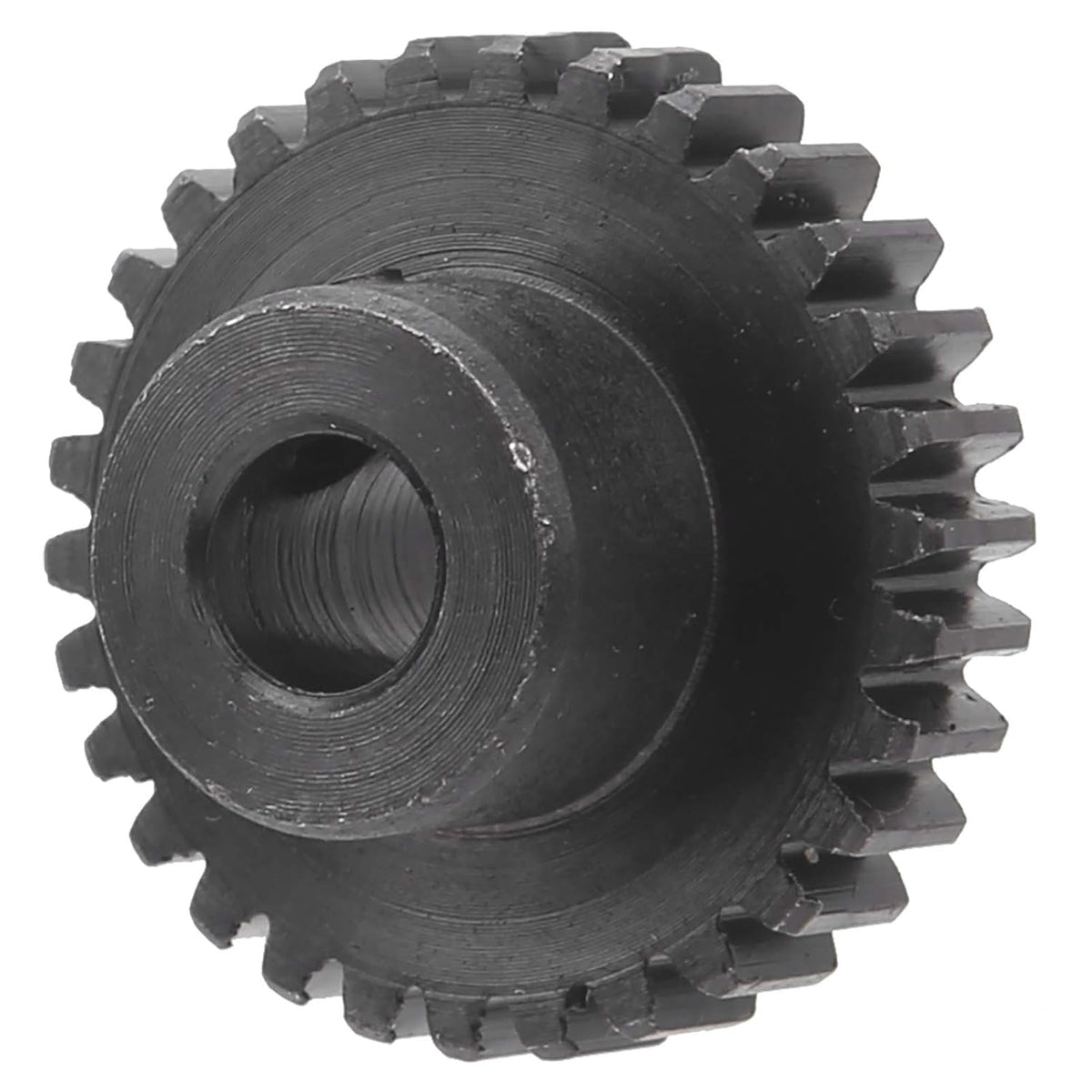

Spur Gear Steel 30 Tooth Mod Industrial Parts 430310060030

Key features

• This pinion is made of steel and possess higher overall strength than brass or aluminum gears
• This 30-tooth 6mm pinion is perfectly matched with 6mm D-shaft, resulting in a positive drive
• If your configuration can freely adjust the spacing between gears, you can mesh any MOD 0.8 gear that suits you
• Small spur gear possess stable structure, excellent performance and long service life
• Using advanced technology with fine craftsmanship to bring smooth surface, which will your hands in operate

Feature: 1. This pinion is made of steel and possess higher overall strength than brass or aluminum gears 2. This 30-tooth 6mm pinion is perfectly matched with 6mm D-shaft, resulting in a positive drive 3. If your configuration can freely adjust the spacing between gears, you can mesh any MOD 0.8 gear that suits you 4. Small spur gear possess stable structure, excellent performance and long service life 5. Using advanced technology with fine craftsmanship to bring smooth surface, which will your hands in operate Specification: Item Type: Spur Gear Material: Steel Model: 4303-1006-0030 Mod: 0.8 Pitch Diameter: Approx. 24mm / 0.9in Outer Diameter: Approx. 25.6mm / 1in D-Bore: Approx. 6mm / 0.2in Size: Approx. 9mm / 0.4in 20mm / 0.8in 3mm / 0.1in 6mm / 0.2in 8mm / 0.3in 13.5mm / 0.5in M5 x 0.8mm Set-Screw Length: Approx. 4mm / 0.2in Hex Drive: Approx. 2.5mm / 0.1in Package List: 1 x Spur Gear
