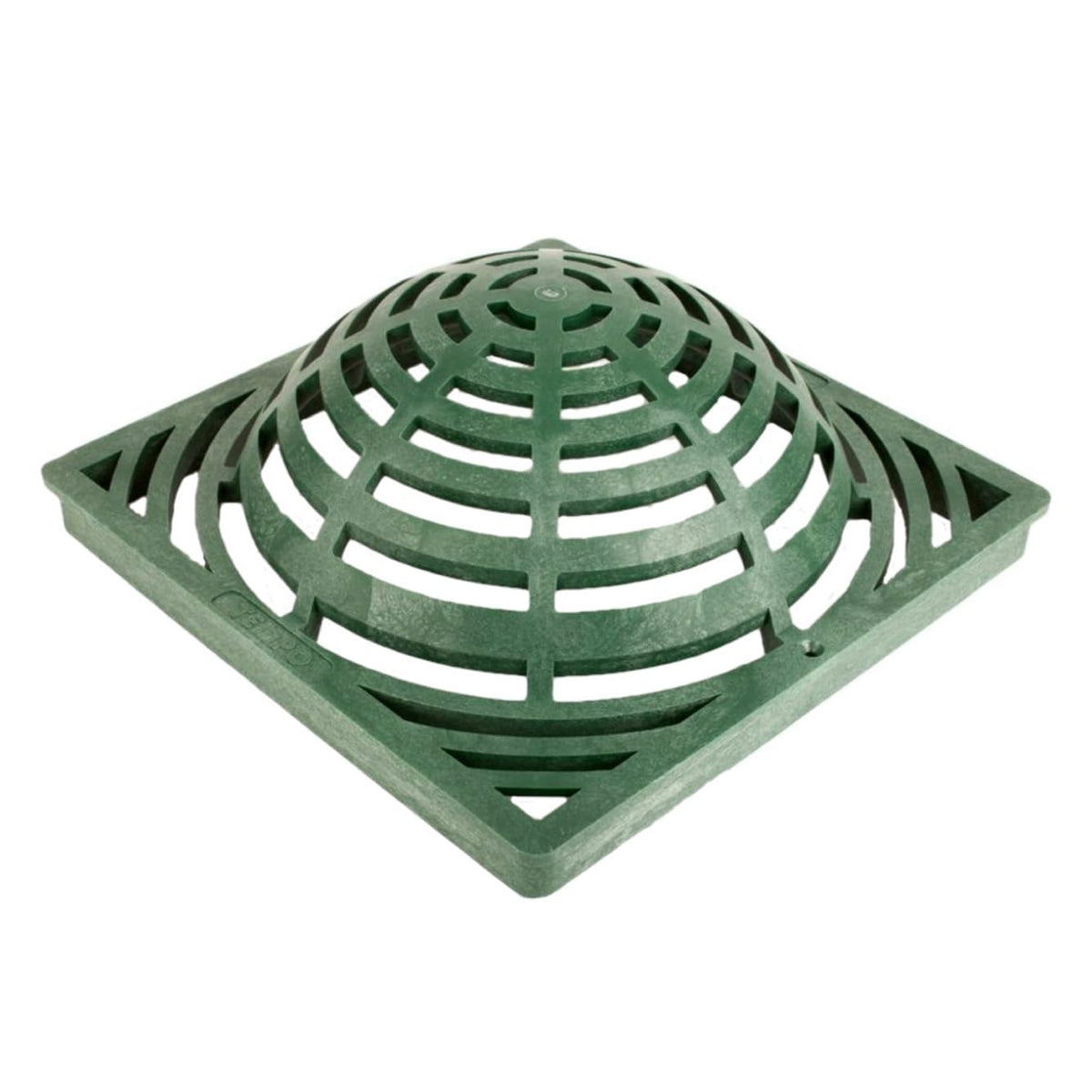

Square Atrium Grates - Size : 12" - Color : Green
Square Atrium Grates - Size : 12" - Color : Green
The Square Atrium Grate, available in 9" and 12" sizes, is a durable, square, domed grate designed for use with a catch basin. The large opening slots allow for maximum flow while still preventing large debris from entering the drainage system. Typical application would be areas where floating debris would block a flat grate. This product is available in green and black. For safety, and to reduce vandalism or theft, the grate has two holes for securing it onto the basin. This style of grate is not suitable for pedestrian and bicycle traffic. Features:Manufactured from structurally foamed High Density Polyethylene (HDPE)UV stabilized to protect from sun degradationAvailable in green and blackFits 9" or 12" catch basinsIncludes two holes to secure to basin (use #6 x 1.5" flat Phillips head stainless screws)Made in the USASpecifications9" Square Atrium Grate12" Square Atrium GrateDimensions8.90″L x 8.90″W x 4.5"H11.75″L x 11.75″W x 4.5″HWeight0.65 lbs1.30 lbsOpen Area31 sq in50 sq inSlot Width3/8"7/16"Flow Rating40 GPM65 GPM
Free shipping included. 30-day hassle-free returns.
More in Catch Basins & Drain Grates
50 products · See all Catch Basins & Drain Grates →
9-inch Outdoor Square Dome Atrium Grate Drain Cover 0903SDG / 09147G, Outdoor Drain Cover (1 Black)
990 Square Catch Basin Drain Grate, Standard Design, Fits 9-Inch Catch Basin Drain, Risers and Low Profile Adapter
1212 Square Catch Basin Drain Grate, Diamond Design, Fits 12-Inch Catch Basin Drain, Risers and Low Profile Adapter
Premium USA Made 4" Inch Black Outdoor Round Flat Drain Grate Cover - Fits 4" Inch SDR Sewer & Drain Pipe/Fittings

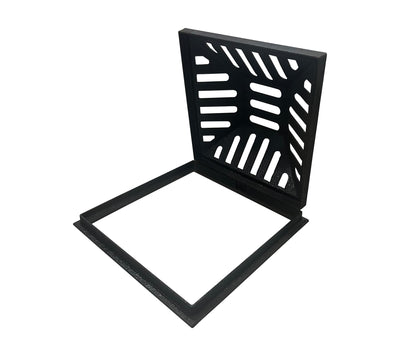

18x18in Square Ductile Iron Atrium Drain Grate and Frame for Yard
