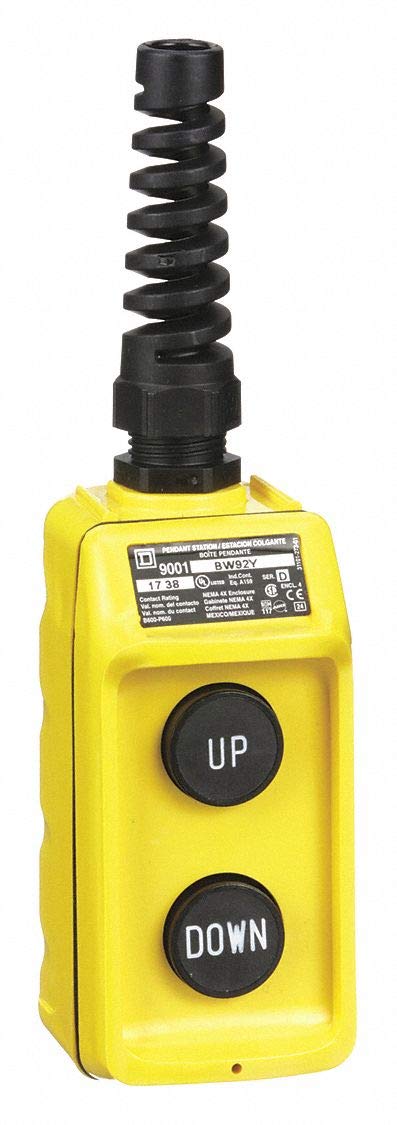

Square D 2-Button Up/Down Pendant Push Button Station, 2NO, NEMA Rating 1, 3, 3R, 4, 4X, Yellow
Square D 2-Button Up/Down Pendant Push Button Station, 2NO, NEMA Rating 1, 3, 3R, 4, 4X, Yellow
Key features
- Item: Pendant Push Button Station
- Legend: Up/Down
- Contact Form: 2NO
- Mechanical Interlock: Yes
- NEMA Rating: 1, 3, 3R, 4, 4X
Push-Button Pendant Station is already assembled. NEMA rated 1, 3, 3R, 4, 4X, and 13. Includes strain relief. Item: Pendant Push Button Station Legend: Up/Down Contact Form: 2NO Mechanical Interlock: Yes NEMA Rating: 1, 3, 3R, 4, 4X Housing Color: Yellow Hub: 1/2"-14 NPT Action: Momentary Number of Operators: 2 Type of Operator: Push Button Number of Speeds: 1 Contact Rating: 5A @ 600VAC/DC NEMA Contact Rating Designation: B600/P600 Height: 4.69" Width: 2.19" Depth: 2.94" Housing Material: Polycarbonate/PET Polyester Blend Standards: UL, CSA, CE
Free shipping included. 30-day hassle-free returns.
