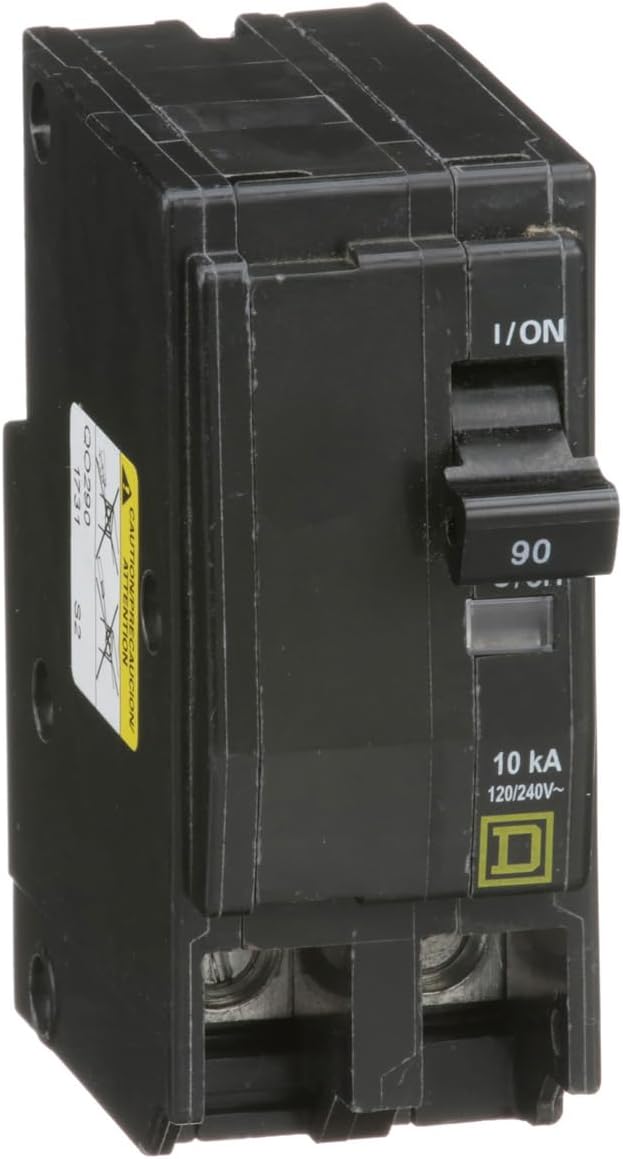

Square D by Schneider Electric Square D - QO290CP QO 90-Amp Two-Pole Circuit Breaker
Square D by Schneider Electric Square D - QO290CP QO 90-Amp Two-Pole Circuit Breaker
Key features
- QO 90 Amp two-pole circuit breaker
- Plug-on design, easy to install
- Compatible with QO load centers, CSED's and NQOD panel boards
- 120/240 VAC
- Rated for 10,000 AIR

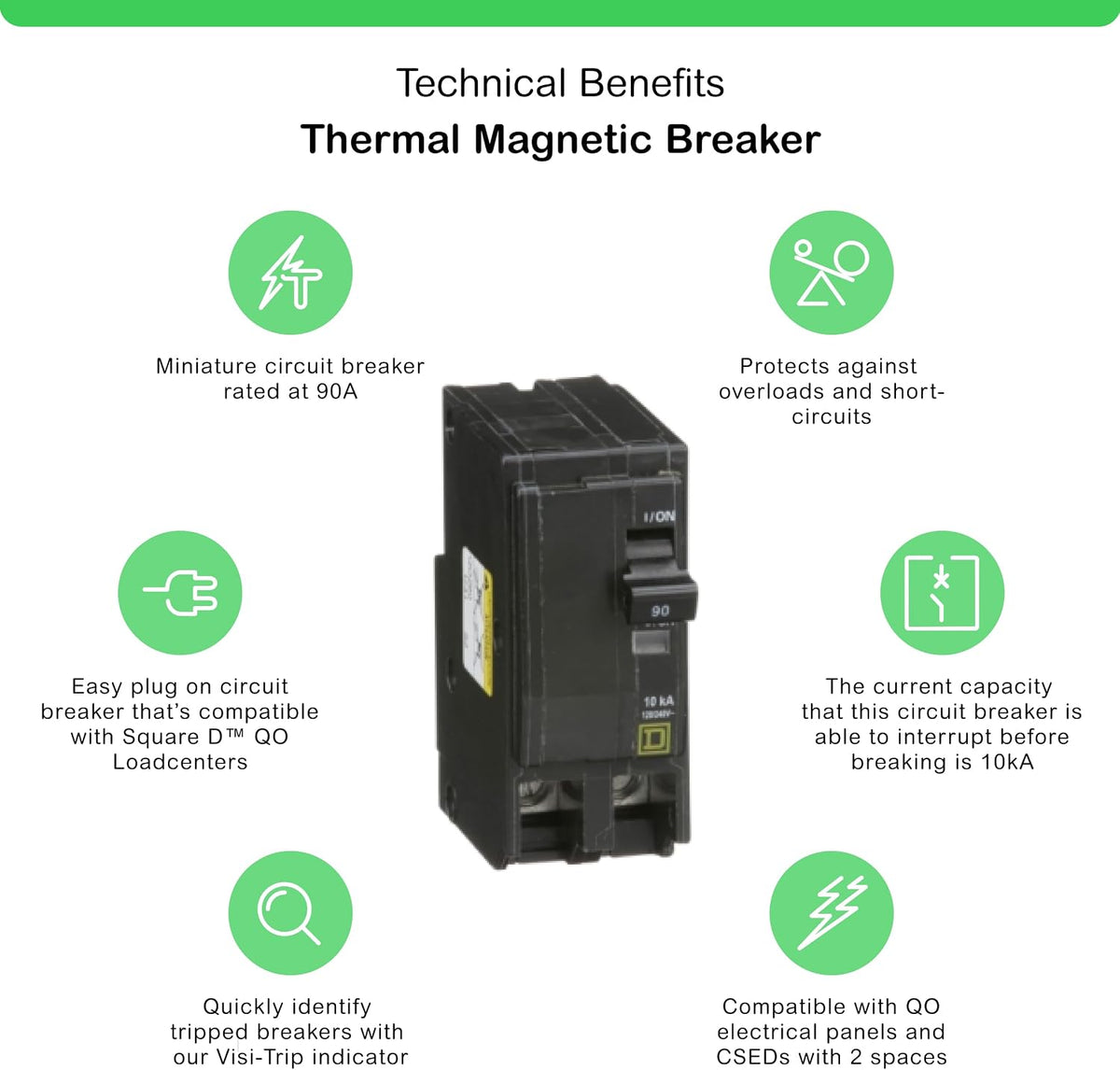

QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 90A at 120/240VAC. This unit provides 10kA breaking capacity and is plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Free shipping included. 30-day hassle-free returns.
