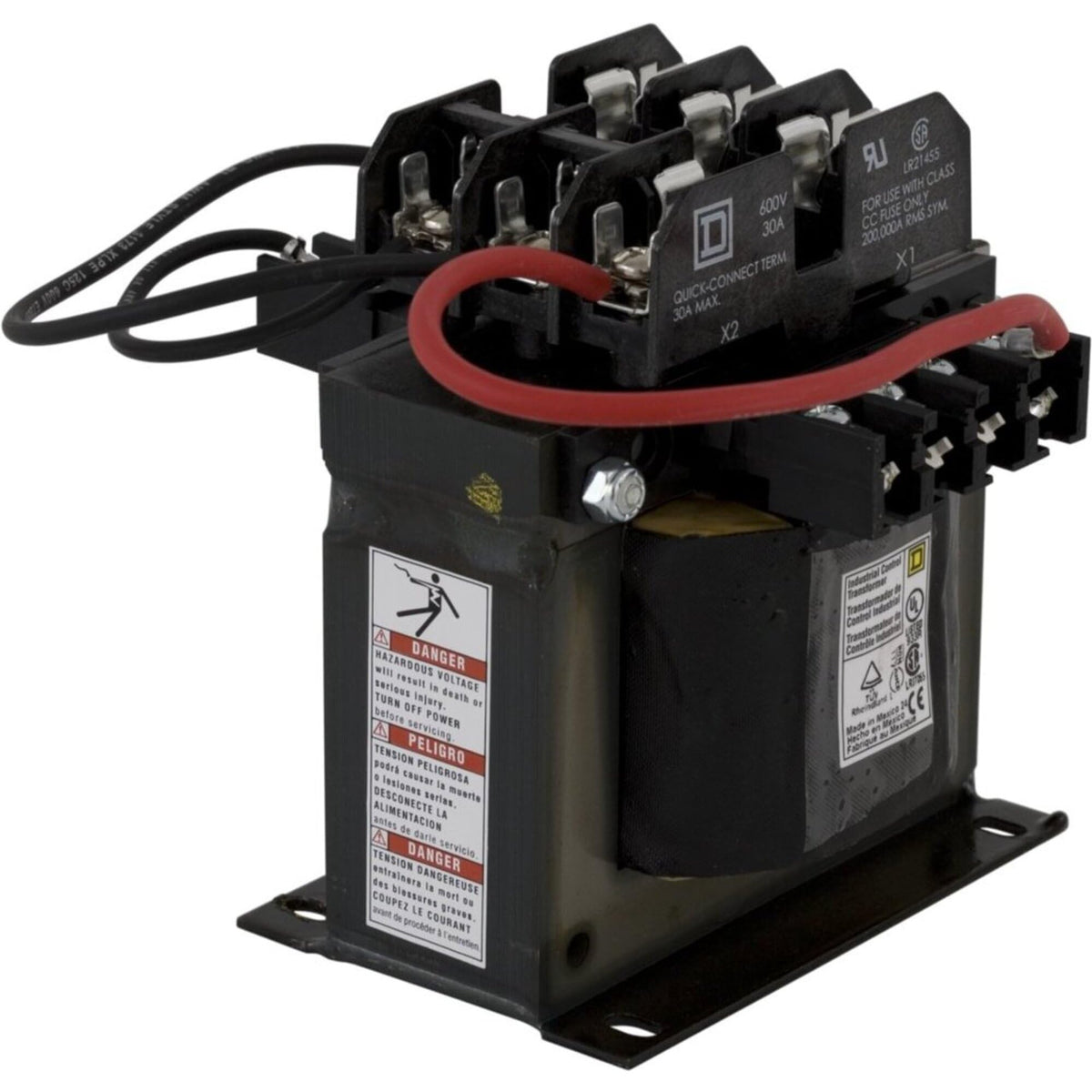

Square D Control Transformer, Input Voltage: 240VAC, 480VAC, Output Voltage: 120VAC 9070TF300D1-1 Each

Key features

• 9070 TF Series 300VA 240/480V primary and 120V secondary control transformer with primary and secondary fuse blocks
• We offer both product lines with factory installed overcurrent protection fuse blocks
• Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs
• Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively
• This design frees up space normally used for separate fuse blocks

Primary Voltage 220 X 440 V, 230 X 460 V, 240 X 480 V; Secondary Voltage 110/115/120 V; 50/60 Hz; Power Rating 300 Va (Ul/Csa/Nom), 200 Va (Ce); Insulation Class 130; Screw Terminal; Temperature Rise 80 Deg C; 0.38 Inch L X 0.2 Inch W Slot Mounting
