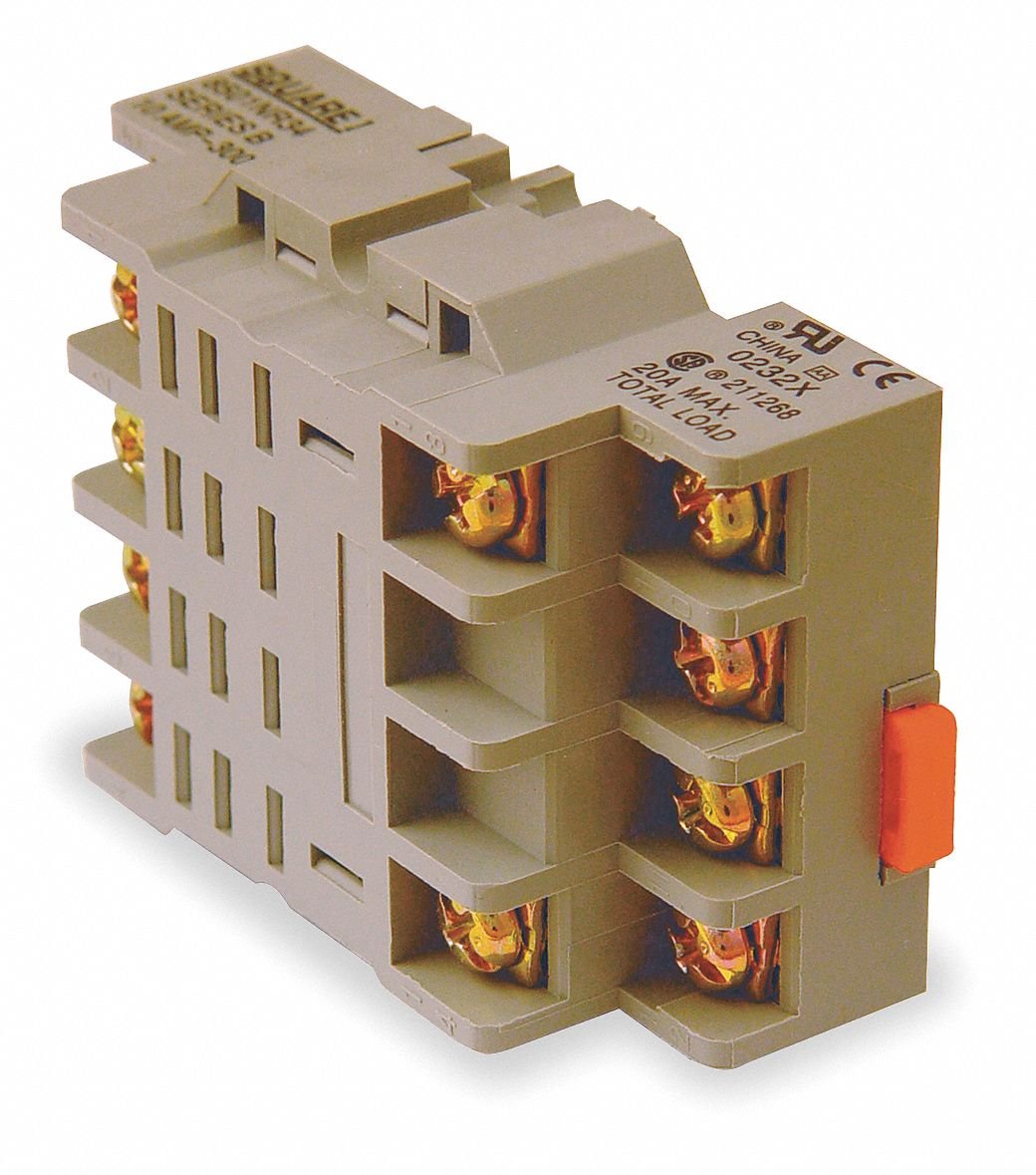

Square D Relay Socket, Socket Type: Standard, Socket Style: Square, Number of Pins: 14

Key features

• Class 8501 relay socket with separate contact terminal arrangement, screw clamp connections and use with 8501RS(D)44 plug-in relays
• 8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays
• This socket can be mount on 35mm DIN rail or can be mounted directly to a panel
• The 8501RS44 or 8501RSD44 relay will plug into this relay socket which is designed for 14 blade pins
• The socket terminals have pressure wire clamps for a good secure connection

Item - Relay: Relay Socket Socket Type - Relay: Elevator Base Style - Relay Socket: Square Number of Pins - Relay: 14 Contact Form - Relay Socket: 4PDT Contact Rating - Relay Socket: 10A @ 300VAC Mounting - Relay: DIN Rail, Surface Socket Code - Relay: F Electrical Connection - Relay Socket: Screw Clamp Height - Relay Socket: 1.09" Width - Relay Socket: 1.98" Depth - Relay Socket: 2.74" Status Indicator: None Color: White Standards: CE, CSA, RoHS, UL Recognized
