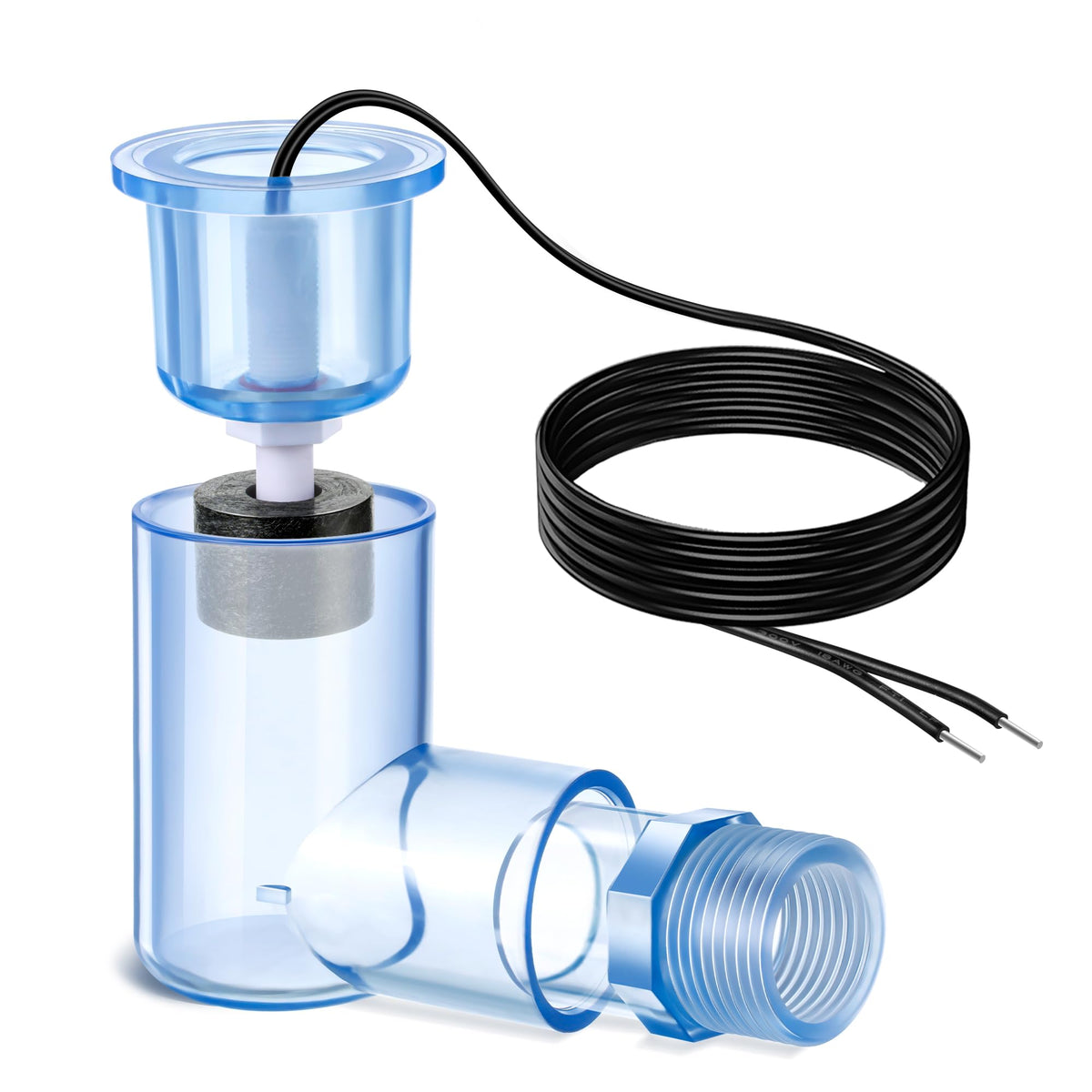

SS2 AC Float Switch L Shape Water Level Accessory with 3/4" Adaptor,1 Pack

Key features

• SS2 Float Switch Function: SS2 water level switch is applied in Air Conditioner systems to test condensation water overflow; It detects blockage of air conditioning condensate water drain pipe and shuts down the system to prevent overflowing water from damaging floors, walls, and ceilings

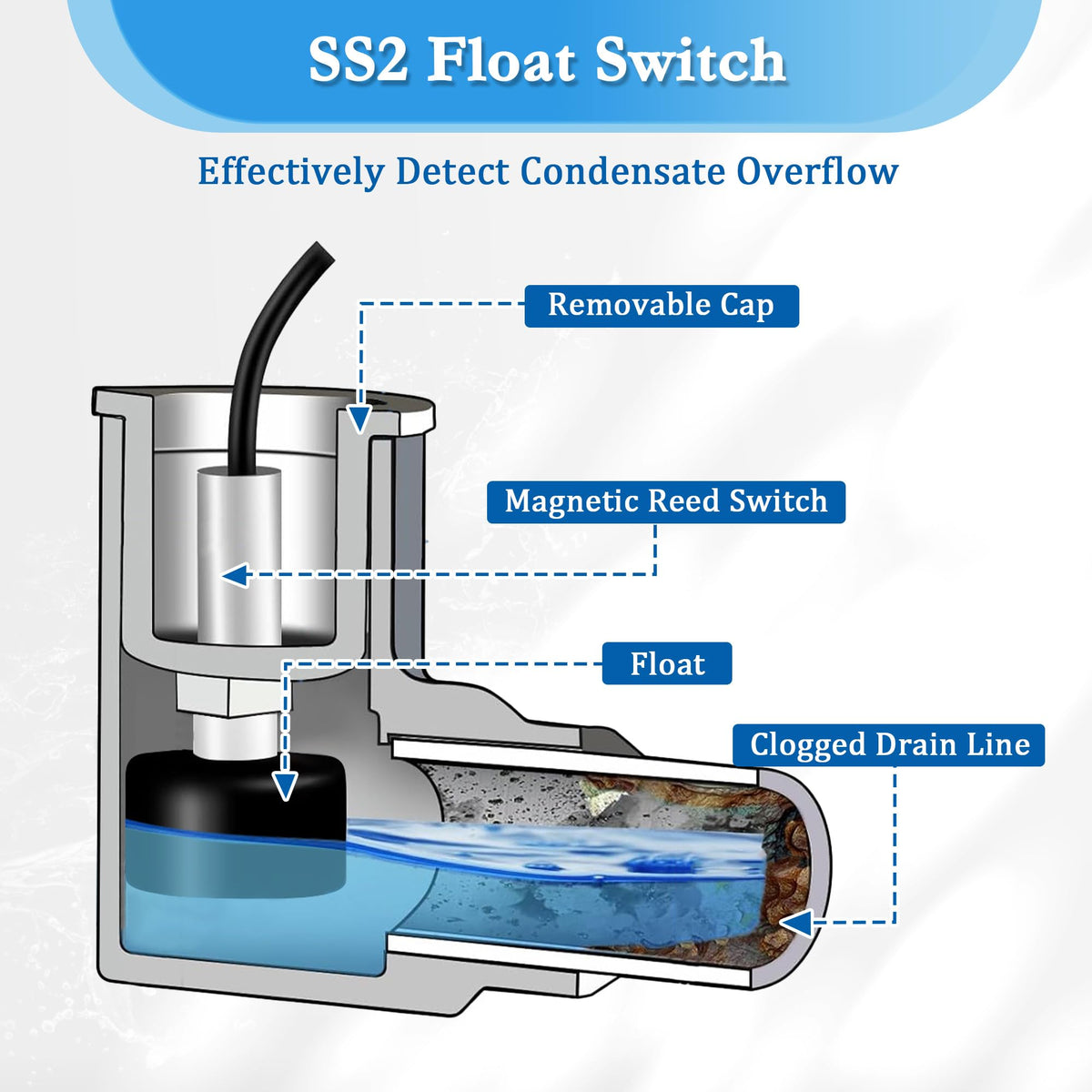

• Working Principle: the SS2 float switch can be connected to a VCC or thermostat line; It is an NC type (normally closed) switch: when no water overflows, the float stays at the bottom of the switch, the switch closes the loop and outputs an ON signal; When the water overflows, the buoyancy of the float rises, the trigger switch turns on, and the output OFF signal turns off
• Specifications: switch type NC (normally closed), material PVC, operating temperature -20 - +80℃, wire length 5.8ft, switching voltage max; 200VDC; Switching current max; 1 A contact rating maximum 10W

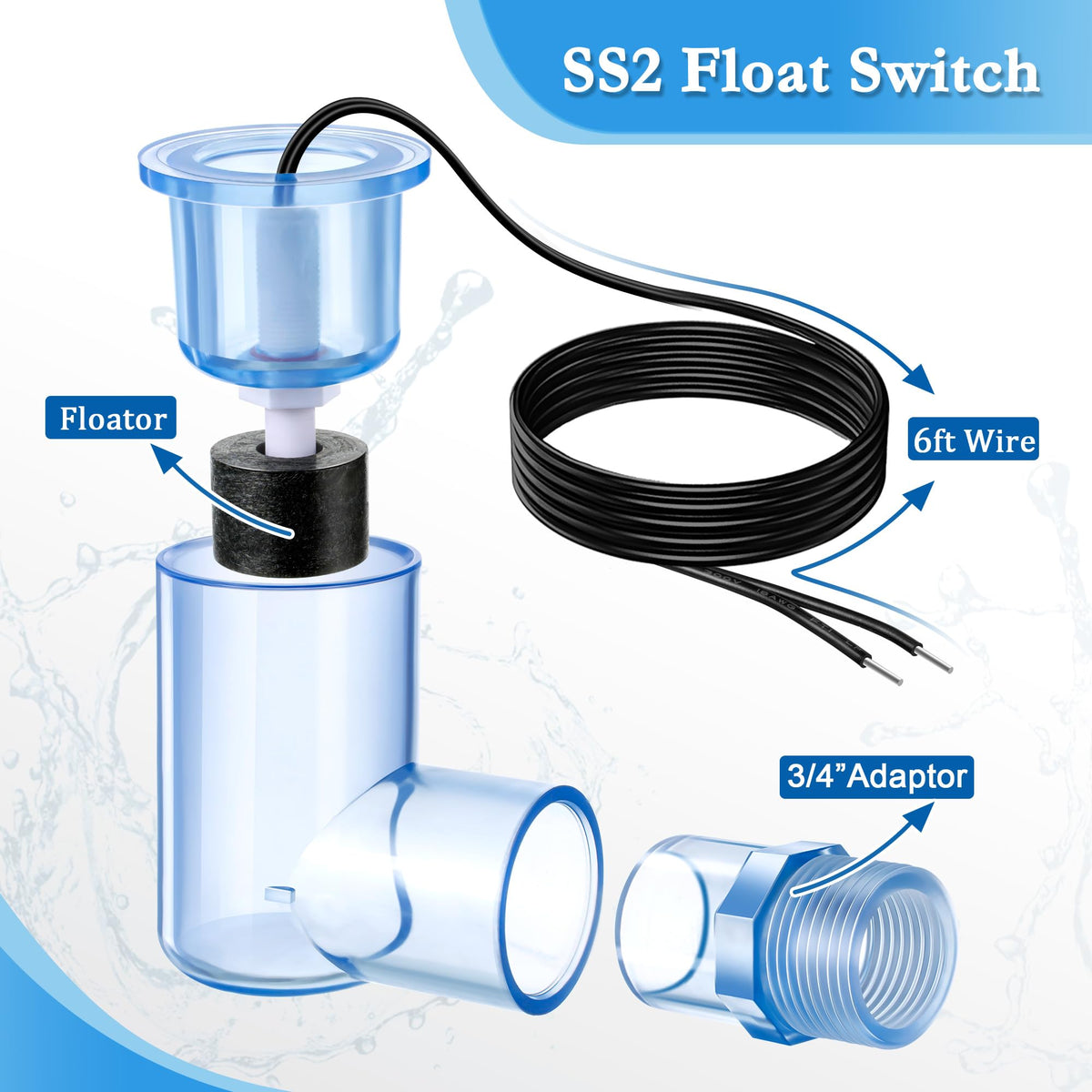

• Easy to Install: this float switch is easy to install, all you need to do is install the 3/ 4 adapter that comes with the AC float switch on the auxiliary drain outlet of the main panel and connect the 5.8ft of wire to VCC or thermostat wire

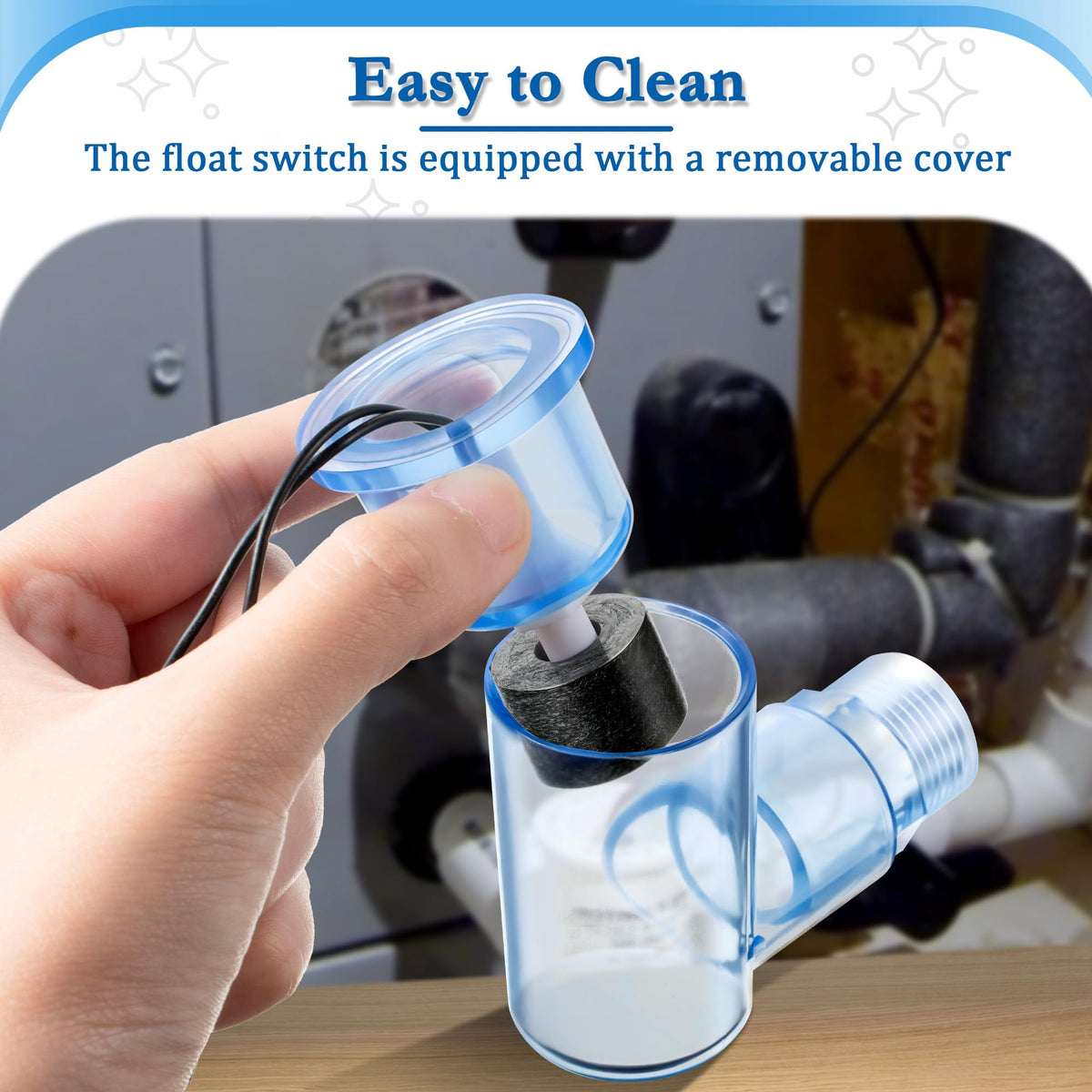

• Easy to Clean: the transparent material allows you to see what's going on inside; The float switch is equipped with a removable cover; When you use it for some time, you can remove it for cleaning to ensure hygiene and normal function
