Starter Solenoid Relay 710001364 12V 2-Post for Can-Am Ski-Doo

Key features

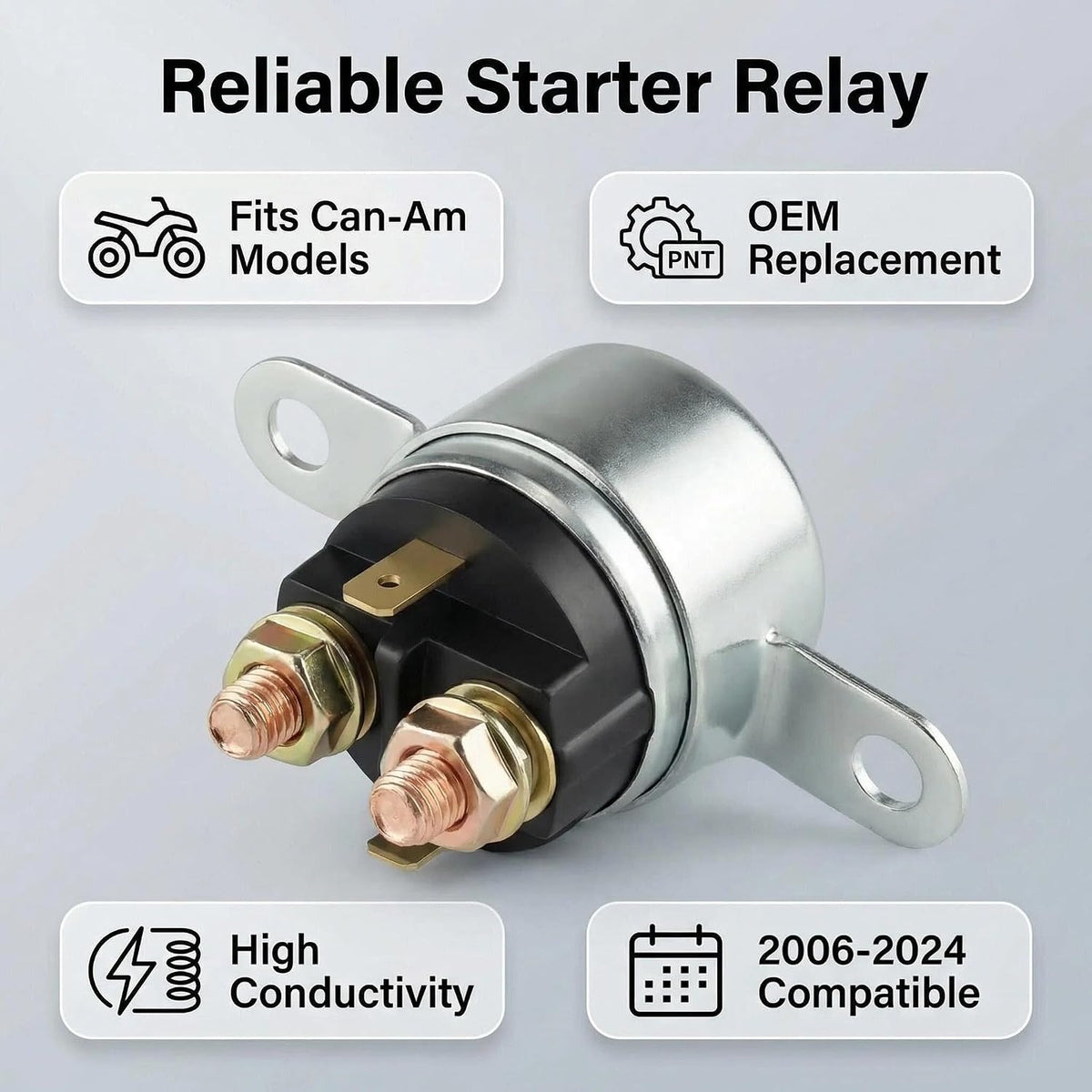

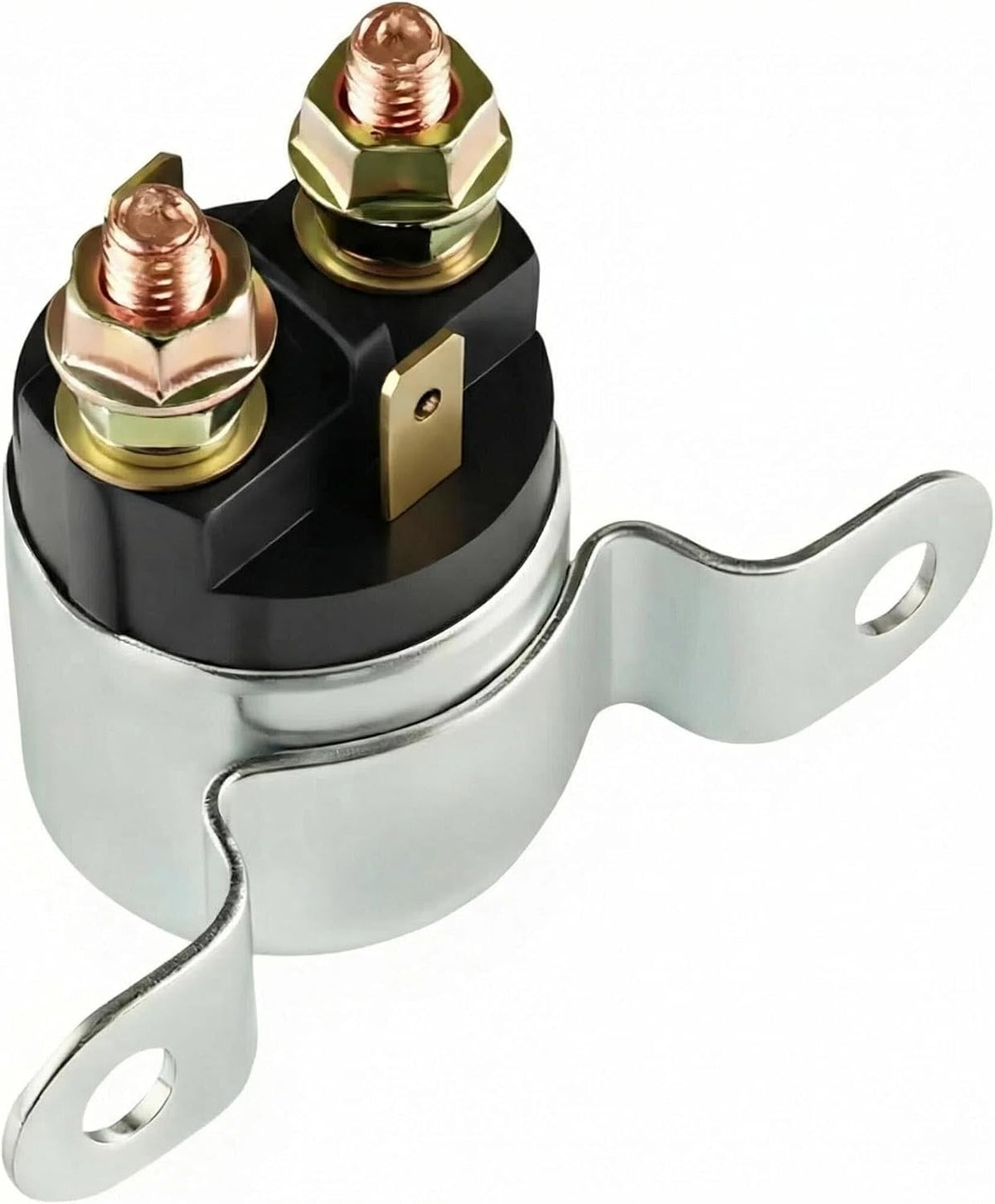

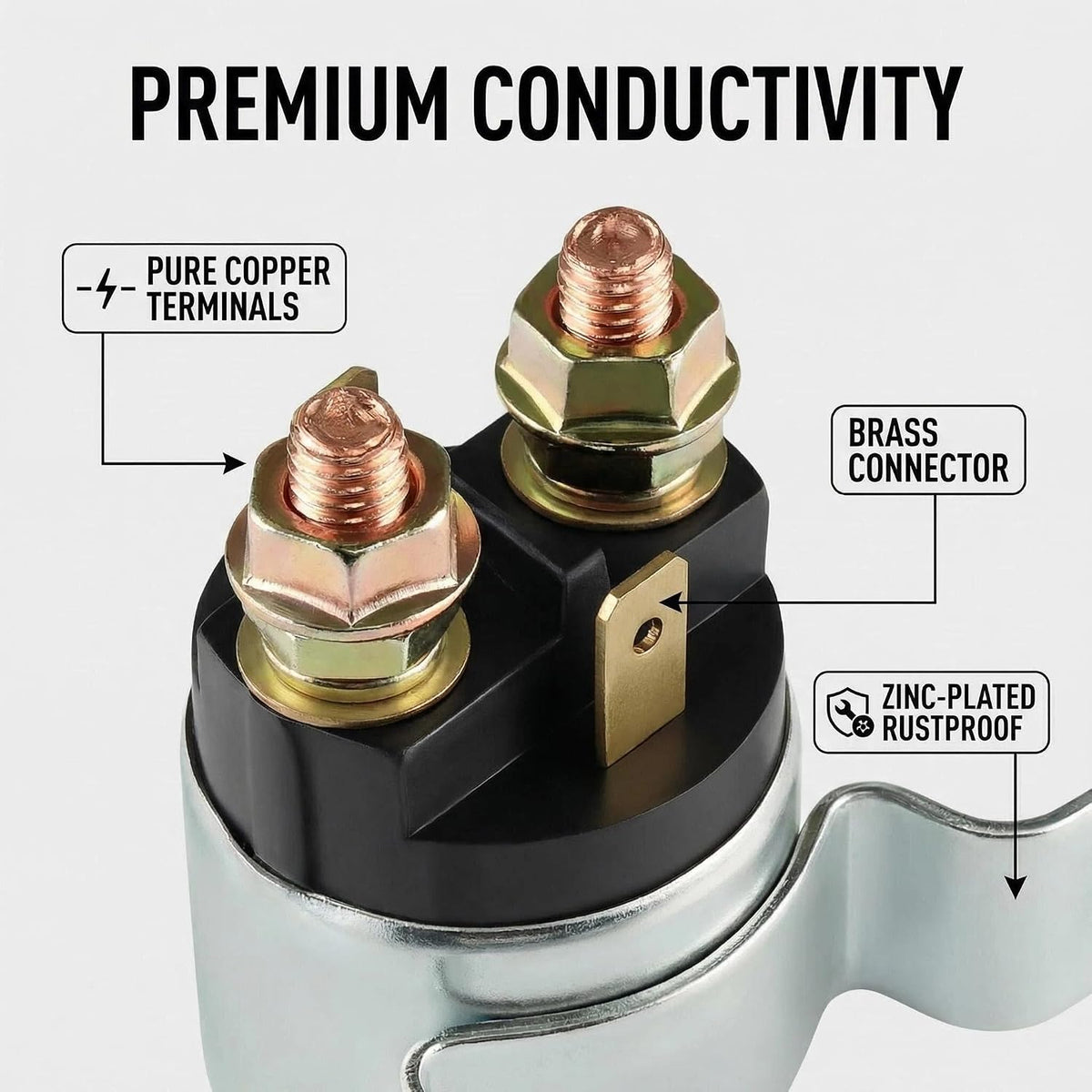

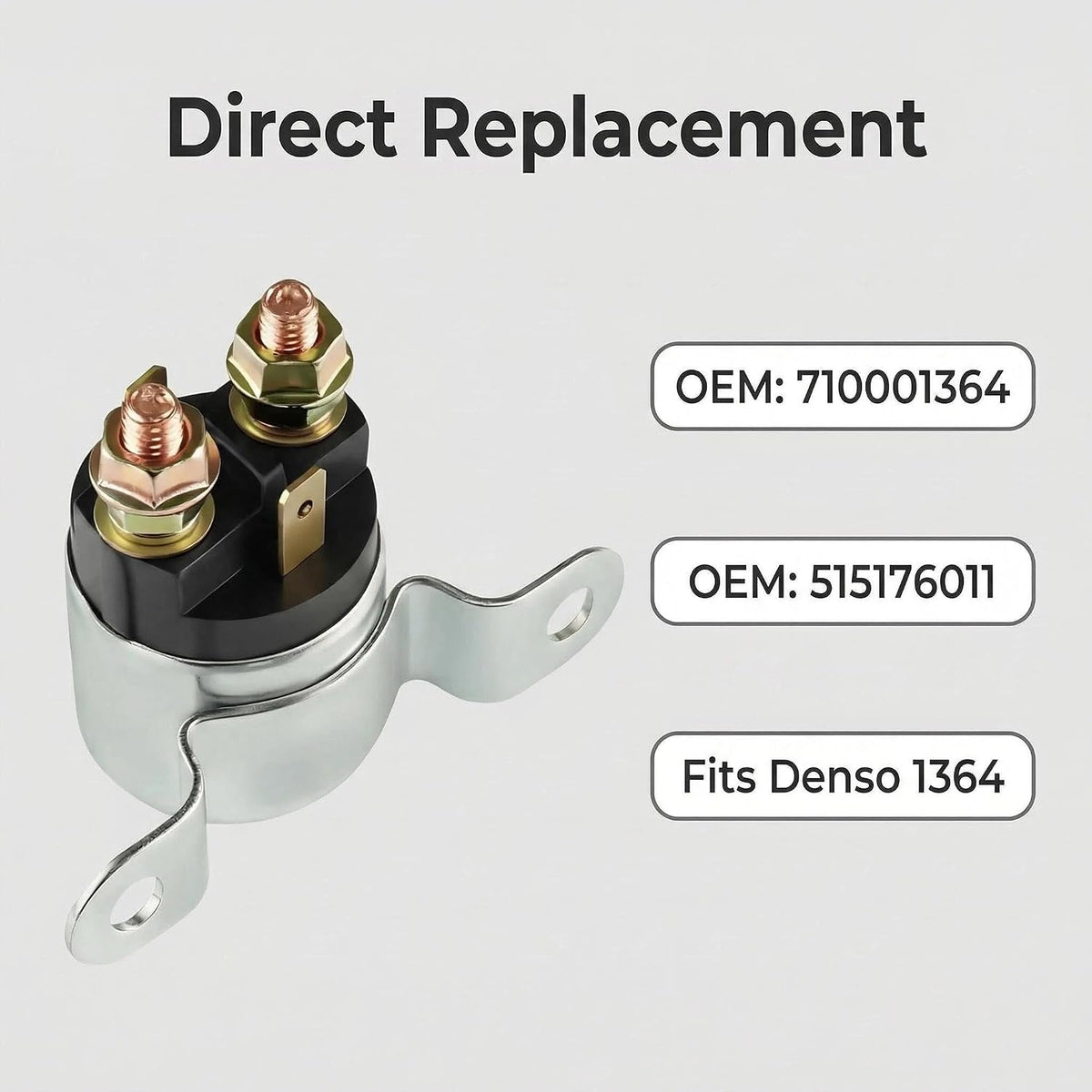

• 12V Electromagnetic Starter Solenoid — Replaces 710001364 / 515176011 Direct aftermarket normally-open starter solenoid relay​ for BRP 12V electric-start powersports. Replaces BRP 710001364, 710-001-364, 515176011, 710000111, 710000252, 710007777​ and crosses DENSO 182800-3760 / 182800-4050, aftermarket Arrowhead SMU6133, RMStator RMS090-106270, Bronco AT-01752, NICHE 519-CSS2258L. Specs: 12V DC coil (~1.5-2.5W), 2× M6 studs (B+ in/out to starter) + 2× spade control terminals, 60-80A continuous / 200A+ inrush, 43×34×52mm, 52mm mount centers, ~0.15kg. Match old stamp 710001364​ before order.

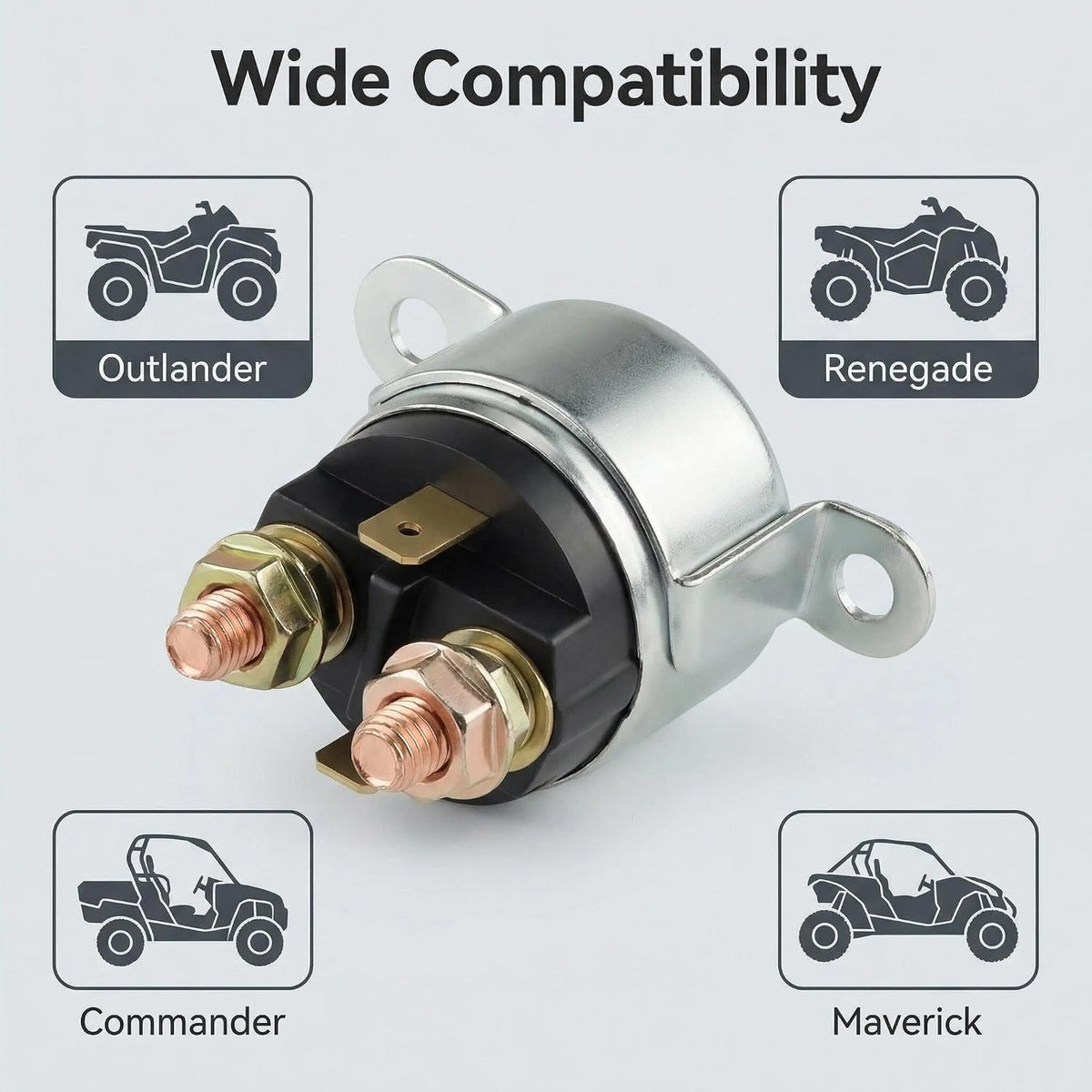

• For Can-Am ATV/UTV/Spyder & Ski-Doo/Lynx (2002-2024) Engineered for Can-Am Outlander 330/400/500/650/800/850/1000, Outlander MAX, Renegade 500/800/850/1000, DS450, Commander 800R/1000, Maverick 1000/X3, Spyder GS/RS/RT/F3​ and Ski-Doo MXZ/GSX/GTX/Summit/Expedition/Skandic/Freestyle, Lynx Xtrim/Yeti/Adventure​ on 12V electric start.
• Fixes Single Click No Crank, Intermittent Start & Burnt Coil Smell Resolves solenoid faults: key to START gives one click then nothing, starter dead but jump direct to starter works, relay shell hot/burnt smell, starts only when tapped. Contacts weld or coil opens after years of inrush. New solenoid restores START-circuit closure. Test old: 12V to small terminal should click and pass continuity between the two big studs; no click = dead coil, click but no continuity = burnt contacts.
• Mount by Battery Box, 2 Studs + 2 Spades, Disconnect Neg First Disconnect negative battery terminal first, locate relay on battery-box bracket (Can-Am left-side common), remove 2 mount screws, photo old wires, unbolt 2 M6 studs (B+ from harness → stud 1, stud 2 → starter cable), pull 2 spade controls (one from ignition START, one ground/chassis), mount new relay, torque studs to 5 N·m, reconnect in same order. Critical:​ this is a 4-terminal relay (2 stud + 2 spade)​ — if your old relay is a 3-post or cube-style with blade plug, different generation, not this SKU.
• Confirm 12V + 2-Stud 2-Spade + BRP Powersports Before Ordering This relay has 2× M6 studs + 2× spade terminals, 12V coil, 710001364 stamp, and fits BRP-group 12V electric-start ATV/UTV/Spyder/Ski-Doo/Lynx. Before ordering, photo old relay and confirm (1) 12V system, (2) 2 big studs + 2 small spades, (3) BRP/Can-Am/Ski-Doo machine, (4) stamp 710001364 or 515176011. Applications outside this scope (Sea-Doo PWC, automotive starter relay, other-brand ATV) use different relay numbers and are not covered.

Free shipping included. 30-day hassle-free returns.
