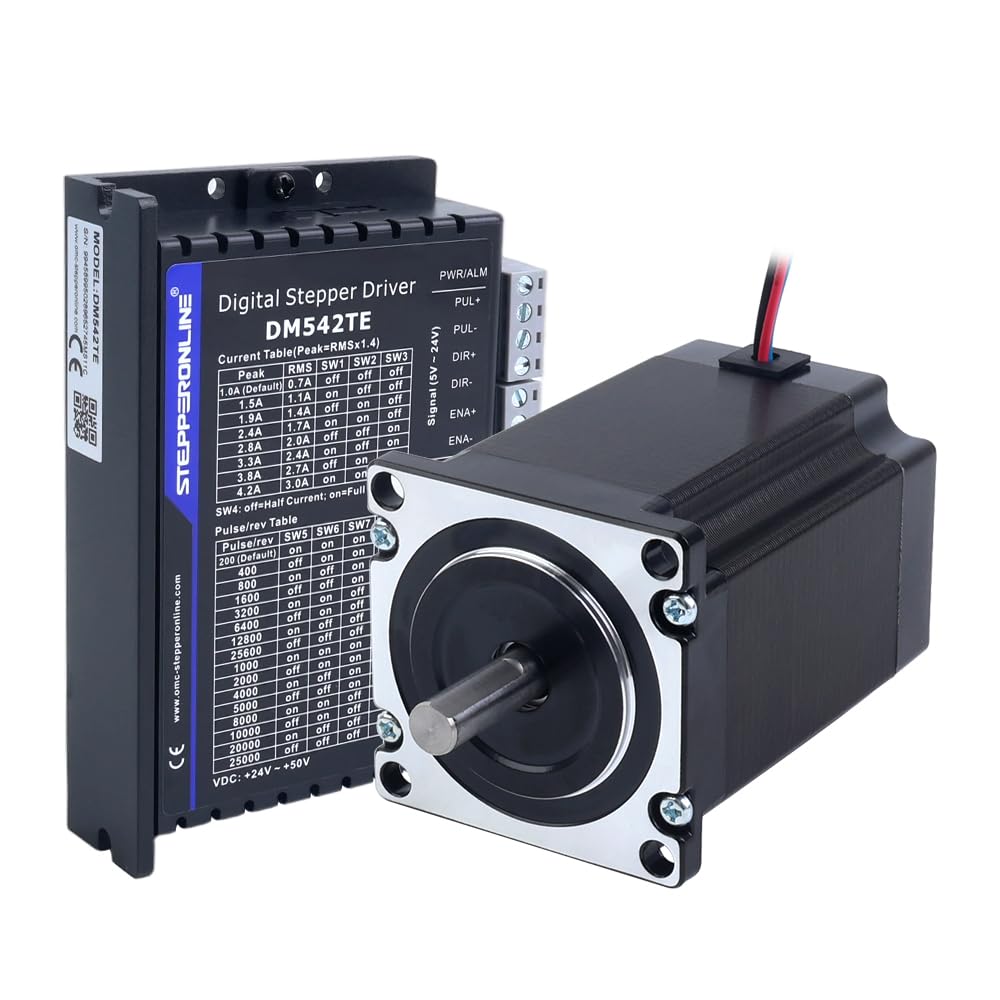

STEPPERONLINE 1 Axis Stepper CNC Kit 1.9Nm(269.06oz.in) Nema 23 Stepper Motor & Driver 1.0-4.2A 24-50VDC DM542TE
STEPPERONLINE 1 Axis Stepper CNC Kit 1.9Nm(269.06oz.in) Nema 23 Stepper Motor & Driver 1.0-4.2A 24-50VDC DM542TE
Key features
- 1 Axis Stepper CNC Kit 1.9Nm(269.06oz.in) Nema 23 Stepper Motor & Driver 1.0-4.2A 24-50VDC DM542TE
This CNC kit included: 1 x 23HS30-2804S2: Nema 23 Bipolar 1.9Nm(269.06oz.in) 2.8A 57x57x76.5mm 4 Wires Φ8mm Shaft 1 x DM542TE: TE Series Digital Stepper Driver 1.0-4.2A 24-50VDC for Nema 17, 23 Motor Motor Specification *Manufacturer Part Number: 23HS30-2804S2 *Motor Type: Bipolar Stepper *Step Angle: 1.8° *Holding Torque: 1.9Nm(269.06oz.in) *Rated Current/phase: 2.8A *Phase Resistance: 1.13ohms *Inductance: 4.8mH±20%(1KHz) *Insulation Class: B 130°C[266°F] *Frame Size: 57 x 57mm *Body Length: 76.5mm *Shaft Diameter: Φ8mm *Shaft Length: 22mm *D-cut Length: 18mm *Number of Leads: 4 *Cable Length: 500mm Connection A+: Black, A-: Green, B+: Red, B-: Blue Driver Specification *Output Peak Current: 1.0~4.2A(0.7~3.0RMS) *Input Voltage: +24~50VDC *Logic Input Voltage: 5~24VDC *Logic Input Current: 7~20mA *Pulse Input Frequency: 0~200kHz *Pulse Width: 2.5μS *Isolation Resistance: 500MΩ
Measurements
- 2.2" x 2.2"
Free shipping included. 30-day hassle-free returns.
