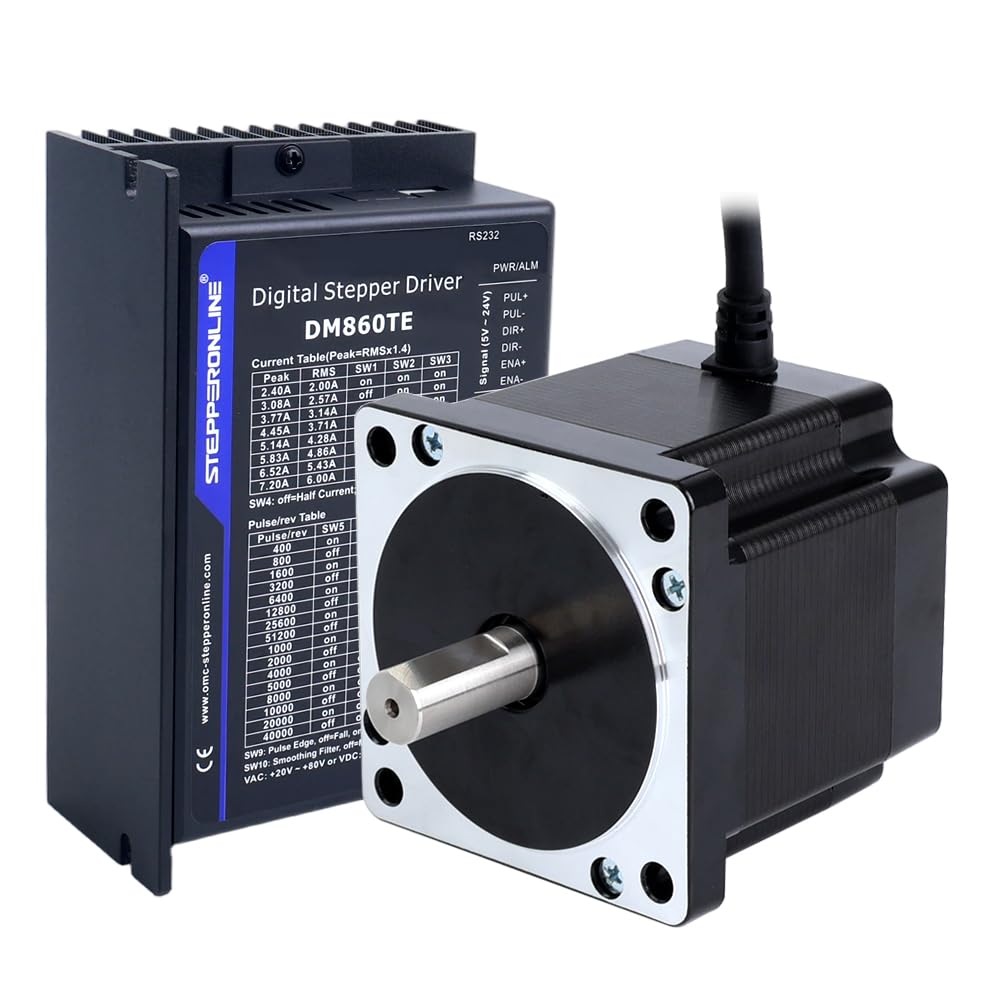

STEPPERONLINE 1 Axis Stepper CNC Kit 3.4Nm(481.48oz.in) Nema 34 Stepper Motor & Driver 2.4-7.2A 20-80VAC/30-100VDC DM860TE

Key features

• 1 Axis Stepper CNC Kit 3.4Nm(481.48oz.in) Nema 34 Stepper Motor & Driver 2.4-7.2A 20-80VAC/30-100VDC DM860TE

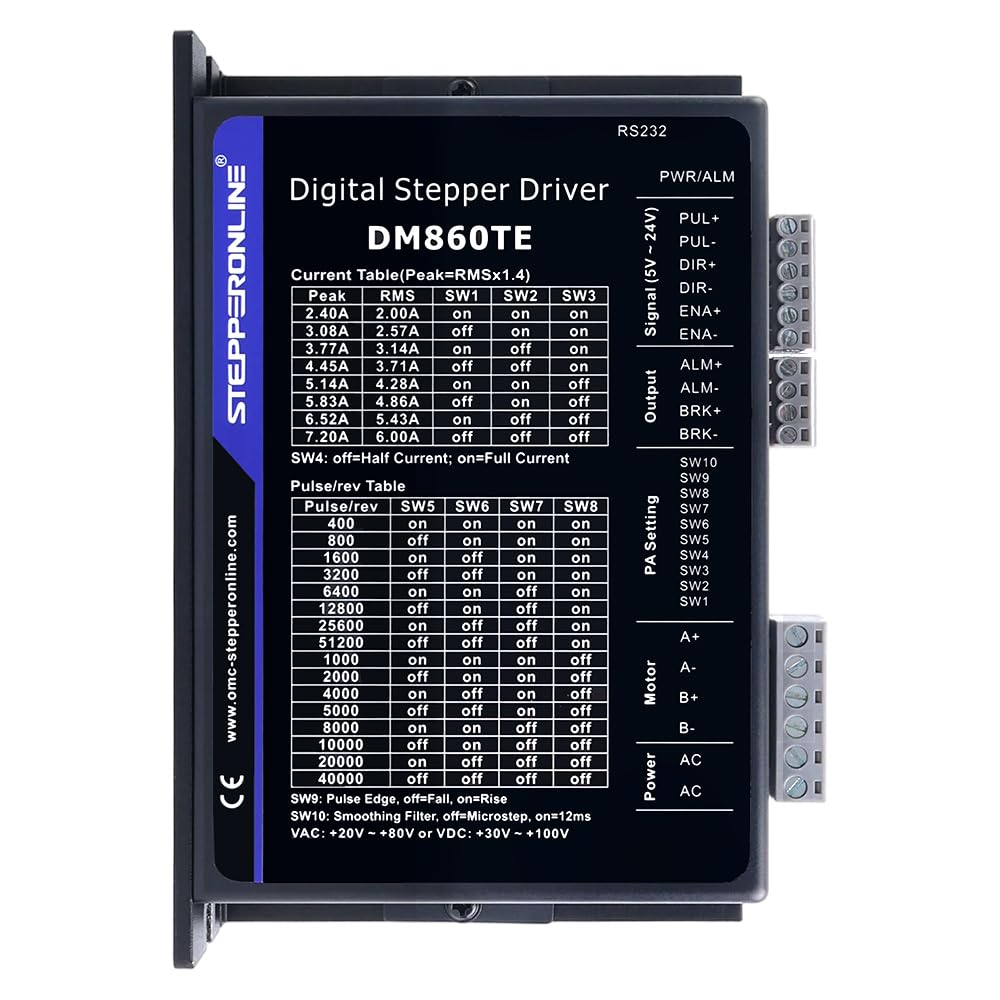

This CNC kit included: 1 x 34HS30-6004S: S Series Nema 34 Stepper Motor 1.8deg 4.8Nm(679.74oz.in) 6.0A 86x86x78mm 4 Wires 1 x DM860TE: TE Series Digital Stepper Driver 2.4-7.2A 20-80VAC/30-100VDC for Nema 34 Motor 1 x CABLE-PC-1: RS232 Cable for Driver Motor Specification *Manufacturer Part Number: 34HS30-6004S *Motor Type: Bipolar Stepper *Step Angle: 1.8deg *Holding Torque: 4.8Nm(679.74oz.in) *Rated Current/Phase: 6.0A *Phase Resistance: 0.42ohms±10% *Inductance: 3.80mH±20%(1KHz) *Insulation Class: B 130°C[266°F] *Frame Size: 86 x 86mm *Body Length: 78mm *Shaft Diameter: Φ14mm *Shaft Length: 32mm *D-cut Length: 25mm *Number of Leads: 4 *Lead Length: 500mm *Weight: 2320g Connection A+: Black, A-: Green, B+: Red, B-: Blue Driver Specification *Output Peak Current: 2.4~7.2A(2.0~6.0RMS) *Input Voltage: +20~80VAC/30~100VDC *Logic Input Voltage: 5~24VDC *Logic Input Current: 7~20mA *Pulse Input Frequency: 0~200kHz *Pulse Width: 2.5μS *Isolation Resistance: 500MΩ

Free shipping included. 30-day hassle-free returns.
