STEPPERONLINE 1 Axis Stepper Motor CNC Kit 8.0Nm(1132.89oz.in) Nema 34 Stepper Motor + 2.4-7.2A 20-80VDC Stepper Driver DM860I

Key features

• This CNC kit included:
• 1 x DM860I: Digital Stepper Driver 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Drive

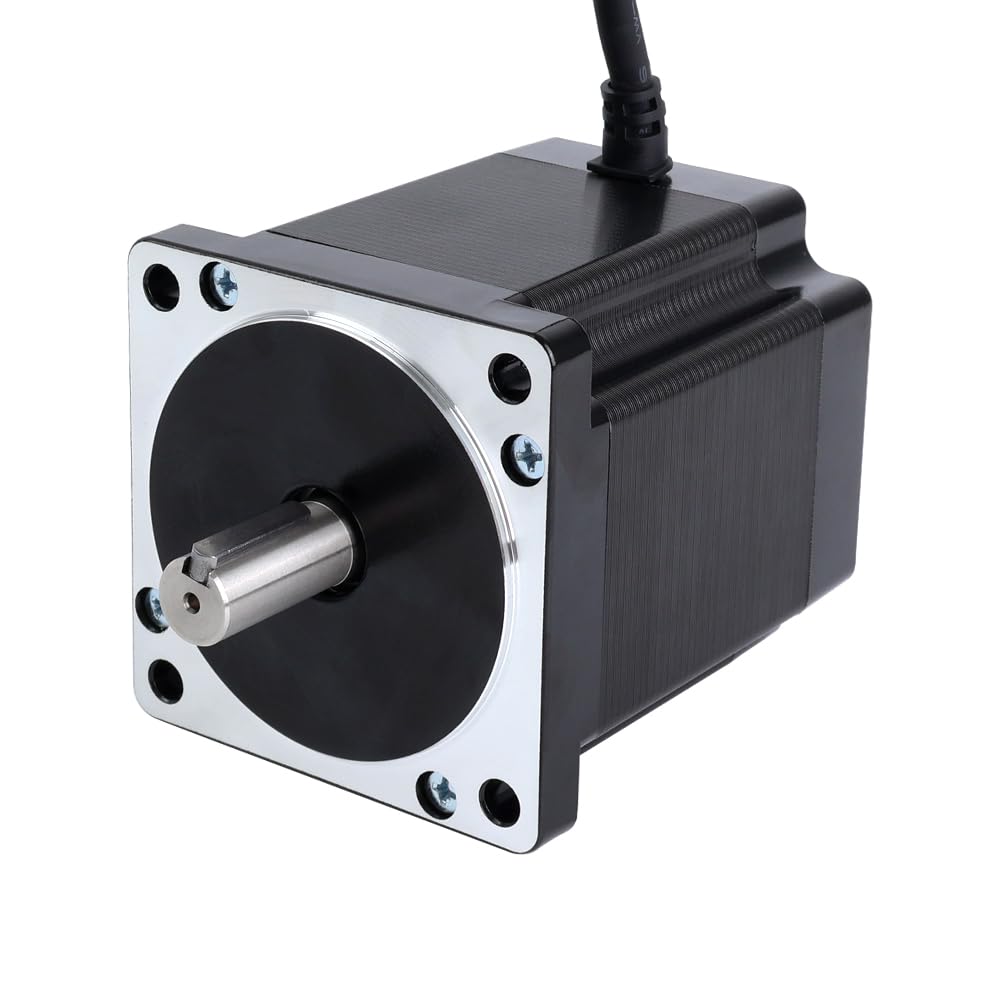

• 1 x 34HS39-6004S: Nema 34 Stepper Motor 8.0Nm(1132.89oz.in) 6.0A 86x86x98mm 4 Wires

Motor Specification *Manufacturer Part Number: 34HS39-6004S *Number of phase: 2 *Step Angle: 1.8deg *Holding Torque: 8.0Nm(1132.89oz.in) *Rated Current/Phase: 6.0A *Phase Resistance: 0.55ohms± 10% *Inductance: 4.6mH±20%(1KHz) *Frame Size: 86 x 86mm *Body Length: 98mm *Shaft Diameter: Φ14mm *Shaft Length: 32mm *Keyway Shaft Length: 25mm *Number of Leads: 4 *Lead Length: 500mm Driver Specification *Output Peak Current: 2.4~7.2A(6.0RMS) *Input Voltage: +20~80VDC *Logic Signal Current: 7~16mA(Typical 10mA) *Pulse Input Frequency: 0~200kHz *Pulse Width: 2.5μS *Isolation Resistance: 100MΩ *Support PUL/DIR and CW/CCW modes *Automatic idle-current reduction *Suitable for 2-phase and 4-phase motors *Soft-start with no "jump" when powered on *Over-voltage, over-curren protection *Anti-Resonance provides optimal torque and nulls mid-range instability *Pulse input frequency up to 200KHz, TTL compatible and optically isolated input *8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A *Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors *16 selectable microstep resolutions including 400, 800,
