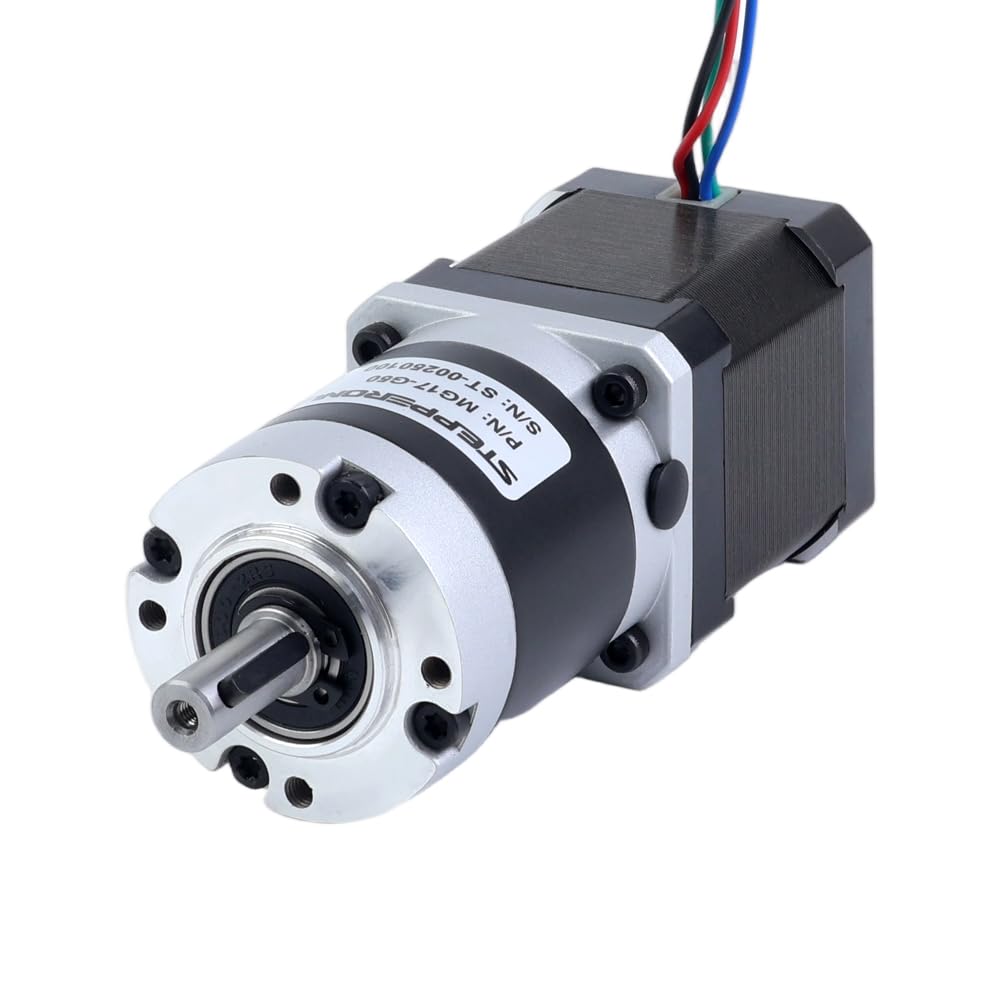

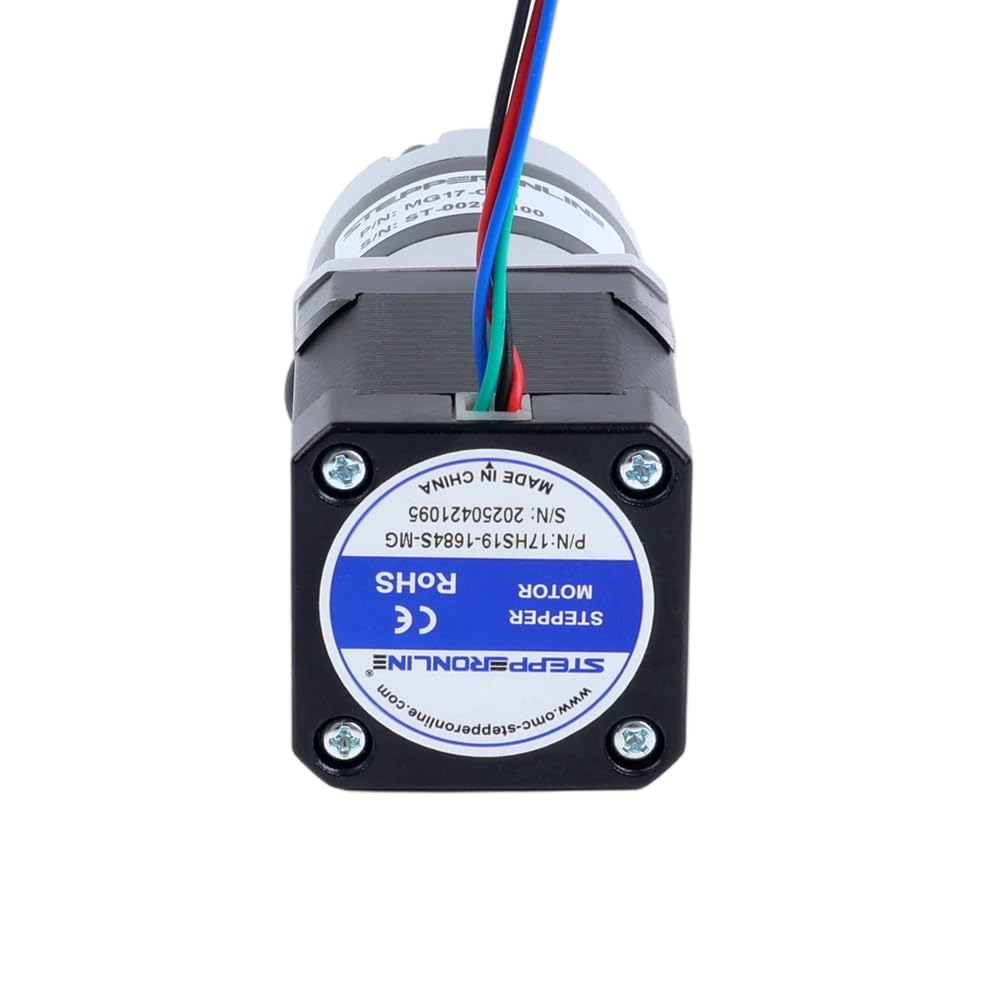

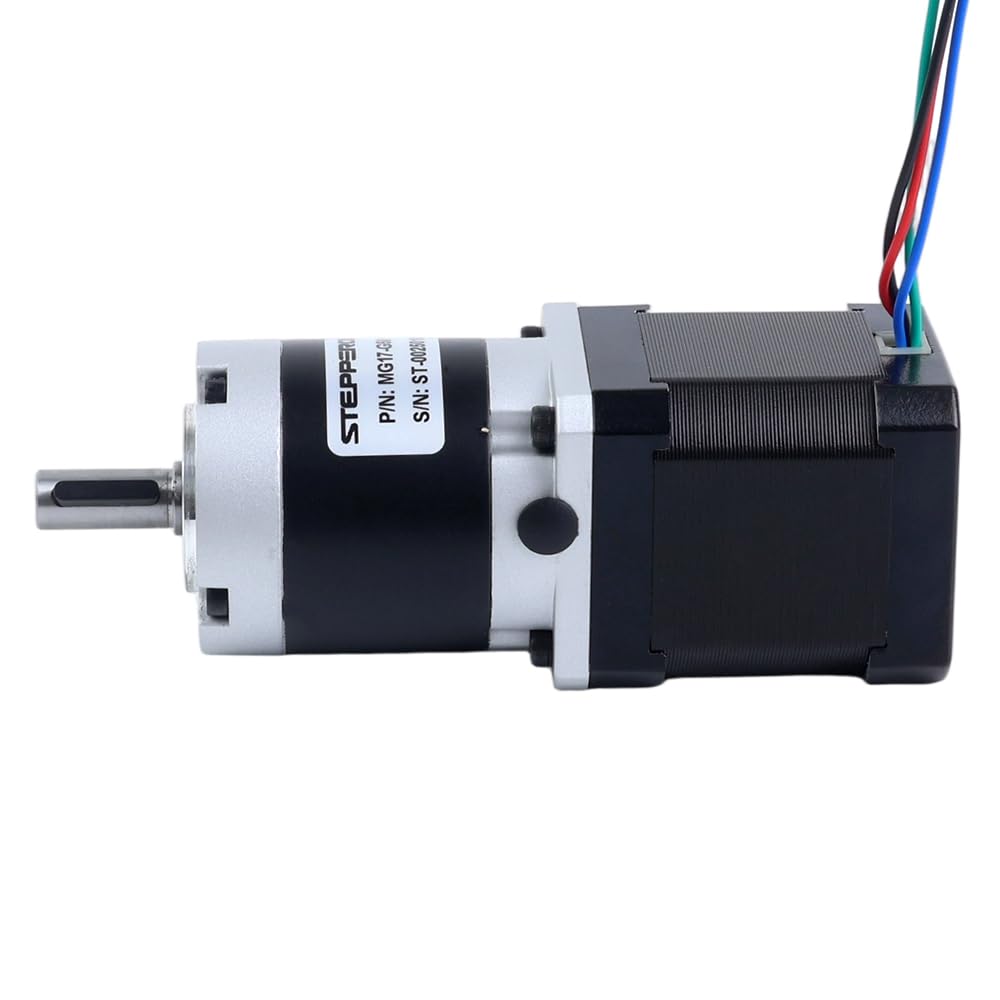

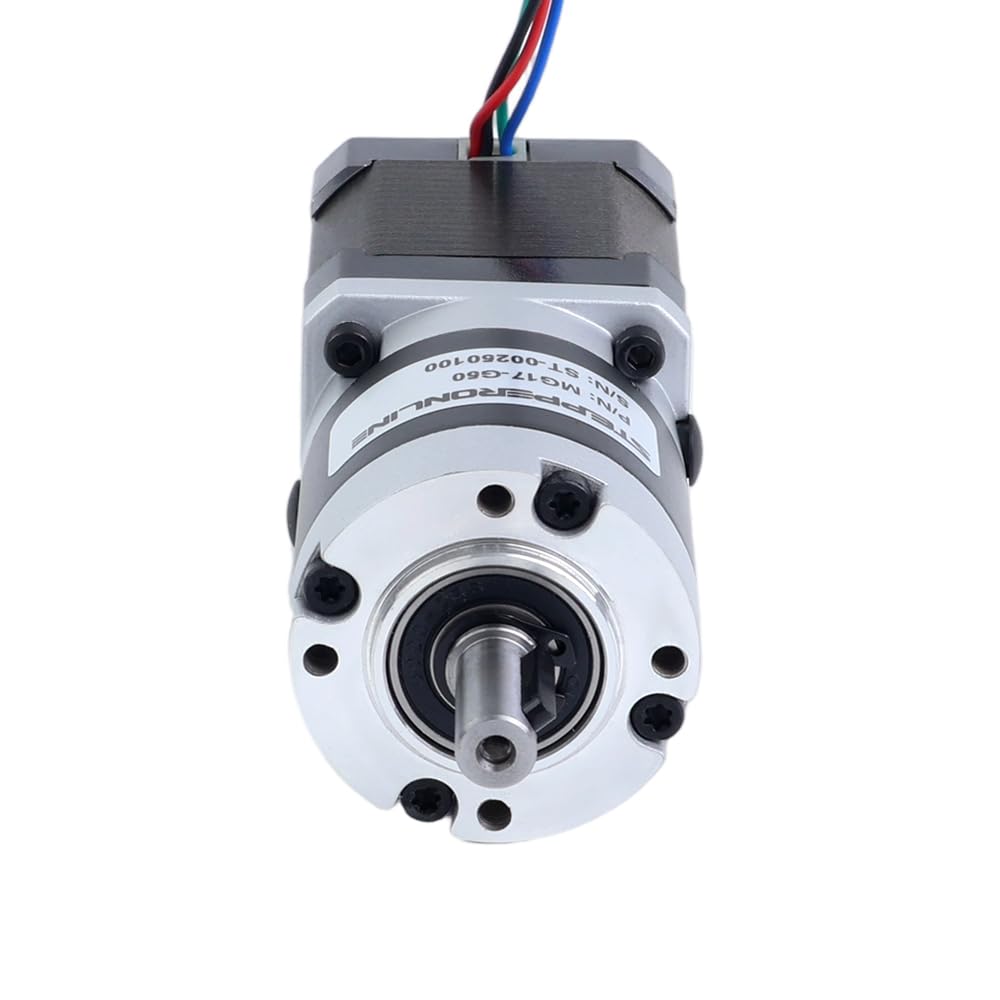

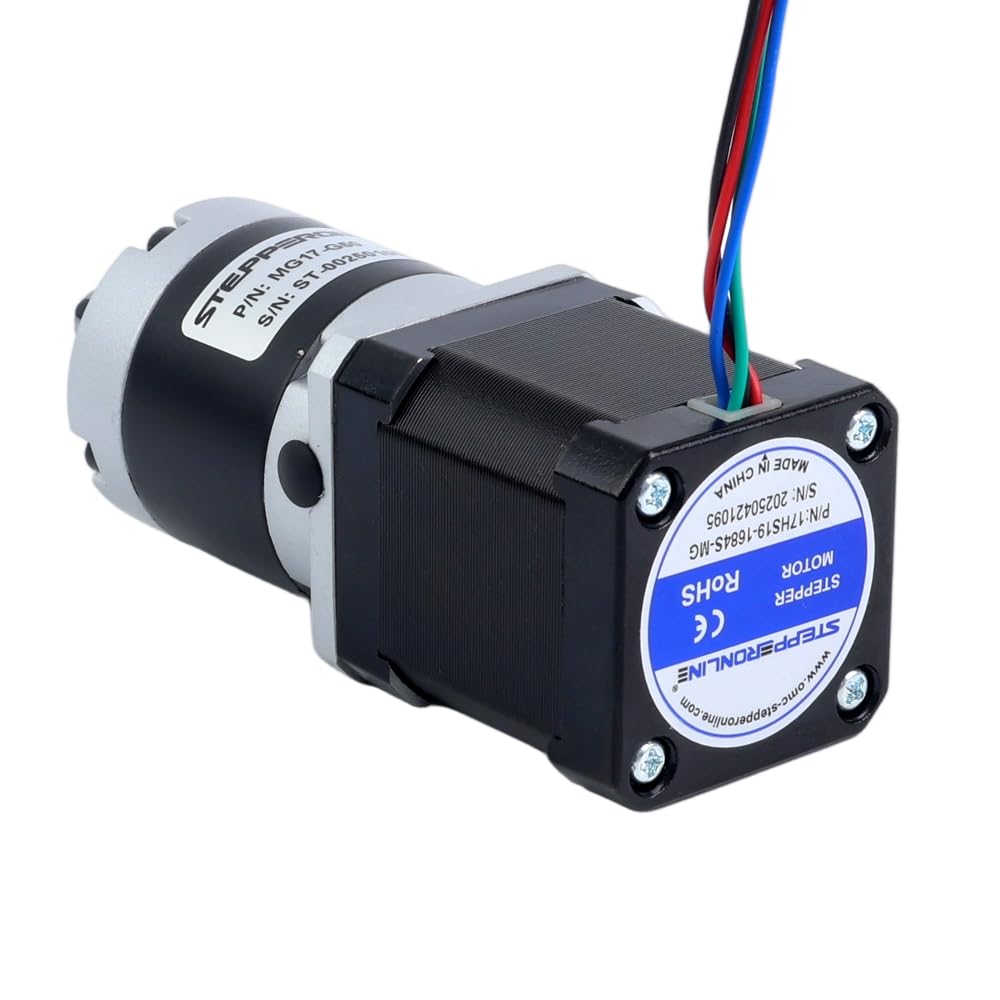

STEPPERONLINE Nema 17 Stepper Motor Bipolar L=48mm w/Gear Ratio 50:1 MG Series Planetary Gearbox

Key features

• High torque, Low noise
• The gear ratio is 50:1 and the Max. backlash is 50 arc minutes.
• It's an excellent choice for applications that require good accuracy but low cost.
• As MG series gearbox built-in shaft coupling, so you can change the motor or gearbox easily.

This Nema 17 stepper motor delivers a holding torque of 0.52Nm(73.64oz.in) and features our high-precision MG series gearbox with a 50:1 gear ratio. Unlike the EG series' steel gears, the MG series utilizes durable powder metallurgy gears, offering an optimal balance of precision and cost-effectiveness for your applications. The integrated shaft coupling design allows for easy motor or gearbox replacement, providing flexibility for your projects. Electrical Specification *Part Number: 17HS19-1684S-MG50 *Motor Type: Bipolar Stepper *Holding Torque without Gearbox: 0.52Nm(73.64oz.in) *Rated Current/phase: 1.68A *Phase Resistance: 1.80ohms±10% *Inductance: 3.20mH±20%(1KHz) *Insulation Class: B 130°C[266°F] Gearbox Specifications *Gearbox Type: Spur Planetary *Gear Material: Powder Metallurgy *Gear Ratio: 50:1 *Efficiency: 80% *Backlash at No-load: ≤45arcmin *Maximum Permissible Torque: 10.00Nm(1416.12oz.in) *Moment Permissible Torque: 20.00Nm(2832.23oz.in) Physical Specification *Frame Size: 42 x 42mm *Motor Length: 48mm *Gearbox Length: 51mm *Output Shaft Type: Keyway *Output Shaft Diameter: Φ8mm *Output Shaft Length: 21.5mm Connection A+: Black, A-: Green, B+: Red, B-: Blue
