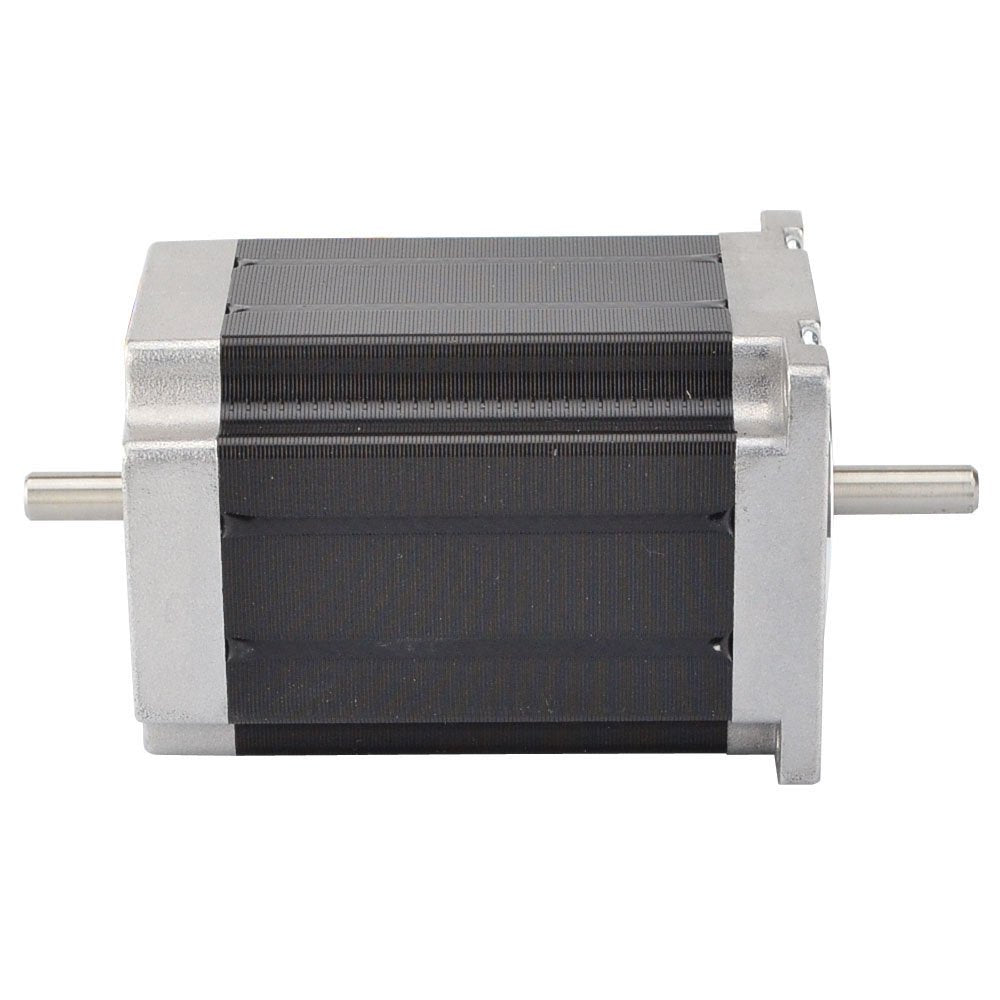

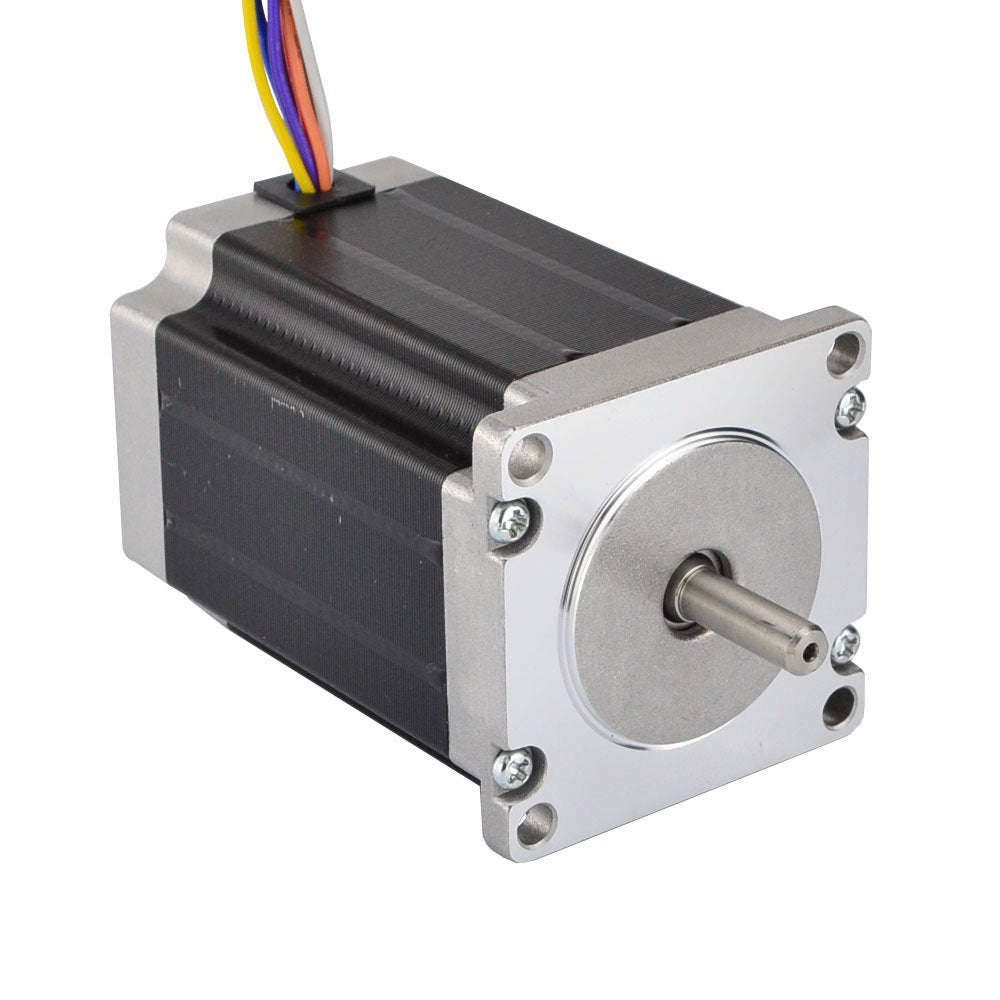

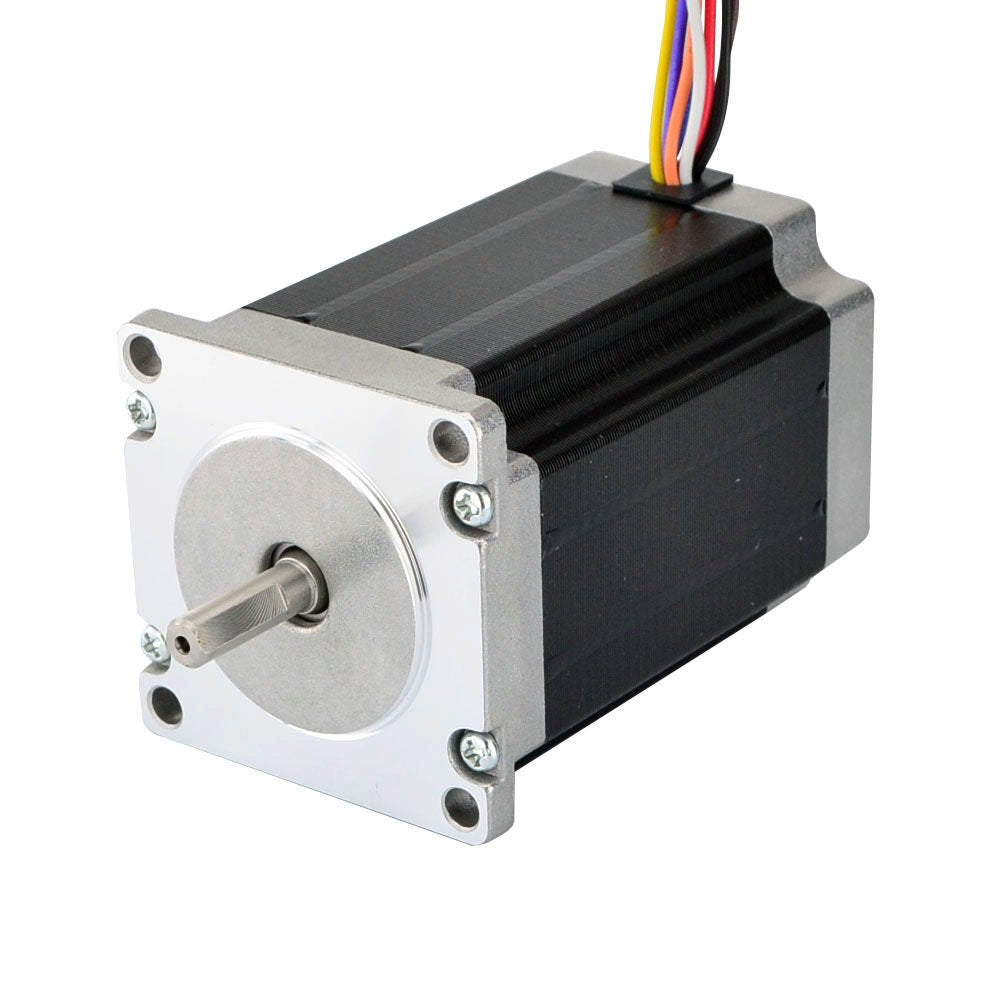

STEPPERONLINE Nema 23 Stepper Motor 2.83Nm 4A 8-Wire 6.35mm Dual Shaft CNC Mill Lathe Router

Key features

• Medium Height/Torque Dual Shaft
• 2.83Nm(400oz.in) holding torque
• NEMA 23 bipolar 2.24"x2.24"x3.3" 8-wire
• 1.8 deg. step angle(200 steps/rev)
• Rated current 4.0A & resistance 0.4ohms

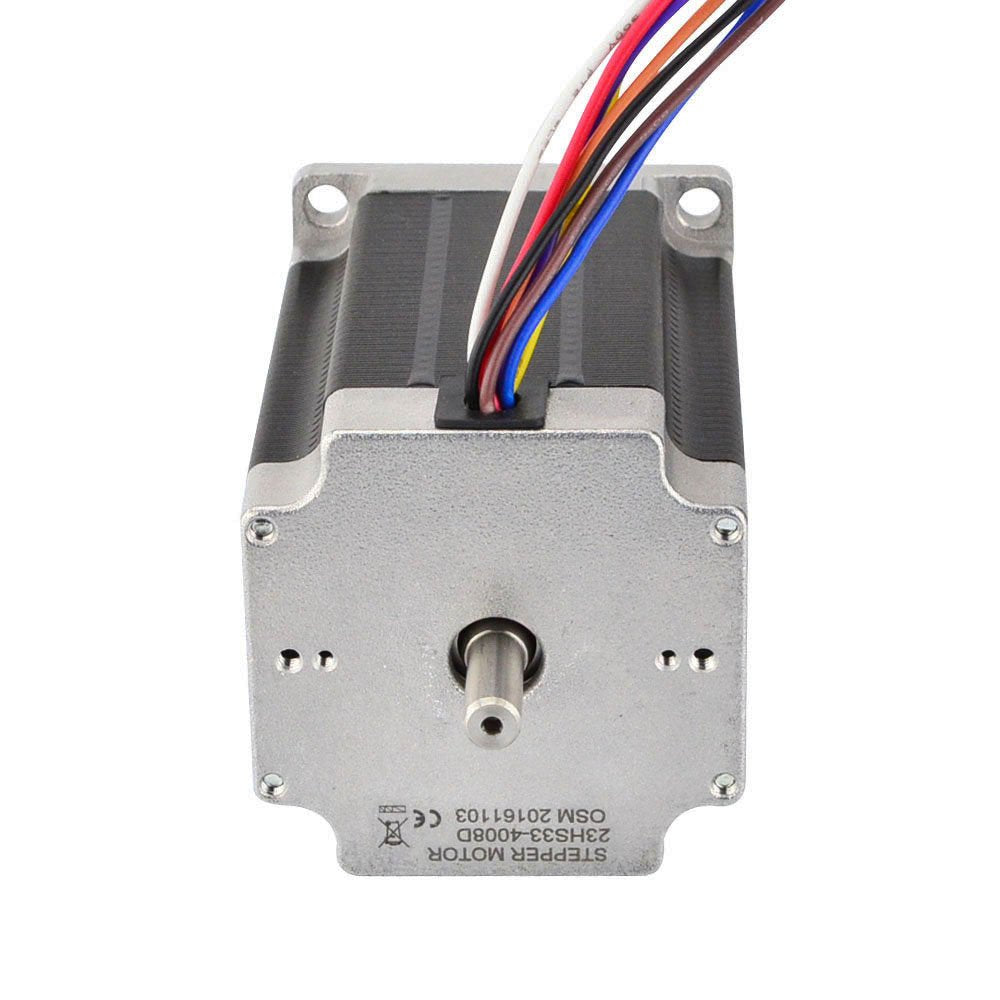

"This dual shaft Nema 23 stepper motor with 1.8 deg. step angle (200 steps/revolution). It with 8 wires, which you can give three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. A rear shaft can mount encoder, hand wheel or equals. Electrical Specification: * Manufacturer Part Number: 23HS33-4008D * Motor Type: Unipolar/Bipolar * Step Angle: 1.8 deg. * Holding Torque(Bipolar): 2.83Nm(400oz.in) * Holding Torque(Unipolar): 2.0Nm(283oz.in) * Rated Current(Bipolar Serial): 2.83A * Rated Current(Bipolar Parallel): 5.66A * Rated Current(Unipolar): 4.0A * Phase Resistance(Bipolar Serial): 1.6ohms * Phase Resistance(Bipolar Parallel): 0.4ohms * Phase Resistance(Unipolar): 0.8ohms * Inductance(Bipolar Serial): 7.2mH+/-20%(1KHz) * Inductance(Bipolar Parallel): 1.8mH+/-20%(1KHz) * Inductance(Unipolar): 1.8mH+/-20%(1KHz) Physical Specification: * Frame Size: 57 x 57mm * Body Length: 84mm * Shaft Diameter: 6.35mm * Front Shaft Length: 21mm * D-cut Length: 15mm * Rear Shaft Length: 15mm * Number of Leads: 8 * Lead Length: 300mm * Weight: 1.3kg Connection: BLK(A+), WHT(A-), BRN(C-), ORG(C+), RED(B), PUE(B-), BLU(D-), YEL(D+)
