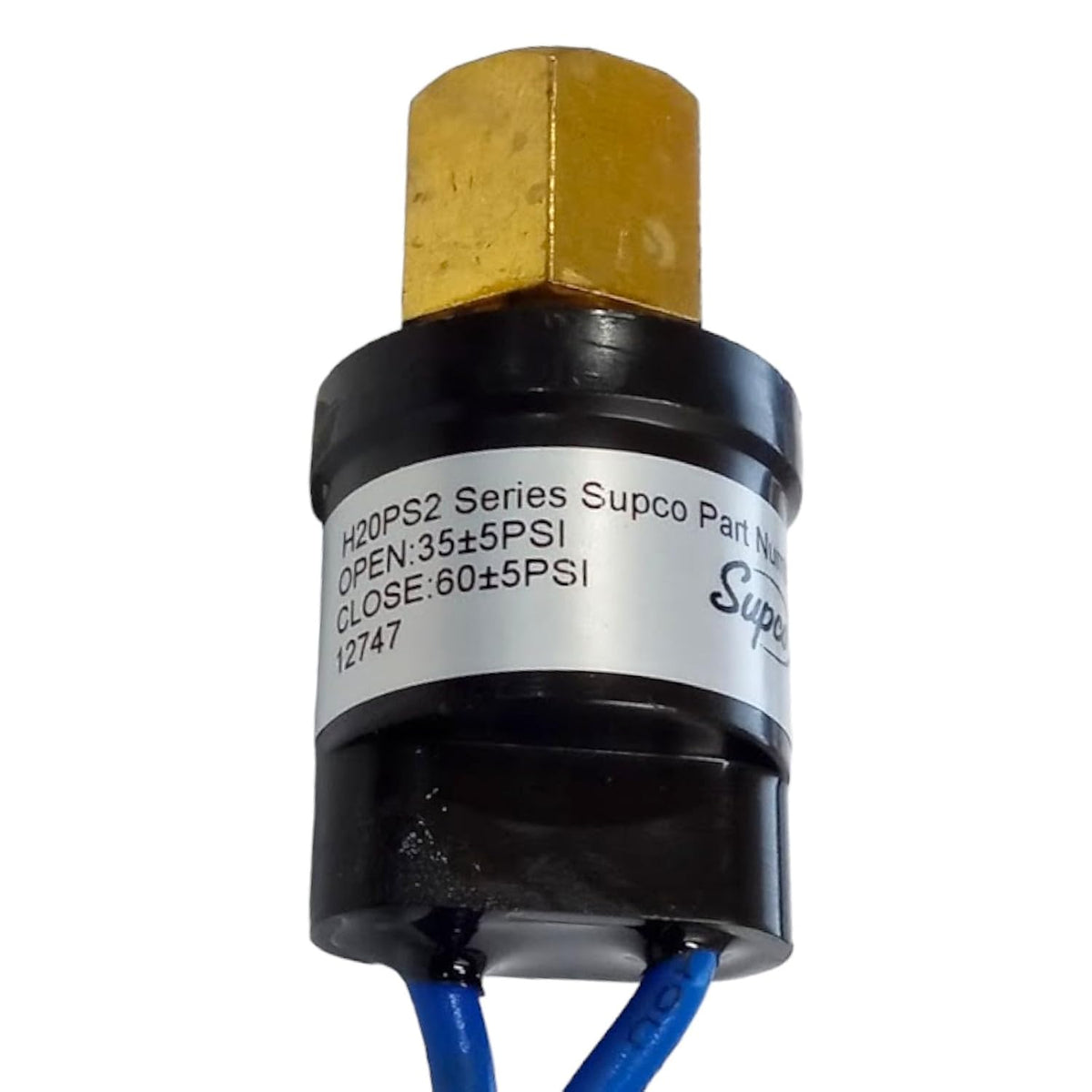

Supco SLP3560 Low Pressure Switch Open: 35 PSI Close: 60 PSI HVAC Refrigeration

Key features

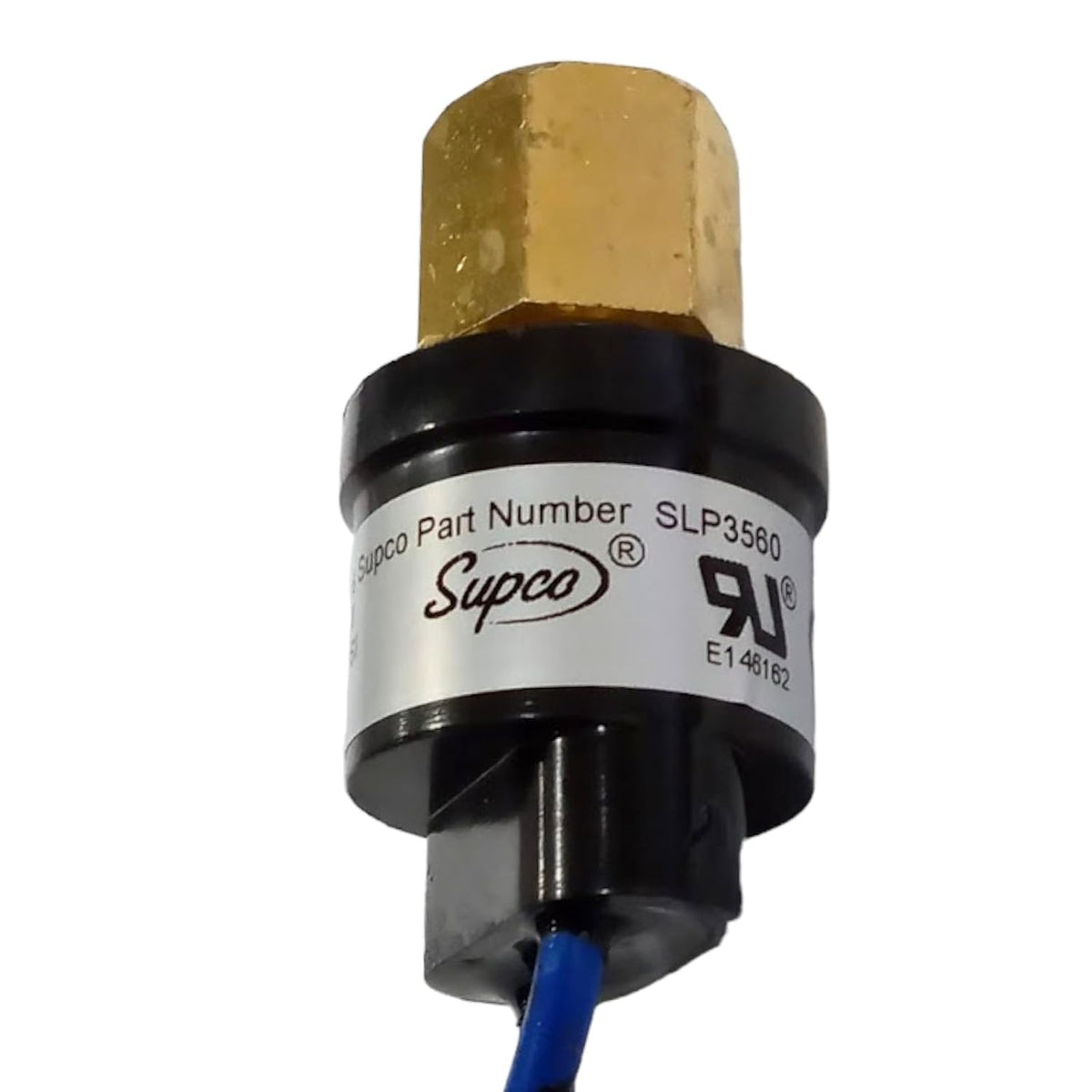

• Supco Part number SLP3560
• Open: 35 PSI Close: 60 PSI
• Low pressure switch opens on pressure fall

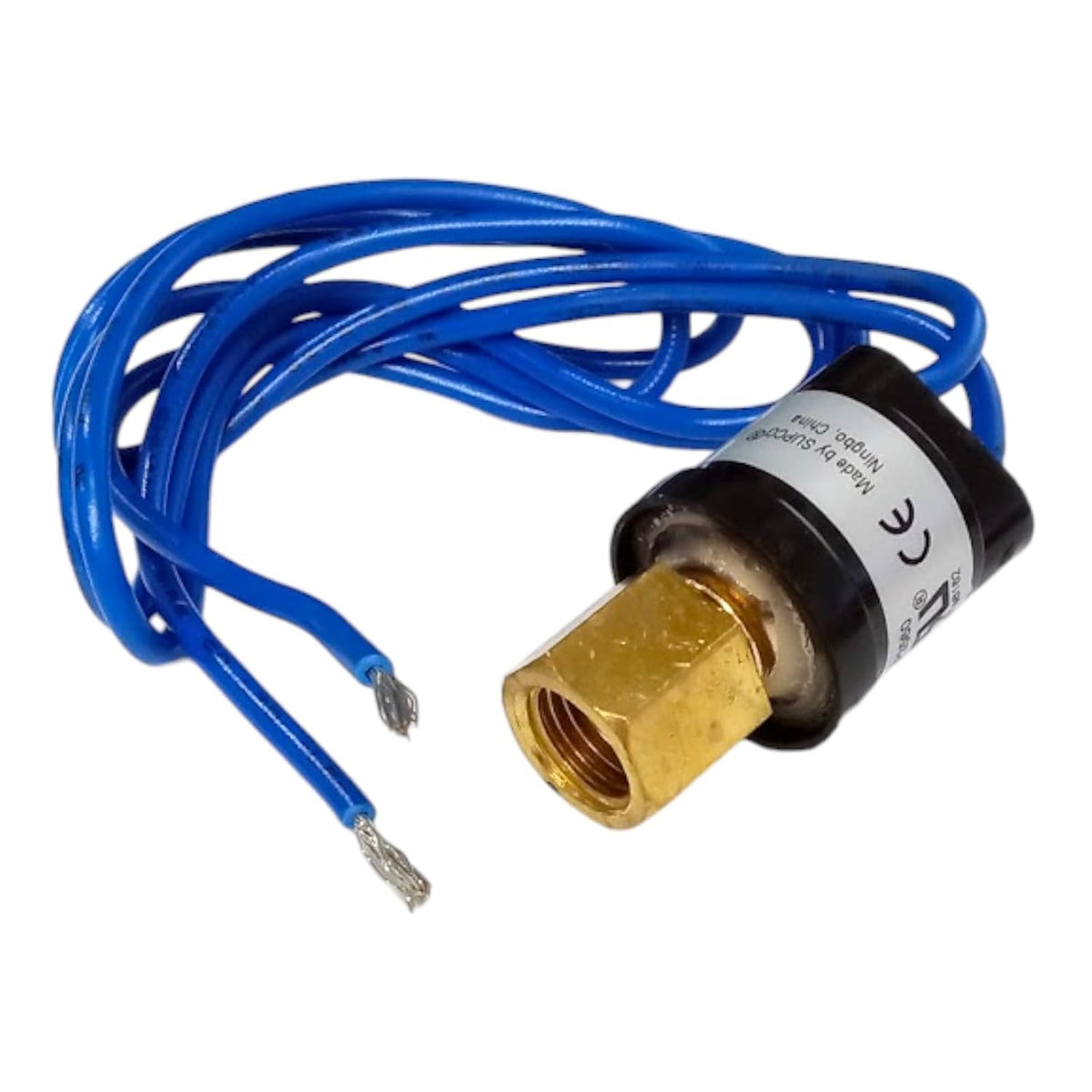

Supco Part number SLP3560 Open: 35 PSI Close: 60 PSI Low pressure switch opens on pressure fall High precision controls at economical prices. Encapsulated, non-adjustable, single pole - single throw, direct mount switches for use with HFC, HCFC, and CFC refrigerants Features:¼" SAE 45° female flare fitting with valve core depressor¼" SAE 45° female flare fitting with valve core depressorLow pressure switch opens on pressure fallLow pressure switch opens on pressure fallLife at rated load: 100,000 cyclesLife at rated load: 100,000 cyclesAutomatic ResetAutomatic ResetRated Voltage 24/120/240 VAC @ 50/60 HzRated Voltage 24/120/240 VAC @ 50/60 HzSnap acting stainless steel hermetically sealed sensorSnap acting stainless steel hermetically sealed sensorWire is 18 AWG, 18" longWire is 18 AWG, 18" longSmall size and light weight for direct mountingSmall size and light weight for direct mountingExcellent set point repeatability/stabilityExcellent set point repeatability/stabilitySpecifications:-31°F to 149°F (-35°C to 65°C)-31°F to 149°F (-35°C to 65°C)UL Recognized, CEUL Recognized, CEMax Pressure 700PSIMax Pressure 700PSI
