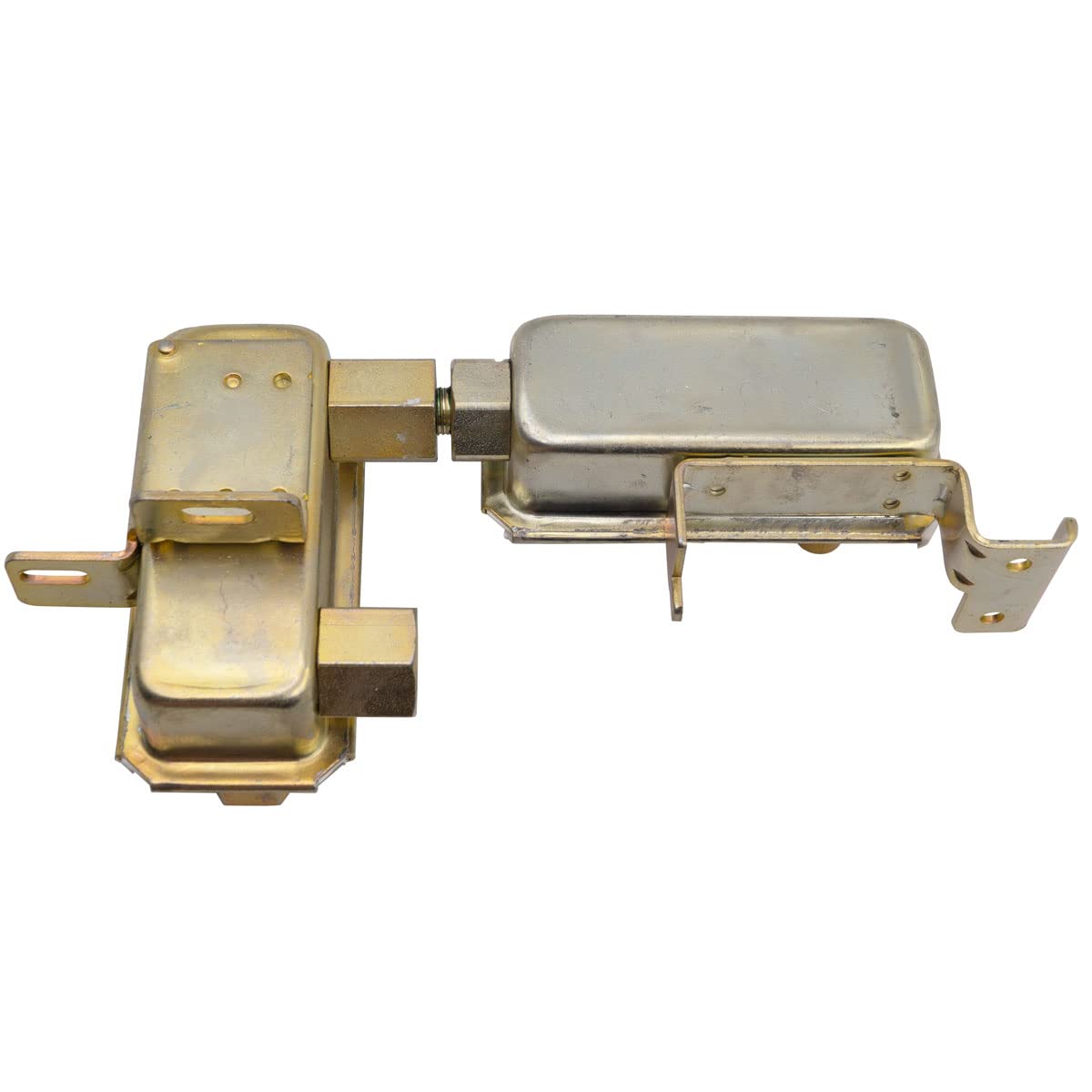

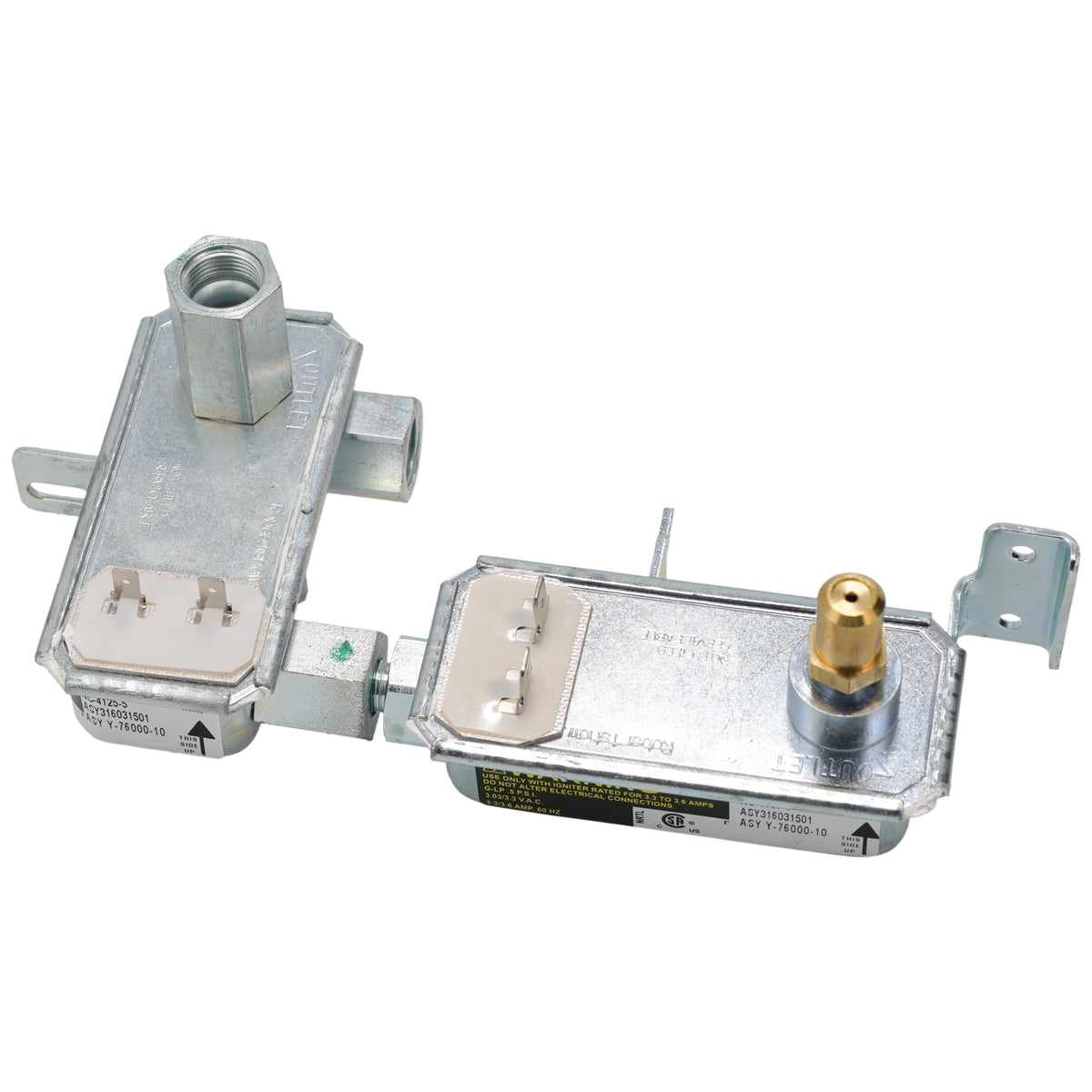

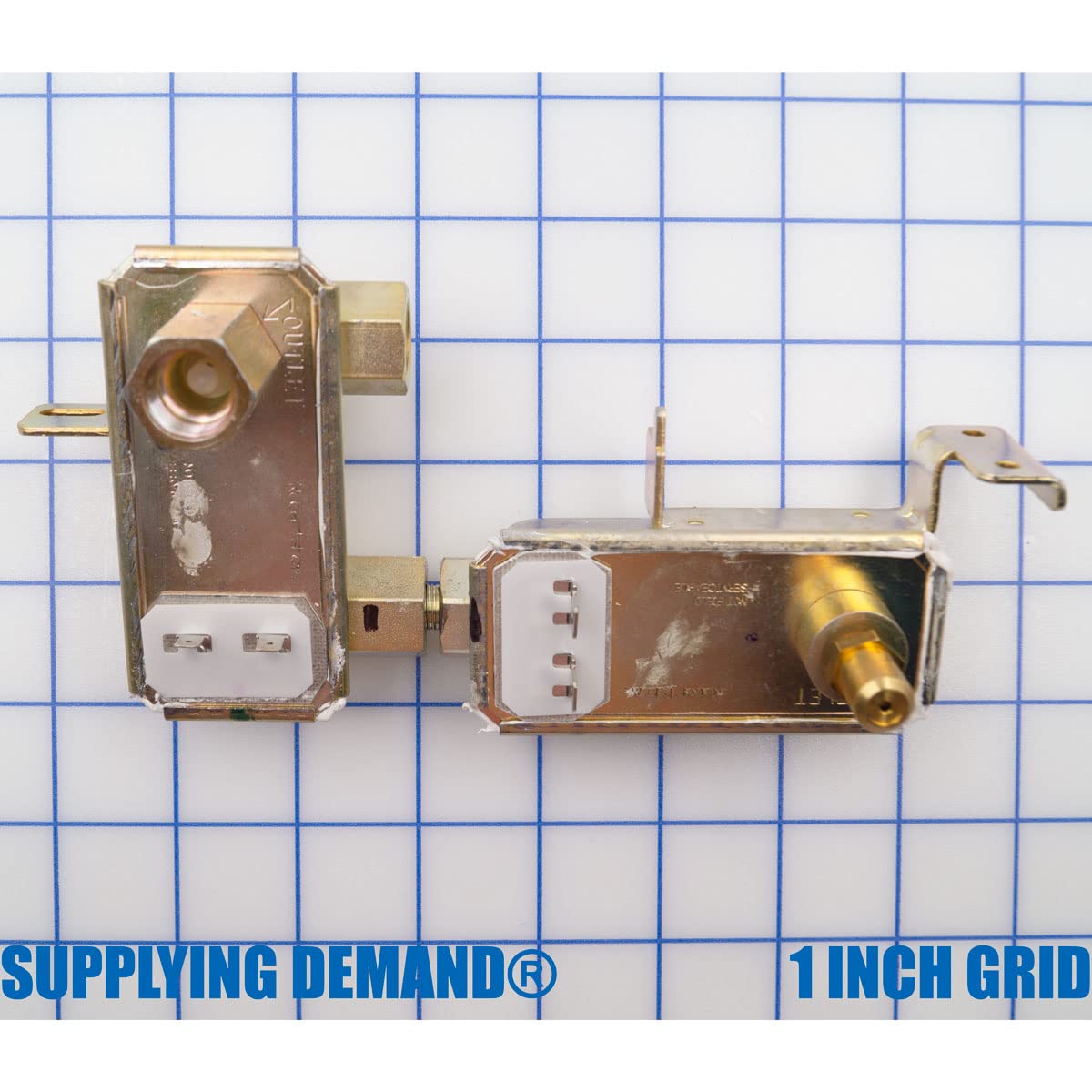

Supplying Demand 316031501 2689735 Gas Range Dual Oven Safety Valve Assembly Replacement

Key features

• Alternate part numbers include AP5648869 and PS5136194. Controls gas flow to the bake and broil burners. Model specific. NOT universal.
• Electrical rating: 3.3 - 3.6 Amp (60 Hz) | Inlet size: 9/16-24 UNEF 2 B, 3/8 TUBING LOXIT | Mounting type: Bottom, left and right, (2) brackets | Outlet size: Orifice spud and Pin # 46-56 and 9/16-24 UNEF 2 B, 3/8 TUBING LOXIT | Terminals: 1/4 Male tab terminals and male tab 0.187" terminals | Ignition system: Igniters 3.3 /3.6 Amp @ 116V AC 60 Hz | Fits model specific gas ranges
• It is important to disconnect your appliance from the power and gas supply before servicing. Gas line connections must be properly leak-checked after this repair. ***Per the manufacturer, color may vary: Gold or Silver
• Supplying Demand replacement parts are compatible with Major Brands, but you should always verify fitment with your specific model. We have included a video in the product gallery to help you find your model number and information in the description below.
• SD products come in Supplying Demand packaging.

Free shipping included. 30-day hassle-free returns.
