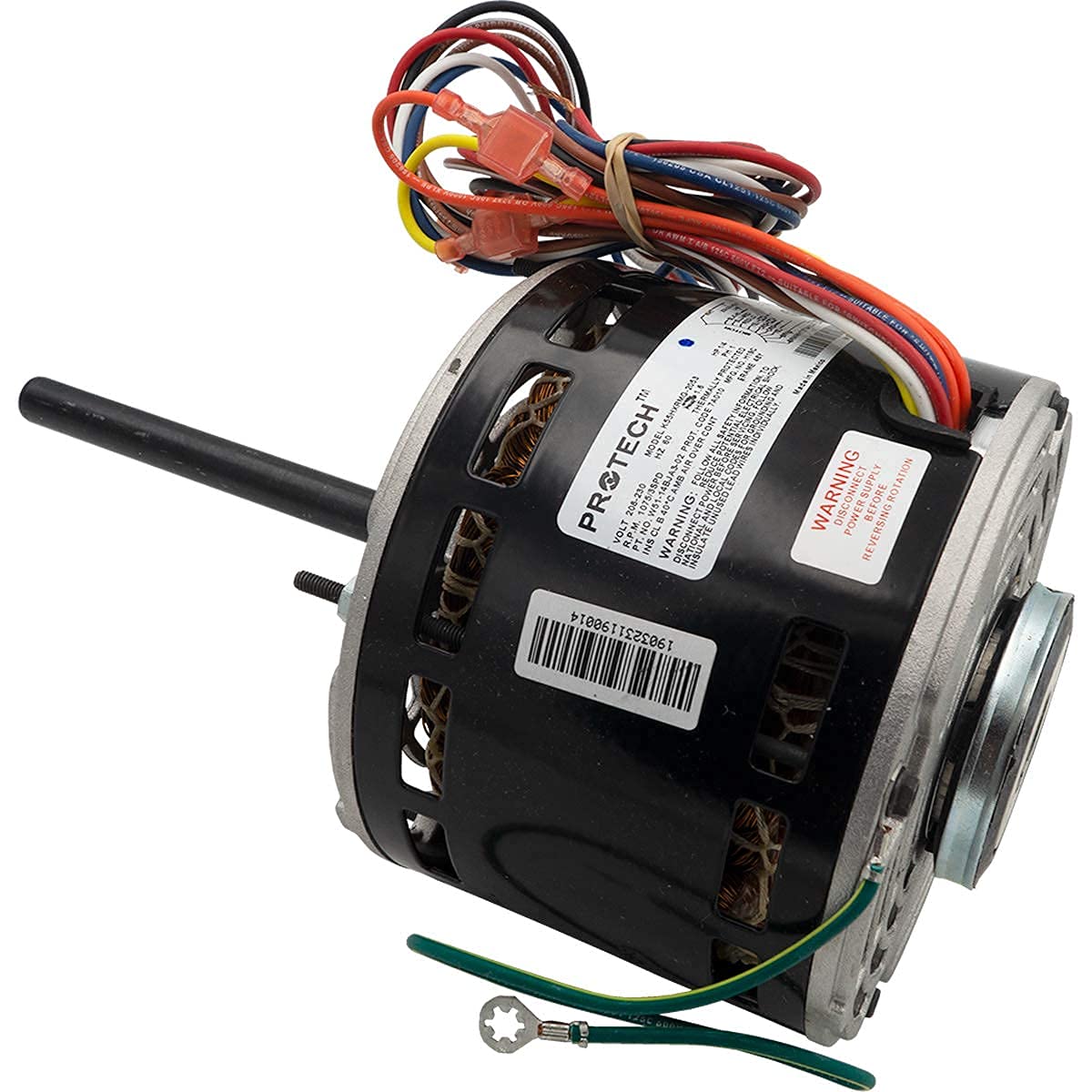

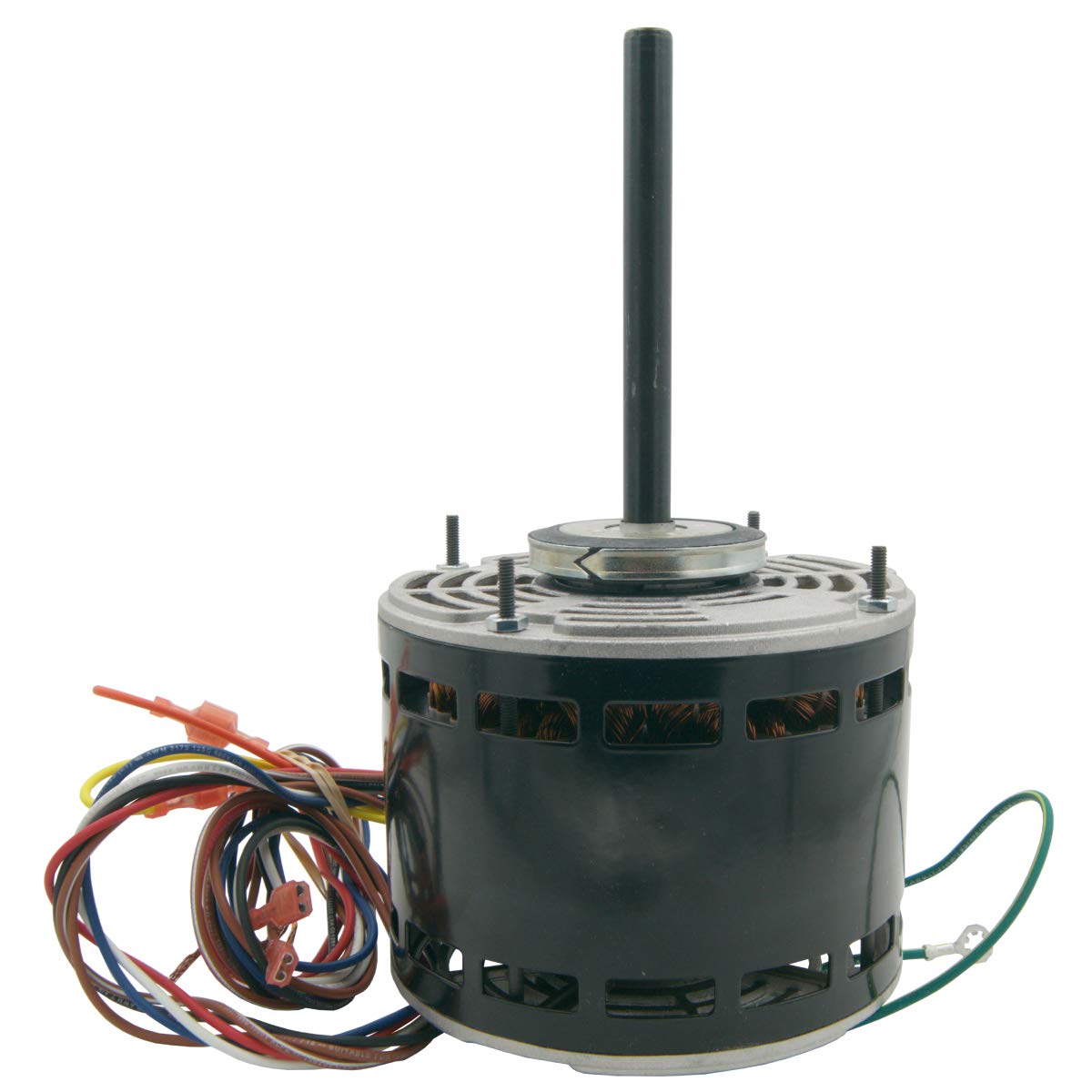

Supplying Demand W51-14BJA3-02 HVAC Blower Motor 1/4 HP 1 Phase 3 Speed 208/230V 1075 RPM

Key features

• Make sure to match up your H/P needed otherwise installing a lower H/P motor will cause it to overheat and not work properly. HVAC replacement motors are manufactured under strict quality standards at one of the world's largest and most modern motor production facilities. Every motor undergoes a variety of stringent tests before it leaves the assembly line. | Motor speed tap lead color Black - High | Motor speed tap lead color Blue - Medium | Motor speed tap lead color Red - Low

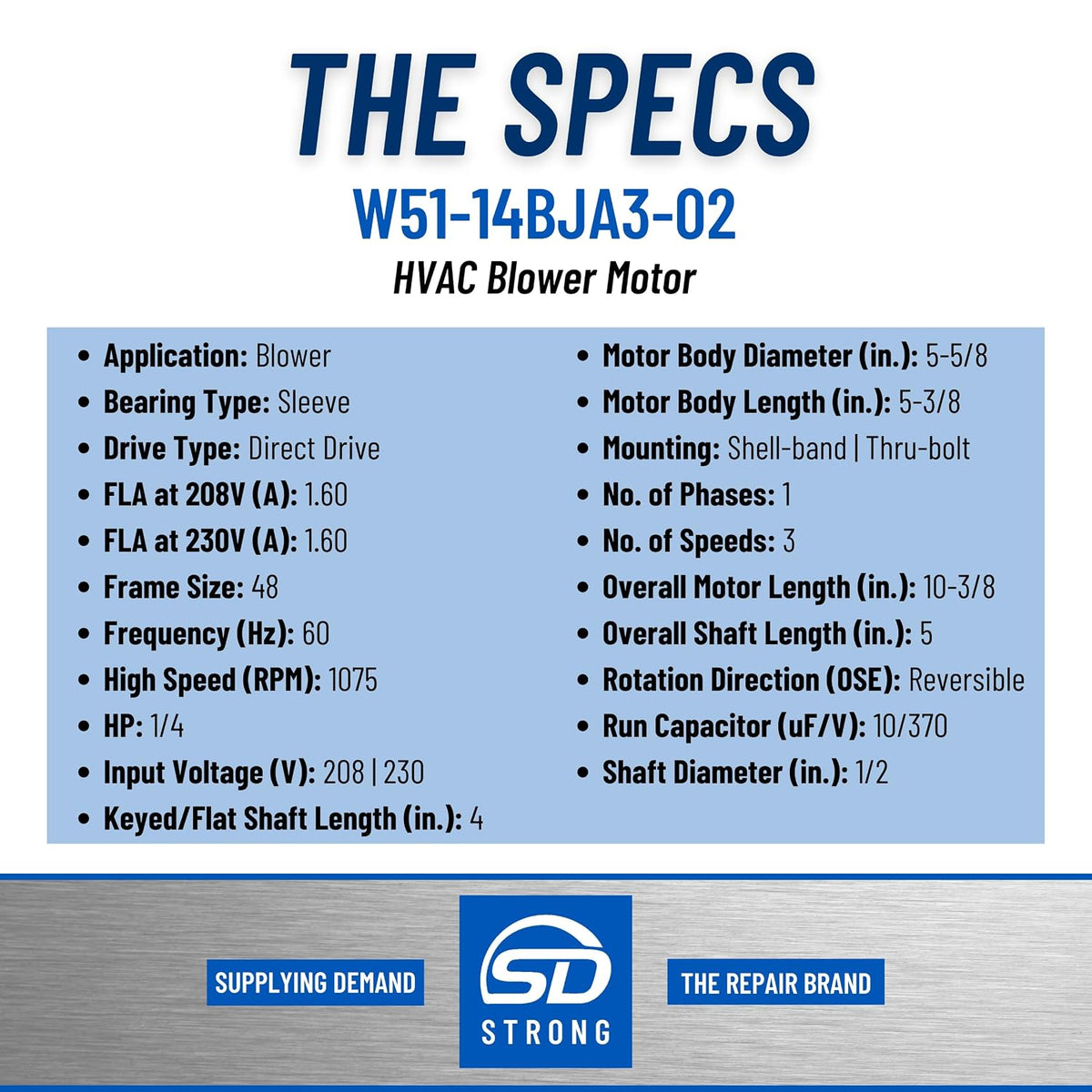

• Fits models: 1971, 10584, WG840584, FD1026, and 43584 | Application: Blower | Bearing type: Sleeve | Drive type: Direct drive | FLA at 208V (A): 1.60 | FLA at 230V (A): 1.60 | Frame size: 48 | Frequency (Hz): 60 | High speed (RPM): 1075 | HP: 1/4 | Input voltage (V): 208/230

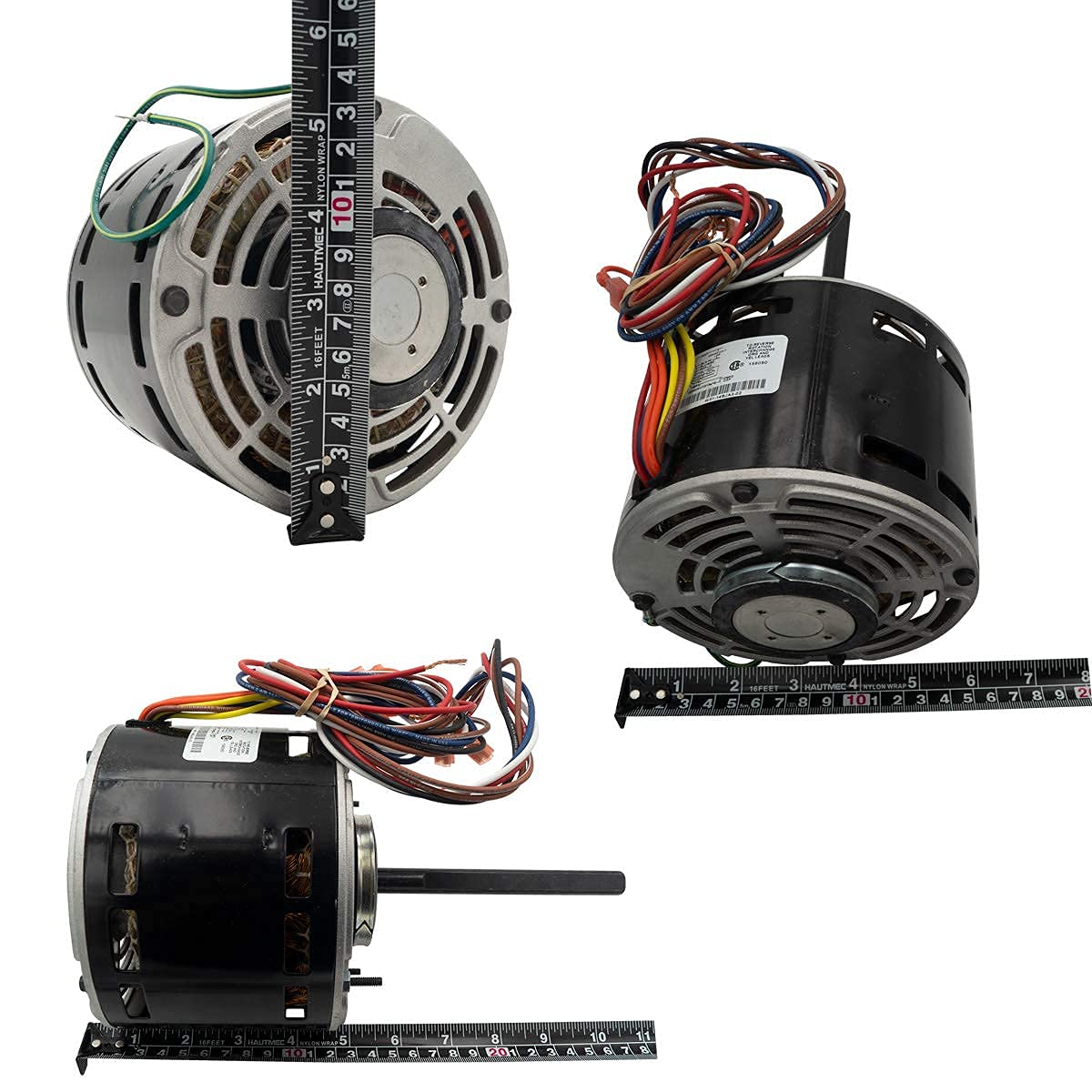

• Keyed/Flat shaft length (inch): 4 | Motor body diameter (inch): 5-5/8 | Motor body length (inch): 5-3/8 | Mounting: Shell-band, thru-bolt | Number of phases: 1 | Number of speeds: 3 (1075/950/850) | Overall motor length (inch): 10-3/8 | Overall shaft length (inch): 5 | Rotation direction (OSE): Reversible | Run capacitor (uF/V): 10/370 | Shaft diameter (inch): 1/2

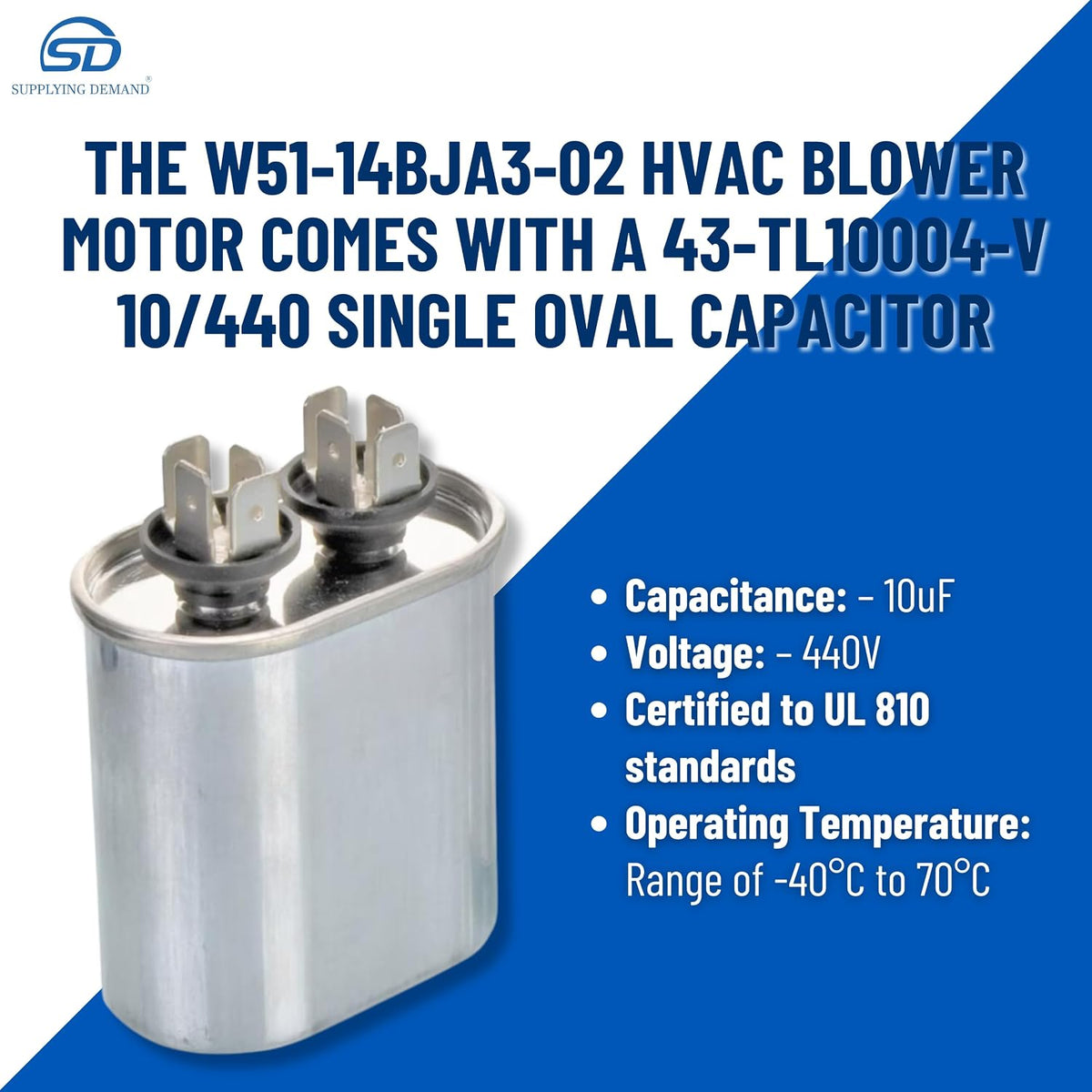

• The motor comes with a single run capacitor | It is recommended to replace the capacitor when installing the new motor
• Heating, ventilation, air conditioning, or refrigeration parts and accessories should only be installed by qualified technicians.
• Supplying Demand replacement parts are compatible with Major Brands, but you should always verify fitment with your specific application.

Free shipping included. 30-day hassle-free returns.
