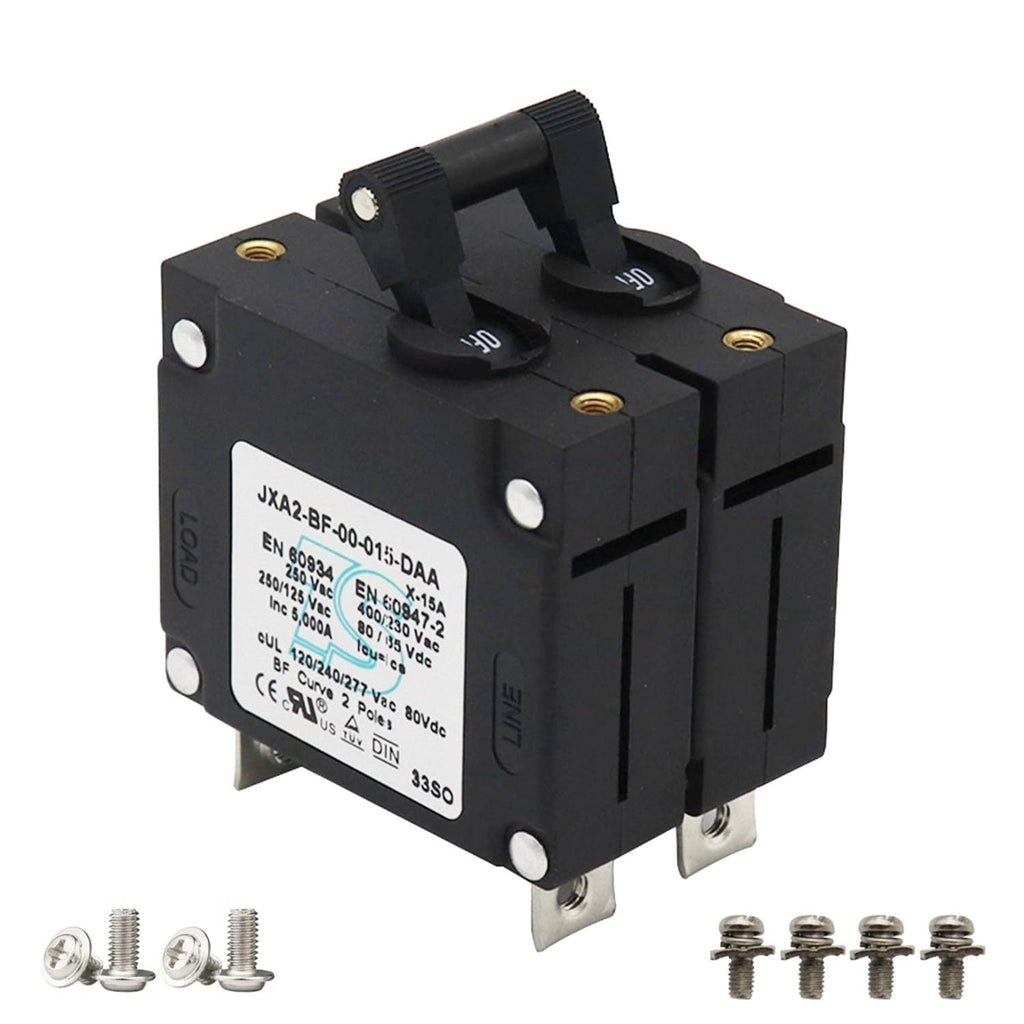

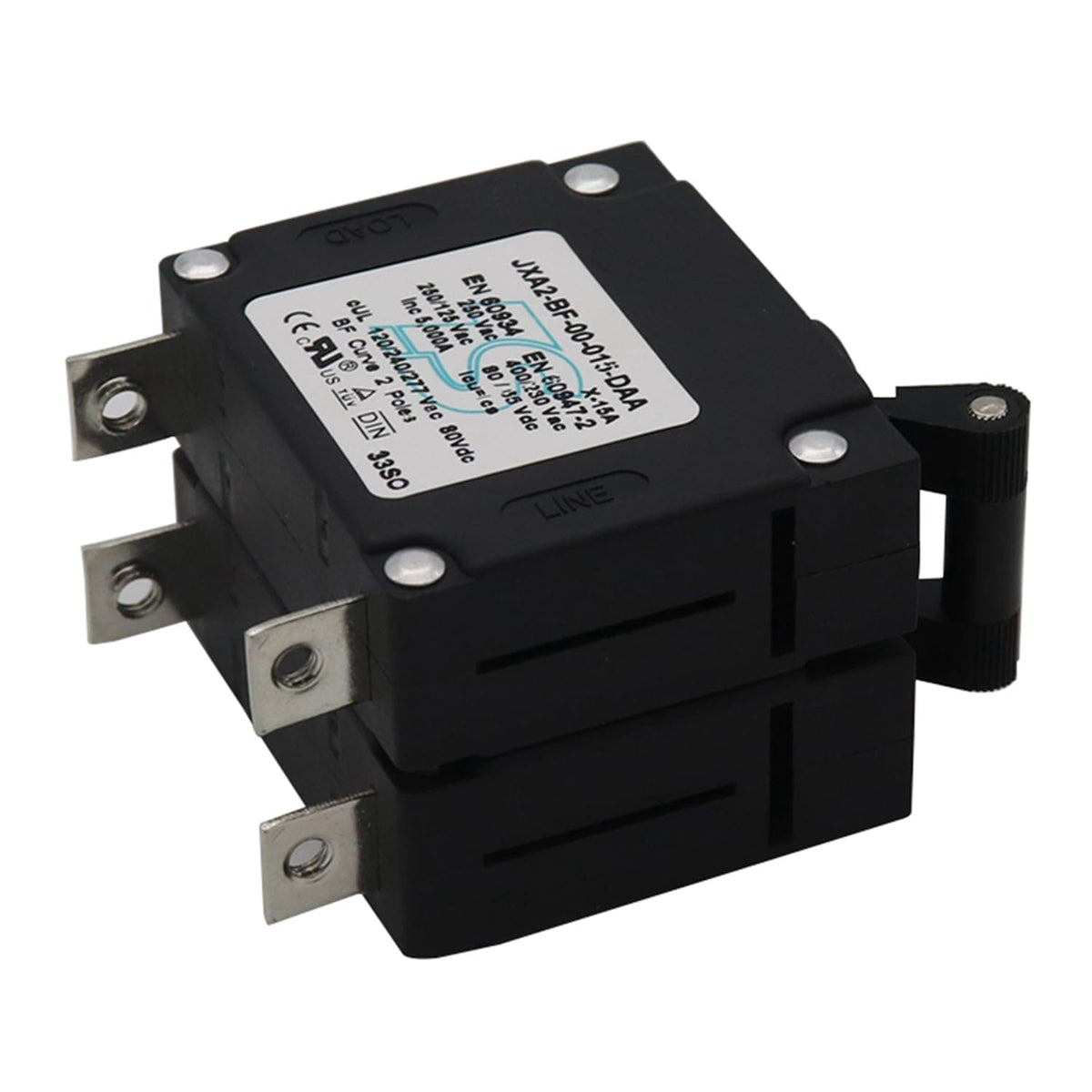

T Tocas 15A Amp Toggle Double Pole Circuit Breakers CE/CCC/UL-Certified
T Tocas 15A Amp Toggle Double Pole Circuit Breakers CE/CCC/UL-Certified
Key features
- 15 Amp Magnetic Hydraulic Circuit Breaker: Rated 125–415V AC and 65–80V DC; meets ABYC & UL standards for marine and vehicle safety.
- Combines an ON/OFF switch with dependable overload protection; Trip-Free design prevents forced closure during faults.
- This 15 amp double pole breaker uses hydraulic delay to ignore motor start-up spikes; rated 10,000 cycles, 6,000 at full load.

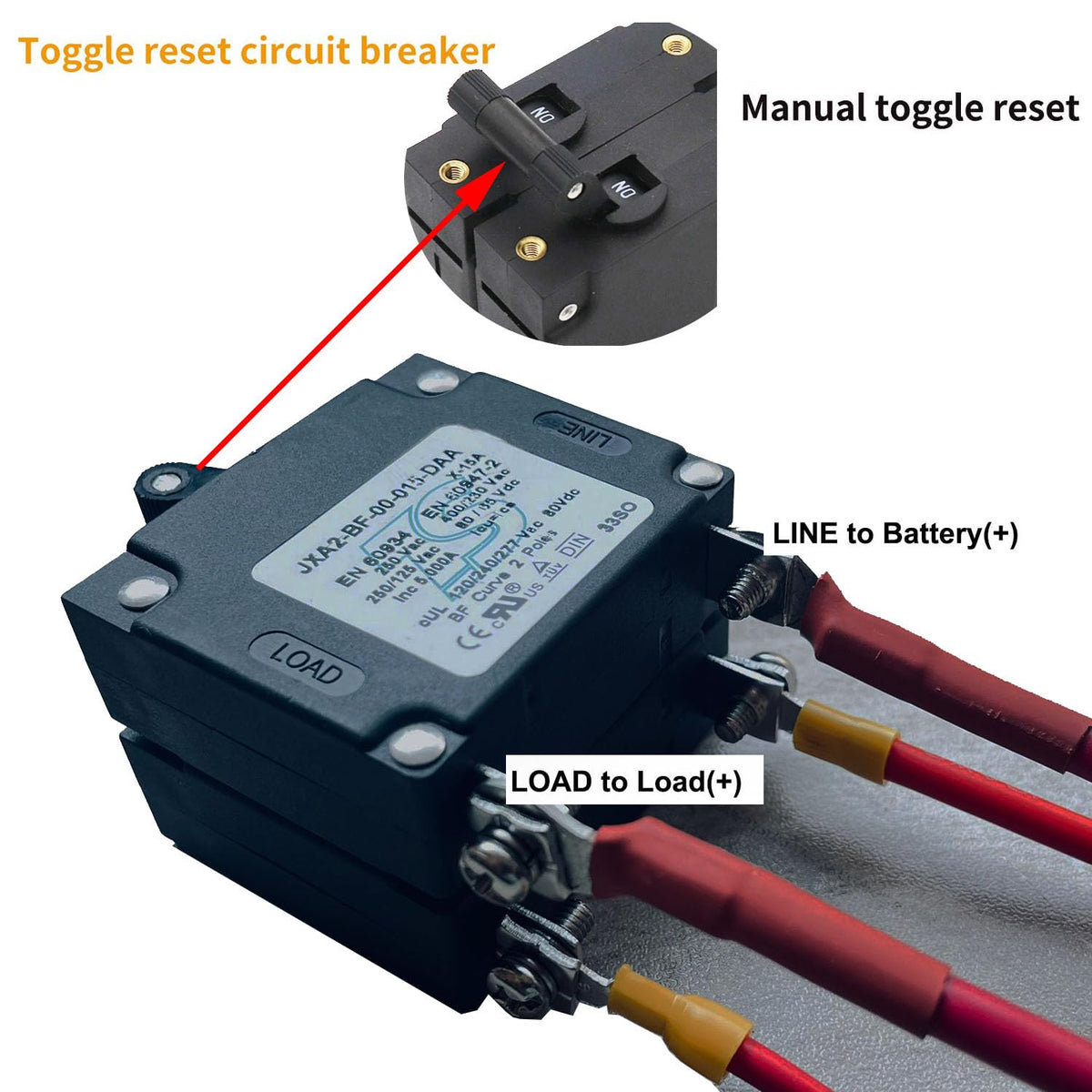

- Screw terminals accept heavy wire without crimp tools; a reusable 15 amp fuse replacement that simply resets after tripping.
- Compact profile for tight panels; this 15amp breaker powers automotive,boat,marine,car,yachts, RVs, solar, and mixed AC/DC systems.

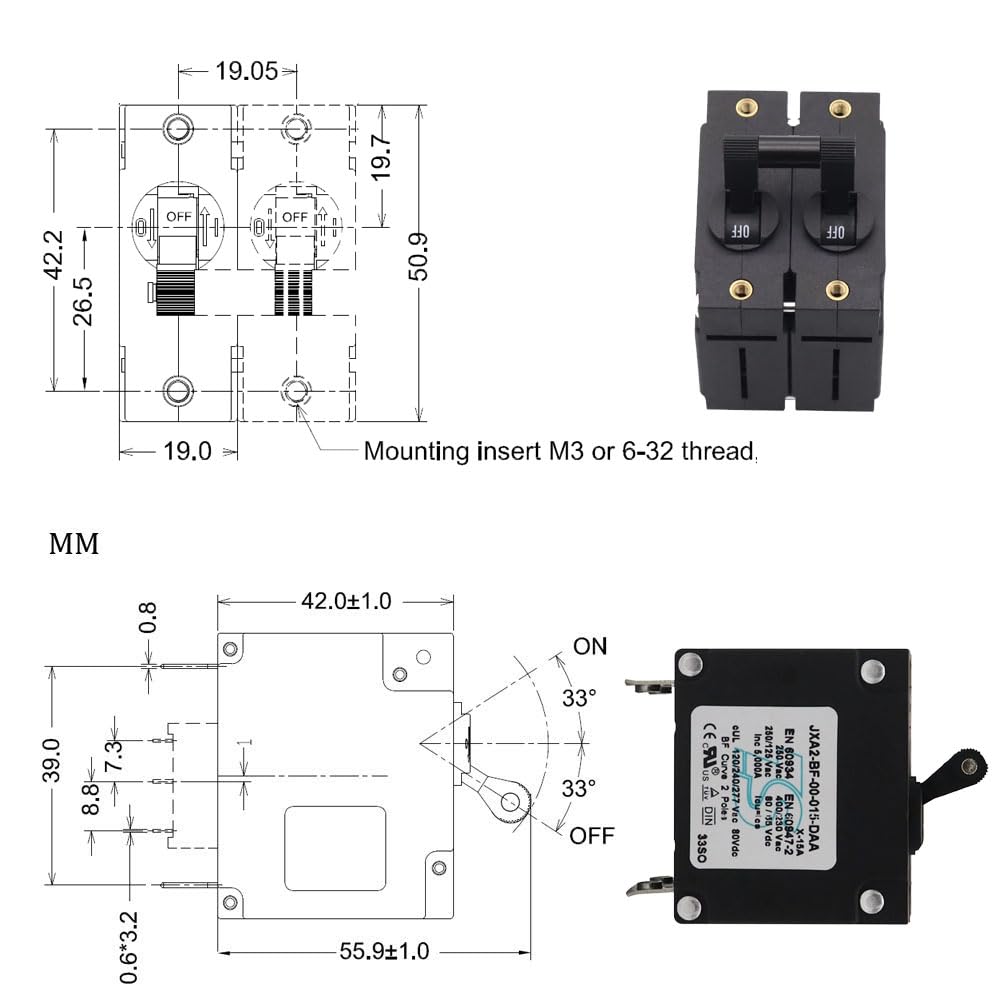

Family:Hydraulic Magnetic Circuit Breaker Voltage:125/250/277/415; 65/80 Vdc Rated Current: 15A Mounting:Rear Mounted, Operating Temperature:-40oC (-40oF) to 85oC (185oF) Interrupt Capacity: 5,000A (PC1) 3,000A @ 250 Vac (SC) 1,000A @ 415 Vac (SC) 2,000A @ 80 Vdc (SC) RoHS:Y Regulatory Sepcification:cUL1077; EN60934; EN60947; DIN; CE Technical Specification Temperature : -40 C to +85 C Shock : 50G, 11ms or 100G, 6ms Vibration : 10 to 500 Hz. 10G(1.6 mm to 50 Hz) Life : 10,000 Switching opearation with 6,000 at rate current Approximate weight: 1P-85g Dielectric Streight: 2,500 Vac 50 / 60 Hz Rated Current: 1-100A according requirement Torgue Allowed for inserts screw : M3 / 6-32 (0.6'0.8 Nm) Package: 1pcs 15A Double Pole Hydraulic Magnetic Circuit Breakers
