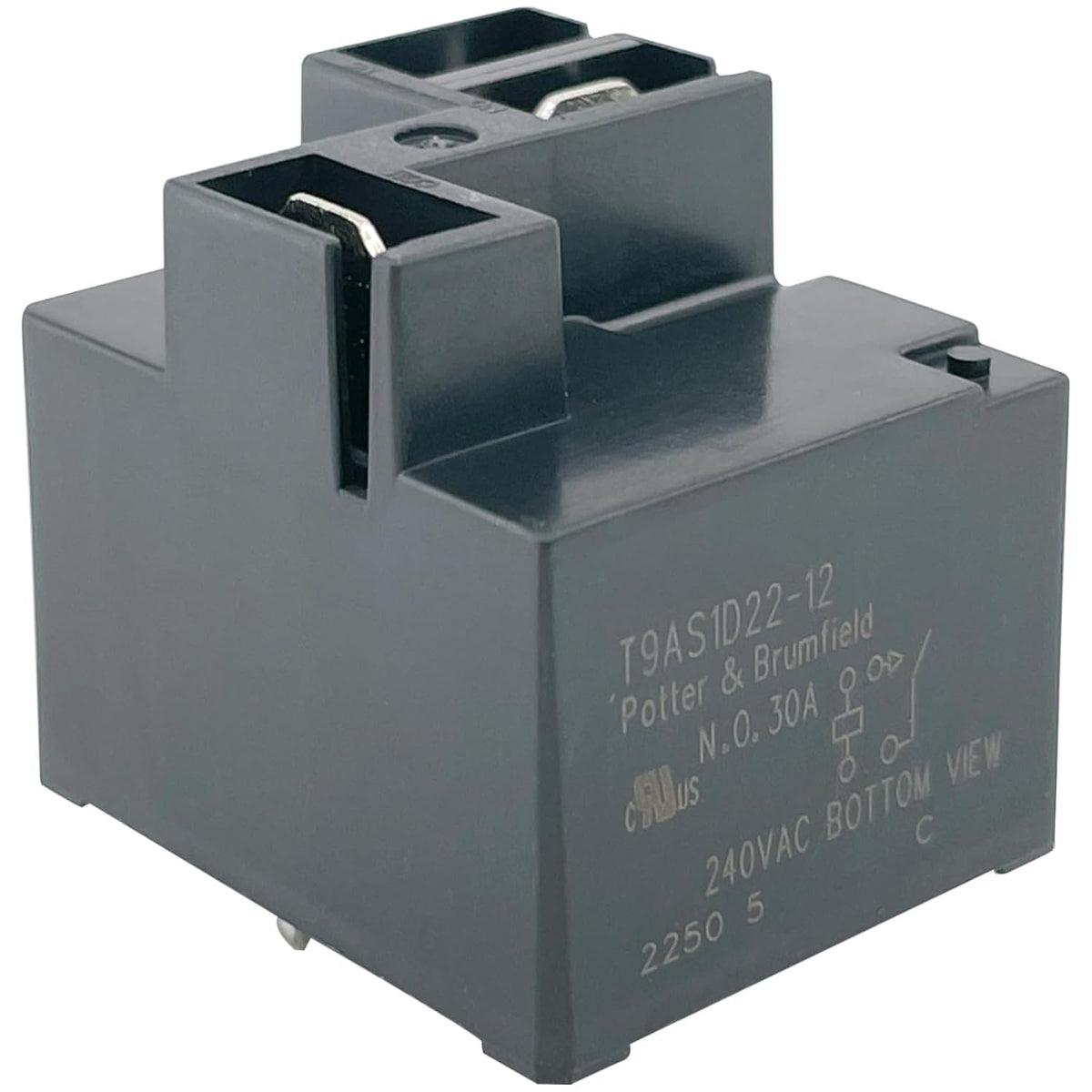

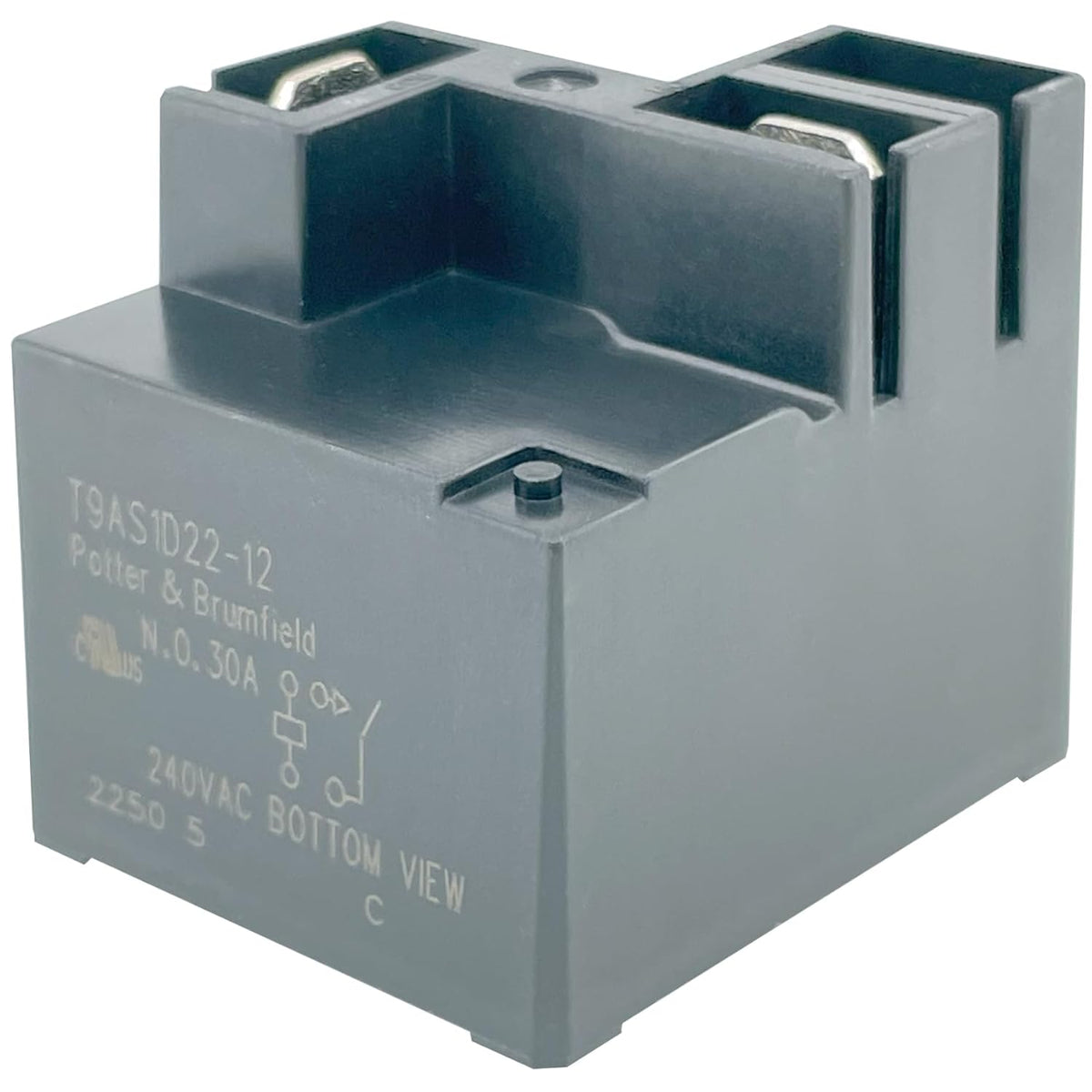

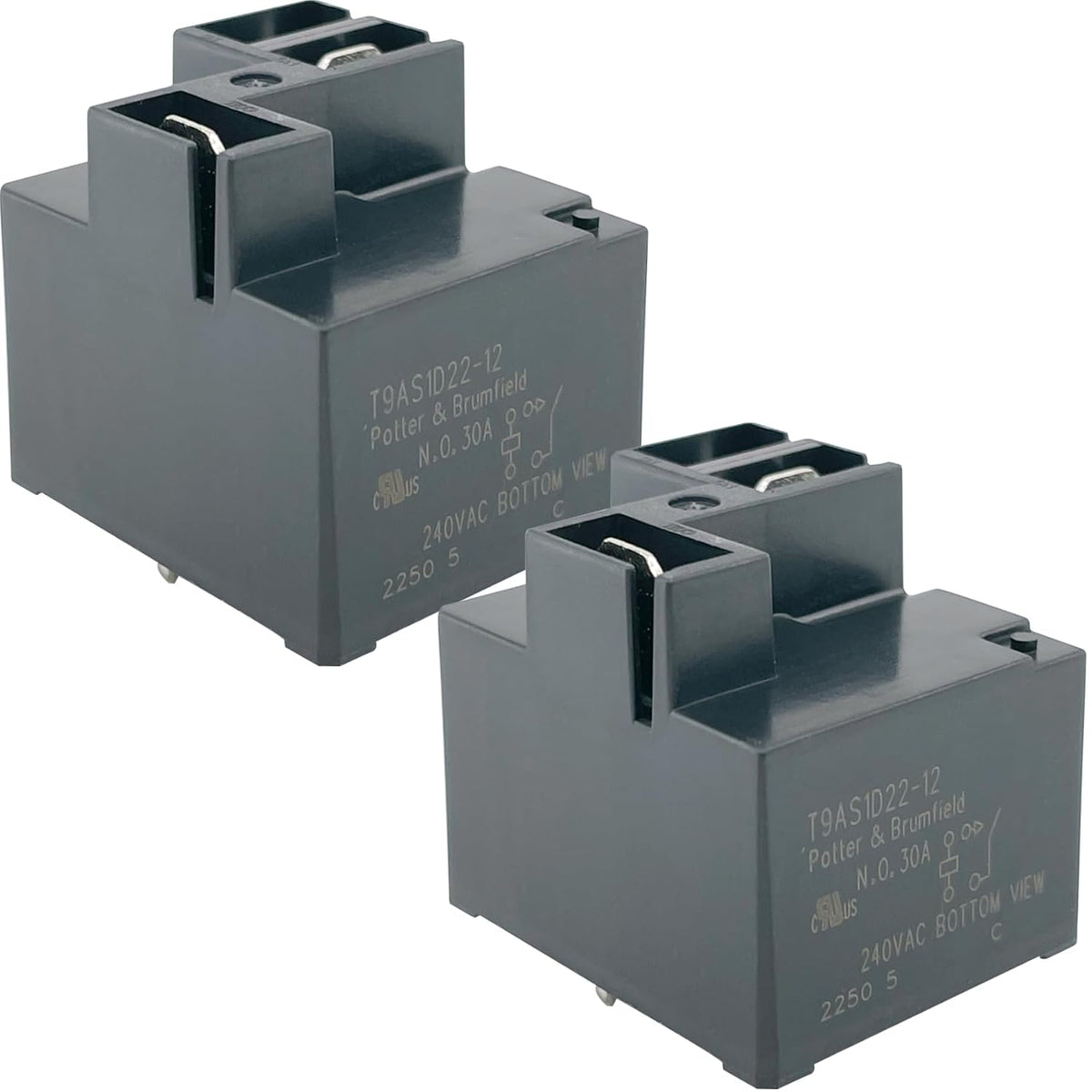

T9AS1D22-12 (2-Pack) 30A 240VAC 12VDC Coil Power Relay Compatible with GE Whirlpool Range Oven HVAC Control, SPST-NO 4-Pin PCB & 2-Tab Top Terminals Replacement for 1424169, PB163

Key features

• [TECHNICAL SPECIFICATIONS] Heavy-duty T9AS1D22-12 power relay features a 12VDC coil and 30A 240VAC switching capacity. This 2-Pack set utilizes an SPST-NO (1 Form A) contact arrangement, designed to maintain circuit integrity in high-current residential and industrial applications
• [BROAD COMPATIBILITY] Designed to fit and compatible with major appliance brands including GE, Whirlpool, and Electrolux. It serves as a reliable replacement for multiple part numbers like 1424169 and PB163, commonly found in range oven control boards and HVAC systems
• [RESTORE EQUIPMENT FUNCTION] Effectively fixes common failure symptoms such as "oven not heating," "control board clicking but no power," or "intermittent cooling cycles." This component is the primary solution for restoring consistent power flow to heating elements

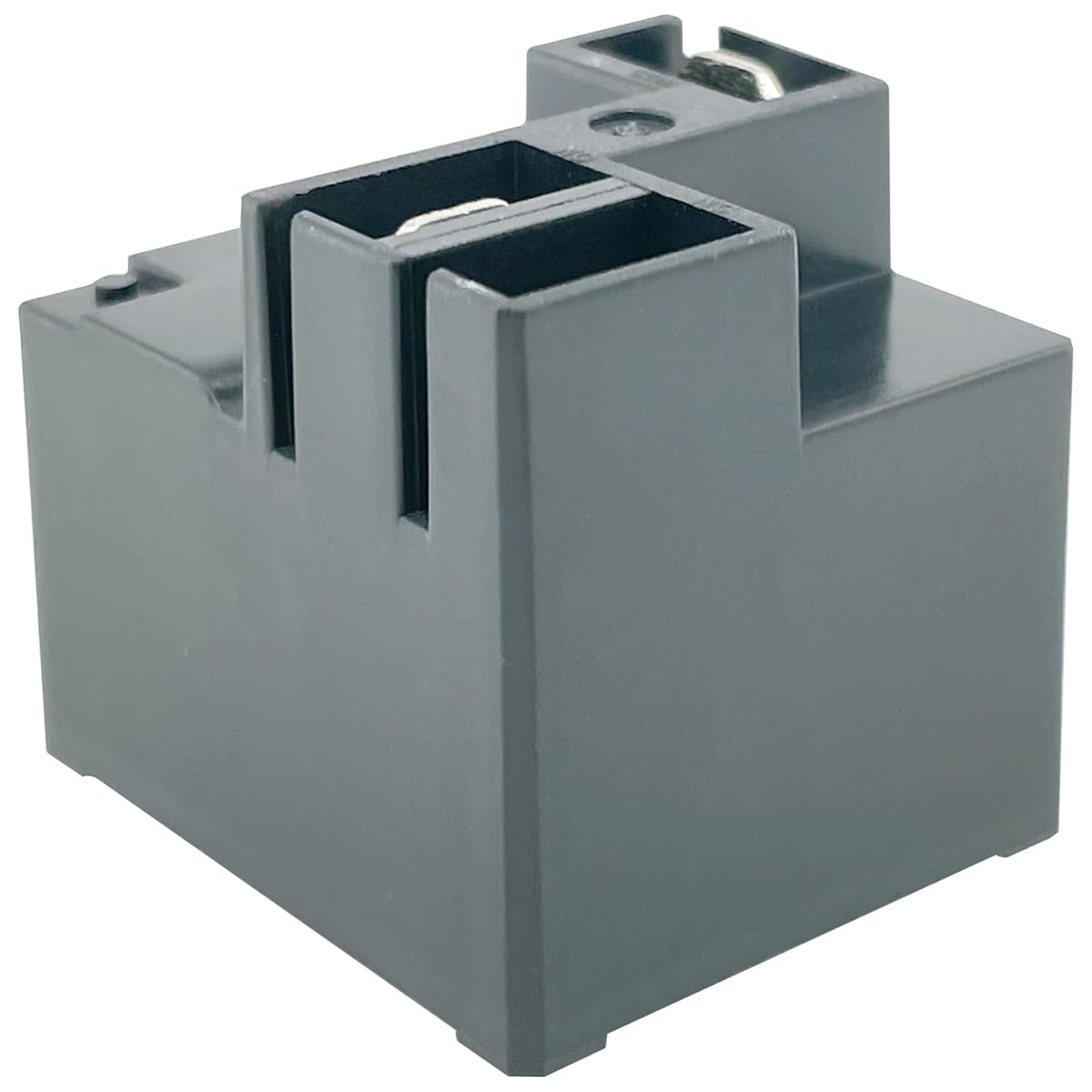

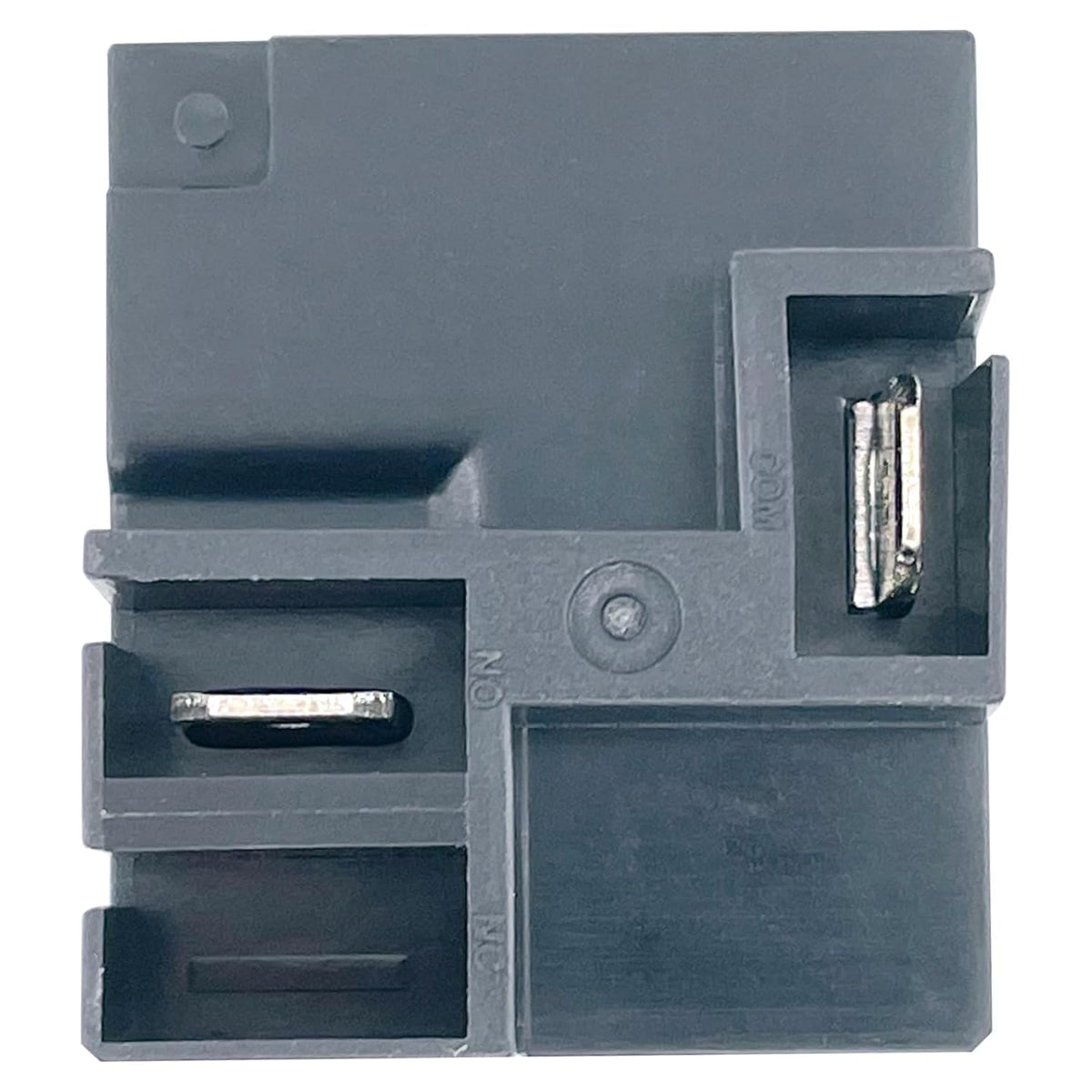

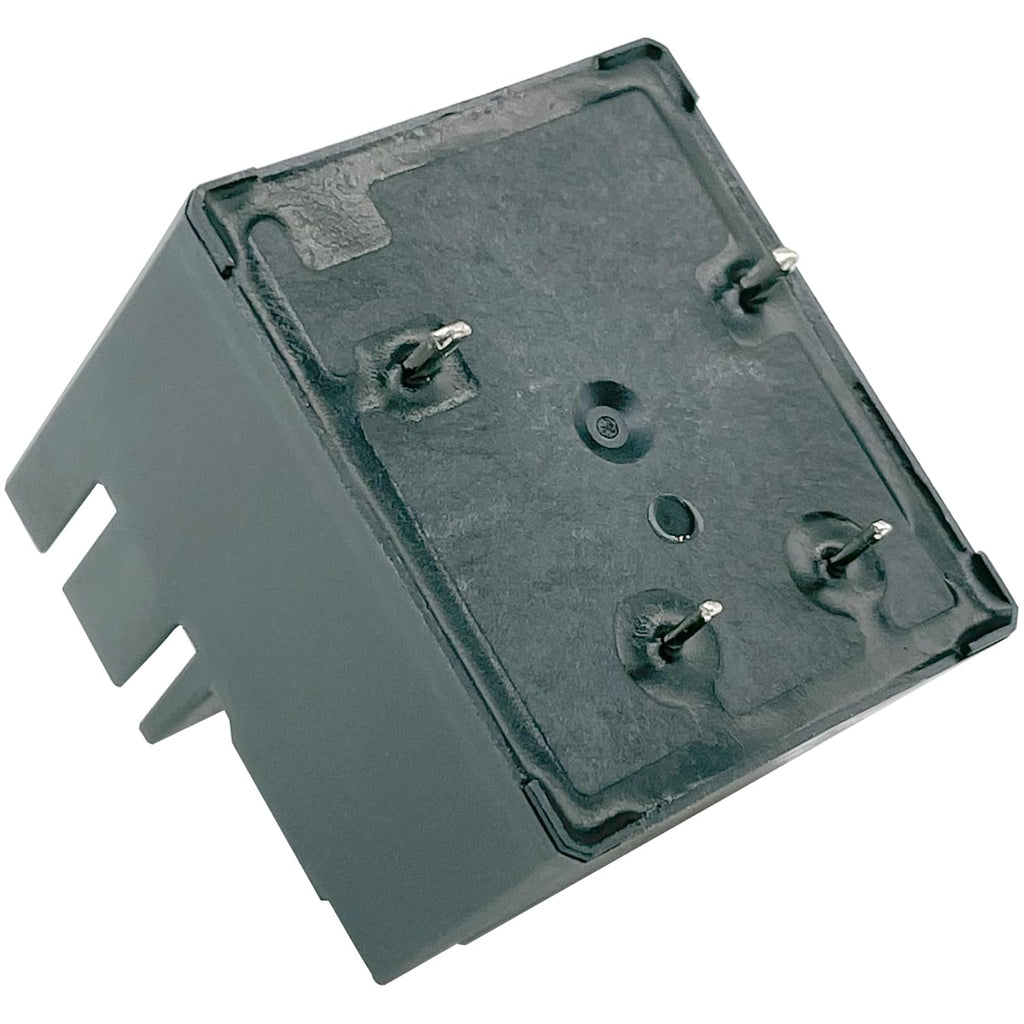

• [ROBUST HARDWARE DESIGN] Engineered with silver alloy contacts for superior conductivity and heat resistance. The T-shaped enclosure (PA66 material) features 4 soldering pins on the bottom and 2 quick-connect 1/4 inch terminals on top, matching the exact physical profile shown in images
• [STABLE INSTALLATION] These power relays undergo rigorous internal testing to ensure vibration resistance and long-term mechanical life. The direct-drop-in design allows for a straightforward repair process on compatible PCB control modules

Restore your appliance’s heating performance with the precision-engineered T9AS1D22-12 power relay.Finding the right component for a PCB repair is critical to equipment safety. This T9AS1D22-12 relay is specifically designed for high-amperage switching, making it a staple for modern range ovens, air conditioners, and industrial controllers. By replacing a burnt or sticky relay, you can extend the life of your expensive control boards without replacing the entire unit.Key Structural Features:This relay features a unique hybrid terminal layout: 4 pins on the base for secure PCB mounting and 2 quick-connect tabs on the top for high-current load wiring. This configuration ensures a stable electrical path and simplifies the connection for heating elements and motors.Why choose this replacement?Reliable Performance: Silver alloy contacts minimize arcing and oxidation.Reliable Performance: Silver alloy contacts minimize arcing and oxidation.Thermal Resistance: The heavy-duty housing handles high-temperature environments near oven cavities.Thermal Resistance: The heavy-duty housing handles high-temperature environments near oven cavities.Accurate Fit: Dimensions and pin spacing are enginee
