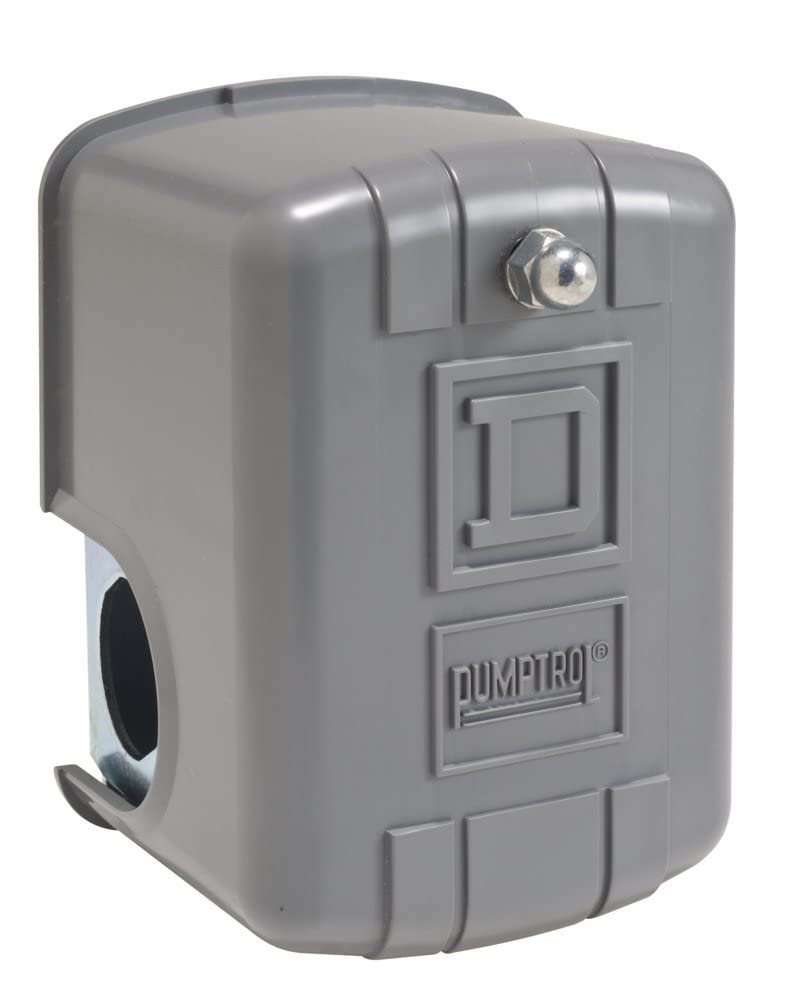

Telemecanique Sensors 9013FSW2J21 Air-Pump Pressure Switch, NEMA 3R, 30-50 psi Pressure Setting, 20-65 psi Cut-Out, 15-30 psi Adjustable Differential
Telemecanique Sensors 9013FSW2J21 Air-Pump Pressure Switch, NEMA 3R, 30-50 psi Pressure Setting, 20-65 psi Cut-Out, 15-30 psi Adjustable Differential
Key features
- Pressure Switch - Water or Air
- Pressure Switch used to control electrically driven motors
- Diaphragm Actuated
This Square D Pumptrol 9013FSW2J21 electromechanical pressure switch with 30-50 psi pressure setting range activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached. The NEMA 3R enclosure has a 1/4" NPSF internal fluid connection and screw clamp terminals. The switch works with a 1. 5 hp or less pump. The adjustable differential range is 15-30 psi and the cut-out range is 20-65 psi. The cover is black. The enclosure is National Electrical Manufacturers Association (NEMA) Type 3R and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratory (UL) Listed and Canadian Standards Association (CSA) Certified. Square D Pumptrol pressure switches are manufactured by Schneider Electric.
Free shipping included. 30-day hassle-free returns.
More in Encoders & Level/Flow Sensors
423 products · See all Encoders & Level/Flow Sensors →

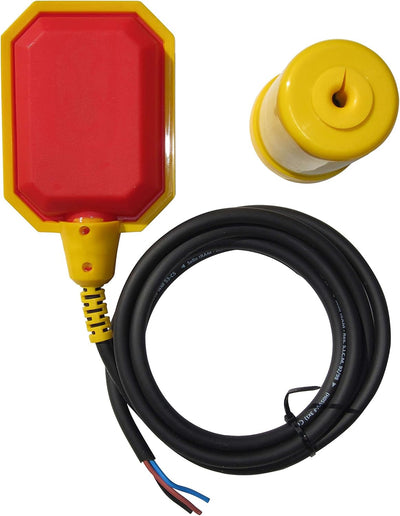

Float Switch for Sump Pump - 6-Foot Water Level Sensor with Honeywell Microswitch and Adjustable Tether Length for Ground Water Bilge Pump and Water Tank – Non-Corrosive PP Casing, Rated to 13 Amps

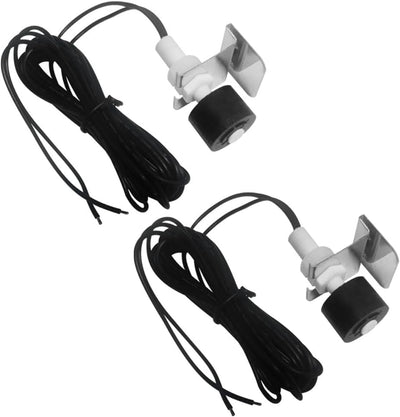

2Pcs SS3 Condensate Drain Pans Switch Float Switch Condensate Overflow Switch HVAC Float Switch 6ft Wire AC Pan Float Switch for Installation on Primary and Auxiliary Drain Pans
SS1 Condensate Overflow Float Switch for HVAC Systems, Upgraded Transparent Blue PVC with 3/4 Inch Adaptor and 6FT Wire

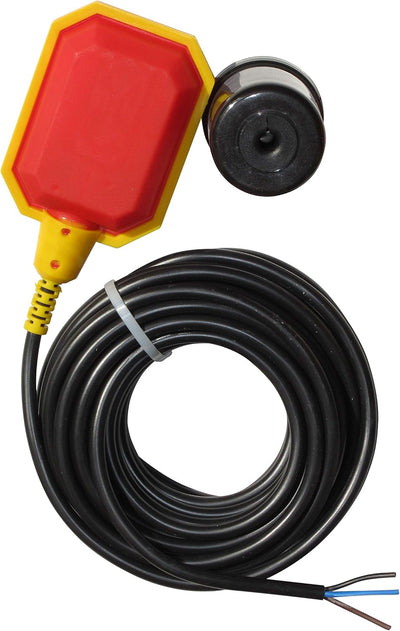

Float Switch for Sump Pump -33-Foot Water Level Sensor with Honeywell Microswitch and Adjustable Tether Length for Ground Water Bilge Pump and Water Tank – Non-Corrosive PP Casing, Rated to 13 Amps
SS2 Float Switch L Shape, Compatible with Safe-T-Switch for HVAC Drain Pan Condensate Outlet, AC Water Level Switch with 3/4 Inch Adapter and 6Ft Wire (1, Transparent Blue)

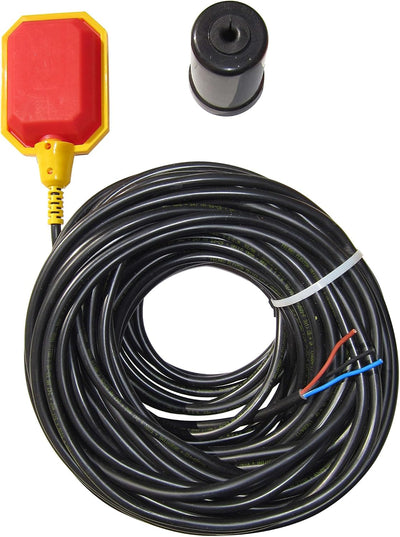

Float Switch for Sump Pump -100-Foot Water Level Sensor with Honeywell Microswitch and Adjustable Tether Length for Ground Water Bilge Pump and Water Tank – Non-Corrosive PP Casing, Rated to 13 Amps

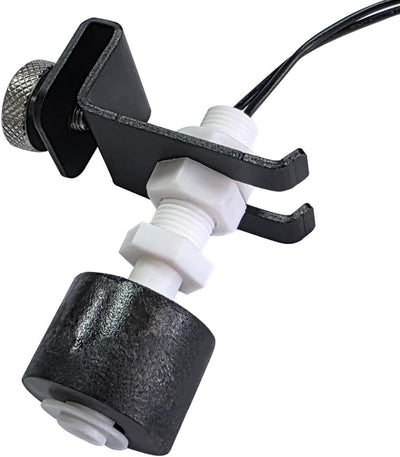

DSY SS3 Float Switch with Adjustable Nut Bracket,Condensate Overflow Switch for HVAC Systems(1 Pack)

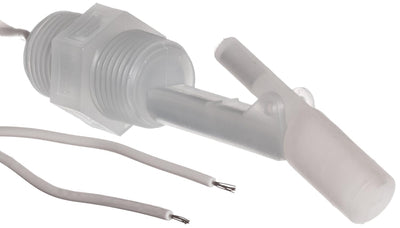

FLOWLINE LH25-1201 0.25 A MAX, 0.5 A MAX, ACCUARCY: 5 MM IN WATER, CONTACT RATING: LV20: 15 VA, HORIZONTAL, IP668, LH25: 30 VA, LH25: -40-221 F, LV20 TEMP: -40-176 F, MINI-FLOAT LEVEL SWITCH, REPEATAB
