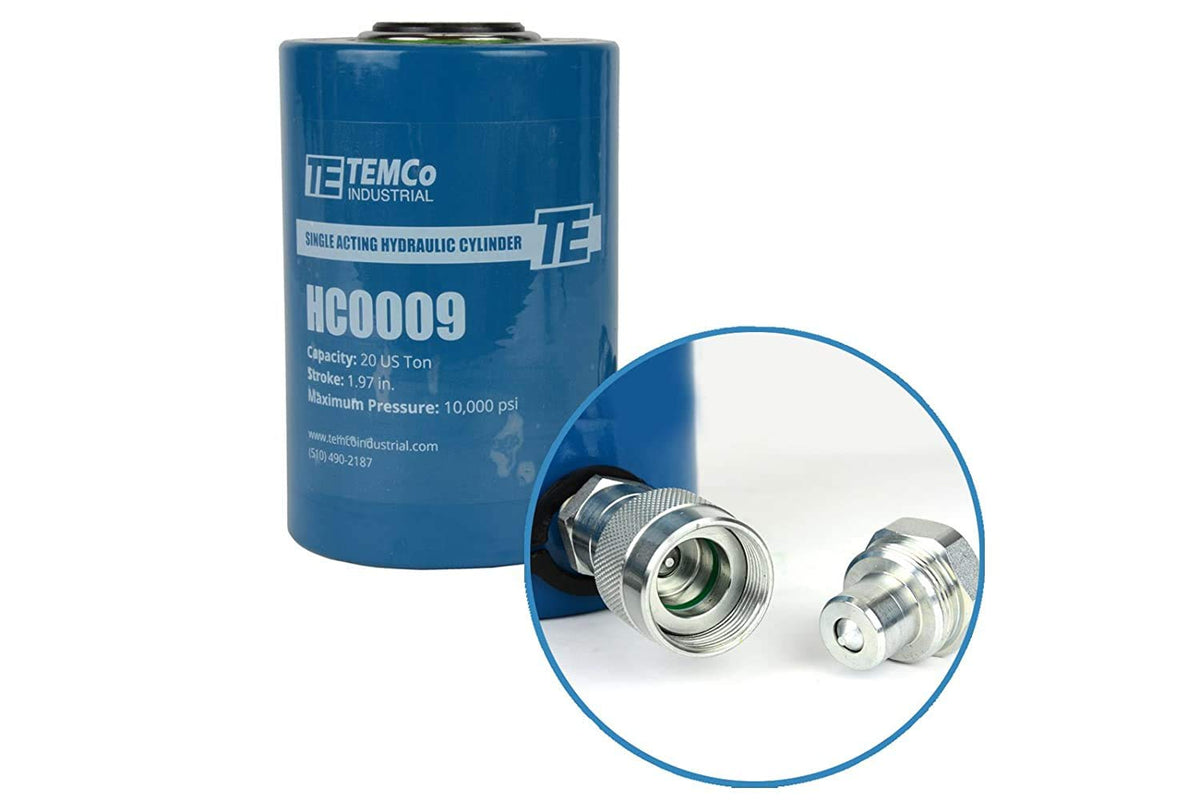

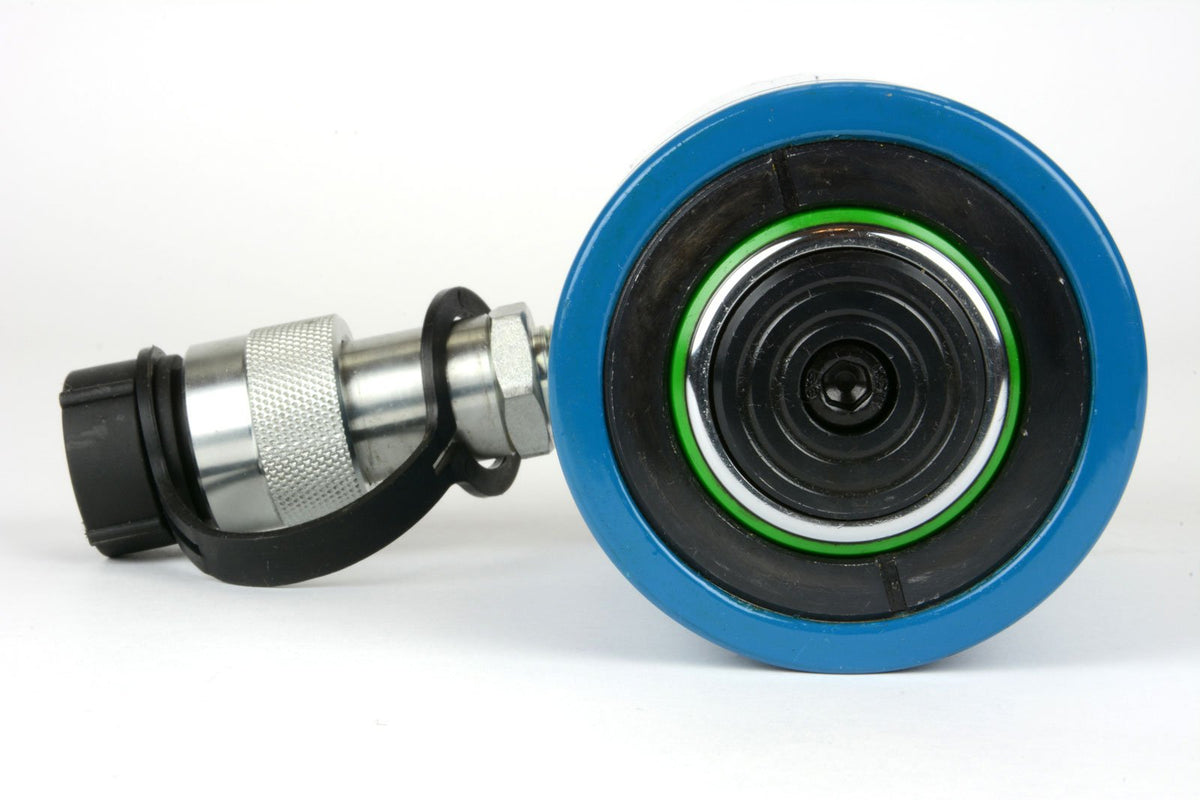

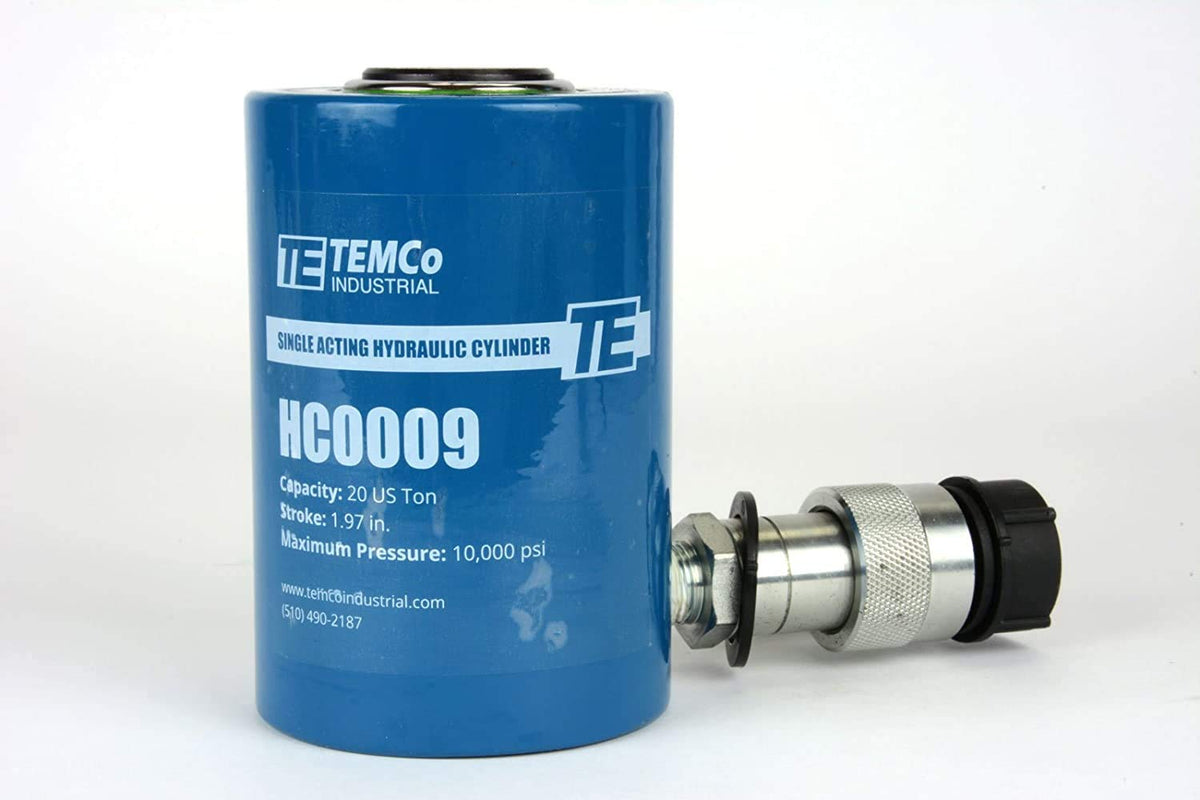

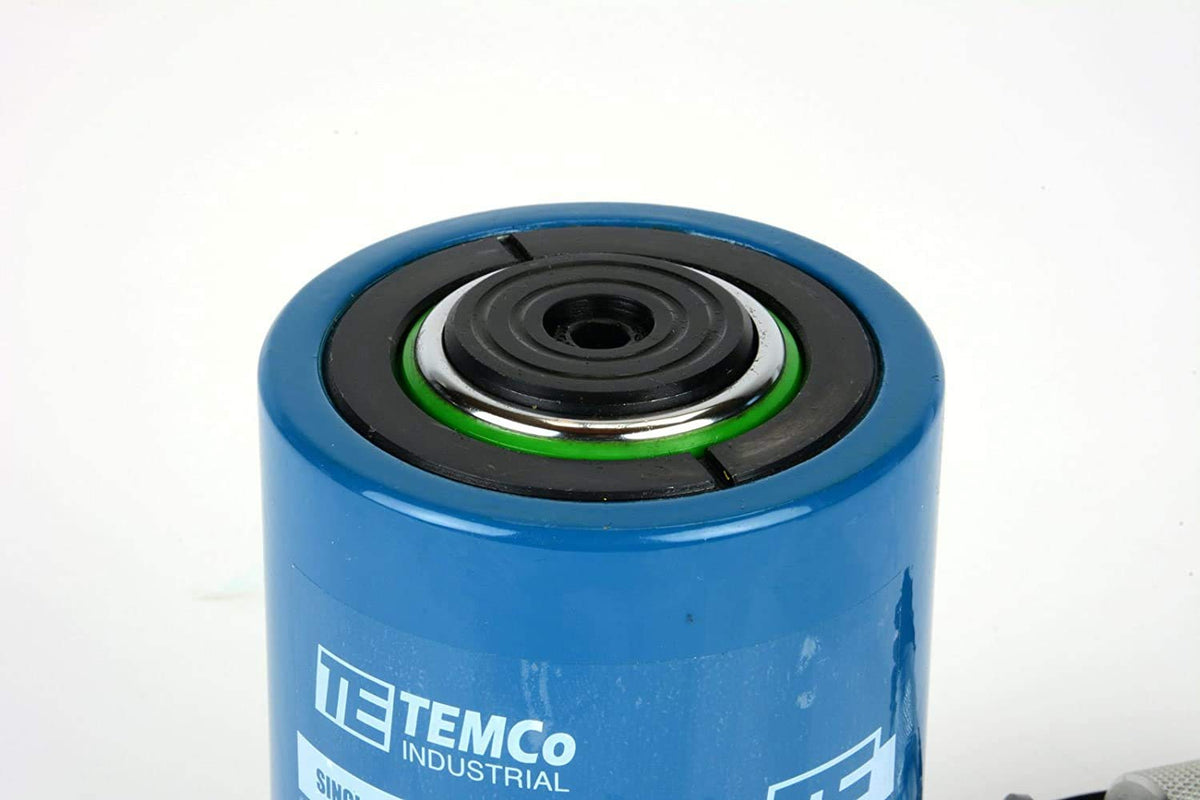

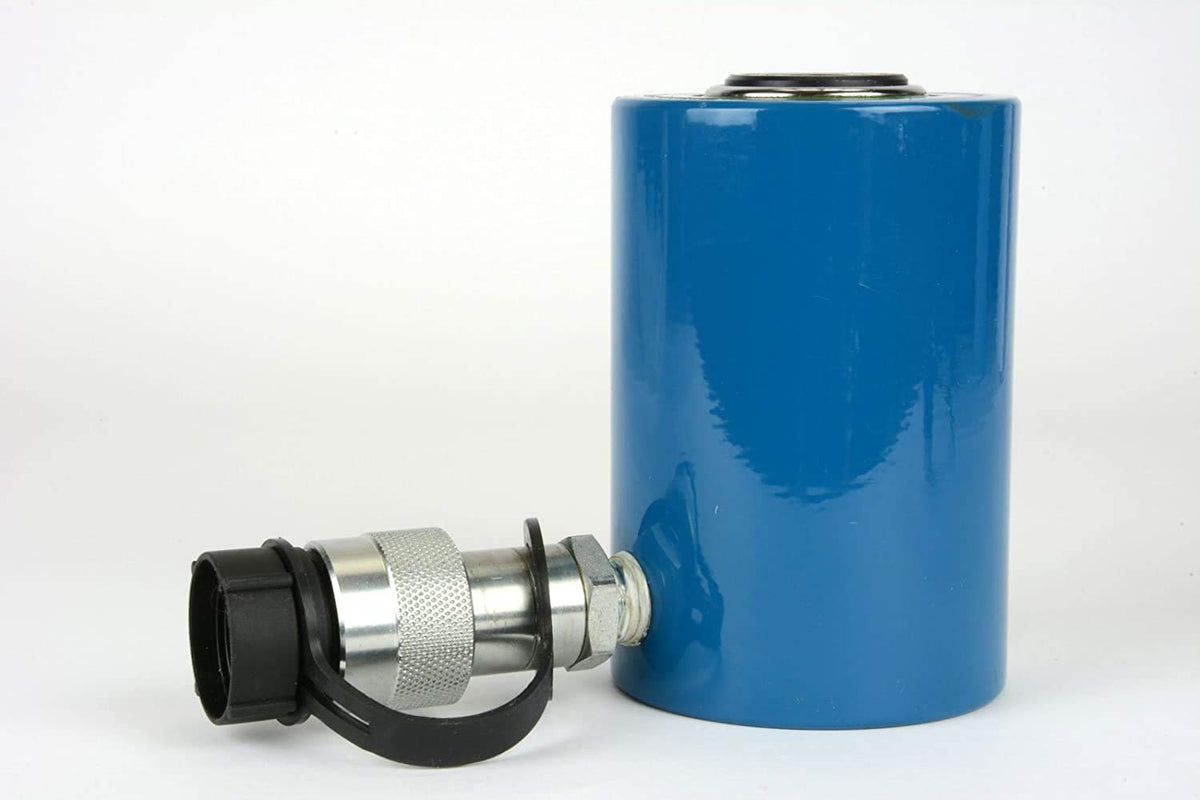

TEMCo 20 Ton Hydraulic Cylinder 2" Stroke Single Acting 10,000 PSI – Machinery, Foundation Support & Construction

Key features

• 20 US Ton Capacity, 2" Stroke. Max Pressure 10,000 PSI. Single acting - Pressure Extend, Spring Return.
• Extended Overall Height: 6.93", Stroke: 1.97", Outside Cylinder Diameter: 3.27", Inner Cylinder Diameter: 2.36", Oil Volume: 9.58 cubic in
• Black oxide plated high carbon steel ram. Proprietary heat-treated steel shell. Chrome plated piston resists wear and corrosion. Dust wiper on piston rod reduces debris.
• Includes ISO 14540 Quick Coupler – Ships with a 3/8" NPT Male & Female hydraulic connector (10,000 psi rated, 6 GPM flow) featuring poppet-style occlusion, nitrile rubber seals, and a protective dust cap; compatible with most standard hydraulic equipment so you can get to work without mismatched fittings.
• Backed by a 5-Year manufacturer warranty for confidence and peace of mind on every job.

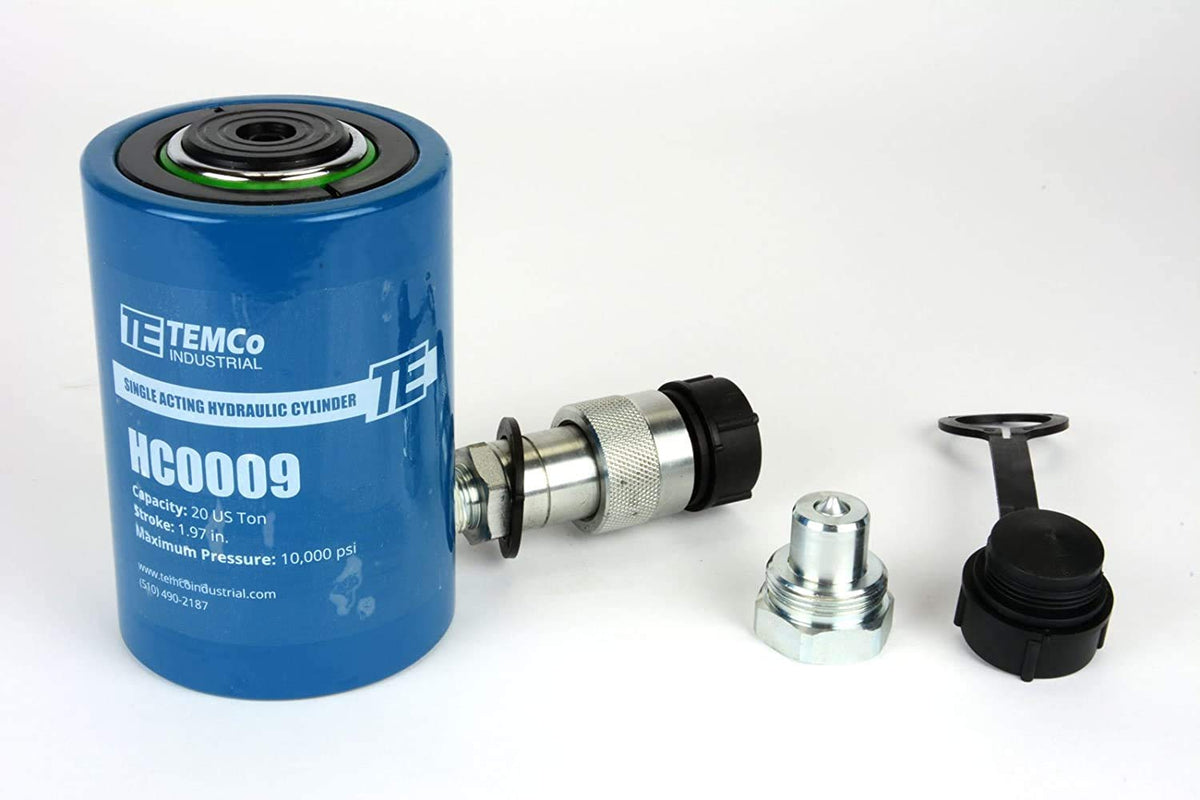

TEMCo Industrial's hydraulic cylinders come with an ISO 14540 coupler, which means you're compatible with a large majority of other products out on the market. Don't deal with the headache of mismatched fittings and confusing coupler specifications - have the confidence that you're ready to thread into a TEMCo hydraulic cylinder so you can get back to your project, whether you're a pro at work or a regular Joe. Not using a standard coupler fitting? That's ok, we've included the matching opposite fitting to adapt your equipment. BONUS: Includes ISO 14540 Male x Female 3/8" NPT Connector (Shown in photos) Type: Hollow Hydraulic Cylinder Action: Single acting (Pressure extend, spring return) Ram Material: Hard Black Oxide Plated High Carbon Steel Capacity: 20 US Tons Compressed Overall Height: 4.96" Extended Overall Height: 6.93" Stroke: 1.97" Outside Cylinder Diameter: 3.27" Inner Cylinder Diameter: 2.36" Oil Volume: 9.58 cubic in Max Pressure: 10,000 psi Min Operating Temp: -15°C Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler with dust cap Warranty: 5 Years Applications Include: Heavy machinery rigging and moving Auto repair Oil rigging Machine maintenance Bearing and bu

Free shipping included. 30-day hassle-free returns.
